An EC fan needs an electronic drive because its brushless motor cannot use mechanical brushes to switch current between windings. The drive times that switching, responds to a speed request, and may provide feedback or protection according to the exact model. “Built in” describes one common packaging choice: the motor and drive are supplied as an integrated fan assembly. It does not mean every EC fan accepts the same control signal, has the same protections, or can be wired from a generic diagram.
What electronic commutation actually does
In a brushed DC motor, a mechanical commutator changes the energized winding as the rotor turns. An EC fan uses electronic switching instead. Its power stage supplies the motor phases in a controlled sequence, based on the drive’s knowledge or estimate of rotor position. That timing is fundamental to producing torque. A speed controller outside the fan cannot simply replace the internal phase-switching logic by varying the supply voltage.
Many mains-input EC drives rectify incoming AC to a DC link, then use an inverter to produce the timed motor-phase currents. That is a useful teaching model, not a universal schematic for every DC-input or custom EC assembly. The precise topology, sensor method, power stage and service boundary must come from the matching technical document.

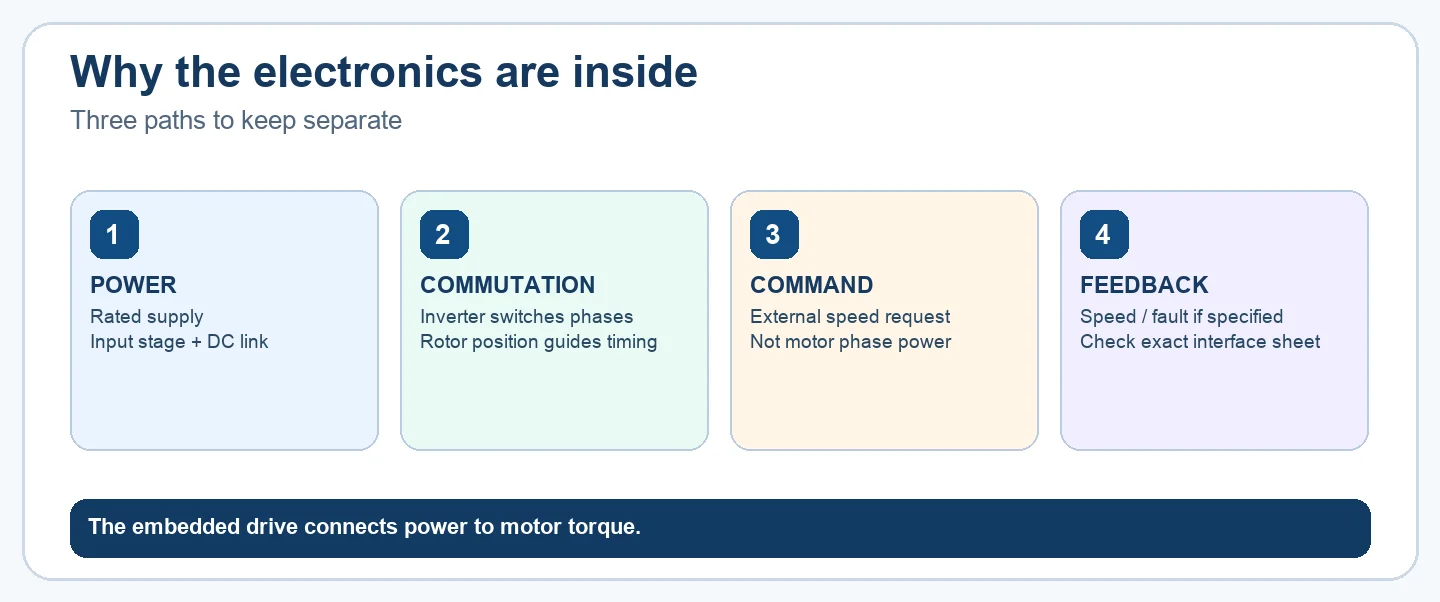

Separate the power, command and feedback paths
The most useful commissioning distinction is between the energy path and the information path. The rated supply powers the drive. A separate analog, PWM or digital command may request a speed or operating state. A feedback output, when provided, may report speed or faults. The command is not the motor’s phase power; the embedded drive still decides when to switch the windings.
This distinction prevents a common integration mistake: choosing an external control device before reading the fan’s input and feedback requirements. The control voltage range, reference, isolation, pull-up requirements and response to a missing signal can differ between models. The EC control-interface guide explains the concepts; the approved model wiring sheet controls any actual connection.

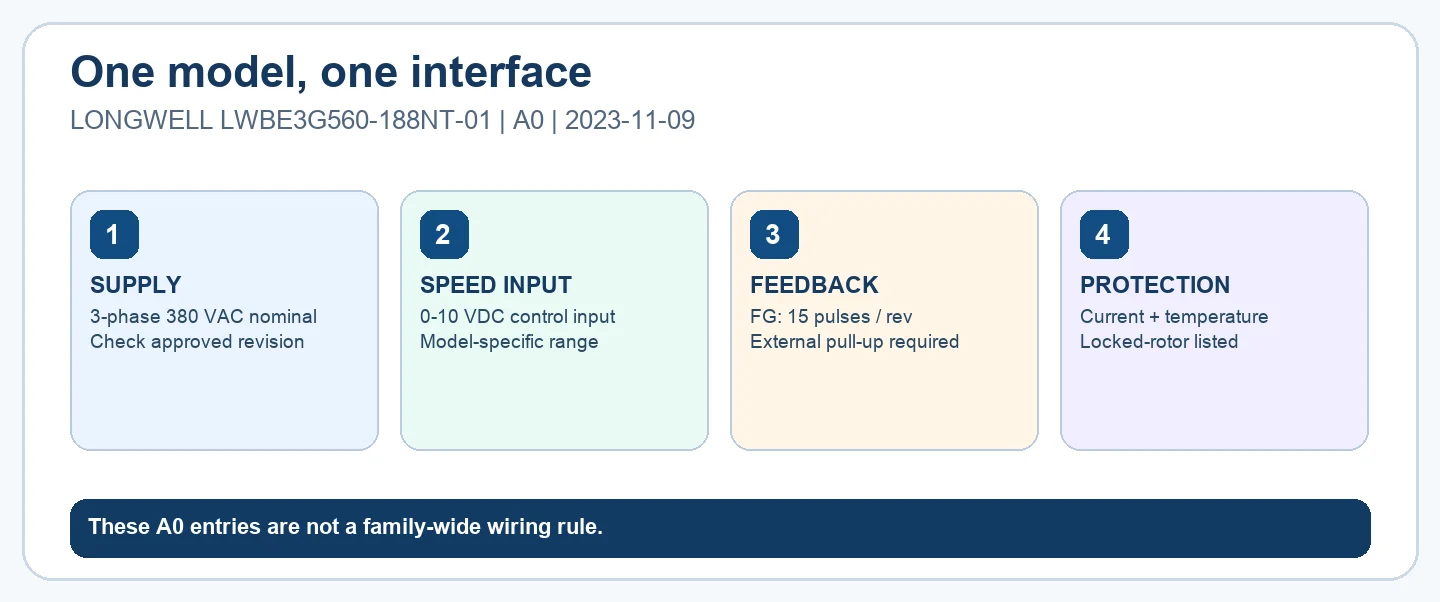

What a LONGWELL model document proves
A concrete example is the LONGWELL LWBE3G560-188NT-01 EC backward centrifugal fan specification, revision A0, dated 9 November 2023. That document identifies a nominal three-phase 380 VAC supply, a 0–10 VDC speed-control input and an FG tach output described as 15 pulses per revolution with an external pull-up. It lists current-limiting, over-temperature, over-current, locked-rotor and input phase-loss protection for that revision. Those are document-bound entries for this model. They cannot be copied to another EC fan, a newer revision or an installed assembly without checking the current approved sheet.
The same specification gives a model drawing and a wiring page. This article deliberately does not reproduce terminal colors or a connection sequence. Electrical work requires the current approved drawing, a qualified installer and the site isolation procedure. The LONGWELL EC backward centrifugal fan family is a starting point for identifying candidates, not evidence that every model shares the example interface.
Why integrate the drive with the fan?
An integrated assembly can reduce the amount of external drive hardware and lets the supplier match the motor and its control electronics as a package. It can also simplify how a building controller requests a speed. The benefit in a specific installation depends on the existing panel, cable routing, EMC design, supply, required diagnostics and service strategy. There is no fixed saving in energy, parts or labor merely because the electronics sit on the fan.
Integration also changes what must be protected and maintained. The drive has its own temperature and electrical limits. Heat in the equipment space, airflow over the electronics and any required enclosure protection must be checked against the exact assembly document. Whether a board can be replaced separately is a product and service question, not an EC-motor rule. The EC grounding and EMC guide provides background on separating supply and control paths; use the actual installation instructions for cable and protective-device decisions.
Do not turn listed functions into universal promises
Some EC fan specifications list soft start, current limiting, thermal protection, a tach signal or serial communication. These functions have defined thresholds, delays and interface conditions. A listing does not show that starting current always equals running current, that a separate protective device is unnecessary, or that every failure is reported to a building-management system. Nor does it prove that a given model tolerates an external variable-frequency drive on its input. Check the supply and control restrictions in the current model instructions before specifying another controller.
Efficiency needs the same discipline. Motor and drive losses, fan aerodynamics and the installed pressure-flow duty all matter. Compare alternatives at a defined airflow and static pressure with comparable power data; do not transfer a family-level savings percentage to an unmeasured application. The EC versus AC fan guide sets out the comparison questions, but a project selection needs the exact curve and operating point.
Build an interface passport before procurement
Record the complete fan model and suffix, document revision, rated supply, operating range, command type and reference, feedback signal, fault behavior, environmental limits, approved wiring drawing and required protective measures. Add the intended airflow and static pressure, installation orientation and service-access plan. If one of these inputs is missing, ask for the controlled specification rather than treating a nearby catalogue model as interchangeable.
The reason for built-in electronics is now clear: electronic commutation is part of making a brushless fan motor run. Packaging the drive with the motor can make an EC fan easier to integrate, but the interface and application limits remain model-specific.
