Longwell: Forward Curved Centrifugal Fan Manufacturer

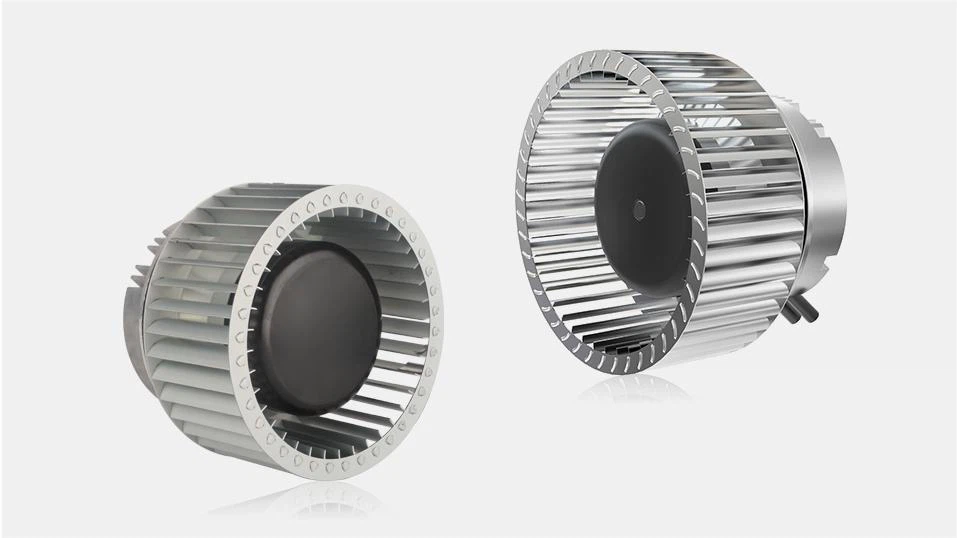

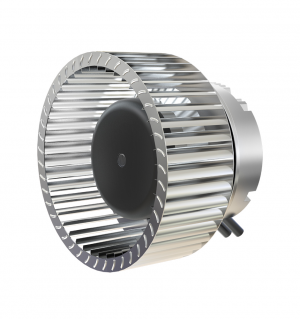

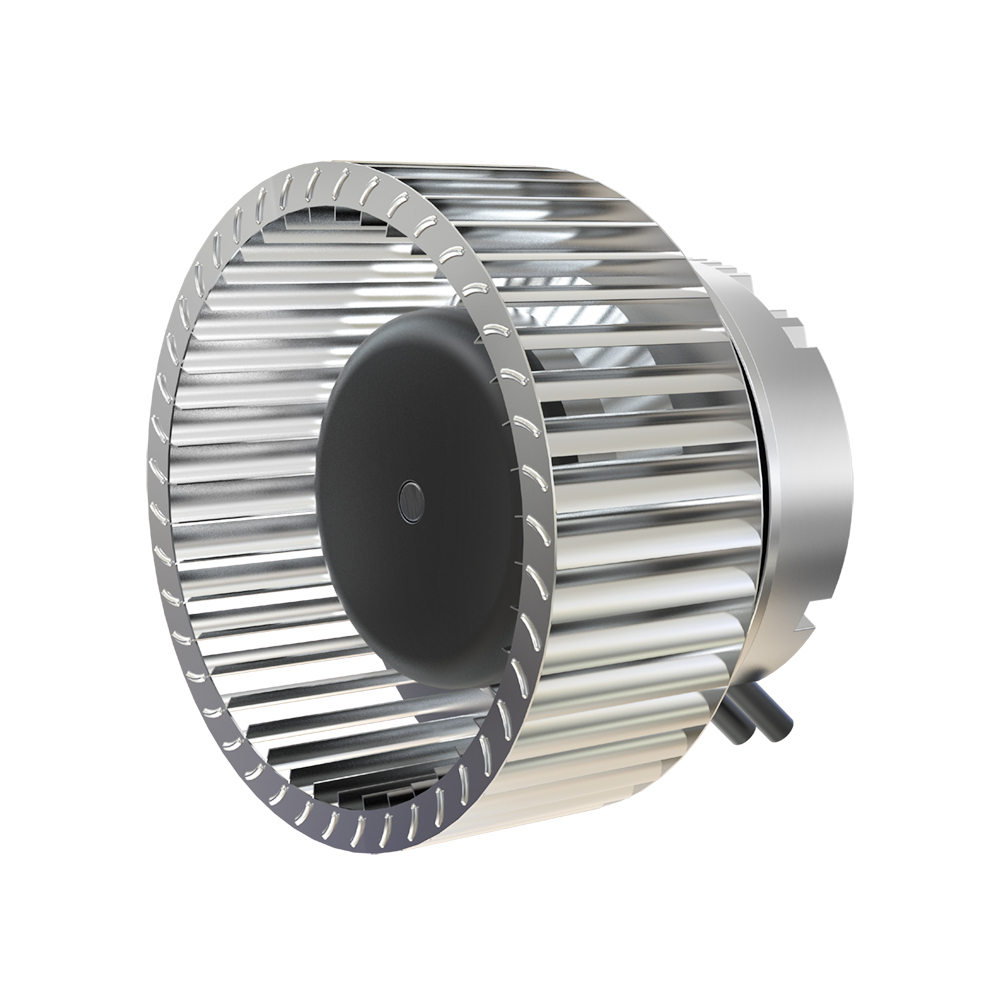

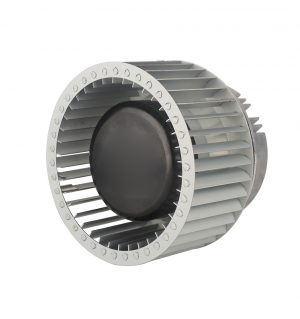

LWFE Series EC forward centrifugal fan

• Impeller Size: Available in multiple sizes, including 108mm, 120mm, 133mm, 140mm, 160mm, and 180mm to suit various applications.
• Motor Type: Equipped with a Brushless EC (BLEC) external rotor motor for enhanced efficiency and durability.
• Certification: Complies with international standards, including CE, UL, RoHS, CCC, ETL, ensuring safety and quality.

Features:

• Energy Saving: Achieves up to 30% energy savings, significantly reducing operating costs.
• Increased Refrigeration COP: Enhanced Coefficient of Performance (COP) for improved refrigeration efficiency.
• Adaptable Air Flow: Allows simple adjustment of airflow to meet specific application needs.
• Noise Reduction: Engineered for significantly reduced noise levels, ideal for sound-sensitive environments.
• Long Service Life: Designed for long, maintenance-free service life, minimizing operational interruptions.
• Low Abrasion: Minimal abrasion, resulting in less frequent filter changes and improved longevity.

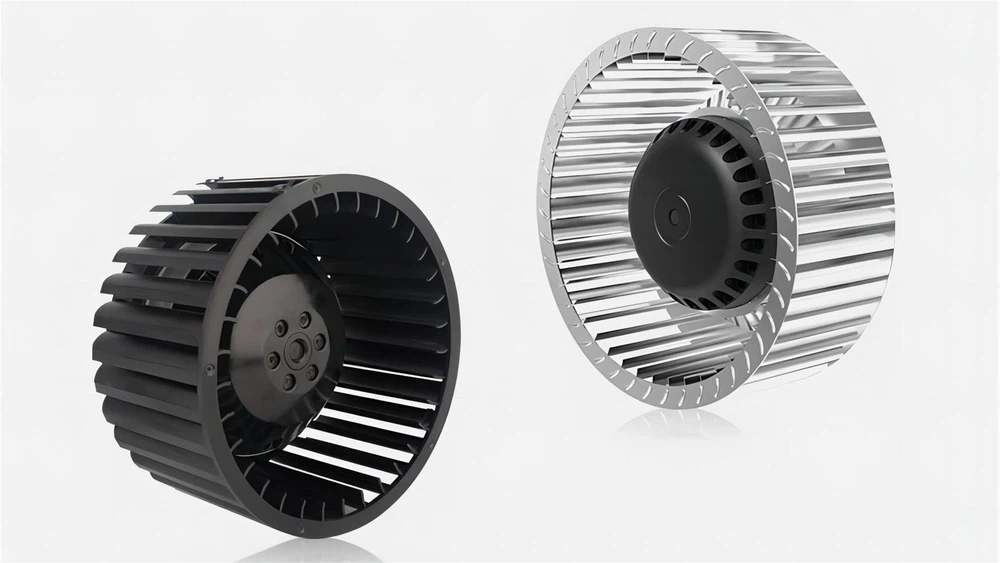

LWFA Series AC Forward Curved Centrifugal Fan

• Impeller Size: Available in diameters ranging from 120mm to 500mm, suitable for various industrial and commercial applications.
• Motor Type: Powered by an AC External Rotor Motor for consistent and powerful operation.
• Certification: Meets international standards, including CE, UL, RoHS, CCC, and ETL, ensuring compliance and quality assurance.

Features:

• Motor Protection: Equipped with a Thermal Overload Protector (TOP) for enhanced motor safety and durability.
• Impeller Material: Constructed from galvanized metal for robust and long-lasting performance.
• Operating Temperature: Designed to function reliably in temperatures ranging from -30°C to +60°C.
• Voltage Options: Available in 230V, 115V, and 380V variants to meet diverse power requirements.
• Type of Protection: Rated with IP54/IP44 protection for resistance against dust and splashes, ensuring durability in various environments.
• Bearing Types: Utilizes maintenance-free ball bearings, providing a long operational life with minimal upkeep.
• Mode of Operation: Supports continuous operation (S1) for consistent performance in demanding applications.
• Insulation Class: Class "B" insulation for reliable thermal protection and operational safety.

Forward Curved Centrifugal Fan Advantages:

• High Airflow Capacity: Forward Curved Fans provide excellent airflow capacity. The curved blade design enables efficient movement of large air volumes, ideal for applications requiring substantial air circulation.
• Lower Noise Levels: Engineered for quieter operation, the forward-curved blades help minimize turbulence and reduce noise, making them suitable for noise-sensitive environments.
• Cost-Effective: Forward Curved Fans are often a budget-friendly choice due to their simpler design and manufacturing process, resulting in lower production costs while maintaining reliable performance.

Forward Curved Centrifugal Fan Limitations:

• Lower Efficiency at Higher Pressures: AC Forward Curved Fans experience reduced performance as pressure increases, leading to decreased airflow and efficiency. They are less suited for high static pressure applications.
• Limited Static Pressure Capabilities: Optimized for high airflow but lower static pressures, these fans may struggle with applications requiring significant pressure differentials, making them less ideal for overcoming high resistance or pressure drops.

Applications for Forward Curved Fans:

Forward Curved Fans find their best applications in scenarios that prioritize high airflow capacity, moderate pressure requirements, and noise reduction. Some common applications where Forward Curved Fans are commonly used include:

• HVAC Systems: Widely used in heating, ventilation, and air conditioning systems, Forward Curved Fans provide efficient airflow for cooling and ventilation in both commercial and residential buildings.
• Air Handling Units: Employed in air handling units to circulate air in industrial and commercial facilities, these fans help maintain proper ventilation and air quality.
• Electronics Cooling: Suitable for cooling electronics and preventing heat build-up in components like computers, servers, and electronic enclosures.
• General Ventilation: Ideal for general ventilation in large spaces such as warehouses, factories, gyms, and other areas requiring adequate air movement.
