Blower Selection for Residential Condensing Boilers
Start a boiler blower enquiry with the complete appliance air path, operating range and controller requirements. LONGWELL gas-blower references help identify candidate configurations; the selected model must then be assessed with the boiler manufacturer for its handled medium, mounting and operating sequence.
Match the blower to the appliance air path
A wall-mounted boiler combines a compact installation envelope with several operating conditions. This page helps organise the blower brief around pressure and airflow, air-path exposure and electrical behaviour, so a catalogue comparison can progress to a defined sample and appliance test plan.
Define the blower position and air duty
Provide a schematic showing where the blower sits relative to the intake, mixing components and heat exchanger. Identify the medium passing through it and supply the required airflow and pressure at minimum load, normal operation and startup. The same nominal boiler output can involve different system resistance and blower requirements.
- Blower position and handled medium
- Flow and pressure at each load
- Intake and heat-exchanger resistance
Resolve fit, sealing and condensate exposure
Send the existing part number and a dimensioned assembly drawing, including the inlet, outlet, fixing points and connector access. Record air-stream and motor-compartment temperatures separately. Identify whether condensation can reach the blower during operation or shutdown, and ask for the proposed model’s material, sealing and installation limits before arranging a sample.
- Inlet, outlet and fixing dimensions
- Condensation route and drain arrangement
- Motor ambient and air-stream temperature
Agree the controller and validation sequence
Specify supply voltage, speed command, feedback format and the appliance response when the expected blower signal is absent. Include startup, modulation and shutdown requirements in the test brief. Request the electrical drawing and model-specific performance records for the complete proposed assembly, then agree how the boiler manufacturer will verify integration.
- Connector pinout and speed command
- Feedback and controller fault response
- Appliance test points and acceptance criteria
Match the fan family to the equipment.
Compare the proposed model at the required airflow and pressure, then check the installation and control interface.
Compact gas-blower configurations
Review the published boiler-blower configuration with your air-path diagram and control requirements. Request a model-specific drawing and curve before selecting a sample.
Explore this fan family →

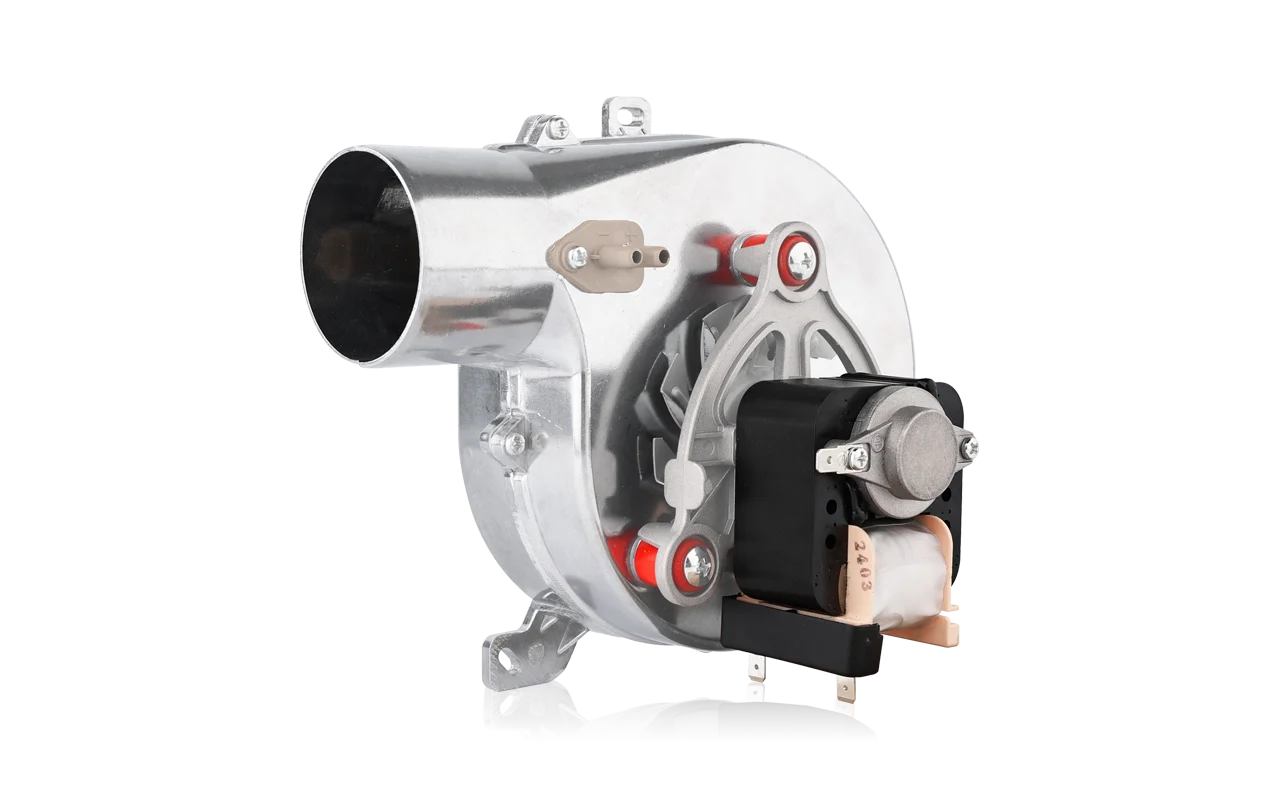

AC gas-blower reference
An AC blower reference for comparing housing, mounting and electrical arrangements. Confirm whether the specific model supports the intended condensing-appliance duty and exposure.
Explore this fan family →Product images show family configurations. Request the drawing, curve and electrical information for the exact model being considered.
What should your fan enquiry include?
Share these application details so the fan proposal can be reviewed against your equipment.
Bring the equipment context to the fan review.
A drawing, the operating condition and a clear control requirement make the proposed configuration easier to compare. For a replacement, include the existing nameplate and wiring details.
Discuss your application →Reference material for the next step.
Use the family overview to discuss available configurations, then request the current drawing and performance data for the proposed model.
AC series catalogue · PDFAC gas-blower catalogue ↗Compare the AC product references with your supply and mechanical requirements; confirm air-path suitability through the complete model documentation.
Engineering checklistFan replacement controls checklist ↗Record electrical connections, control signals and mounting differences when assessing an existing blower replacement with the appliance manufacturer.
Catalogs support initial selection. Confirm the current specification and approved configuration with the project team.
Is matching voltage and outside dimensions enough for a replacement?
Those checks establish only part of the interface. Compare the pressure-flow behaviour, control and feedback signals, sealing arrangement, handled medium and operating temperatures as well. The boiler manufacturer needs to assess the complete replacement within the appliance’s operating sequence.
Does a gas-blower catalogue establish condensing-boiler compatibility?
A catalogue is a useful starting point for identifying candidates. It does not establish compatibility with every boiler or condensate condition. Request documentation for the complete proposed model, identify the required exposure conditions, and agree the appliance-level tests before committing to the configuration.
