Longwell: Backward Curved Centrifugal Fan Manufacturer

OEM-Grade Motorized Impellers & Plug Fans for High-Pressure Systems

We manufacture industrial backward-curved centrifugal fans from 133mm to 630mm. Engineered with a non-overloading power curve and intelligent AC/DC/EC motor options, delivering reliable high-static pressure for AHUs, data centers, and cleanroom ventilation.

High Static Pressure Non-Overloading Curve AC/DC/EC Motor Options G2.5 Dynamic Balanced

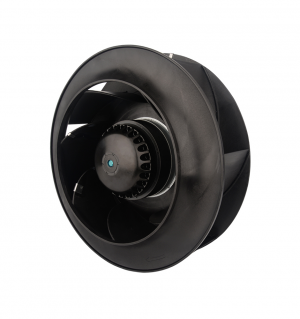

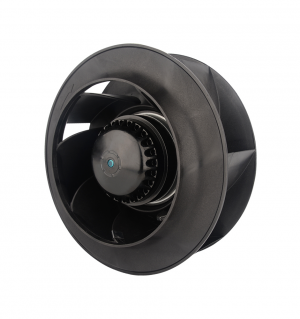

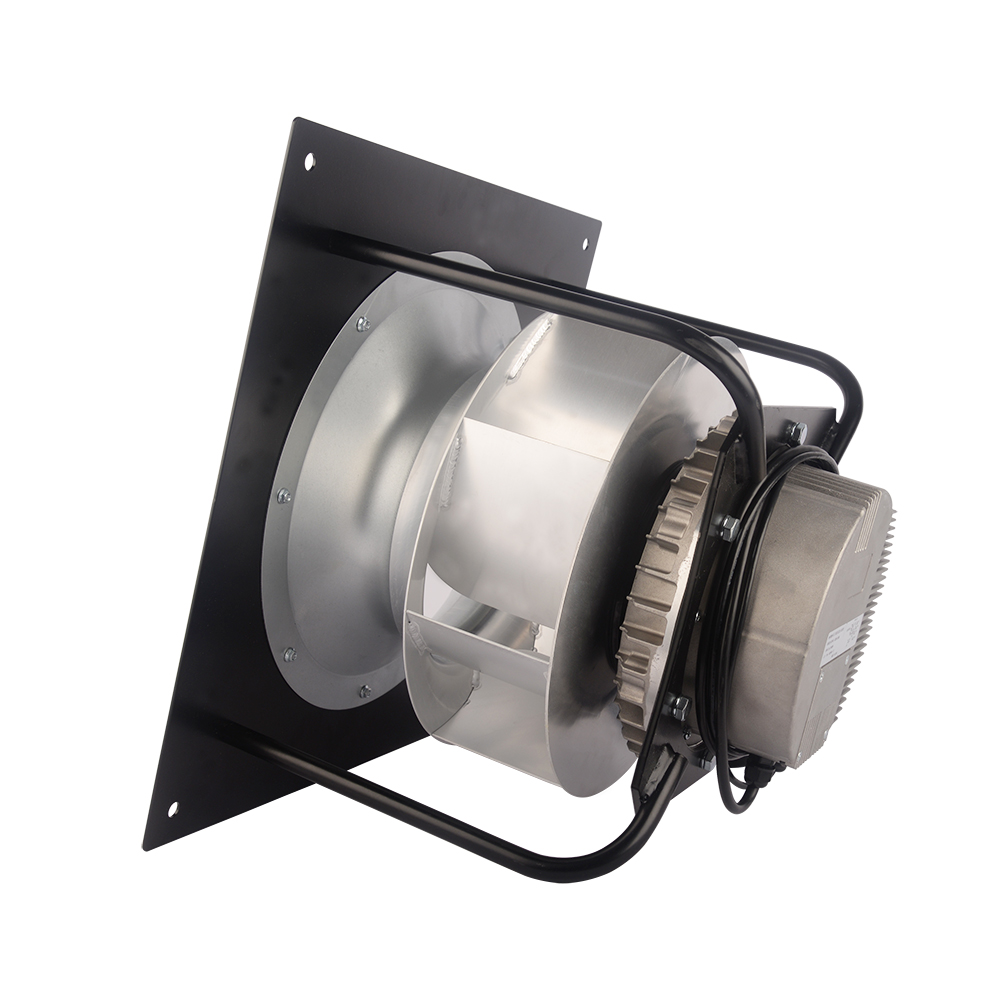

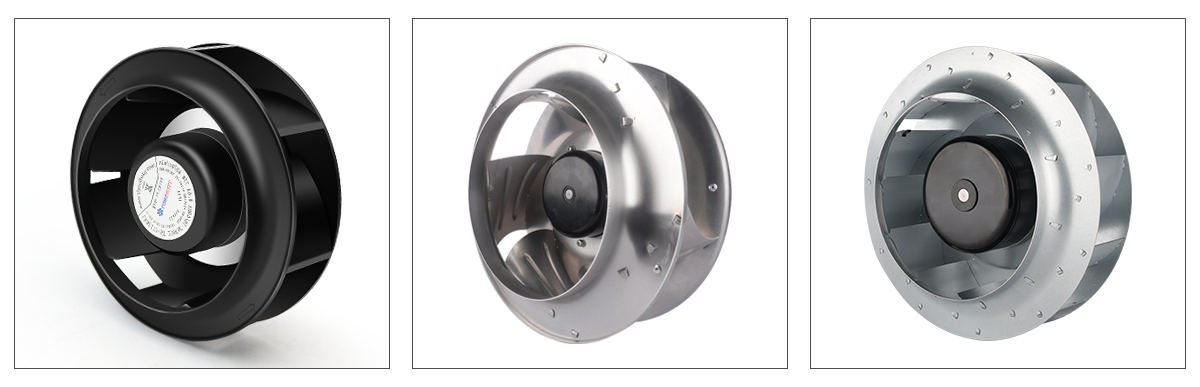

LONGWELL Backward Curved Centrifugal Fan

Get a Quote on Backward Curved Centrifugal Fan

Send blade diameter, airflow and voltage - an engineer replies within one working day with a matching model.

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Backward Curved Centrifugal Fans — Model Selection Table

Choose a product category below, then filter by drive type, size, voltage or duty point. Click any row to open the full datasheet, performance curve and drawing.

587 models · AC / DC / EC · Updated Nov 2026

Product Categories

Showing 1–12 of 587 models
Product ↕ Drive Size ↕ Airflow (m³/h) ↕ Static Pressure ↕ Voltage / IP Speed ↕

The models and parameters listed above are for reference only. Need a customized solution? Contact us → and our engineers will provide a tailor-made solution designed for your specific needs.

Get More Recommendation

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Leave your name, email and phone. Longwell can follow up for specs and model selection.

Need direct technical consultation?

Send your requirements & attachments directly to our senior sales engineers at sales@longwellfans.com.

Catalogs & Brochures for Backward Curved Centrifugal Fans

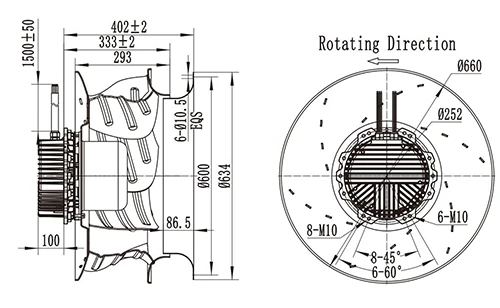

Inside these downloadable PDF brochures, you will find precise aerodynamic performance curves (PQ curves), exact dimensional drawings, wiring diagrams, and acoustic data to help you select the right backward curved centrifugal fan for your HVAC, air handling, or ventilation project.

LONGWELL backward curved centrifugal fans catalog

What are Backward Curved Centrifugal Fans?

Longwell backward-curved centrifugal fans deliver reliable air movement with blades curved opposite to the direction of rotation. Unlike forward-curved types, they accelerate air and discharge it roughly at a right angle to the incoming flow. This aerodynamic layout generates strong static pressure while keeping energy consumption low.

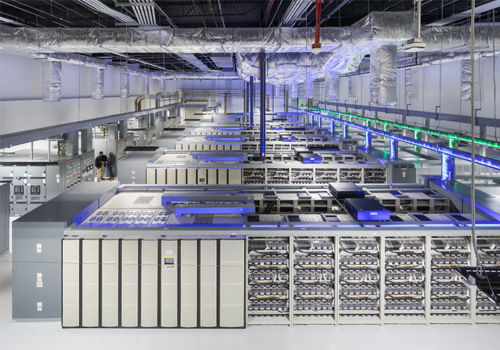

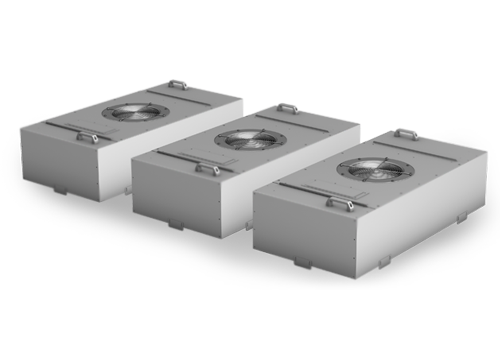

We offer AC, DC and smart EC variants built around outer rotor motors. The integrated layout saves space and keeps the motor well cooled. Built to push against heavy duct resistance while maintaining steady airflow, these fans are widely specified for air handling units, fan coil units, FFUs, cleanrooms and cooling walls for modular data centers.

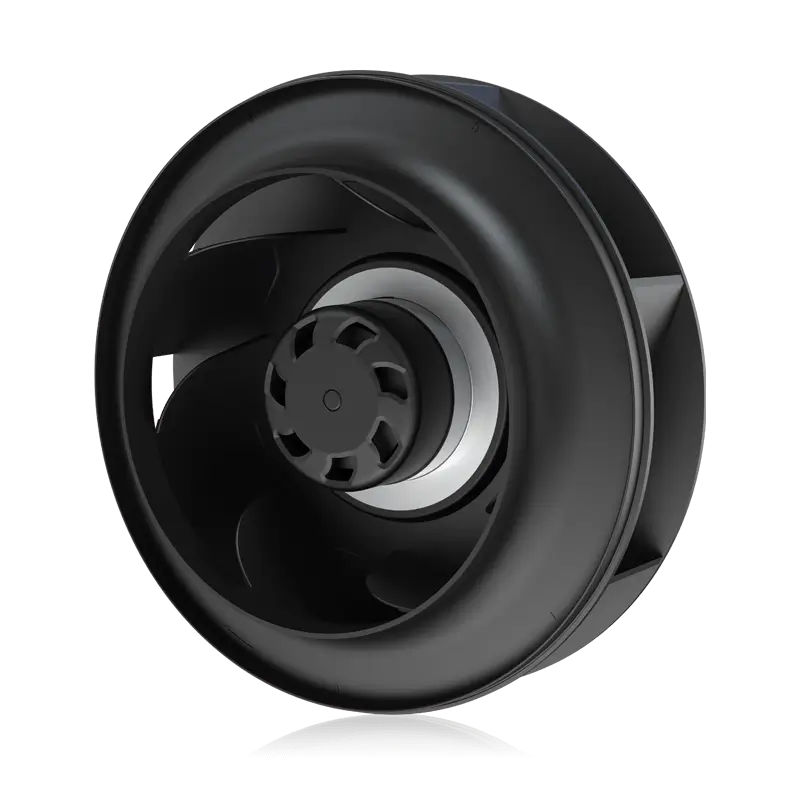

Backward Curved Centrifugal Fan

Send Your Inquiry Now!

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Comprehensive Drive Options

Complete product ecosystems spanning high-efficiency EC, flexible DC, and robust AC motors to seamlessly match any electrical infrastructure.

Superior Aerodynamic Efficiency

Precision-engineered impellers optimized via CFD simulation and wind-tunnel testing, ensuring maximum air performance with minimal power consumption.

Intelligent EC Control Integration

Advanced EC variants feature built-in 0-10V/PWM speed control, tachometer output, locked-rotor protection, reverse polarity safeguards, and smooth soft-start capabilities.

Rugged Industrial Durability

Built with high-grade aluminum alloy or reinforced PA66 plastic impellers, maintenance-free ball bearings, and up to IP54 protection ratings for reliable continuous-duty operation in harsh environments.

Why Choose Longwell Backward Curved Centrifugal Fans

Partnering with Longwell means securing an uncompromising level of manufacturing excellence and industrial reliability directly from a trusted source.

With over 30 years of specialized expertise in HVAC&R engineering, our state-of-the-art production facilities span 40,000 square meters and house advanced automated manufacturing lines, high-precision CNC machining centers, and automated robot injection systems.

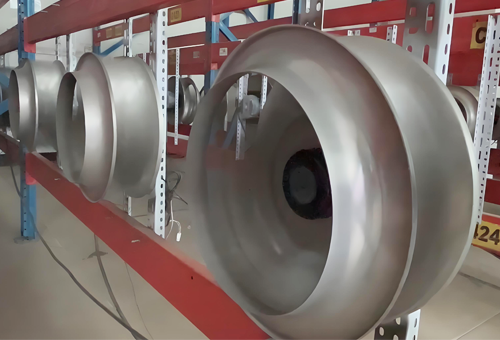

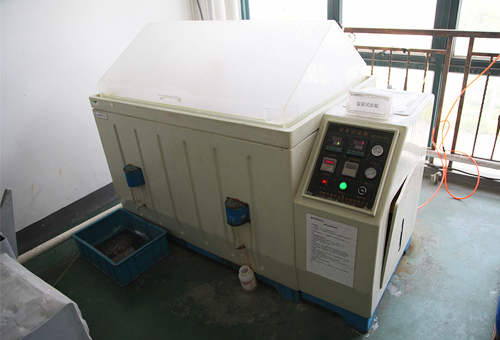

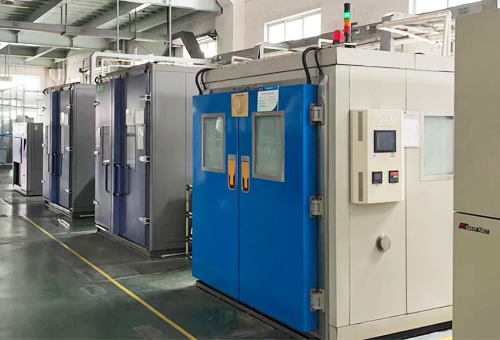

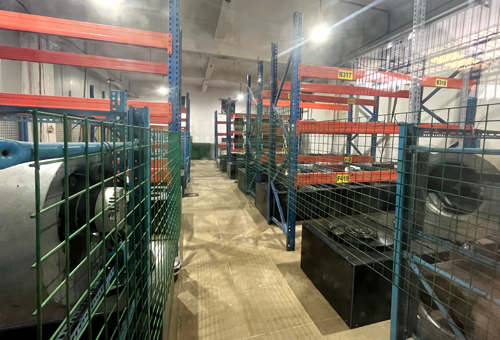

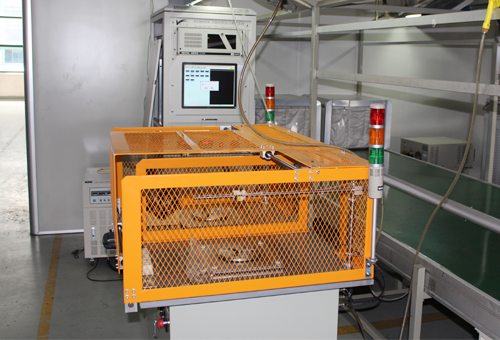

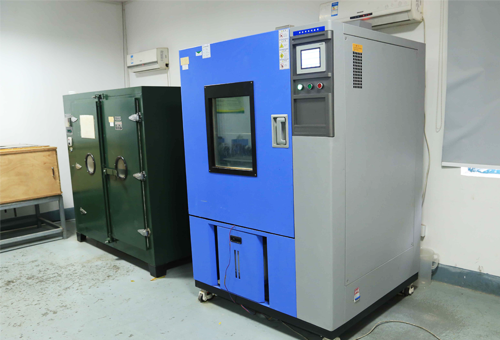

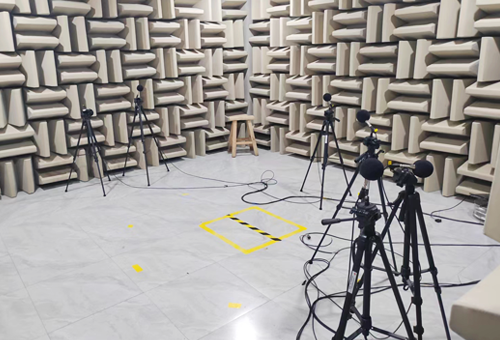

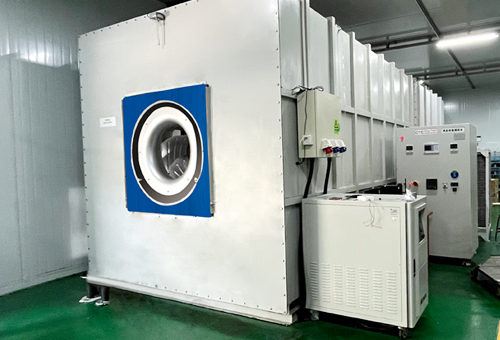

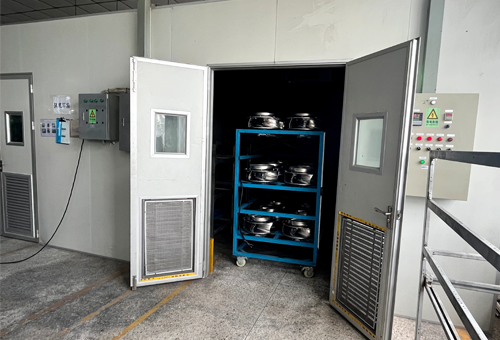

Furthermore, our rigorous quality assurance framework and advanced in-house laboratories—including a certified B&K acoustic testing lab, CFD simulation engineering lab, and air dynamics test chambers—ensure that every backward-curved centrifugal fan meets the highest international performance standards.

Fully compliant with ISO 9001, ISO 14001, BSCI, CE, UL/ETL, and LVD certifications, LONGWELL delivers engineered-to-last solutions combined with responsive global technical support, making us the definitive drive and ventilation partner for your mission-critical applications.

How Does a Backward Curved Centrifugal Fan Work?

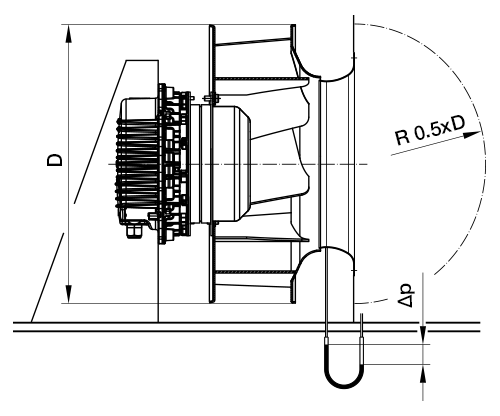

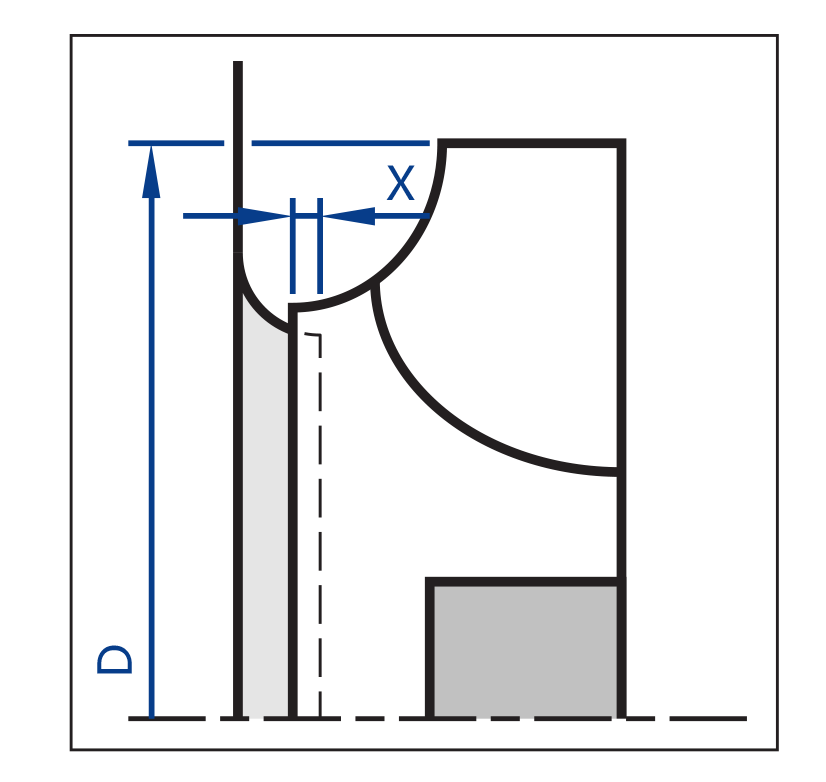

Air enters axially through the inlet eye and the rotating impeller turns it 90° outward, discharging it into a scroll housing — or straight into the plenum in a plug-fan layout. Centrifugal force and the backward-curved blade profile convert motor torque into static pressure; the housing then slows the air and recovers velocity as usable pressure.

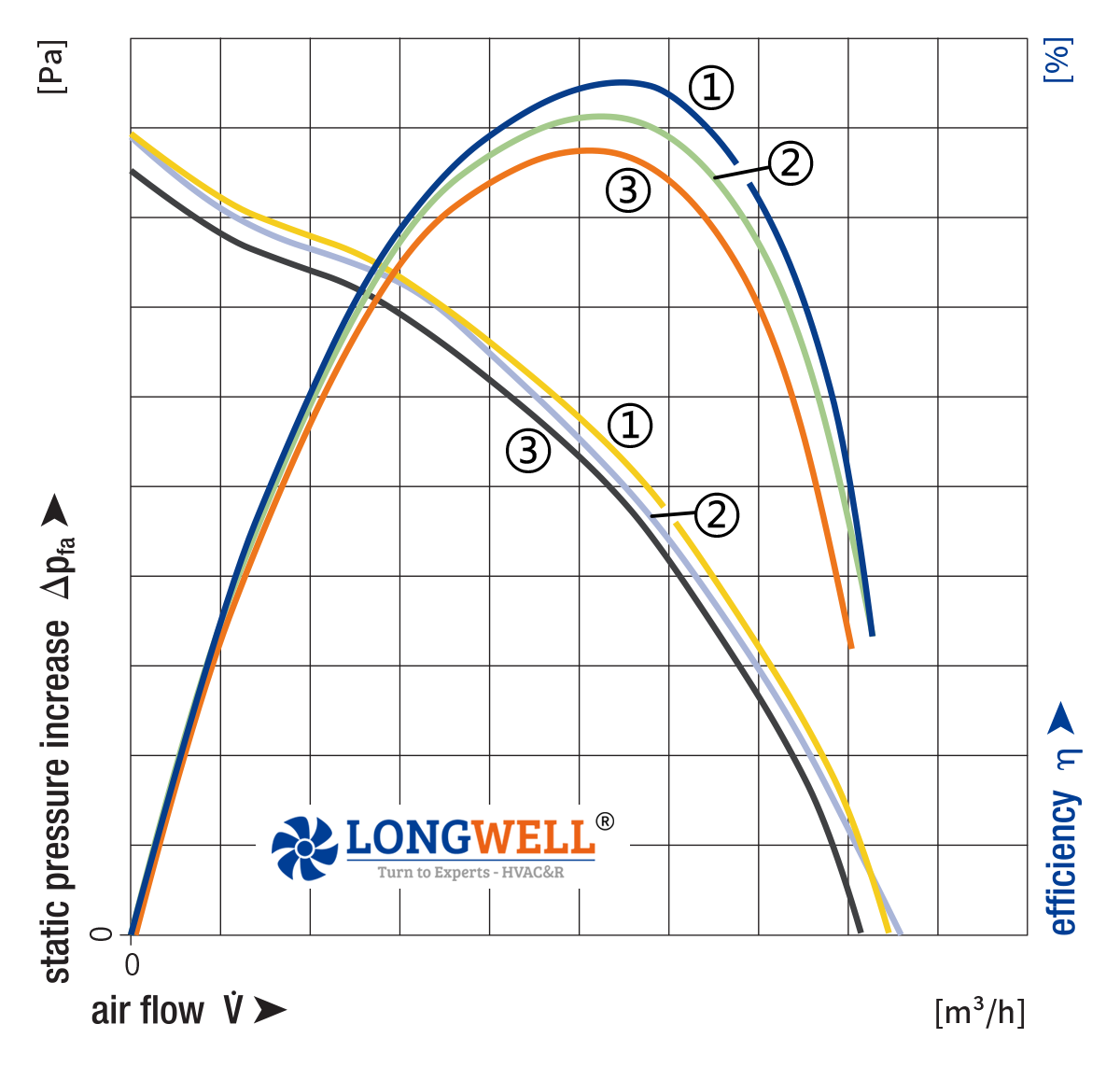

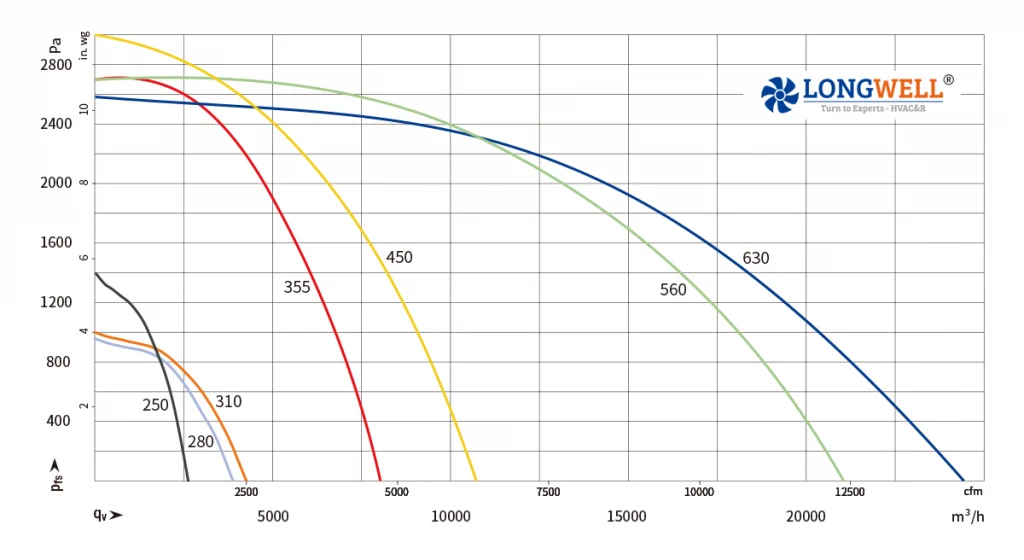

Because air leaves the blade tip at a shallow angle, separation and losses stay low at the design point, while input power flattens at high flow instead of climbing. This non-overloading behaviour makes motor sizing safer when filters are clean, dampers are open or duct resistance shifts. Always confirm the duty point on the P–Q curve.

Backward Curved vs Forward Curved Impellers

CharacteristicBackward curvedForward curved
Blade orientationLeans away from rotationLeans into rotation
EfficiencyHigher at the design pointLower, more losses
Pressure capabilityMedium to highLower per unit of speed
NoiseQuieter for the same dutyGenerally higher
Power curveSelf-limiting, non-overloadingRises steadily with flow
Typical dutyAHU, FFU, ventilation, clean airCompact, low-pressure appliances

Both are centrifugal fans — the difference is blade geometry, not the airflow path.

Inside the LONGWELL Backward Curved Centrifugal Fan Range

Drive / versionModelsSizes (mm)Supply voltageAir volume (m³/h)Static pressure (Pa)Input power (W)
AC14416 · 133–630115/230/380/460 VAC, 50/60 Hz225–17,955155–1,33927.8–3,320
DC (BLDC)2610 · 133–40024/48/310 VDC386–3,059319–1,00928–230
EC without bracket7416 · 133–630115/220/230/380/400 VAC433–23,896332–2,52440–5,600

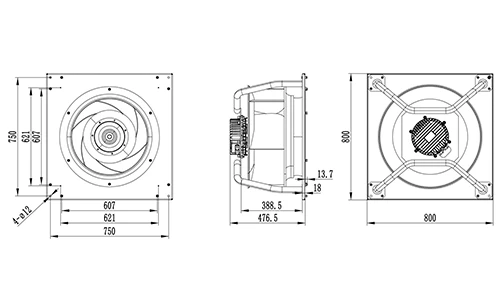

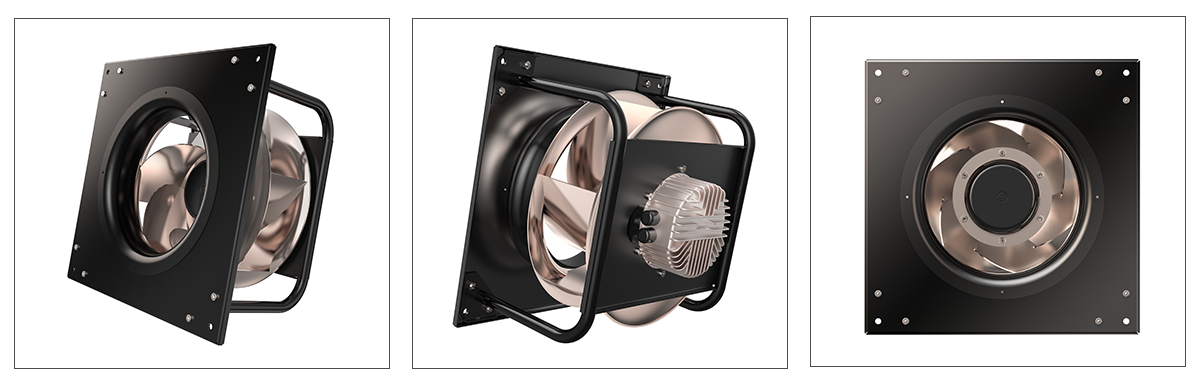

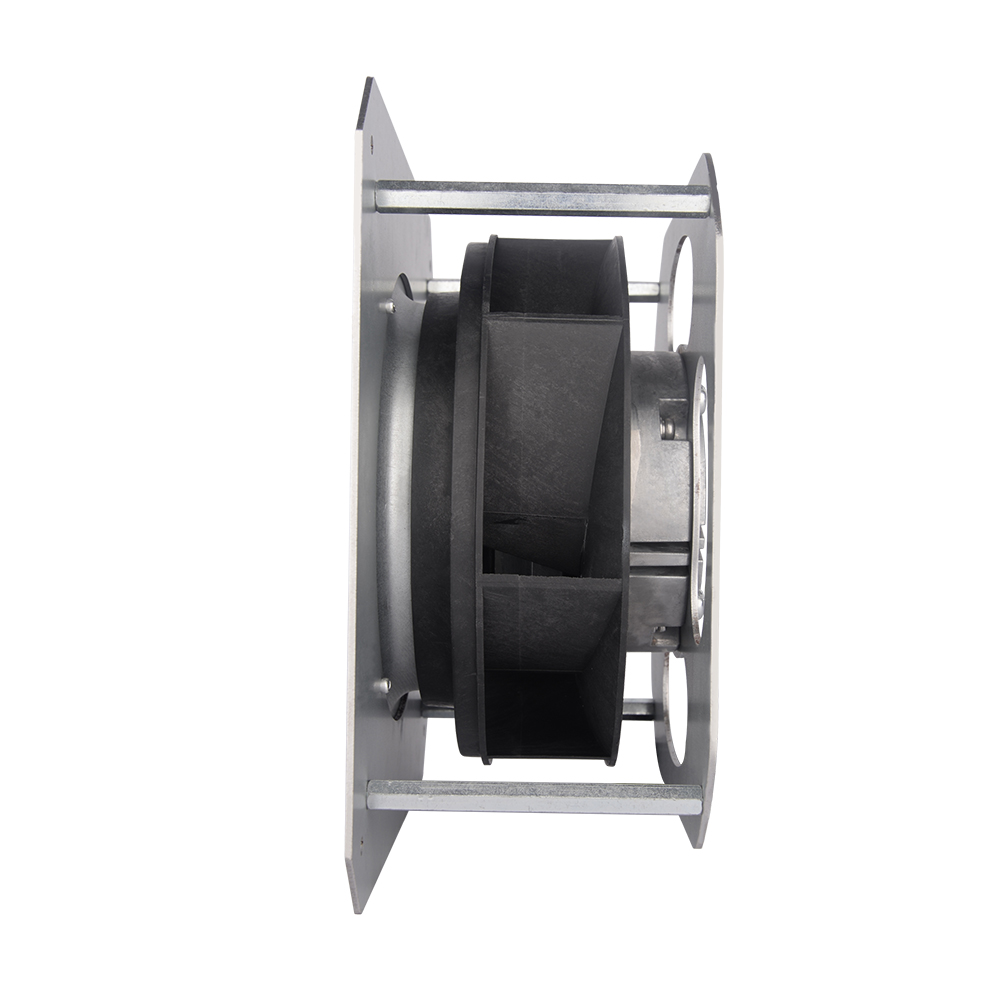

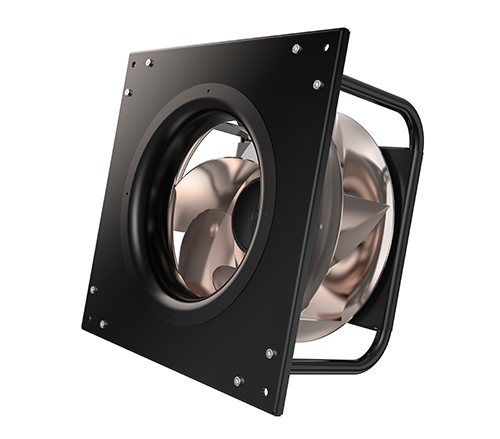

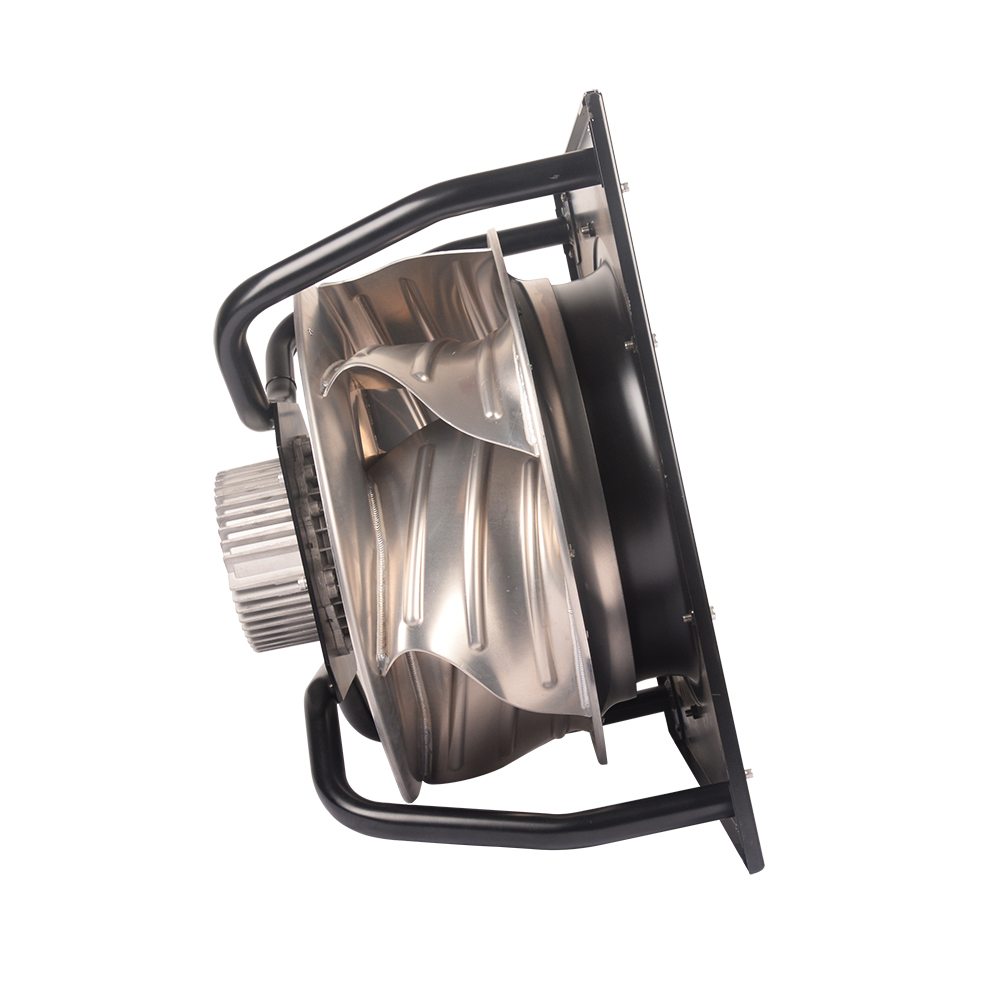

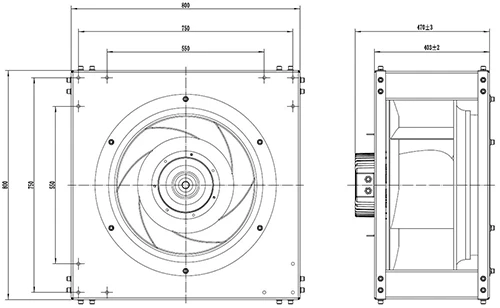

EC with bracket6915 · 133–630230/380/400 VAC433–23,896350–2,52440–5,600

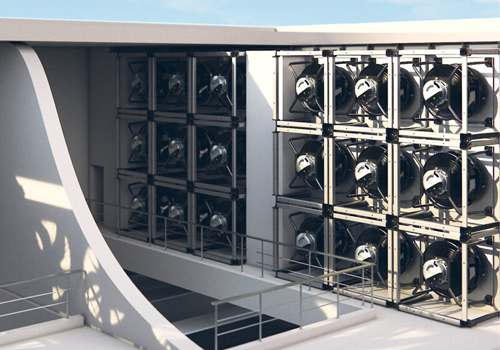

The AC line covers –40 °C to +65 °C; DC models suit low-voltage and 310 VDC systems. Both EC versions share one aerodynamic platform — a factory-fitted bracket for bolt-in mounting, or a free-standing assembly for plug-fan and fan-wall installations. Across the range: 225–23,896 m³/h, 155–2,524 Pa, 27.8–5,600 W.

Construction and Materials

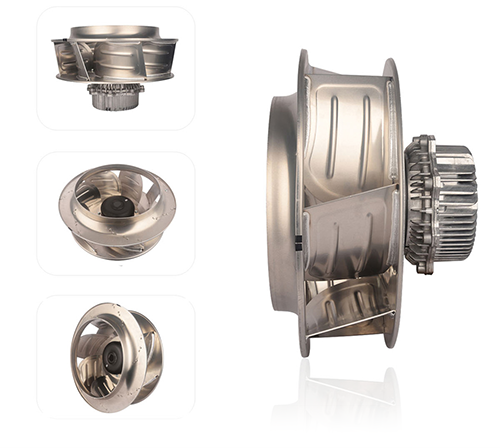

  • Impeller: PA66, PA66+25GF or PA6+GF at smaller diameters; aluminium alloy or galvanised sheet steel on larger, high-duty models.

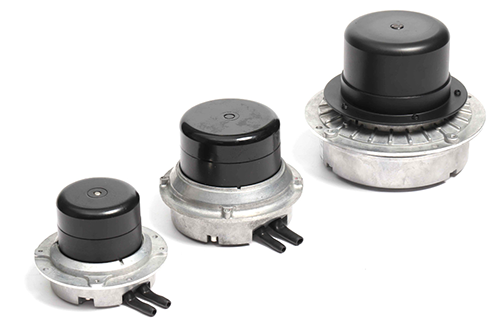

  • Motor: AC induction, brushless DC, or integrated EC for 115–400 VAC 50/60 Hz mains.

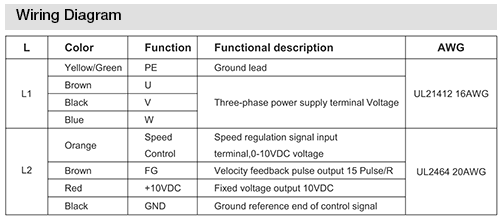

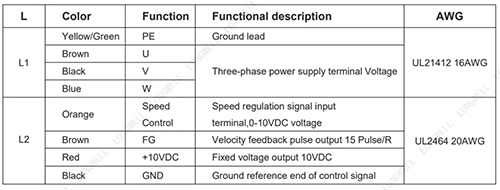

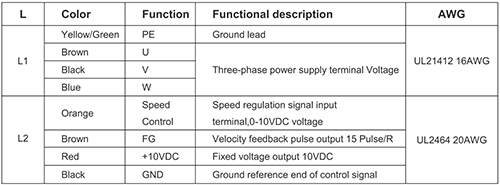

  • Control (DC / EC): 0–10 VDC / PWM input, tachometer output, locked-rotor, reverse-polarity and over-voltage protection, soft start.
  • Bearings & insulation: maintenance-free ball bearings, S1 continuous duty, clockwise rotation; class F insulation (class B on some EC series).
  • Protection & ambient: IP42 / IP44 / IP54; –25 °C to +60 °C (DC / EC), –40 °C to +65 °C (AC).

Frequently Asked Questions

Q1: What Are The Main Operational Advantages Of Backward Curved Centrifugal Fans Over Forward-Curved Models?

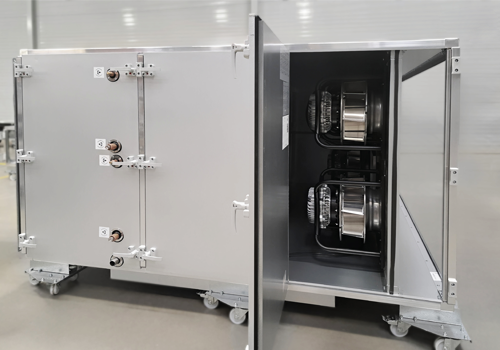

Backward-curved centrifugal fans are engineered for higher static pressure and superior aerodynamic efficiency. Unlike forward-curved fans that can experience motor overload if system resistance drops unexpectedly, backward-curved impellers feature a non-overloading power characteristic. This makes them ideal for complex, high-resistance duct networks, modular air handling units (AHU), and data center cooling walls where operating conditions fluctuate.

Your choice depends on energy efficiency requirements and control precision. AC models offer robust, direct-line voltage operation for standard industrial setups. DC models (24V/48V/310V) provide compact, low-voltage or high-voltage DC reliability equipped with advanced multi-protection features. EC (Electronically Commutated) models represent the pinnacle of energy saving, featuring integrated 0-10VDC/PWM smart control, high efficiency, and precise variable-speed management for modern green buildings and precision HVAC systems.

Yes. Our fans are constructed for rugged industrial durability. Depending on the specific series, they feature high-grade aluminum alloy or reinforced PA66 plastic impellers, paired with maintenance-free ball bearings. They achieve robust protection ratings up to IP54, insulation class F, and are engineered to operate reliably in wide ambient temperature ranges from −40°C to +65°C (or −25°C to +60°C for specific EC variants).

Absolutely. Longwell centrifugal fans are meticulously engineered to match the exact mounting footprints, aerodynamic performance curves, and mechanical dimensions of top-tier European brands (such as ebm-papst). This allows your engineering team to execute a seamless, friction-free “drop-in” replacement, upgrading system efficiency without altering existing cabinet or unit designs.

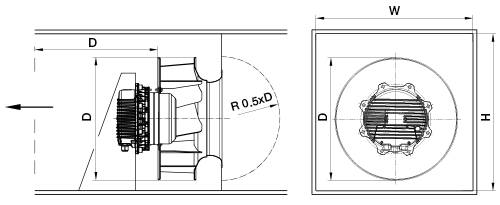

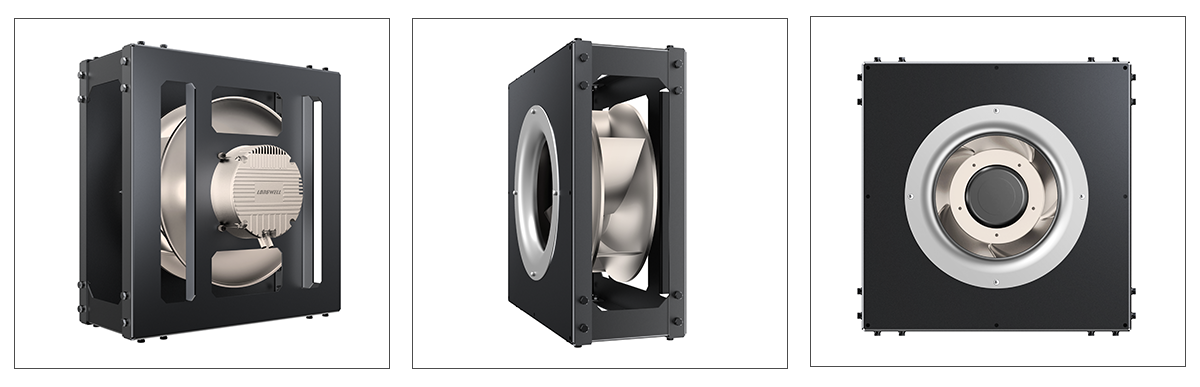

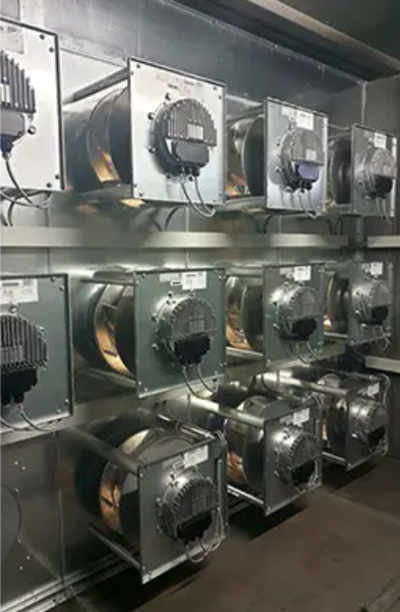

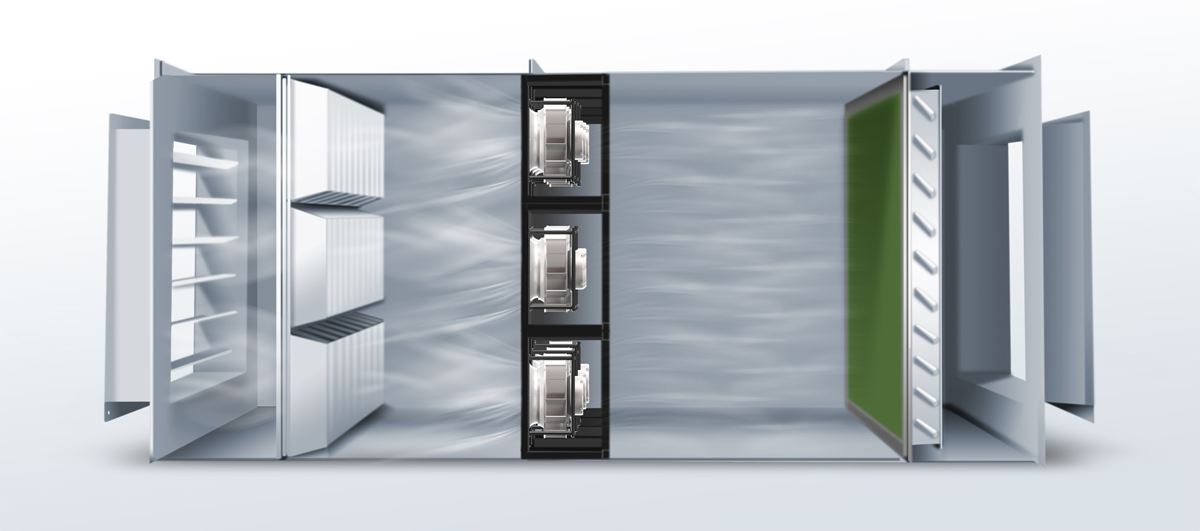

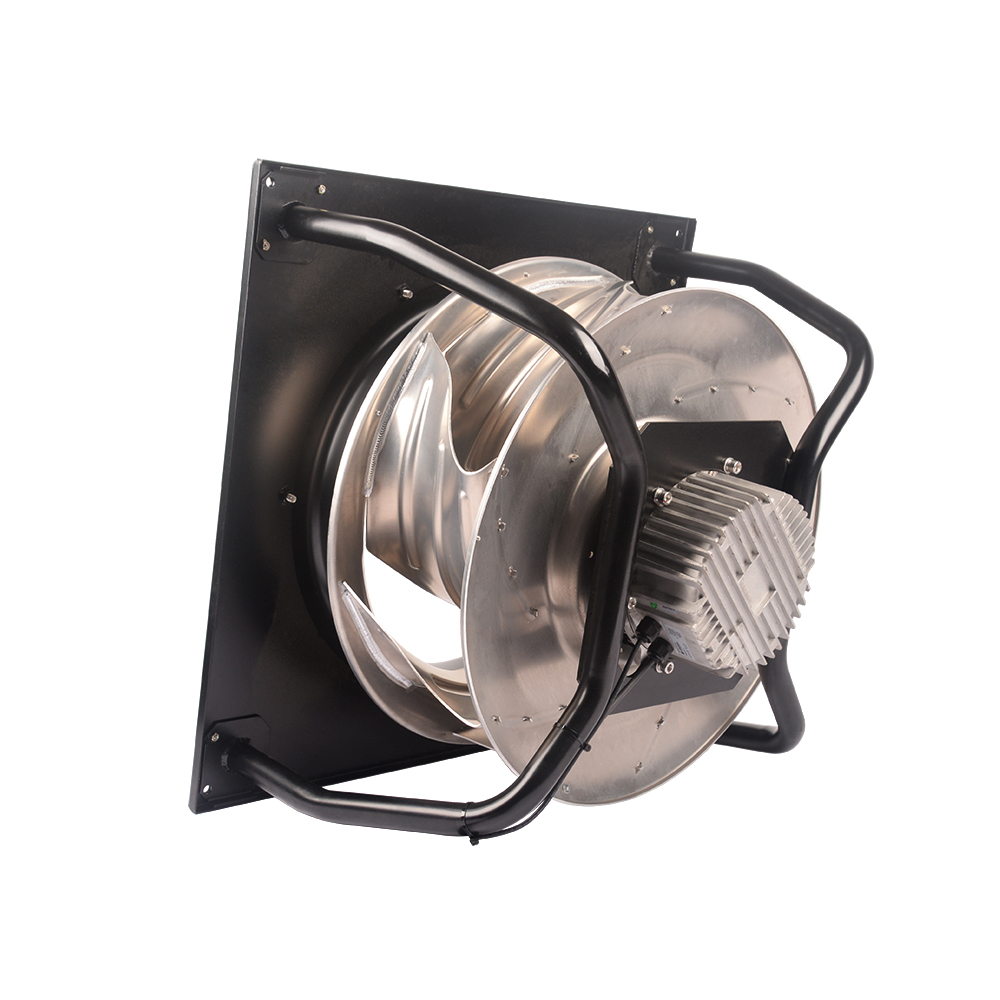

A plug fan is an installation style, not a blade type. Many backward curved EC fans are supplied without a scroll or bracket so they can be mounted directly into a plenum — that is a plug-fan arrangement. The LONGWELL “without bracket” EC catalog covers exactly this format; the “with bracket” version is the same aerodynamic platform with a mounting structure attached.
