A reliability report becomes useful when you can connect its tested sample, conditions and acceptance rule to the fan you intend to buy. A duration printed on its cover is only one part of that chain. This guide shows how to read salt spray, vibration and life evidence without treating one result as a promise about a different assembly or operating environment.
Start with the question the test can answer
Salt spray examines a specified material or finish under a specified corrosive exposure. Vibration can examine a packaged shipment, a mounted assembly or a running machine; those are different questions. A life run follows defined samples until a defined endpoint under stated operating conditions. Before comparing two reports, identify which of these decisions you are actually making: finish selection, shipping protection, installation behaviour or operating reliability.
Ask for the exact component and revision. A motor shaft result does not automatically cover fasteners, an impeller coating, electronics or a complete fan. A family name alone is too broad when materials or finishes vary by suffix. The report should also say who selected the sample, how many were tested, and whether the part is representative of the proposed production configuration.
Salt spray: read the surface and the acceptance rule

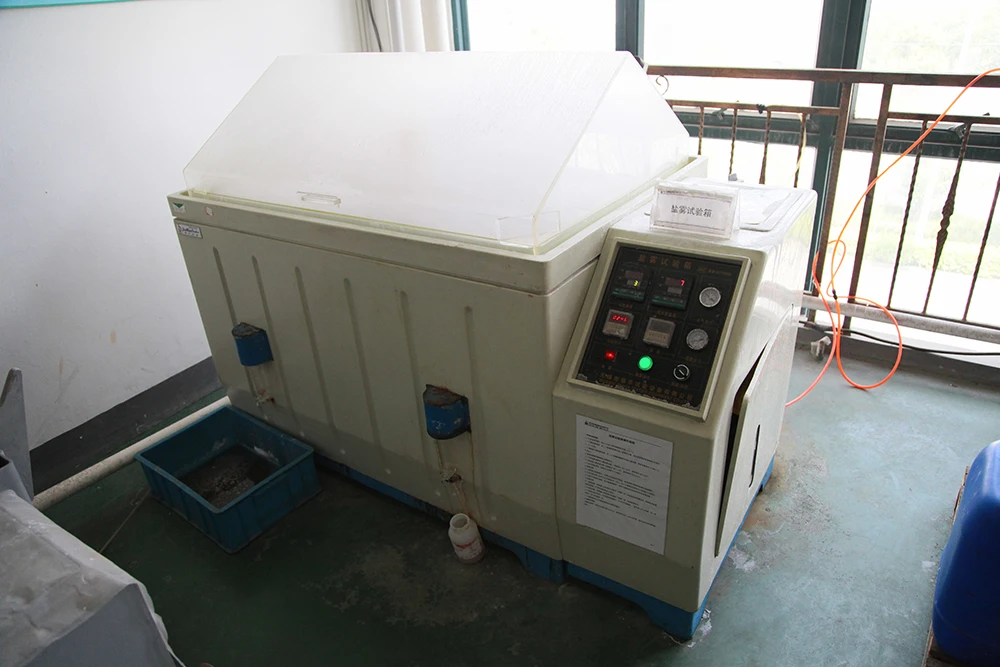

A salt spray chamber supplies a controlled exposure to a specimen. The photograph below shows the equipment, not the outcome for a particular model. To use a result, read the actual report for solution, exposure conditions, duration, specimen preparation, inspected surface and the rule for passing. A photograph of the chamber cannot establish any of those values.
Look at what happened after exposure, including edges, joints and fasteners when those are in the test scope. “No visible corrosion on the coated panel” and “no corrosion on the assembled fan” are different conclusions. Salt spray hours cannot be converted into outdoor service years. For a coastal installation, also ask whether the finish, damaged edges, dissimilar-metal joints and cleaning practice in service resemble the tested sample. If they do not, request an application-specific review instead of extrapolating from the hour count.
Vibration: separate transport, mounting and operation
A transport test investigates the packed item and its restraints. A mounted-unit test investigates the fan, frame and attachments as installed. An operating vibration measurement investigates the running assembly at named speeds and conditions. None substitutes automatically for the others. Check the mounting orientation, fixture, input profile, duration and inspection after the test. If the report records a resonance, the installation stiffness and operating speed range matter to its interpretation.
For incoming goods, ask whether the packaging in the test matches the shipping carton and internal supports you will receive. Our industrial fan packaging guide gives a separate checklist for that route. For a running fan, request the specified operating point, measurement positions and acceptance criterion; a vibration trace without this context is difficult to apply to a new mounting design.
Life testing: define failure before reading the hours
“Life” could refer to a bearing calculation, a complete-fan operating run, or a component stress test. These should be labeled separately. A bearing rating model is a statistical calculation for a stated bearing and load; it is not a warranty for every part in the fan. A complete-fan run has its own sample count, temperature, electrical supply, speed, load and failure definition. A control-board test covers still another set of mechanisms.
Accelerated conditions can expose weaknesses, but the report must explain how the accelerated exposure relates to intended service and whether it preserves the same failure mechanism. Do not turn a hot run into a calendar-life claim without that justification. For a useful bearing discussion, see our bearing selection and replacement guide; its general advice still needs the selected fan’s own data before a life conclusion.
A five-check report review

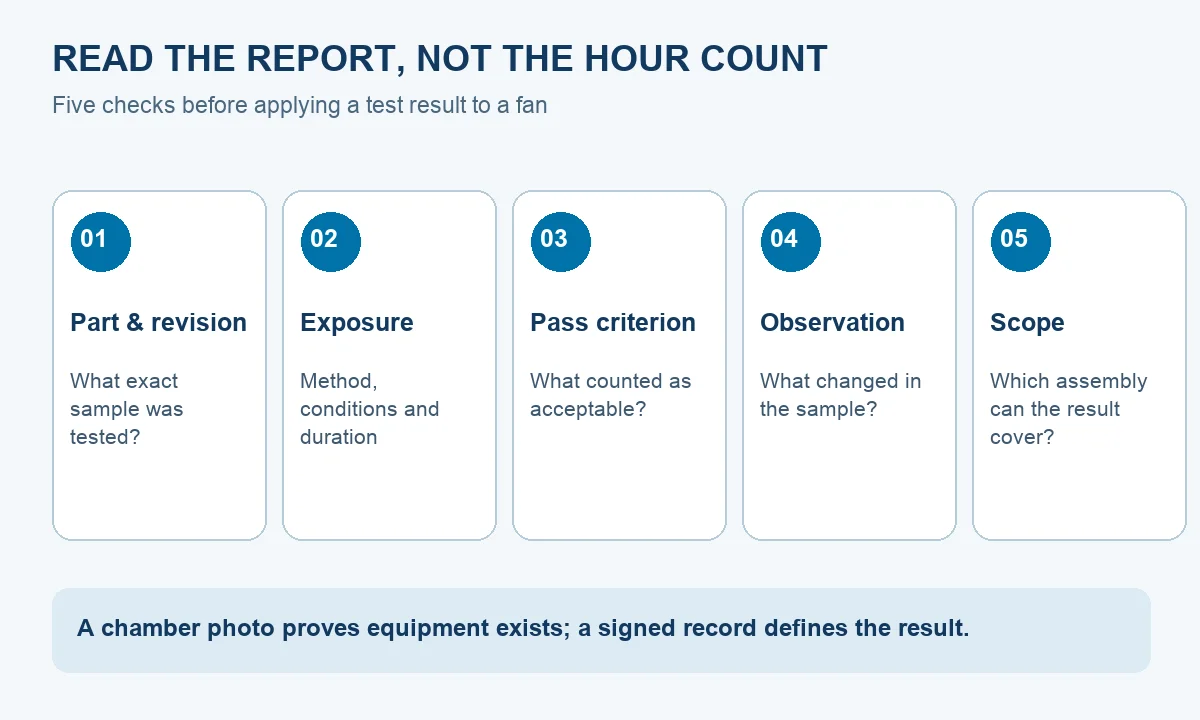

Use the sequence below when a test is supplied with a quotation. Record the part and revision first, then the exposure, pass rule and actual observation. Only then decide which assembly and application the result covers. If any link is absent, mark the conclusion as open and ask for the missing record. The diagram is a review method, not measured data or a certificate.
For example, a salt spray report on a shaft could answer whether that shaft sample met its stated appearance rule after the stated exposure. It would not by itself establish corrosion resistance for a painted housing, an electrical connector or the assembled fan. Likewise, a vibration report on a shipping pack would not establish the running machine’s vibration level on your frame. Keep the conclusion no broader than the tested object.
What to send for a meaningful review
Supply the proposed fan model and suffix, revision or drawing, actual operating point, mounting arrangement, expected ambient conditions, exposure concerns and the acceptance criterion your project uses. State whether you need evidence for a component, the shipped package or the complete fan. With those inputs, the supplier can identify a matching controlled record, explain a gap, or propose the specific test needed before an engineering decision. A generic catalogue statement cannot close that gap.
For a model-specific evidence review, email sales@longwellfans.com with the fan configuration and test question.
