Blower Runs But No Airflow — What’s Wrong?

A blower can sound normal while the occupied rooms receive little air. Start by defining the symptom: is every outlet weak, only one branch weak, or is air leaving the fan cabinet but failing to reach the rooms? Those observations lead to different checks. Motor sound by itself cannot establish wheel speed, airflow or the installed operating point.

Use the video as a visual walk through the system, then use the checkpoints below to document what you actually find. Work inside a fan cabinet, electrical enclosure or moving drive only under the site’s approved isolation and lockout procedure. A qualified technician should perform operating measurements and any inspection that requires opening energized equipment.

Trace the air path before naming a failed part

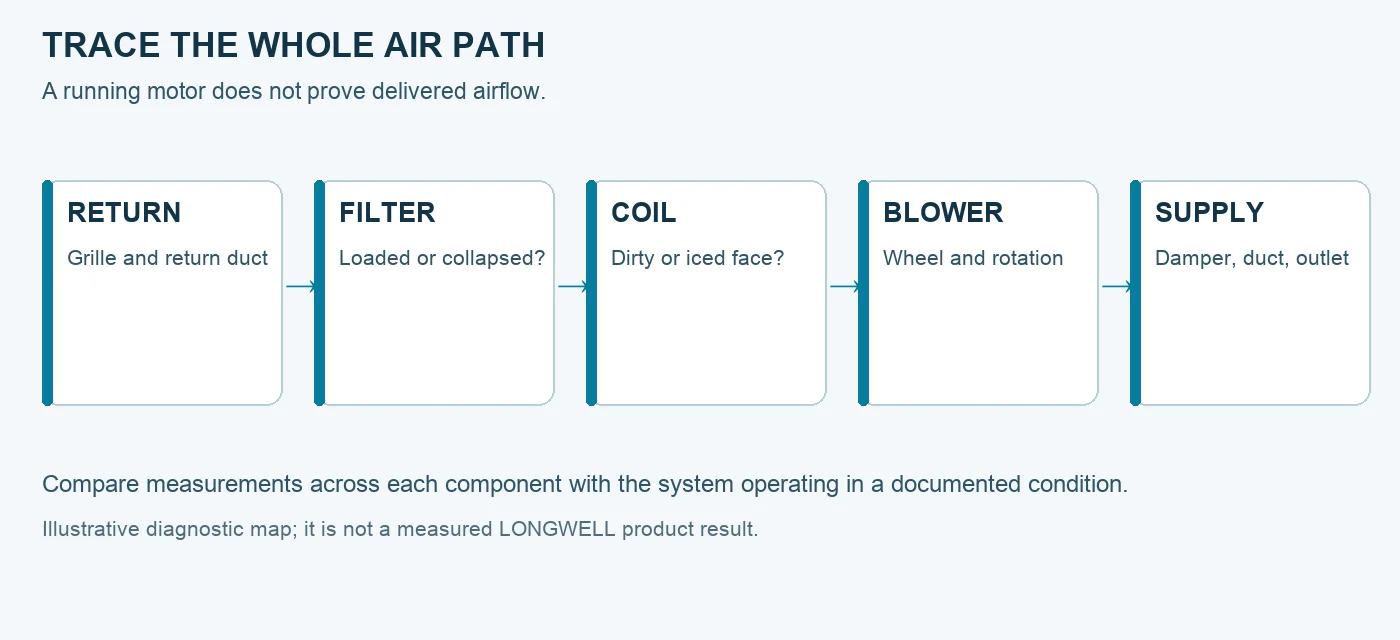

Air must enter through the return, pass the filter and heat exchanger, cross the blower, then reach the supply duct and outlet. A restriction before the fan, weak wheel output, and a disconnected supply duct can all produce the same complaint at a register. Figure 1 gives a route for observations and measurement points; it is an explanatory map, not a product test result.

Record the unit type, control command, filter condition, damper positions and whether heating or cooling was active. An iced coil is a different condition from a dry, clean coil. Note recent filter, motor, control or duct changes. These details let the next measurement be compared under the same operating state, rather than mixing readings from different conditions.

Separate a whole-system symptom from a branch symptom

If all outlets are weak, inspect the common return and equipment path first. A loaded or collapsed filter, blocked grille, dirty or iced coil, closed main damper, low speed command, or blower problem may affect every branch. If one room is weak while others are normal, investigate that branch’s damper, flex duct, takeoff and outlet before condemning the central blower. A detached supply duct may allow the blower to move air into a ceiling void while little reaches the room.

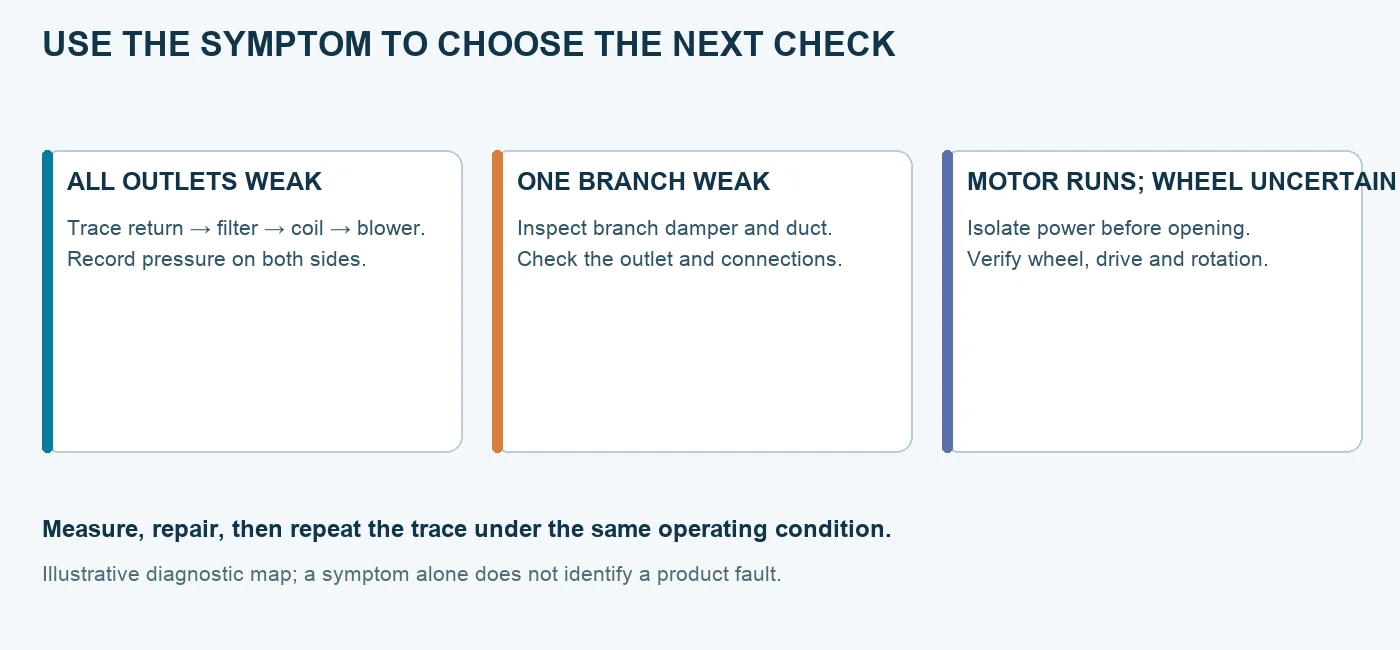

Figure 2 is a decision aid, not a shortcut to a diagnosis. The symptom chooses where to inspect and measure next. It does not prove that a particular component has failed. A useful handoff lists which outlets were checked, which dampers were confirmed open, and exactly where the first change in pressure or delivered flow appeared.

Verify the wheel and drive safely

When the motor is audible, the wheel’s motion still needs independent confirmation. Depending on the equipment, a loose hub, failed belt, drive fault, wrong control command or wrong rotation may leave the wheel ineffective. Follow the manufacturer’s guarded viewing and isolation instructions. After safe isolation, a technician can inspect the hub, fasteners, belt and wheel position for evidence of slippage or contact. Avoid reaching into an operating inlet to check rotation.

Rotation direction is one checkpoint, particularly after wiring or motor work. Compare the observed direction with the fan’s marked arrow and the correct product documentation. Reversed rotation can reduce delivered airflow, but the size of that loss depends on the actual wheel and system; a fixed percentage is not a diagnosis. For more detail, see the rotation verification guide.

Measure across the restriction

A tissue test or the sound of the motor cannot quantify delivered airflow. A qualified technician may compare pressure on both sides of a filter or coil, measure fan inlet and outlet pressure, and take an appropriate duct or outlet airflow reading. Measurement location, instrument, damper position, speed command and operating mode should be recorded together. A single grille velocity reading is a clue; it is not automatically the total flow of a multi-outlet system.

Fan selection uses the required airflow at the installed resistance, not the free-air rating alone. LONGWELL’s centrifugal blower sizing guide explains the duty-point comparison. The commercial centrifugal blower family is a family-level path for a new-equipment shortlist, not proof that one of those models fits this installation or will cure an existing fault. Confirm the exact model, curve revision, electrical details and assembled-system result before specifying a replacement.

Correct the cause and repeat the trace

Once the first failed boundary is identified, correct that cause under an approved service procedure. Replace or reseat a damaged filter, clean an accessible coil or wheel as specified, restore a damper or duct connection, or repair the wheel and drive only after the relevant inspection supports it. If ice is present, determine why it formed; simply thawing it may leave the underlying problem in place.

After correction, repeat the same pressure and airflow checks with the same operating mode and documented settings. Compare the result with the equipment requirement and an applicable fan curve, allowing for instrument and installation uncertainty. If the system still misses its duty, retain the measurements and inspect the next boundary. This prevents a plausible repair from being mistaken for a verified return to service.

What to send for a blower review

For an OEM or replacement selection, provide the equipment model, existing blower nameplate and wheel dimensions, measured airflow and static-pressure points, voltage, control signal, air-path sketch, filter and coil condition, and cabinet clearances. State whether the complaint affects all outlets or one branch. Those inputs support a model and curve review; the article’s diagrams do not establish a site diagnosis or a tested LONGWELL replacement.
