A loud furnace blower is a reason to locate the sound, observe when it occurs and check the visible air path. The sound alone cannot identify a failed part. A rattle from a loose cabinet can resemble wheel vibration; a whistle near a return grille can be heard at the furnace.
Start outside the cabinet. Note whether the noise begins when the blower starts, changes with fan speed or continues after the burner stops. If you notice scraping, a burning smell, smoke or repeated breaker trips, switch the system off and arrange qualified service. Do not reach into a running blower or test electrical parts yourself.

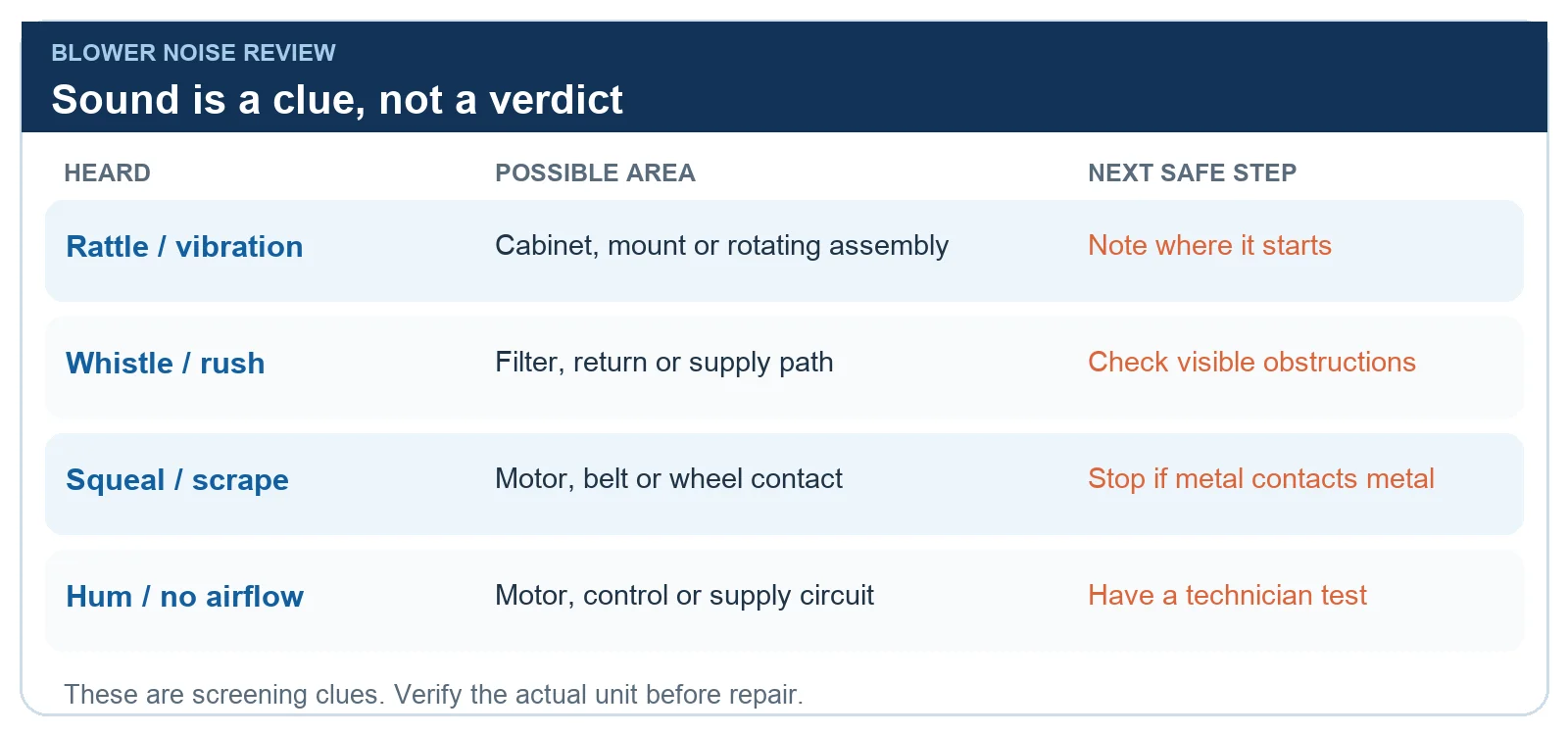

Use the sound to choose the next check
Listen for the sound and its timing, then compare where it is loudest. Rattling can come from a panel, mounting point or rotating assembly. A high airflow whistle can come from a return opening, filter or supply register. Squealing can involve a motor, belt on a belt-driven unit, or another component. None of those patterns is a diagnosis by itself.
If a wheel appears to rub the housing, shut the system down. If the blower hums without moving air, leave electrical testing to a technician. Carrier’s blower checklist also treats grinding, weak airflow, smoke and repeated trips as reasons to investigate rather than reasons to replace a specific part by sound alone.
Trace the return, filter, blower and supply
The blower operates inside an air system. A blocked return, loaded filter or restricted supply can change the sound you hear even when the wheel is intact. Check the accessible return grille, filter condition and open registers against the furnace maker’s instructions. Do not run the equipment with an unsuitable filter or with panels removed merely to compare the sound.

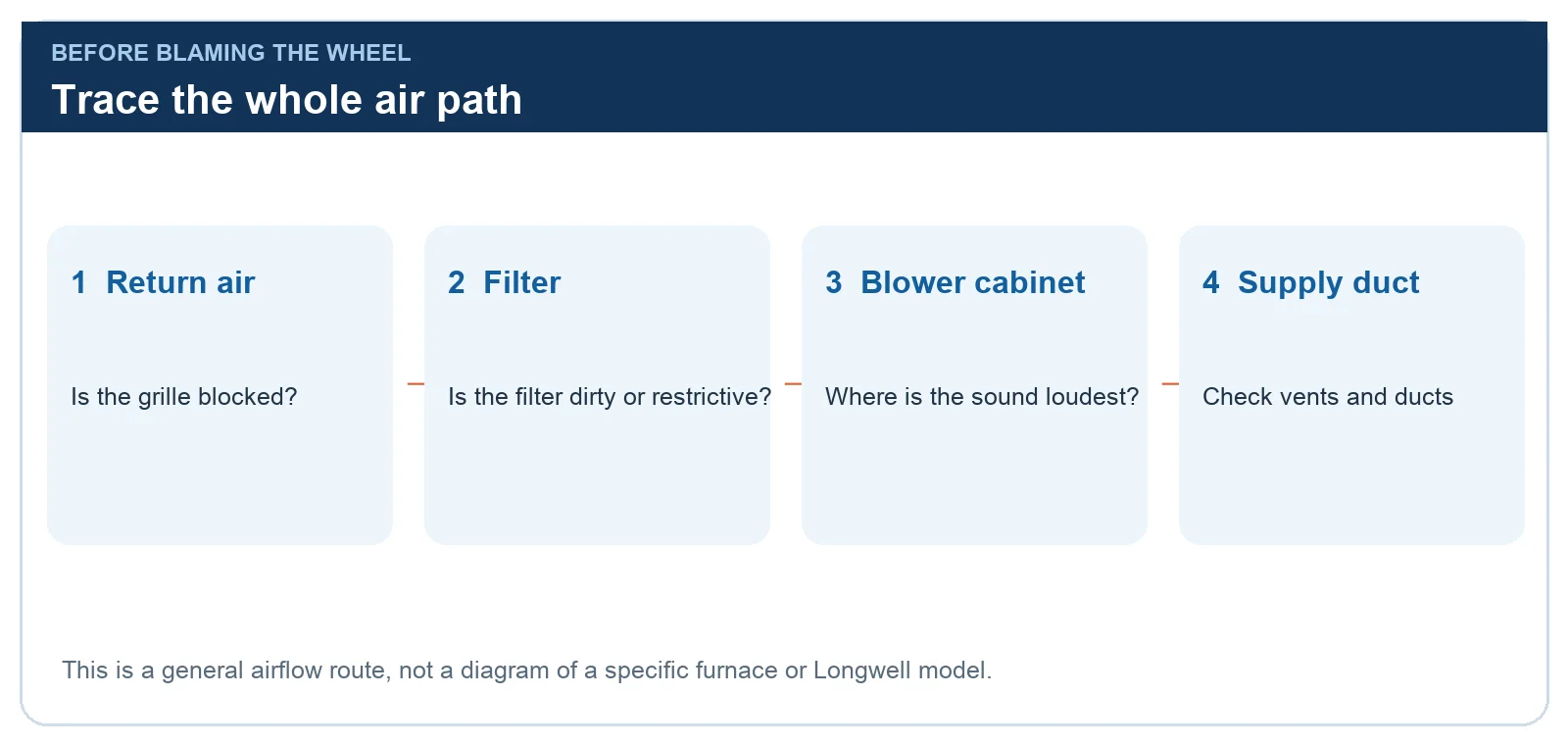

The diagram shows a general route, not the construction of a particular furnace. If the visible checks do not explain the change, a qualified technician can measure the installed airflow and static pressure and inspect the cabinet. That is more useful than selecting a replacement blower by free-air flow or an image of a similar wheel.
Separate wheel, bearing and cabinet evidence
Dust buildup, wheel damage, a loose mount and motor wear can all contribute to vibration or noise, but the repair depends on the actual assembly. Record the furnace model, blower label, operating condition and location of the sound before service. A technician can inspect wheel clearance, mounting, motor and bearings while the unit is isolated. Our blower-wheel cleaning guide explains cleaning considerations; it is not permission to disturb balance weights or operate an open cabinet.
Belt-driven and direct-drive equipment need different checks. A belt may be relevant only if your actual furnace has one. Bearing construction also varies, so do not assume every motor can be lubricated or that every squeal means the motor must be replaced. Our bearing-noise guide can help frame the question for a technician.
Use product-family information within its scope
LONGWELL publishes a forward-curved centrifugal fan family that illustrates squirrel-cage geometry. It is a family reference, not a claim that a listed product fits or has been tested in your furnace. A replacement decision needs the exact existing assembly, dimensions, electrical supply, controls, mounting and required installed duty. Request the complete model and suffix, current drawing and performance information before considering an OEM substitution.
A product photograph can help identify a wheel or housing, but it cannot establish a noise rating in your duct system. Likewise, a measured curve for one model cannot be transferred to another suffix. Keep observed conditions, the original equipment record and any controlled test documents together so the selected part can be checked against the real application.
A useful handoff to the service technician
- Record when the noise starts and whether heating, cooling or fan-only mode changes it.
- Note whether the sound is strongest at the return grille, blower cabinet or supply duct.
- Photograph the equipment label and accessible filter condition without removing energized panels.
- Report any scraping, burning smell, smoke, repeated trip or loss of airflow immediately.
- Ask for the observed fault, any measurements made and the full replacement-part identity.
This sequence narrows the investigation without promising a diagnosis from a sound clip. For a commercial or OEM blower project, send the complete fan model, airflow and pressure target, voltage, controls and installation drawing so the proposed fan can be assessed at the intended duty.
