An EC fan motor is the result of two linked designs: a wound stator that carries controlled current and an electronic drive that decides when each phase is energised. A winding photograph alone cannot show whether a controller is matched to that motor. This guide explains the handoffs a buyer can check when reviewing a LONGWELL EC fan candidate. It describes an engineering method; it does not claim that a particular model passed an unnamed test.

The practical decision is whether the motor suffix, controller revision and intended operating duty are supported by one consistent set of drawings and acceptance records. The accompanying video shows the manufacturing theme. The two diagrams below separate the electrical and control questions that often disappear inside an assembled fan.

Start with the stator drawing, not a winding photo

In an electronically commutated motor, insulated conductors are arranged in stator slots to form phase windings. The exact wire, winding pattern, terminations, insulation system and permitted resistance range belong to the selected motor design. They cannot be determined from a photo of copper on a fixture. Even footage from a real production line establishes only the visible operation unless the photographed unit is traceable to the motor being discussed.

Ask the supplier to connect four items: the motor identifier and suffix, the approved winding document, the production inspection criteria and the tested assembly revision. A change to winding or termination details can require a fresh review of electrical and thermal behaviour. The inspection decision is therefore about matching records, rather than counting the number of visible copper turns.

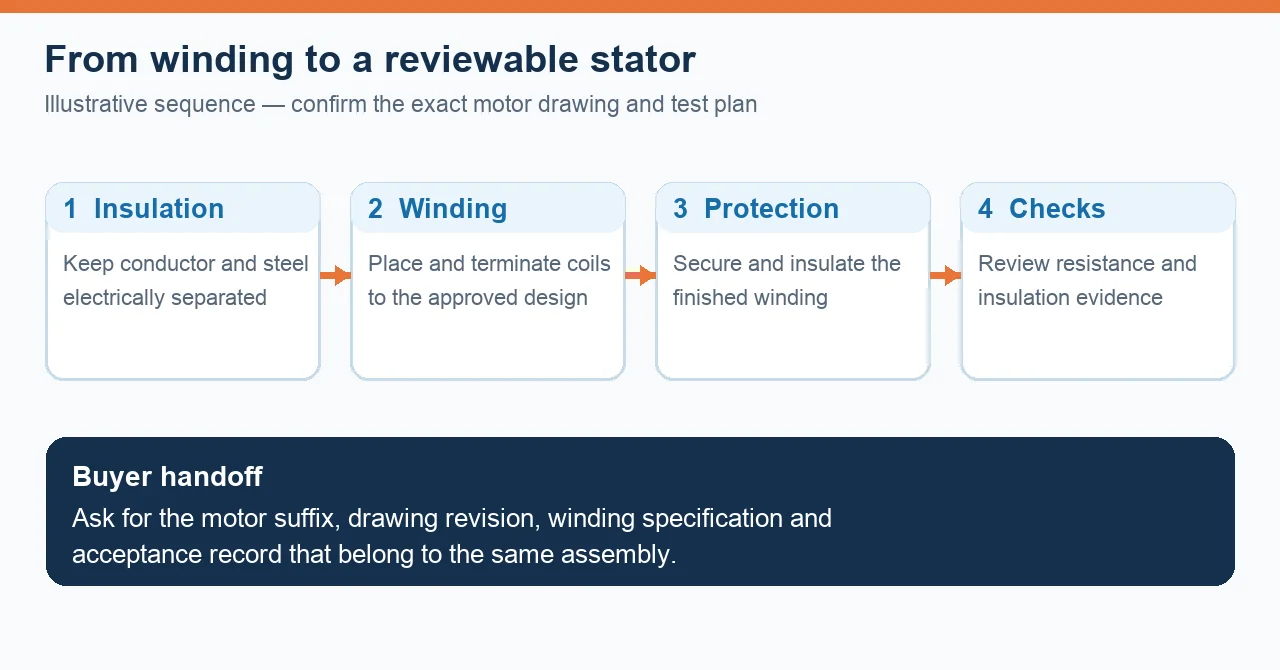

Illustrative stator winding review: insulation, winding, protection and electrical checks linked to one motor revision
Figure 1. The winding review moves from conductor insulation to the exact motor suffix and its acceptance record. This is an explanatory sequence, not a photograph or a test result for a specific LONGWELL motor. Open to enlarge.

What the winding checks can and cannot establish

A resistance check may reveal an open circuit, an incorrect connection or a phase imbalance against that design’s limits. An insulation check addresses separation between conductors and other parts of the assembly under a defined test procedure. Neither result, by itself, is a fan efficiency rating or a prediction of service life. Thermal behaviour also depends on the mechanical assembly, the controller, the selected speed and the real installation duty.

Insulation class is a material-system designation; it should be read alongside the permitted temperature rise and the actual test conditions. The LONGWELL insulation guide is useful background, while the model-specific drawing and test plan remain the decision documents. If a claim combines different motor suffixes or unspecified revisions, request the matching record before approving it.

Follow the controller’s power and command paths

The EC drive converts its electrical supply into controlled phase current for the motor. A separate speed command may tell it what operation is wanted. The command type, voltage or pulse range, grounding, status output and behaviour after signal loss depend on the exact controller. A wire colour or a similar-looking connector is not a safe substitute for that controller’s terminal diagram.

Figure 2 separates those inputs. It also shows why a controller running a motor on the bench does not establish the fan’s airflow in a cabinet or duct. The wheel and installed resistance still determine the operating point. The LONGWELL EC control wiring guide describes the questions to resolve before connection; the actual wiring instruction must come from the selected unit’s current documentation.

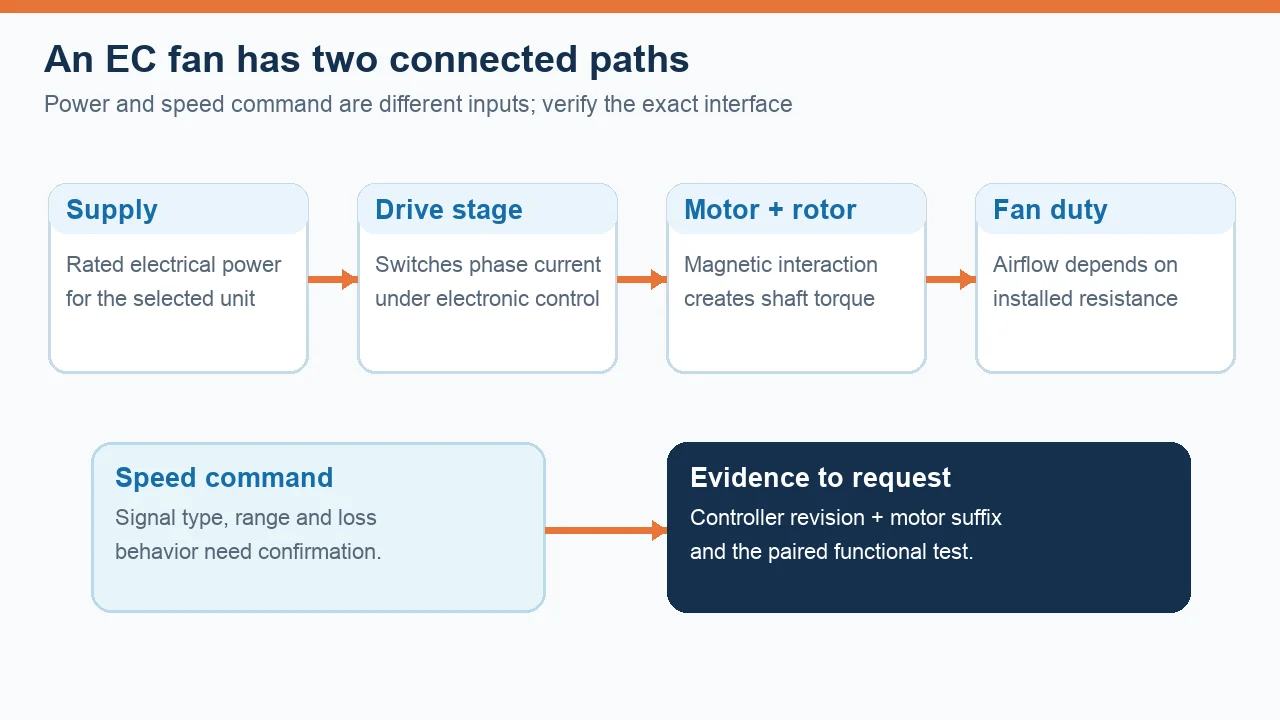

Illustrative EC fan paths: supply, drive, motor and fan duty with separate speed command and paired evidence
Figure 2. Supply power, electronic drive, motor and fan duty form one path; the speed command has its own interface requirements. This schematic is not a wiring diagram for a particular model. Open to enlarge.

Pair the controller revision with the motor suffix

For a candidate EC fan, request the motor suffix, controller hardware and firmware revisions, permitted supply, command interface and functional acceptance method as one package. The review should identify what happens at startup, across the specified speed range and when a control signal disappears. A replacement board that looks identical may still need a different configuration; its suitability needs confirmation against the paired assembly documents.

LONGWELL’s EC fan family provides a place to identify candidate products. A family page does not prove that a given motor and drive satisfy a particular installation. Ask for the exact model drawing, curve at the required duty and electrical interface before treating a candidate as a fit.

Review the final fan as an assembly

A motor or controller can meet its own component check while the assembled fan still needs verification. The buyer should specify the intended inlet and outlet arrangement, system resistance, airflow and pressure duty, supply conditions, speed command and any acoustic requirement. The applicable fan curve and test report should identify the same assembly revision being proposed. Do not transfer a result from a different wheel, housing, controller or suffix without a documented equivalence review.

The manufacturing sequence may include winding, insulation work, electrical checks, controller assembly and a final fan-level test, but the exact stations and acceptance limits vary by product and production plan. The useful question is which checks were actually performed on the relevant configuration and how the record follows the unit or lot. A photograph of a test bench or controller board demonstrates equipment appearance, not a passing result for this candidate.

A concise request for a project review

Send the target airflow and pressure at the installed duty, mechanical envelope, supply voltage, command signal, expected ambient conditions and any acceptance requirements. Ask the supplier to reply with the exact fan model and suffix, matching motor and controller revisions, applicable curve, electrical drawing and the scope of available test evidence. If a value is not yet known, identify it as an open design input rather than filling it with a catalogue maximum.

This approach keeps the real value of the winding and controller visible: each has a defined job, and their evidence must meet at one traceable fan assembly. The diagrams teach the relationship. Only the current approved product documents and project conditions can close the model-selection decision.

Reviewing an EC fan project? Send the duty point and control requirements to sales@longwellfans.com.
