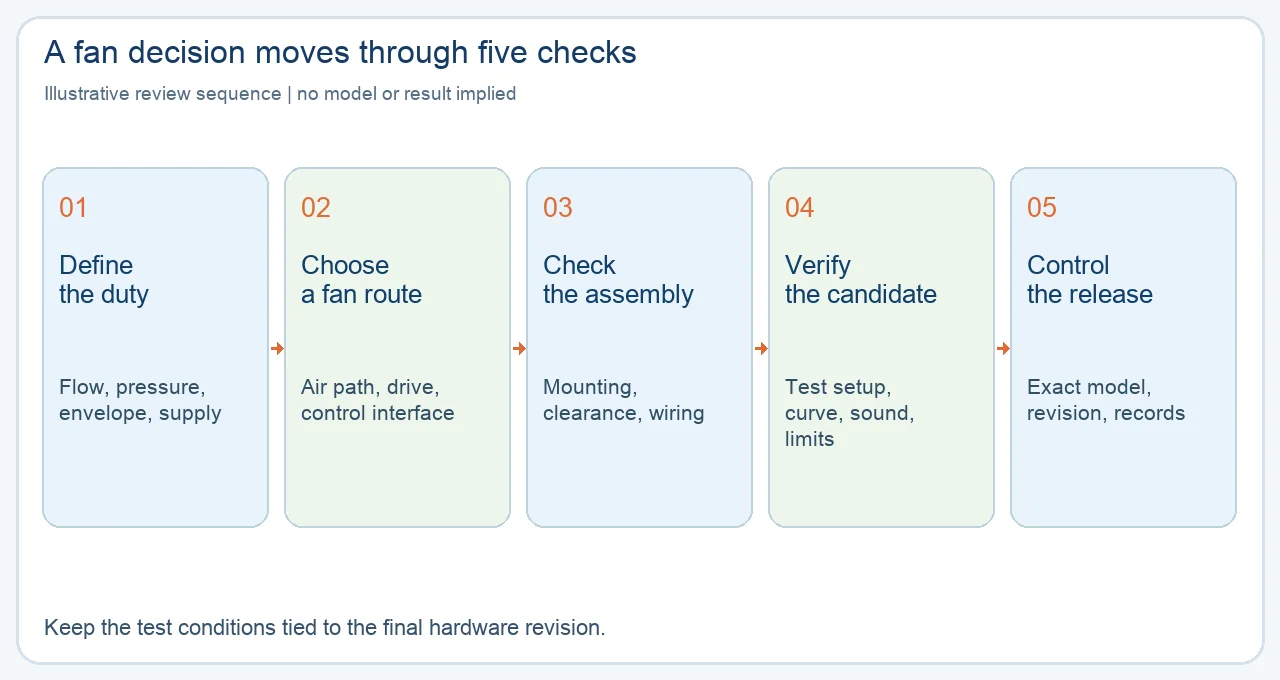

A fan drawing is only one part of an engineering decision. The harder question is whether the selected assembly will deliver the required airflow in the buyer’s equipment, with the intended electrical supply and control behavior. This guide follows the conversations a buyer should expect when reviewing a fan candidate with LONGWELL. It describes a review method, not a claim that every model has passed every test below.
Start with the operating duty, not a product photo
Application review begins with the intended airflow and pressure at the operating point. The installation envelope, inlet and outlet arrangement, temperature, supply voltage, control signal and acoustic target also matter. A catalogue maximum airflow value does not establish performance after a coil, grille or filter changes the system resistance. Ask which condition the curve represents and whether it is comparable with the intended assembly.
LONGWELL’s company engineering overview describes application review, fan and motor configuration, prototype checks and production follow-through as connected parts of its project process. That overview helps frame the discussion; it does not replace a model-specific drawing, curve or test report.
Connect the air path with the drive and controls
An aerodynamic proposal needs a physical boundary: the inlet geometry, nearby obstructions, outlet connection and mounting arrangement can change the flow seen by a fan. Motor and control choices then have to be reviewed at the same intended duty. Supply range, speed command, fault indication and behavior after a signal loss belong in the requirements before a prototype is approved. They cannot be inferred from the appearance of an impeller.
This is where a buyer can ask for a traceable response: which drawing revision shows the mechanical envelope, which electrical document defines the interface, and which selected fan curve applies to that exact candidate? If the answer uses different suffixes or revisions, hold the decision until the documents are reconciled. The LONGWELL OEM support page gives an overview of the types of project collaboration available, while the actual scope should be agreed for the specific order.
Carry a design choice into a repeatable assembly

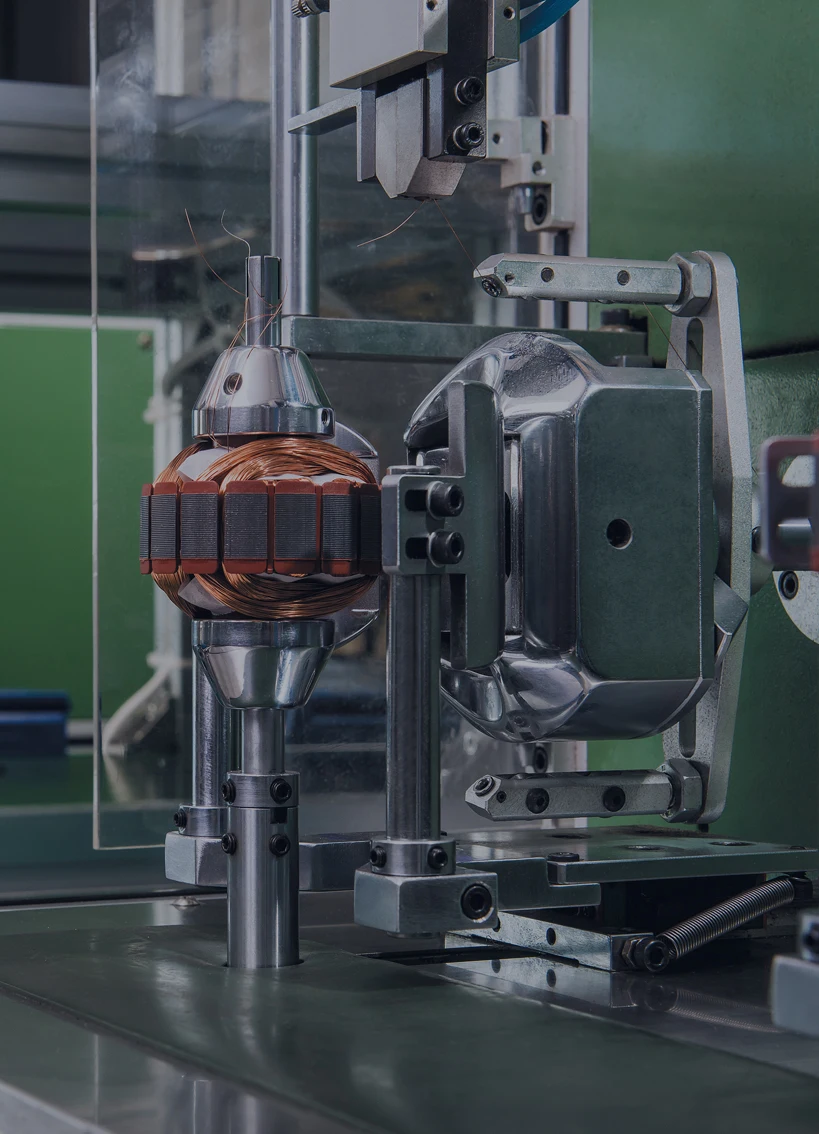

A motor design includes choices about winding, insulation, wiring and heat removal. Those choices only become useful in a fan when component production and assembly follow the approved configuration. The photograph below shows a winding operation and its fixture. It illustrates one manufacturing interface between a motor specification and a built component; it does not show the engineering team, prove a particular motor specification or establish a test outcome.
For a procurement review, request the exact motor or fan designation and the relevant drawing revision alongside the sample. Confirm connector orientation, mounting points and cable routing on the actual assembly. A manufacturing photograph can show what a process looks like; it cannot by itself prove dimensional conformity, process capability or that the pictured component belongs to the selected model.
Ask what a test actually measured
A useful performance curve identifies the hardware, speed or control setting, test arrangement and measured quantities. Sound information needs its own measurement conditions. A chamber photograph or the name of a standard is not a result. Ask for the report that matches the candidate’s full model suffix and revision, and compare its conditions with the buyer’s installation. Where a condition differs, record that difference before using the number in a decision.
LONGWELL’s fan testing guide explains the purpose of airflow and pressure testing. Use it to formulate questions about setup and measurement; use the applicable model-specific record for acceptance. Electrical, thermal, environmental and life evaluations answer different questions and should not be presented as one blanket qualification.
Keep the approved configuration attached to the result
A successful prototype can still leave an open production question if the final bill of materials, controller settings or housing geometry changes. The buyer should identify which parts are frozen, which substitutions require review, and what test or inspection is needed after a revision. Preserve the link between the operating requirement, approved drawing, sample identity and test evidence. Without that link, an impressive curve may describe an earlier assembly.
Send a useful first inquiry
For an initial fan review, send the required airflow and static pressure, the installation drawing or available envelope, supply and control requirements, acoustic target, environment and destination market. Include an existing model number or sample label if the request concerns a replacement. Ask which details are missing before requesting a definitive selection. That exchange gives the application, design, test and production discussions a shared starting point.
Need to review a fan candidate? Send the duty point, installation drawing and electrical requirements to sales@longwellfans.com.
