Technical Requirements and Engineering Specification
On July 6, 2026, LONGWELL opened a project to prepare technical drawings for model LWCD-45350MN-06-14, a DC cross flow fan with PWM speed regulation. On July 7, 2026, LONGWELL engineering output the finalized standard technical drawing and specification sheet for customer design integration.

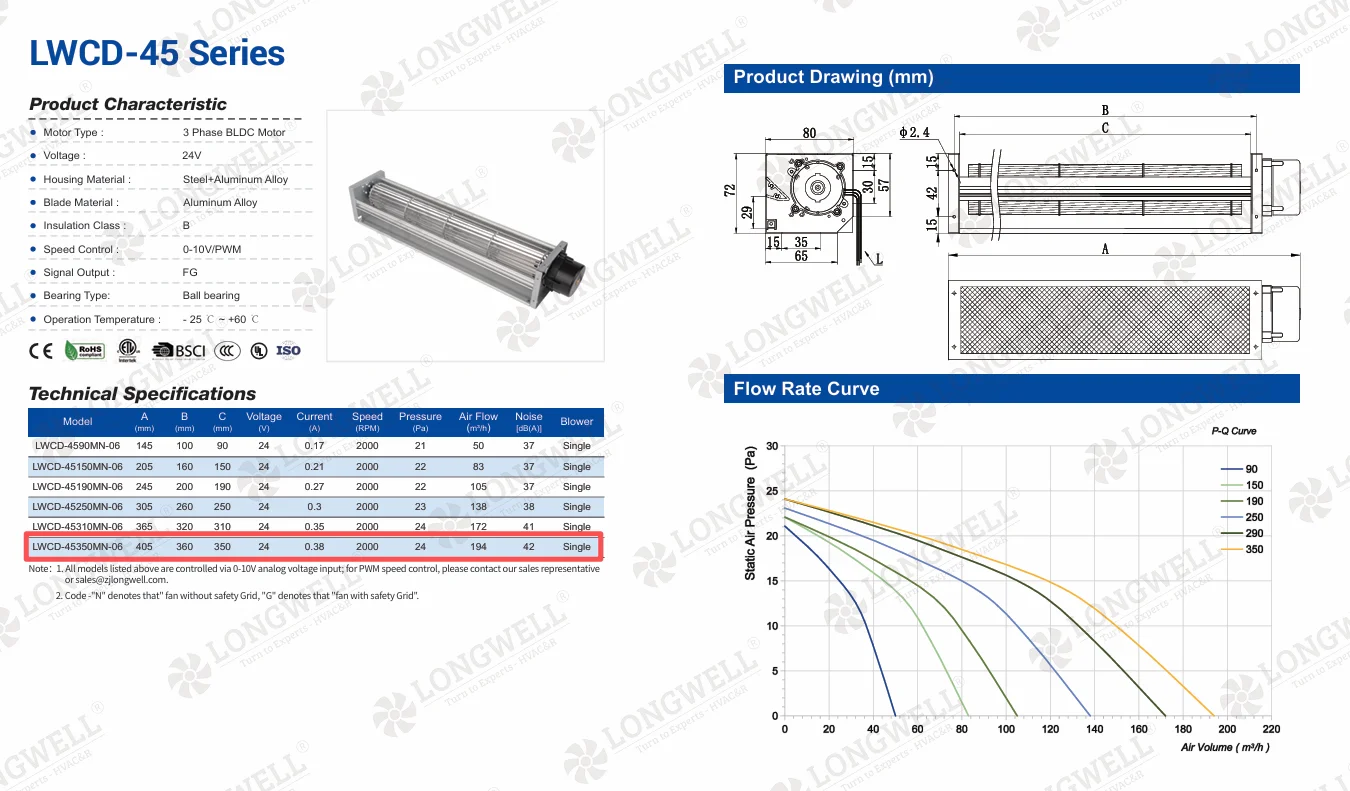

The engineering drawing establishes the following baseline specifications for the unit:
| Parameter | Value / Specification |
|---|---|
| Model Number | LWCD-45350MN-06-14 |
| Nominal Voltage | 24 VDC |
| Rated Current | 0.38 A (±10%) |
| Input Power | 9.1 W (±10%) |
| Rotational Speed | 2000 r/min |
| Air Volume | 194 m³/h |
| Bearings | Ball bearing |
| Overall Length | 408 ± 2 mm |
| Mounting Hole Distance | 370 ± 1.5 mm |
| Outlet Length | 350 mm |
| Lead Wire Length | 4 Cable L=500 mm |
Wiring and Physical Construction
The technical drawing specifies a 4-wire DC motor configuration with FG and PWM control interfaces. Structural materials comprise aluminum (Al) for the air inlet plate, air outlet plate, and 45 mm diameter impeller, along with iron side plates.
Project Scope and Deliverable
This project delivered the preliminary engineering drawing and standard specification sheet to evaluate physical dimensions, mounting points, and electrical interfaces. View Technical Drawing (PDF).
