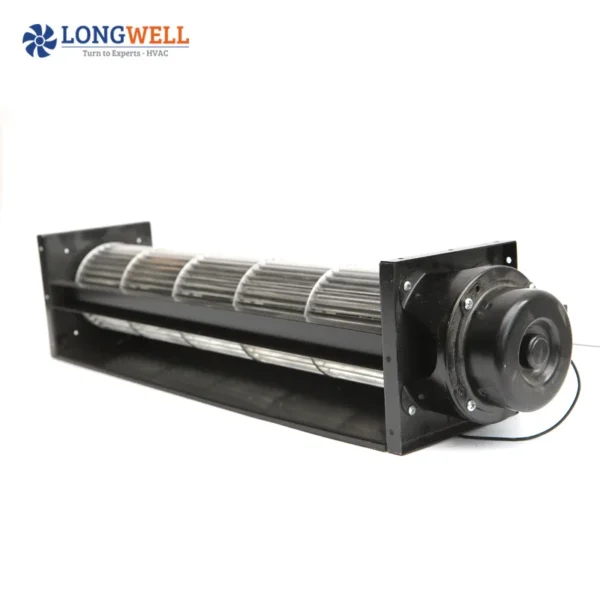

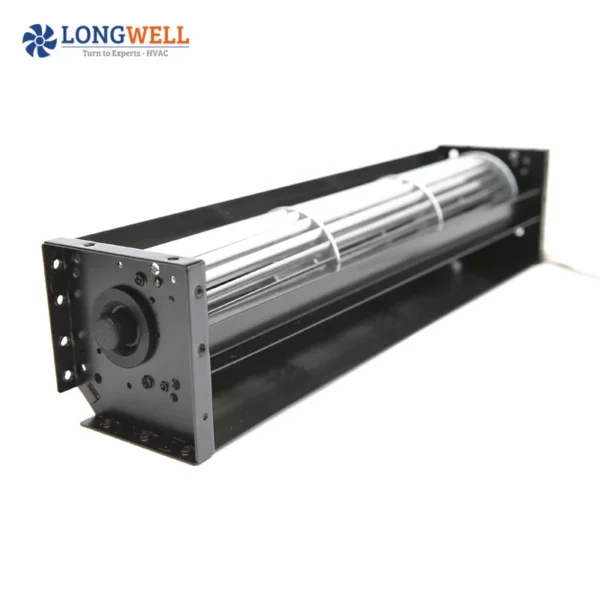

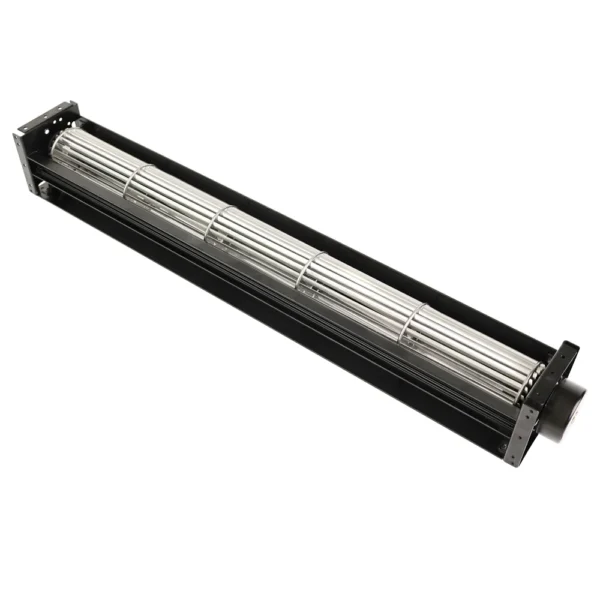

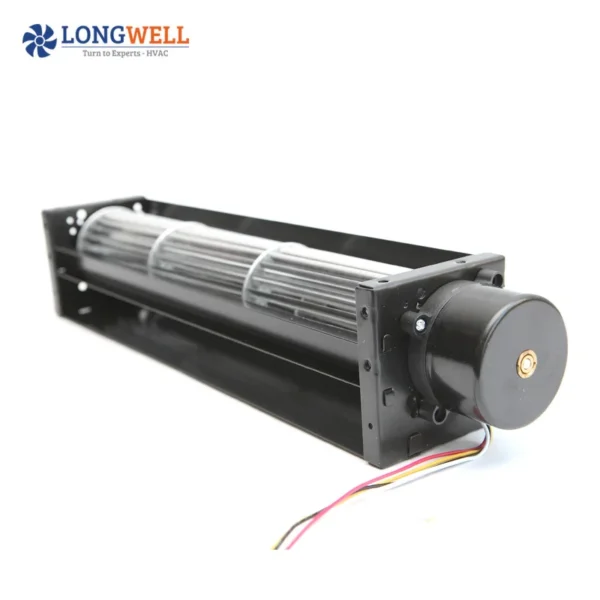

LONGWELL EC Cross Flow Fan, Tangential Blower Fan, 110V, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 110V/120V /220V /230V /12V /24V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 5

Category: Tags: , ,
CategoryCross Flow Fan
TagsCommercial Heating EquipmentCross Flow FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Cross Flow Fan range. The Fan Selector lists every LONGWELL cross flow fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search cross flow fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description



Types :
LONGWELL Factory Wholesale Cross Flow Fan EC/DC/AC Trench Heater Fan 12v Double Triple Tangential Fans Customized All Size
Voltage Ranges :
115V,230V,400V;
Frequency :
50/60 Hz
Diamter :
133mm-630mm ( impeller diameters )
Motor Types :
BLEC External Rotor Motor
Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

Applicable altitude range：＜1000m

Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

voltage

110V/120V /220V /230V /12V /24V
speed

4000 RPM, 1100rpm, 990rpm
mounting

Free Standing
Blade Material

aluminum/plastic
Material

Plastic, Aluminum Alloy, Steel
customized support

OEM, ODM, OBM
