On June 29, 2026, LONGWELL opened a project to prepare engineering drawings for the LWCD-40610MN-06 cross flow fan. LONGWELL engineering finalized and reviewed the sales specification drawing for model LWCD-40610MN-06-00 on June 30, 2026.
Engineering specification and design parameters

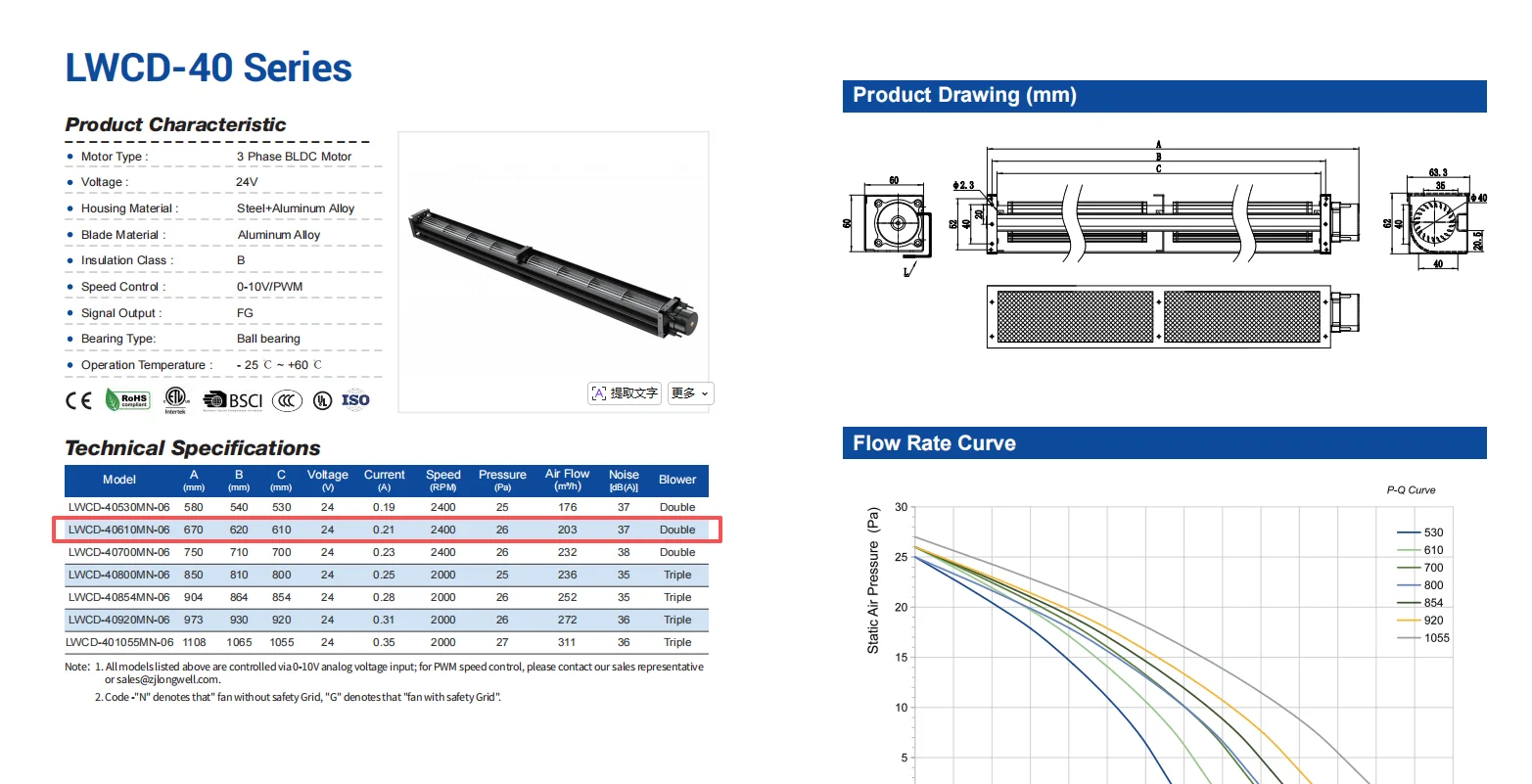

The LWCD-40610MN-06-00 drawing establishes mechanical dimensions and electrical parameters for this DC cross flow fan configuration. The assembly incorporates an impeller with 22 blades, a 3 mm steel shaft, and 1.5 mm bushings. Wiring is delivered via a 4-core cable with a nominal length of 500 mm.
| Parameter / Feature | Specified Value |
|---|---|
| Model Number | LWCD-40610MN-06-00 |
| Nominal Voltage | 24 VDC |
| Operating Current | 0.21 A |
| Rated Speed | 2400 r/min |
| Bearing Type | Ball bearing |
| Speed Control Input | 0 ~ 10V DC |
| Total Overall Length | 670 ± 2 mm |
| Mounting Hole Distance | 620 ± 1 mm |
| Impeller / Air Outlet Materials | Aluminium |
| Side Plate Material | Iron |
Technical deliverable scope
The completed deliverable includes sales drawing LWCD-40610MN-06-00, defining physical dimensions, material selections, and electrical interface specifications for customer fit evaluation.
