Customer Requirement

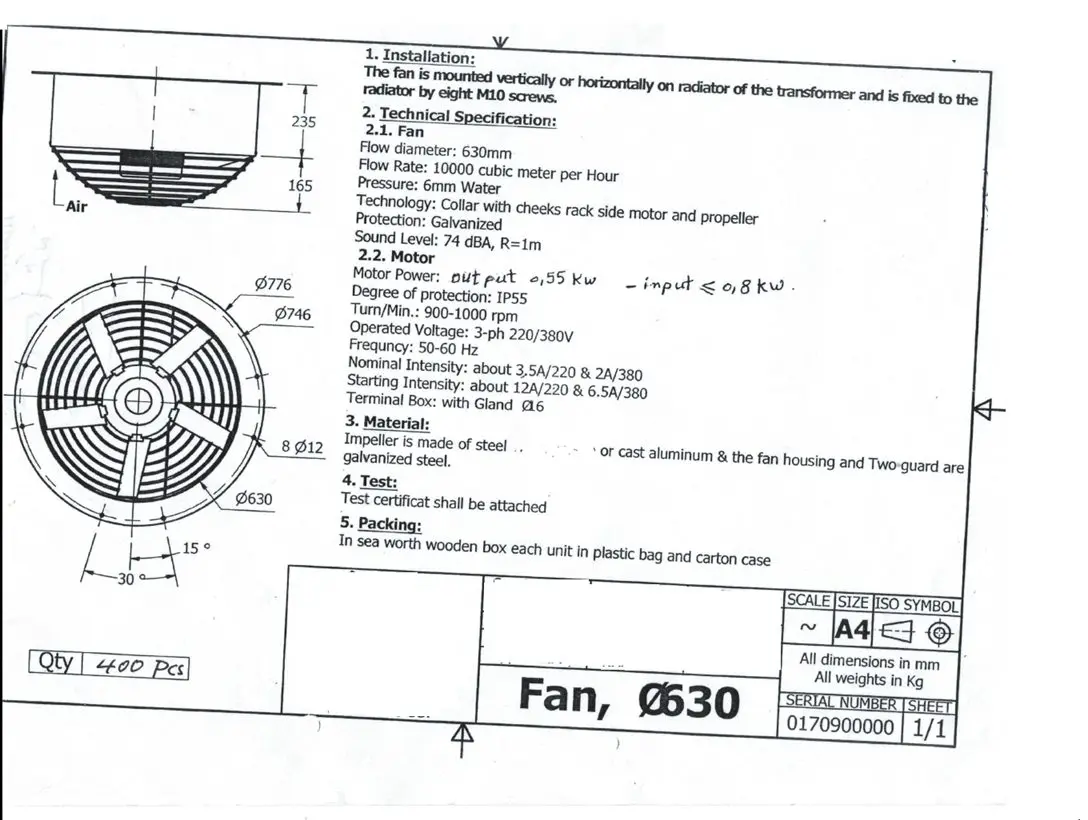

An OEM requires 400 axial flow fans for cooling the outdoor transformer radiator. This project needs to be equipped with cylindrical axial flow fans that can provide airflow of 10,000 m³/h.
The axial flow fans need to be equipped with inlet and outlet safety guards and should have an outdoor protection level of IP55. Other requirements include a maximum input power of less than 0.8 kilowatts. The axial flow fans should be compatible with both 380V 50Hz and 380V 60Hz power systems to meet the needs of different sales regions. Performance verification is conducted according to the ISO 5801 testing standard.
Engineering Solution

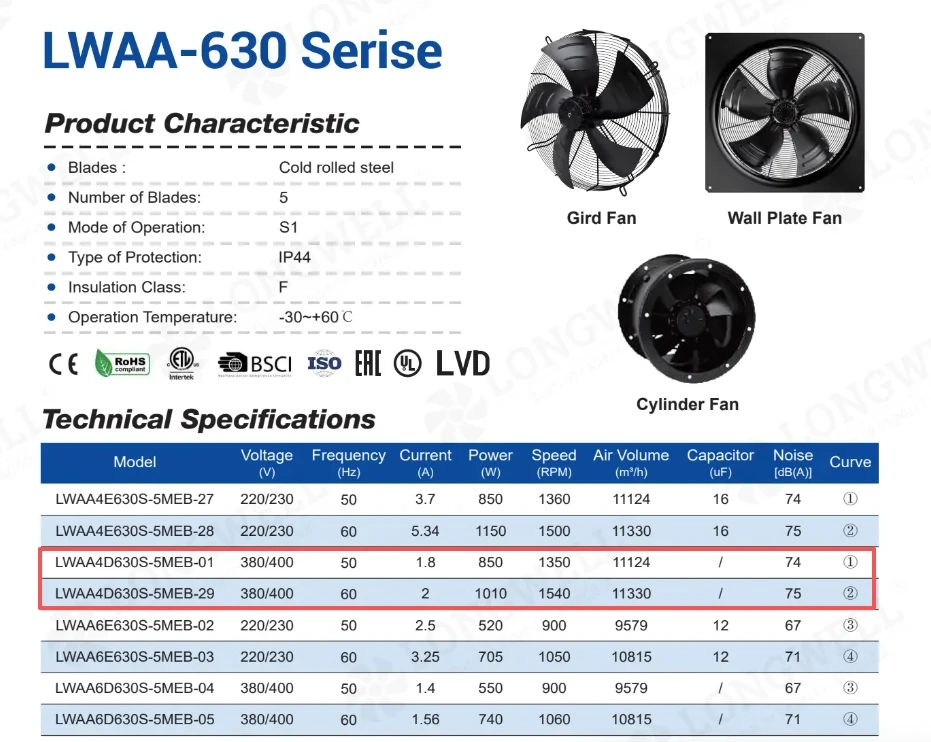

The existing axial fan platform of LONGWELL can already meet the airflow performance requirements of the customers. According to the operating point of 10,000 m³/h and 60 Pa required by the customers, the technical team selected the LWAA-630 series axial fans as the most suitable solution. The selected LWAA6D630S-5MEB-01 and LWAA6D630S-5MEB-29 models match the required power.
To meet the complete project specifications, some modifications to the axial fan are needed. The final proposed solution is the model LWAA6D630S-5MYB-04-11. The IP55 protection grade housing design ensures dust and water protection during outdoor installation.
Technical Specifications
The final approved specification for the 50Hz variant, LWAA6D630S-5MYB-04-11, met all of the customer’s primary technical requirements for the transformer cooling application.
| Parameter | Value |
|---|---|
| Model Number | LWAA6D630S-5MYB-04-11 |
| Nominal Voltage | 380 VAC |
| Frequency | 50 Hz |
| Speed | 900 RPM |
| Input Power | 550 W |
| Current | 1.4 A |
| Max Airflow (Free Air) | 9,579 m³/h / 5,635 CFM |
| Noise Level (LpA) | 67 dB(A) |
| Protection Type | IP55 |
| Insulation Class | Class F |
| Operating Temperature | -30°C to +60°C |
| Work System | S1 (Continuous Duty) |
| Dimensions (W x D) | Ø755 mm x 250 mm |
Technical Documentation
The following document was provided to the customer for technical approval and system integration planning.
Why LONGWELL Axial Fans for Transformer Radiator Cooling?
- Axial fans provide high airflow with low power consumption. The selected LWAA6D630S-5MYB-04-11 model operates at 550W input power, meeting the customer’s energy efficiency requirements.
- A 630mm diameter axial flow fan is selected, which can provide 9579 m³/h of airflow at a static pressure of 60 Pa, meeting the large heat dissipation capacity and high heat dissipation requirements of the radiator.
- The customized LWAA6D630S-5MYB-04-11 axial flow fan is equipped with an IP55 protection level and has reliable dust-proof and moisture-proof performance.
- The LWAA-630 series axial fan supports different power supply requirements, allowing similar performance to be used across different markets.
Explore LONGWELL’s full range of AC Axial Fans.
Frequently Asked Questions
Q: How long can this fan operate continuously in transformer applications?
A: The L10 life expectancy is 30,000 hours under standard outdoor conditions. Furthermore, its Class F motor insulation provides stable operation when the temperature is up to +60°C.
Q: Are 60Hz North American power configurations supported?
A: Yes. The custom LWAA6D630S-5MYB-04-11 handles supplies between 50Hz and 60Hz. LONGWELL customers who need a dedicated 60Hz setup can opt for the standard LWAA4D630S-5MEB-29 model. Powered by 380/400V at 60Hz, it runs at 1,540 RPM to push airflow up to 11,330 m³/h.
Q: Does the published P-Q performance curve account for the safety guard impedance?
A: Yes. All aerodynamic testing complies strictly with ISO 5801 standards. The two mesh safety guards are a standard part of this assembly. The tests, conducted according to ISO 5801 standards, measure the performance of the fan as a system, so the slight pressure drop from the guards is already factored into the final 10,000 m³/h at 60 Pa performance point.
Technical Documentation & Resources
Project Gallery & Technical Drawings
The LONGWELL LWAA-630 series includes Grid, Wall Plate, and Cylinder fan types.
Have a Similar Fan Requirement?
Longwell’s engineering team delivers custom spec sheets and samples within 90 days. Since 1990, we have supplied EC fans and blowers to OEMs across HVAC, cold chain, data center, and industrial applications worldwide.
Browse Related Products:
🏆 ISO 9001 / ISO 14001 / ISO 45001 | CE (TÜV) | UL/ETL | ATEX Zone 21/22 | AMCA 210-16 / ISO 5801 tested
Project Item: 7051338892-AC630
Project Date: 2026-07-16 06:18:55
