Crawl Space Ventilation Fan Guide

A crawl-space fan is a choice about the whole building enclosure, not a cure for a damp foundation. Before selecting equipment, find the water source, establish whether the space is intended to be vented or sealed and conditioned, and trace what a fan would move through the structure. This guide turns those checks into a decision and a handoff for an installer. It does not prescribe a universal air-change rate, humidity setpoint or Longwell model.

Identify the moisture source before moving air

Inspect the ground, foundation perimeter, drains, plumbing and framing. Standing water, a plumbing leak or surface runoff needs a water-control response; a fan cannot repair any of them. Inspect the ground vapor cover and the air boundary between the crawl space and living rooms, including penetrations and any ducts. The U.S. Department of Energy’s crawl-space retrofit guide treats water entry, soil vapor, air leakage and combustion equipment as parts of one design problem. Merely opening or closing a vent without the rest of the enclosure details may make conditions worse.

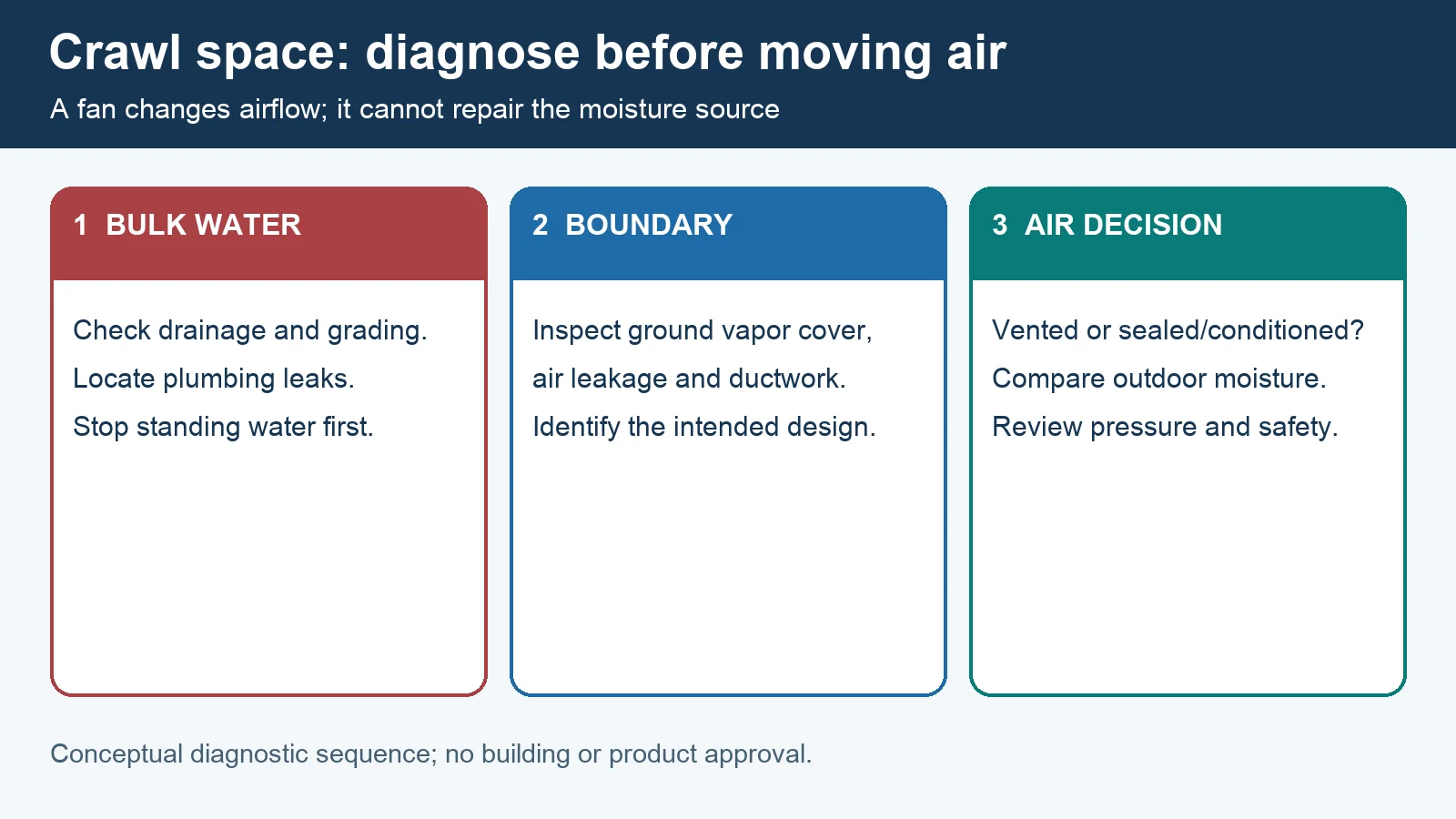

Document observed water marks, damaged materials and existing controls before proposing a device. If water is near wiring, structural deterioration is suspected, or mold or contamination exceeds a safe inspection scope, arrange qualified assessment. The first diagram is a sequence for deciding what to investigate; it is not a diagnosis of any particular building.

Decide whether the space is vented or sealed and conditioned

Do not assume that outdoor air will dry a crawl space. Warm outside air can carry more water vapor than cooler crawl-space air, and condensation can occur on cooler surfaces. The DOE’s Building America summary of conditioned crawl spaces reports that humid-climate venting can increase moisture. Its reported performance comes from particular researched assemblies, not from fitting a fan to an arbitrary house. Climate, ground conditions, ducts, insulation, local rules and the intended building boundary all matter.

A vented design needs an intentional air path and a way to evaluate whether the introduced air helps under relevant seasonal conditions. A sealed or conditioned design needs its own complete water, vapor, insulation and conditioning details. A fan that opens an uncontrolled path can undermine that design. Check the actual project requirements and have a qualified building professional resolve uncertain or conflicting conditions. A simple climate label or a single indoor relative-humidity reading is not enough to select the strategy.

Separate crawl-space ventilation from radon and combustion safety

Radon requires testing and, where needed, a purpose-designed mitigation method. A general exhaust fan is not a substitute for that work. The U.S. Environmental Protection Agency directs homeowners to recognized testing methods and qualified mitigation professionals. Keep that decision separate from ordinary moisture ventilation, and do not imply that a fan or product-family page proves radon control.

Air movement can also change pressure relationships around naturally vented combustion appliances or between the crawl space and occupied rooms. Record the appliances, ducts and openings that could be affected. Ask a qualified installer to assess those interactions before specifying an exhaust path or sealing vents. If the pressure boundary is unknown, the equipment choice remains open.

Translate a justified ventilation strategy into an equipment brief

If the building assessment calls for mechanical ventilation, map the intended inlet, outlet, weather protection, pest screening, wiring and service route. Define the installed airflow and resistance that the design requires; a free-air number alone does not describe the actual duty. Check the exact fan model and revision for its published duty information, permitted environment, mounting orientation, control arrangement and access requirements. The equipment documents and local rules must govern the installation.

Longwell’s wall exhaust fan family illustrates through-wall product forms. A reviewed company product worksheet identifies individual LWWEXD models and separates wall exhaust from wall supply arrangements, with different weather hoods and screens. That family context does not establish that any of those models suits a crawl space, the proposed moisture exposure or the building’s pressure path. Ask for the current controlled record for the exact model before using a curve, rating, protection claim or installation detail. The family link is a starting point for identity, not a model selection.

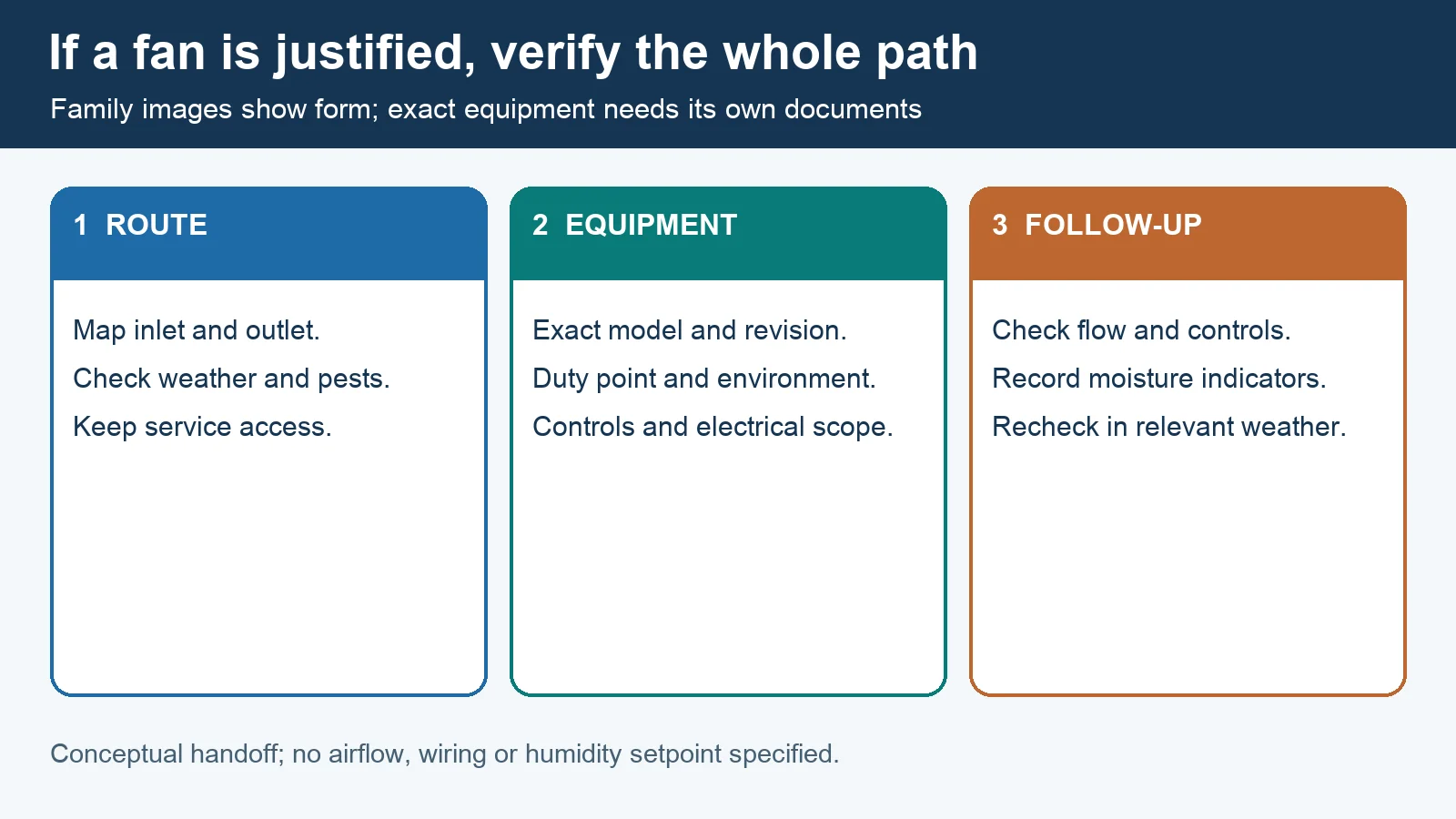

The second diagram is the practical handoff. It keeps route, exact equipment and later checks together so a contractor can identify missing inputs before a product is ordered.

Commission the system and revisit the decision

At handoff, record the original moisture condition, intended airflow direction, installed device identity, control response and accessible service points. Check for unusual noise, vibration, blocked louvers, unwanted air movement between the crawl space and house, and any weather or pest exposure. Have the installer verify the electrical and safety conditions under the exact instructions. A powered motor alone does not show that the moisture strategy is working.

Choose follow-up observations that correspond to the diagnosed problem: evidence of water entry, condition of framing and insulation, ground-cover integrity and moisture readings taken in comparable locations and weather. Reassess during the seasons that originally caused concern. If moisture persists, return to the water and enclosure diagnosis rather than automatically raising fan speed or operating time. The useful outcome is a documented choice: correct the source, complete a sealed or conditioned design, or use a verified mechanical ventilation path where the building assessment supports it.

For an exact-model review after the building strategy is defined, send the crawl-space design, route sketch, required installed duty and environmental conditions to sales@longwellfans.com.
