Blade pitch is a property of a blade’s geometry. Angle of attack describes how the air approaches that blade while the fan is running. Mixing the two can lead to the wrong conclusion from a noisy fan or a disappointing duty point. A blade has not changed shape just because the duct resistance or airflow has changed; the relative flow arriving at it may have changed. The useful decision is therefore to compare the actual operating point with the exact fan’s data before proposing a pitch adjustment.
Pitch is geometry; angle of attack includes the airflow
For a particular blade section, describe pitch against a stated reference plane. The air does not approach that section from a fixed direction in every installation. Its relative direction combines the blade’s motion with the air moving through the rotor. When volume flow or rotational speed changes, the relative direction can change even if the blade setting stays locked. The angle between the section and that relative flow is the angle of attack.

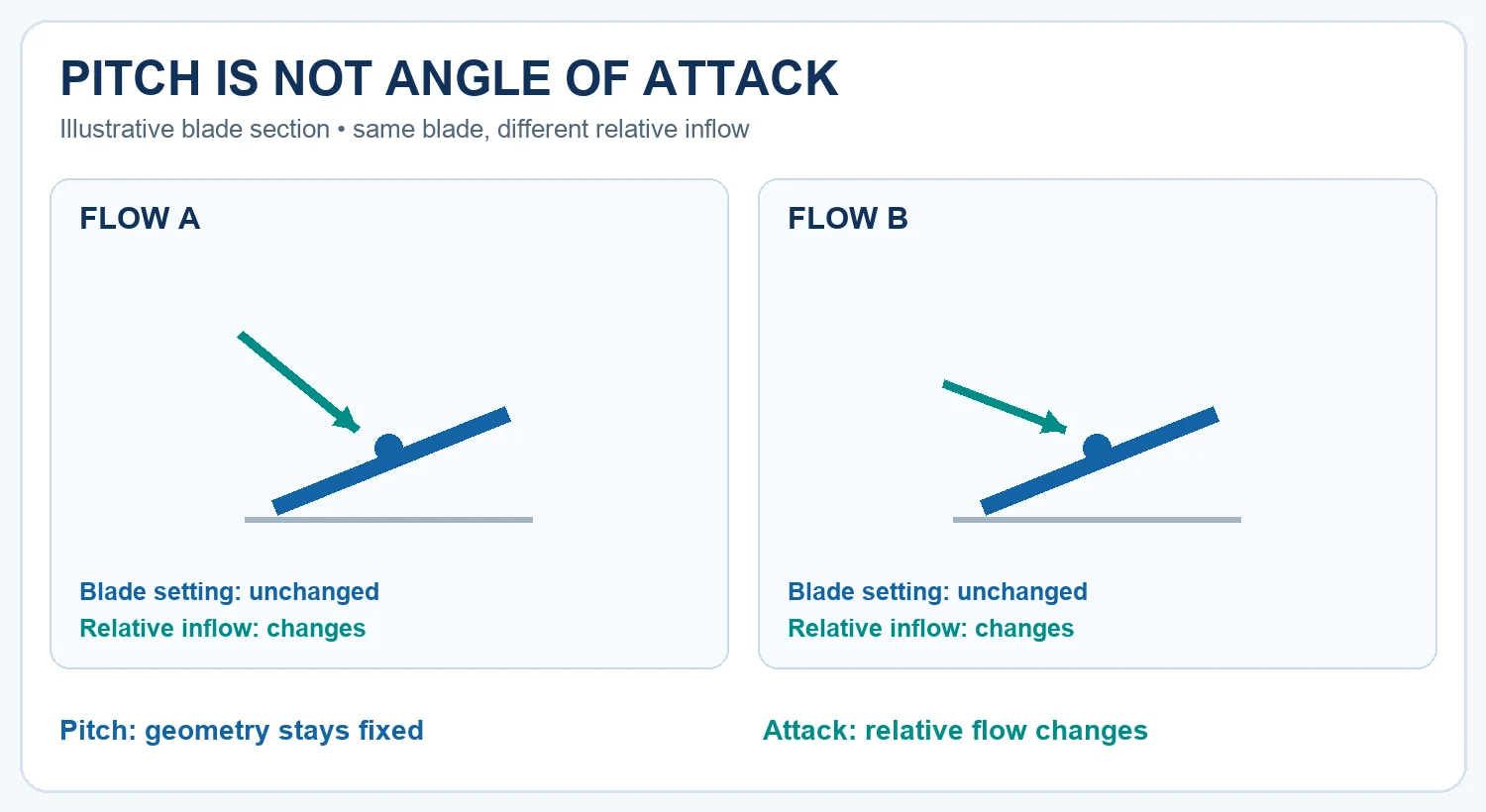

The two panels below keep the blade setting the same and change only the illustrative incoming direction. They are a teaching sketch, not a measurement or a section drawing for a LONGWELL model. They explain why a photo of a blade, by itself, cannot establish the operating angle of attack.
Why the blade can change section angle from hub to tip
At one rotational speed, tangential speed increases with radius. The outer part of the blade travels farther per revolution than the inner part. Designers can vary blade section shape and angle along the span to manage the local relative flow and loading. This is one reason a real axial impeller may appear twisted. It does not mean that every blade has the same twist pattern, or that you can read its pressure curve from the visible twist.

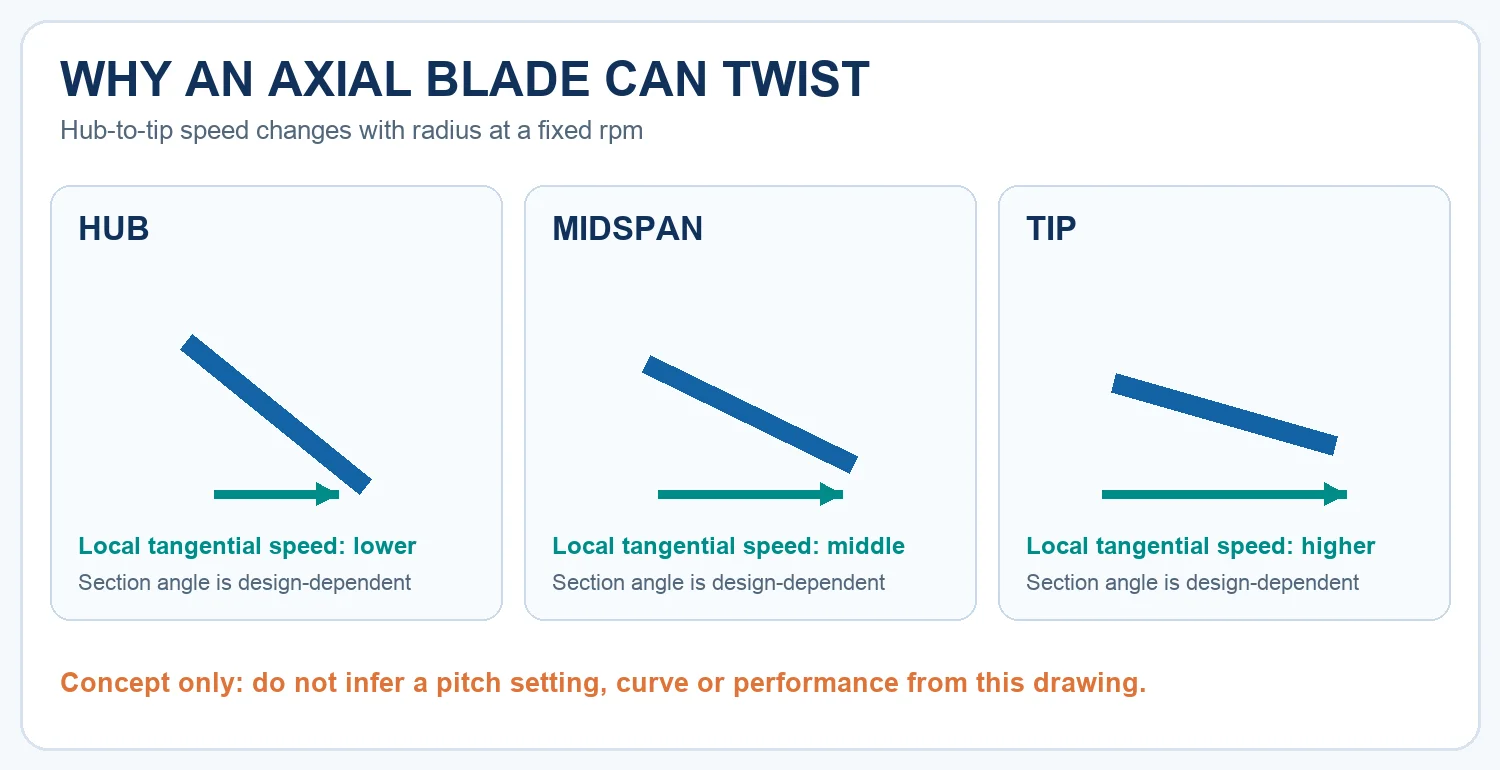

The sketch separates hub, midspan and tip. The arrows illustrate the speed relationship; the blue lines illustrate possible section-angle changes. Actual pitch distribution, airflow and loading require the exact model drawing and test data. The image is useful for understanding the mechanism, not for copying an angle onto another fan.
What a pitch change can and cannot predict
On a fan whose manufacturer explicitly permits adjustment, a different pitch setting changes the blade’s aerodynamic loading and can change its pressure, airflow, absorbed power and noise curves. The direction and size of the change depend on the blade design, speed, air density and system resistance. A steeper setting is not a reliable promise of more useful delivered airflow. A restrictive system can move the operating point into a less suitable part of the curve, and the motor or drive may reach its limit first.
Do not infer stall from sound alone. Flow separation and unstable operation are possible aerodynamic explanations, but noise may also come from the system, a mechanical issue or electrical control. Record the duty point, speed, power and pressure before diagnosing it. If an adjustment is allowed, use the manufacturer’s procedure and confirm the resulting operating point with measurements.
Read the exact fan data before selecting a setting
A catalogue image or a family page can identify a product family. It cannot substitute for a curve tied to a particular fan assembly and setting. Ask for the complete model and suffix, drawing revision, blade or hub configuration, rotational speed, test arrangement, density basis, and the curve or table for the proposed pitch. Compare the required airflow and pressure with absorbed power and motor rating at that same condition. If sound matters, request data for the same configuration and duty rather than transferring a rating from a neighboring model.
Use the intersection of the fan and system characteristics for the selection decision. If the required point sits outside the available tested range, changing pitch in a proposal is a question for engineering review, not a substitute for evidence. An installation with a different inlet, guard or discharge can also change actual performance, so identify those conditions when requesting a review.
What the LONGWELL blade photo establishes

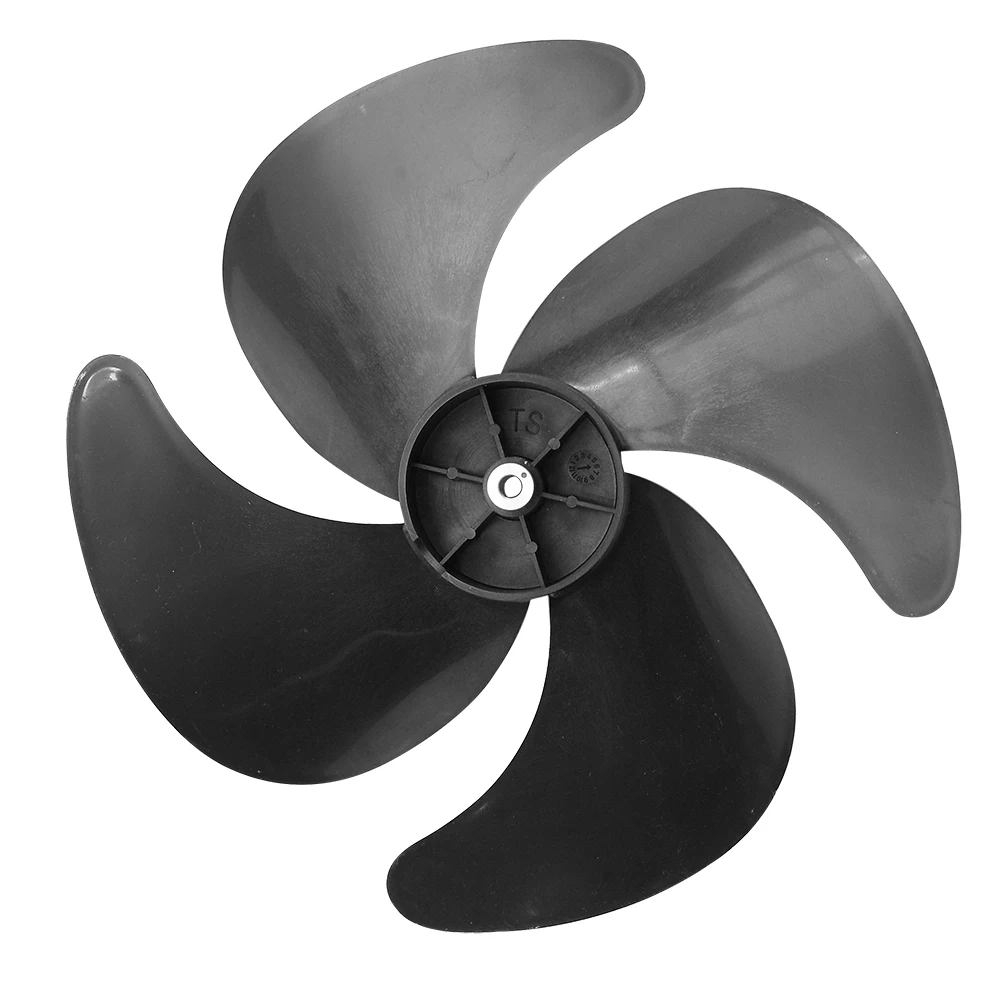

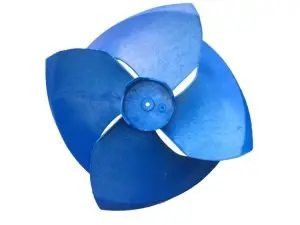

The product photo below is from the LONGWELL plastic axial impeller family. It shows visible curved blades around a central hub. The source does not identify a model or revision for this image, and a front view cannot establish the calibrated pitch, test curve, material grade or suitability for your fan. Treat it as a visual orientation aid. The LONGWELL axial fan family is a starting point for matching an actual assembly; selection still needs the exact model’s controlled drawing and operating data.
Before adjusting an installed fan
First confirm whether the exact fan is fixed pitch, adjustable at rest, or equipped with a documented variable-pitch mechanism. Do not loosen or re-angle a fixed-pitch assembly. For an adjustable design, isolate power and follow the approved service method, angle reference, fastener procedure and permitted range for that model. Afterward, check the assembled configuration, rotation, clearance, current and actual duty point under the intended system condition. A change that appears helpful at one airflow can be unsuitable elsewhere on the operating curve.
For a replacement or new design, send the required airflow and pressure, installation geometry, supply and control details, and any noise boundary together. That gives an engineer enough context to request or compare the right model-specific curves instead of guessing from blade appearance alone.
