Project Overview

On June 25, 2026, LONGWELL opened a project to define standard technical specifications for the LWFD3G160-072SZ-01 DC forward centrifugal blower. LONGWELL engineering completed the technical evaluation and released the finalized specification drawing on June 26, 2026.

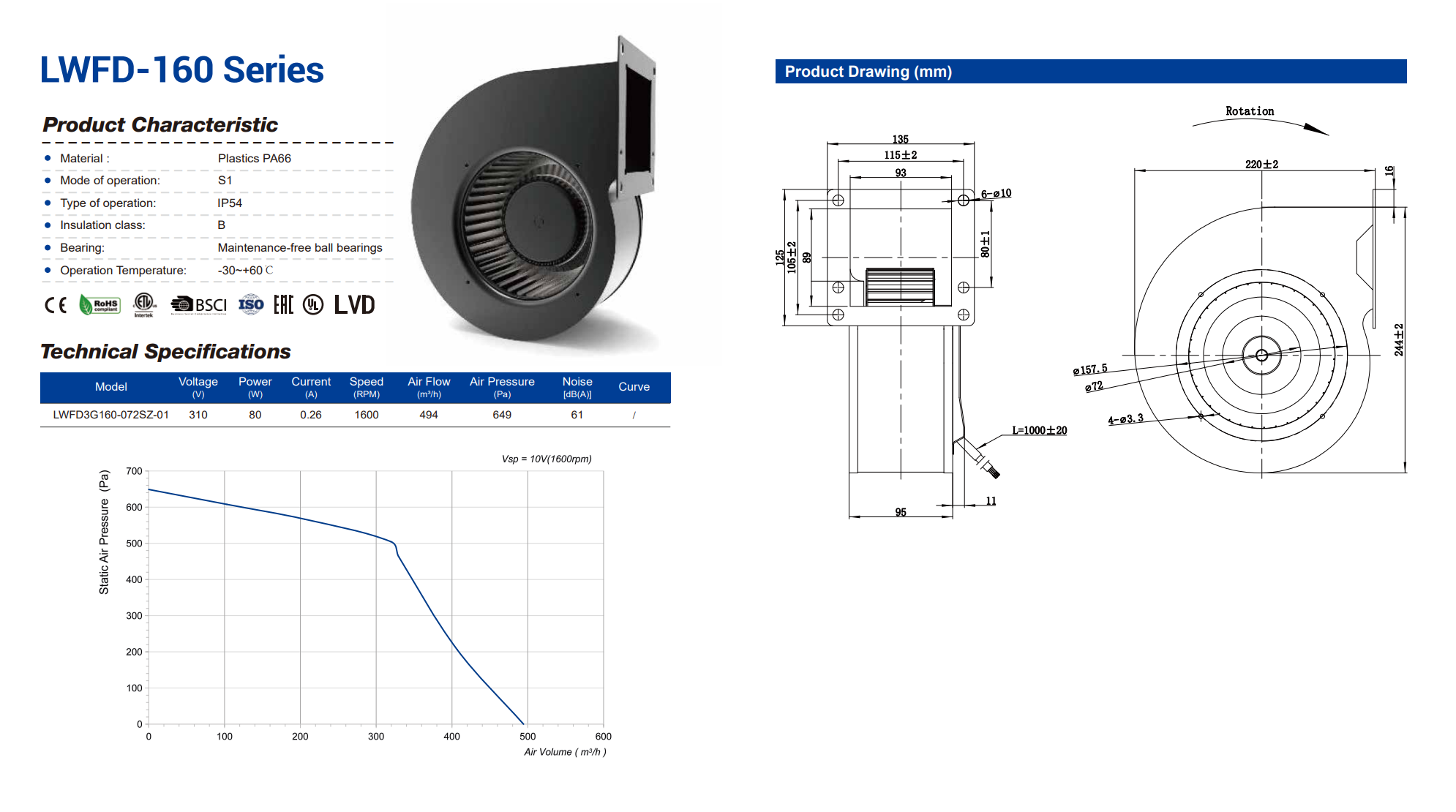

Source centrifugal-blower technical-sheet reference supplied for the documentation request
Source centrifugal-blower technical-sheet reference supplied for the documentation request.

Blower Design Parameters

The LWFD3G160-072SZ-01 operates on a nominal 310 VDC supply with an operational voltage range of 280–340 VDC. Built with PA66 plastic impellers and maintenance-free deep groove ball bearings, the blower features IP44 protection and Class B insulation for continuous S1 duty in ambient temperatures ranging from -25°C to 60°C.

Parameter Specification Value
Model Number LWFD3G160-072SZ-01-00 (Version A0)
Nominal Voltage 310 VDC (280–340 VDC)
Speed 1600 rpm
Power Input 80 W
Current 0.26 A
Maximum Air Flow 494 m³/h (294 CFM)
Maximum Static Pressure 649 Pa
Noise Level (LpA) 61 dB(A)
Protection Type / Insulation Class IP44 / Class B
Lead Wire Length 1000 ± 20 mm

Electrical Interface and Control Features

Speed adjustment is driven via 0–10 VDC or PWM control input (frequency range 1 kHz to 10 kHz, duty cycle 10% to 100%). The electrical interface provides a 12 Pulse/R tachometer output alongside open-circuit reverse polarity protection and locked-rotor automatic shutoff protection.

Download Specification Datasheet (PDF)

Drawing excerpt from the engineering file prepared for this request
Engineering drawing excerpt for the requested configuration.
Forward-curved centrifugal blower in a scroll housing
Representative forward-curved centrifugal blower; the project drawing gives the actual configuration.

Discuss a Similar Requirement

If you require custom mounting options, customized lead wire termination, or specific duty point evaluations for a centrifugal blower, submit your target operating point (airflow and pressure), supply voltage, and control requirements to LONGWELL through our contact page or explore model parameters with the LONGWELL Fan Selector.
