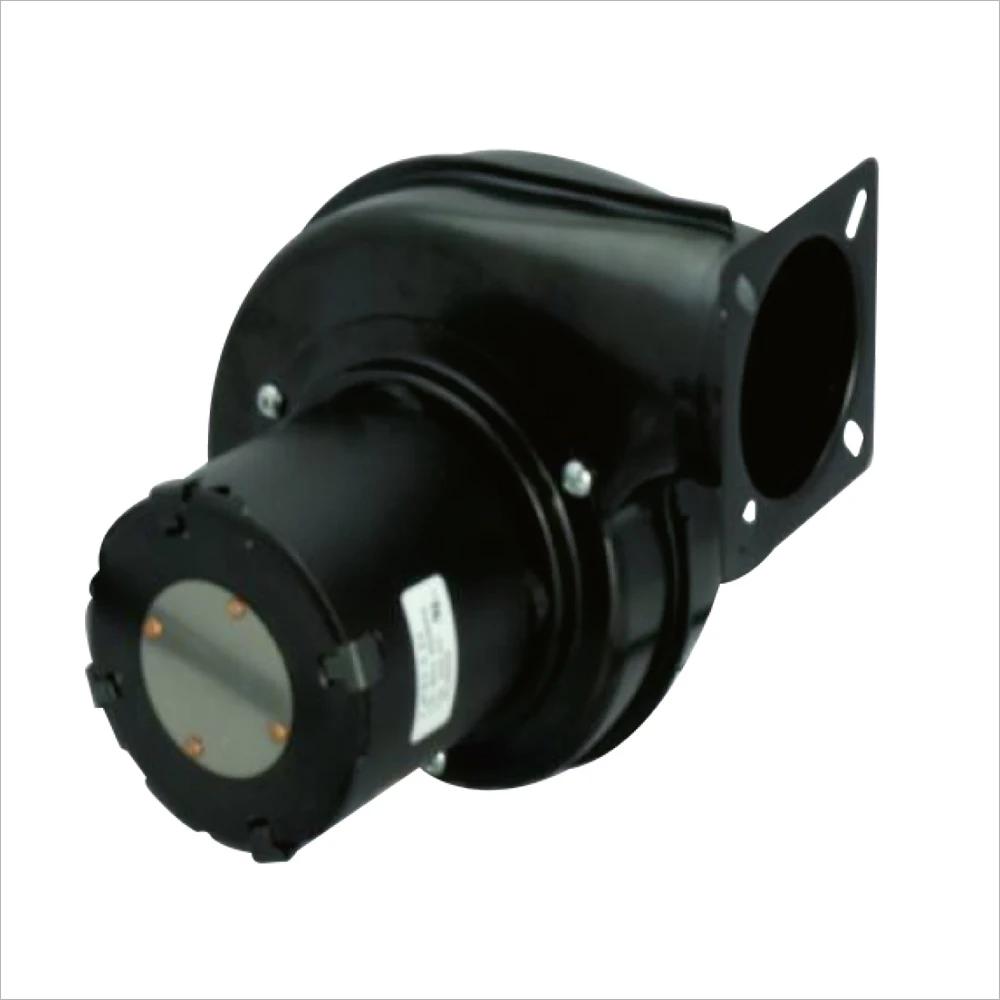

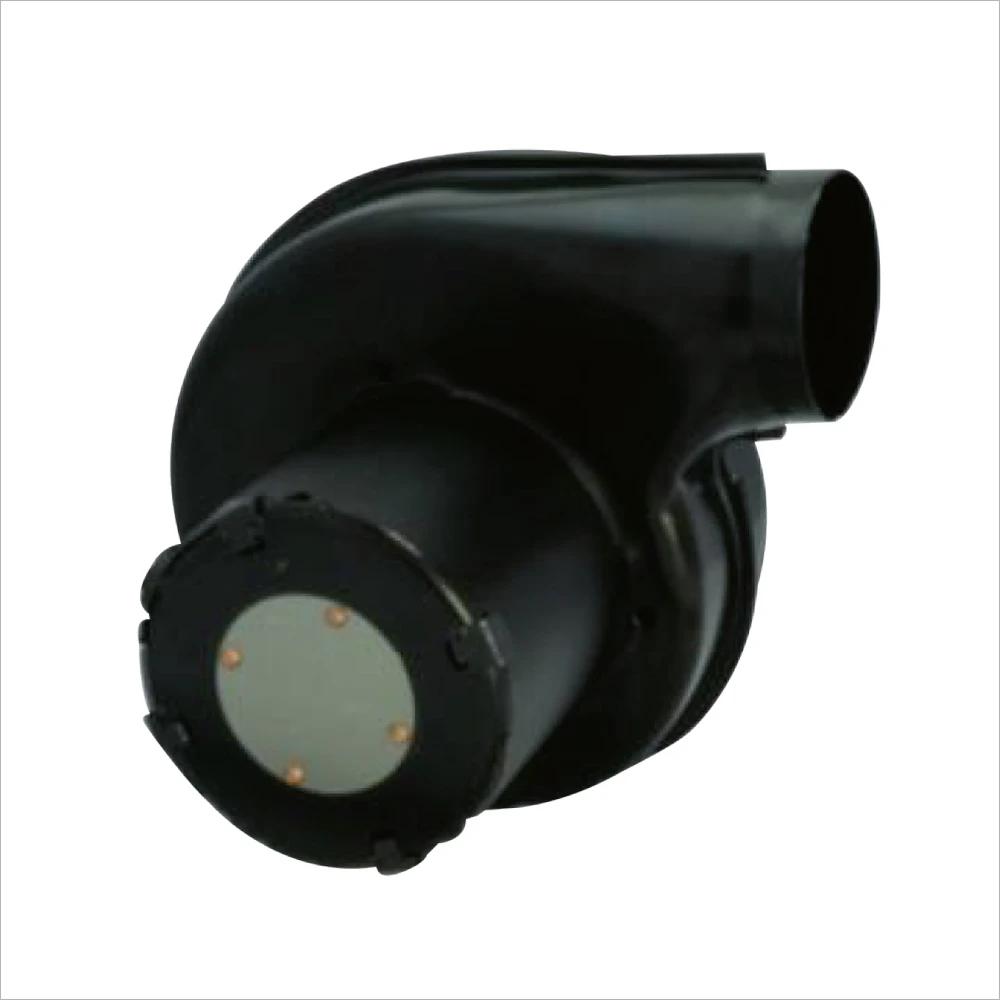

LONGWELL EC Gas Blower, Industrial Gas Blower Fan, 115V, 66 W, for Gas Transmission – LWGE097

Voltage 115V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 12

Category: Tags: , ,
CategoryCentrifugal Blower Fan
TagsCentrifugal Blower FanEC MotorGas Delivery and Pressurization
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Blower Fan range. The Fan Selector lists every LONGWELL centrifugal blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Protection class:
IP20
Impellers:
Plastic
Insulation Class:
B
Housing:
Aluminum

Recommend Products

Product Applications

Company Profile

Certifications

FAQ

Why Choose Us

Other Products

Additional information

Voltage

115V
Blade Material

Plastic
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL

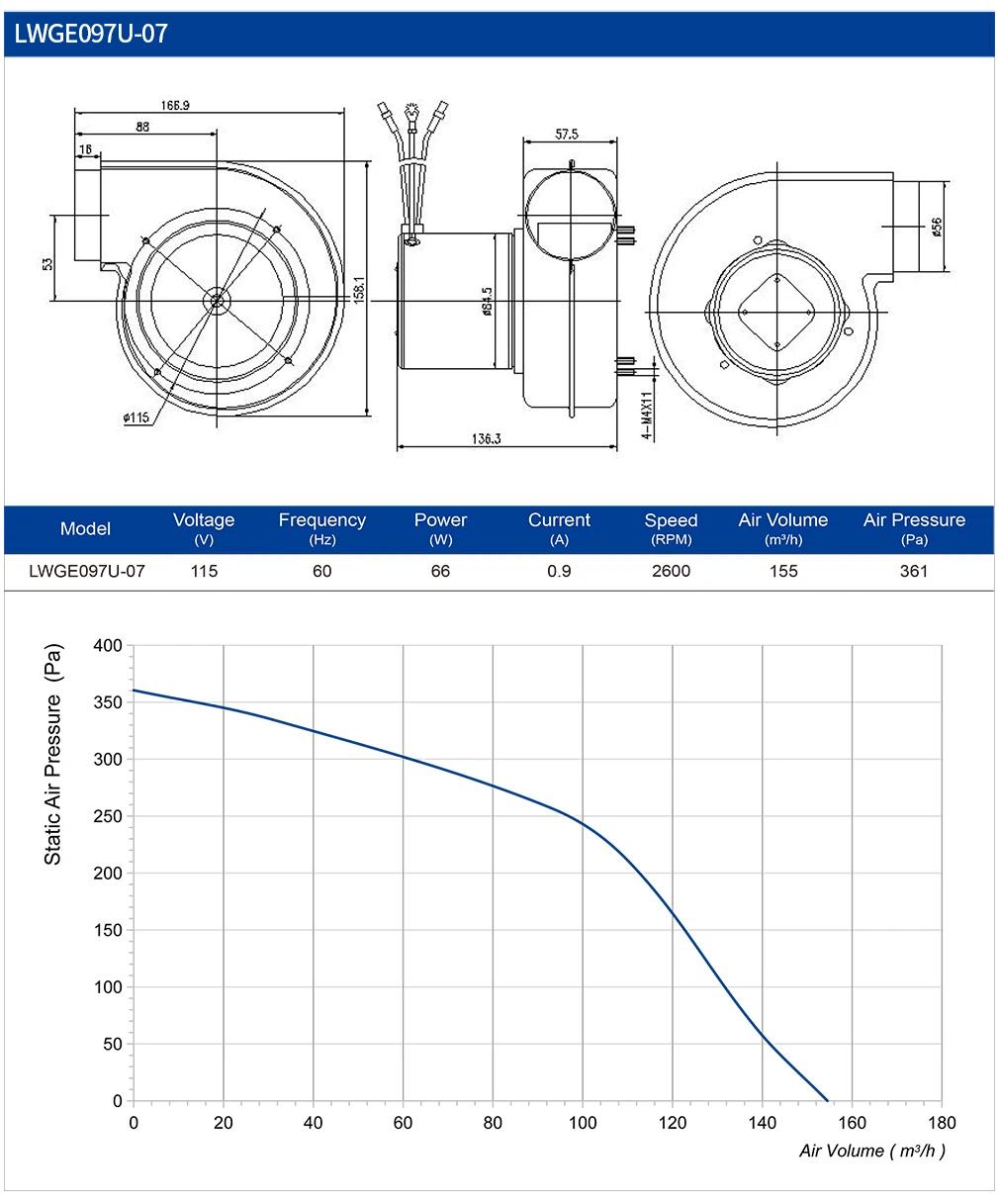

model number

LWGE097U-07
warranty

1 Year
After-sales Service Provided

Video technical support
Product name

EC Centrifugal Fan
power input

115V
Power

66W
Usage

Gas Blower
Application

Gas Transmission
Feature

High Efficiency
Motor

EC Motor
Material

Aluminum
Speed

2600
Keyword

gas blower
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

20.000 kg
