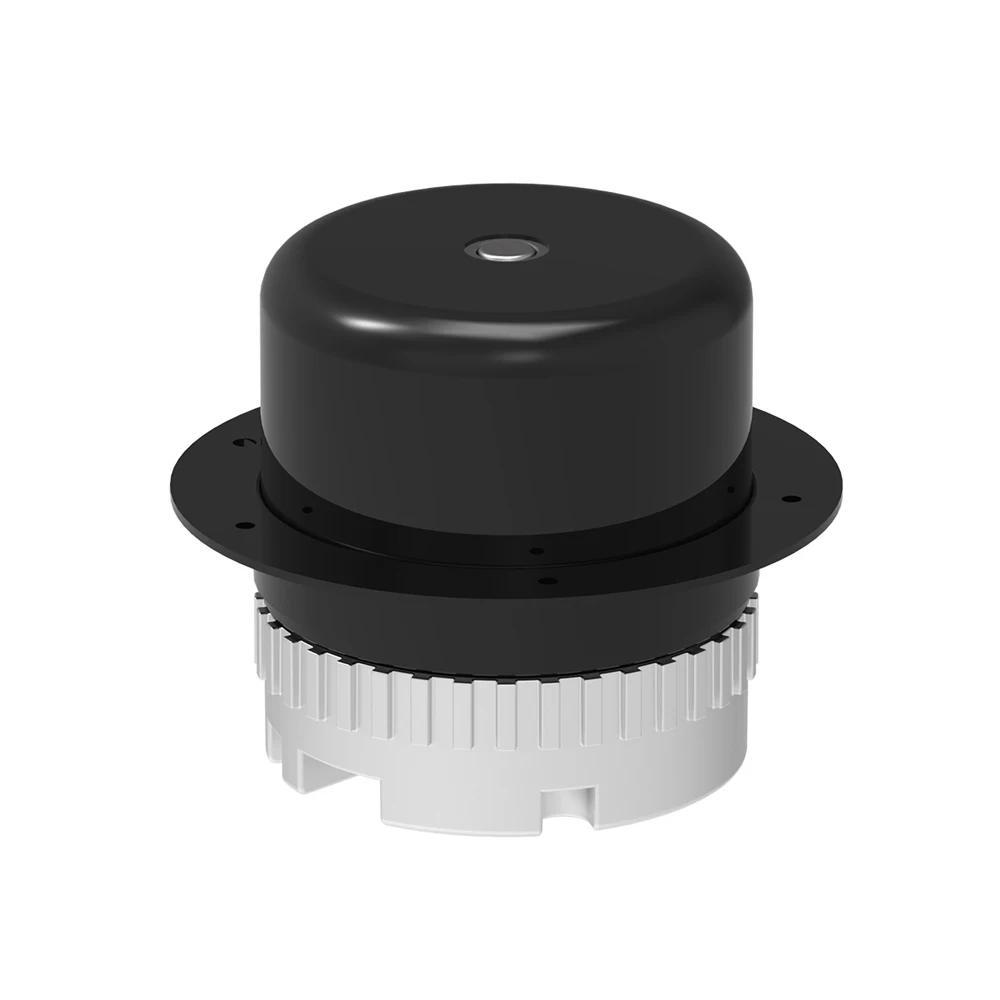

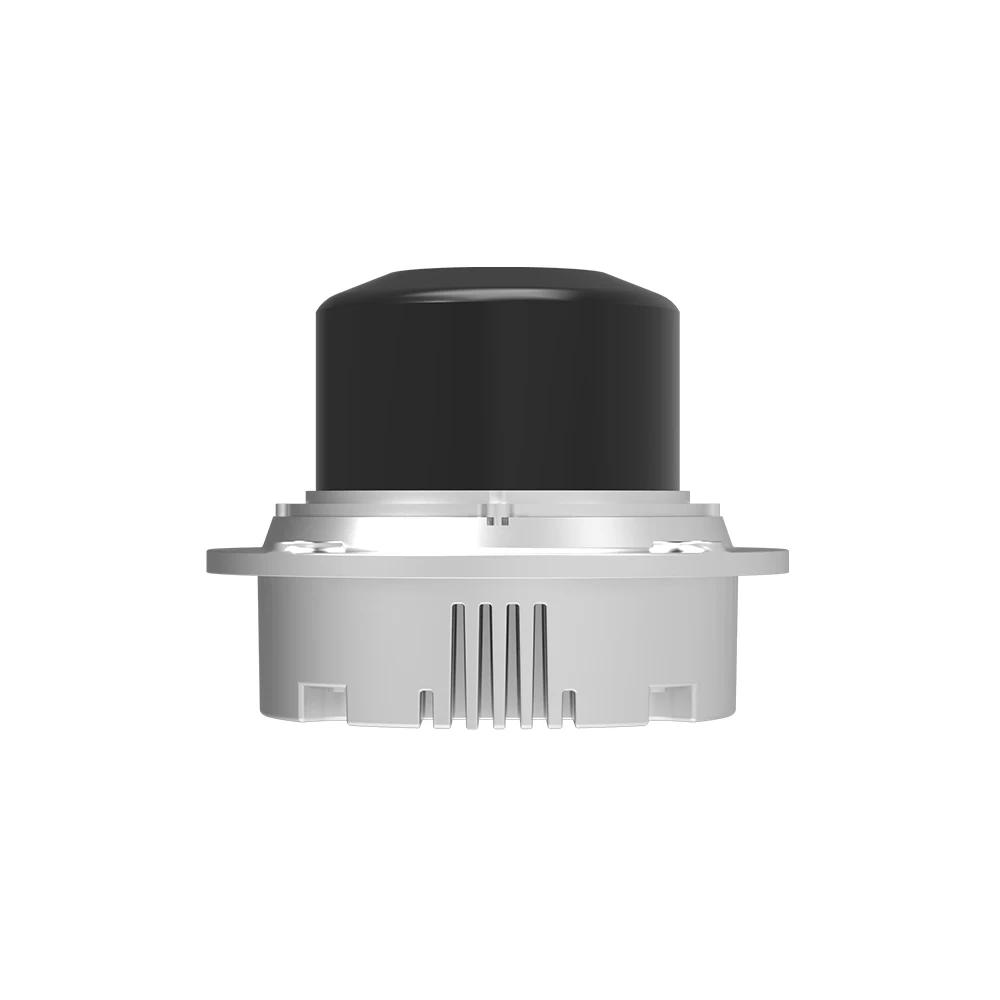

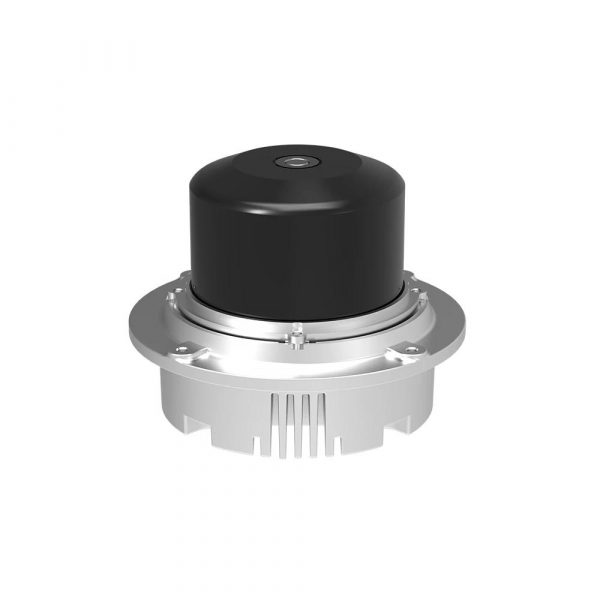

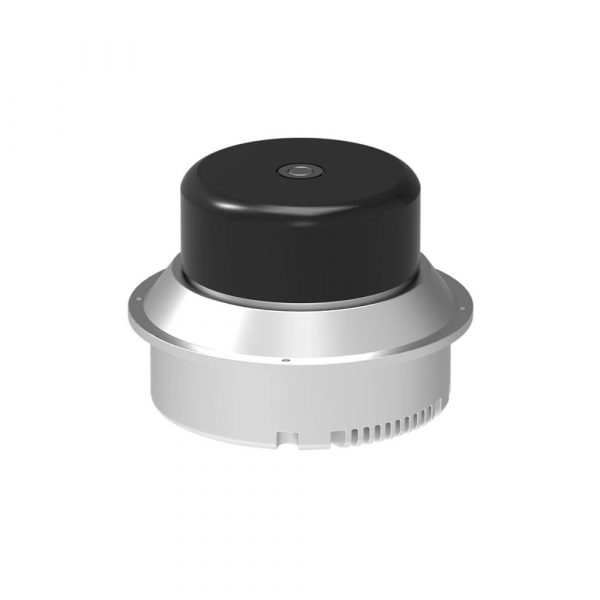

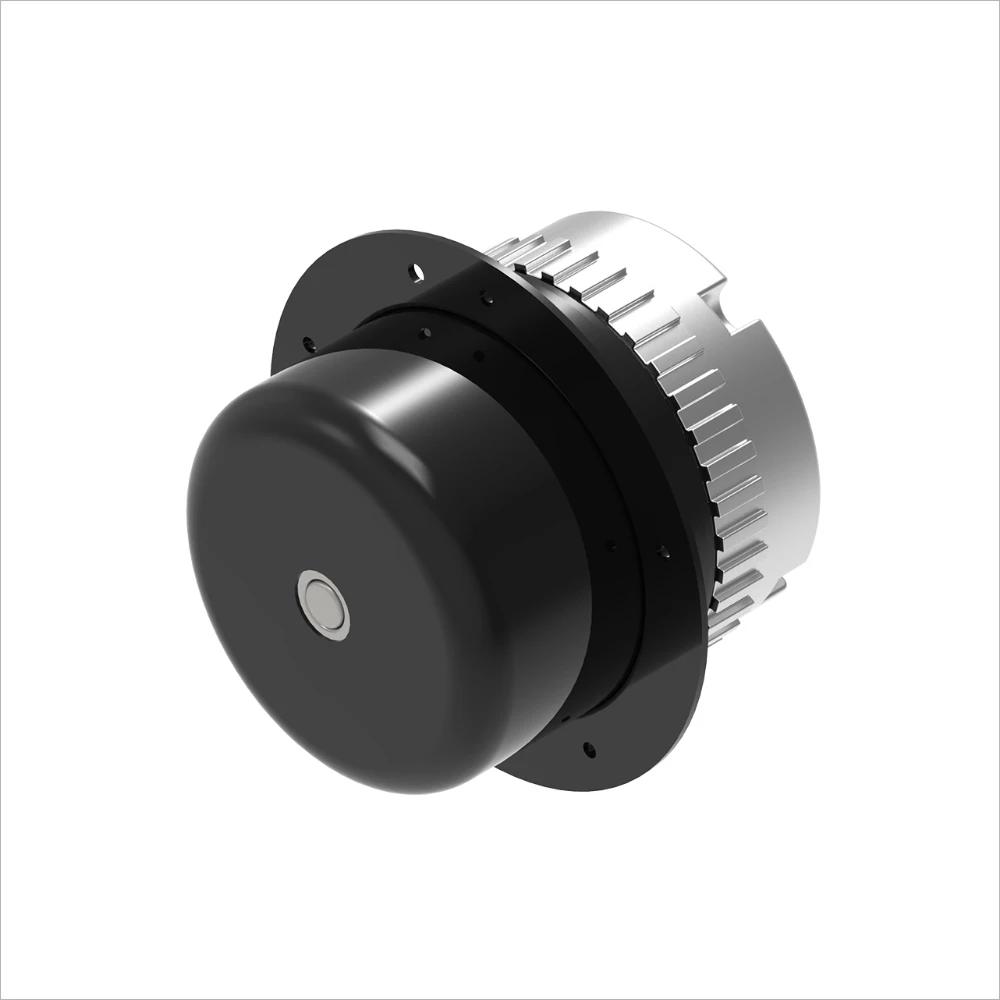

LONGWELL DC External Rotor Motor, HVAC Fan Motor, 320 W – LW-DCM102H-01

Voltage Bushless
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Category: Tags: , ,
CategoryExternal Rotor Motors
TagsBrushless MotorFan MotorOEM Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

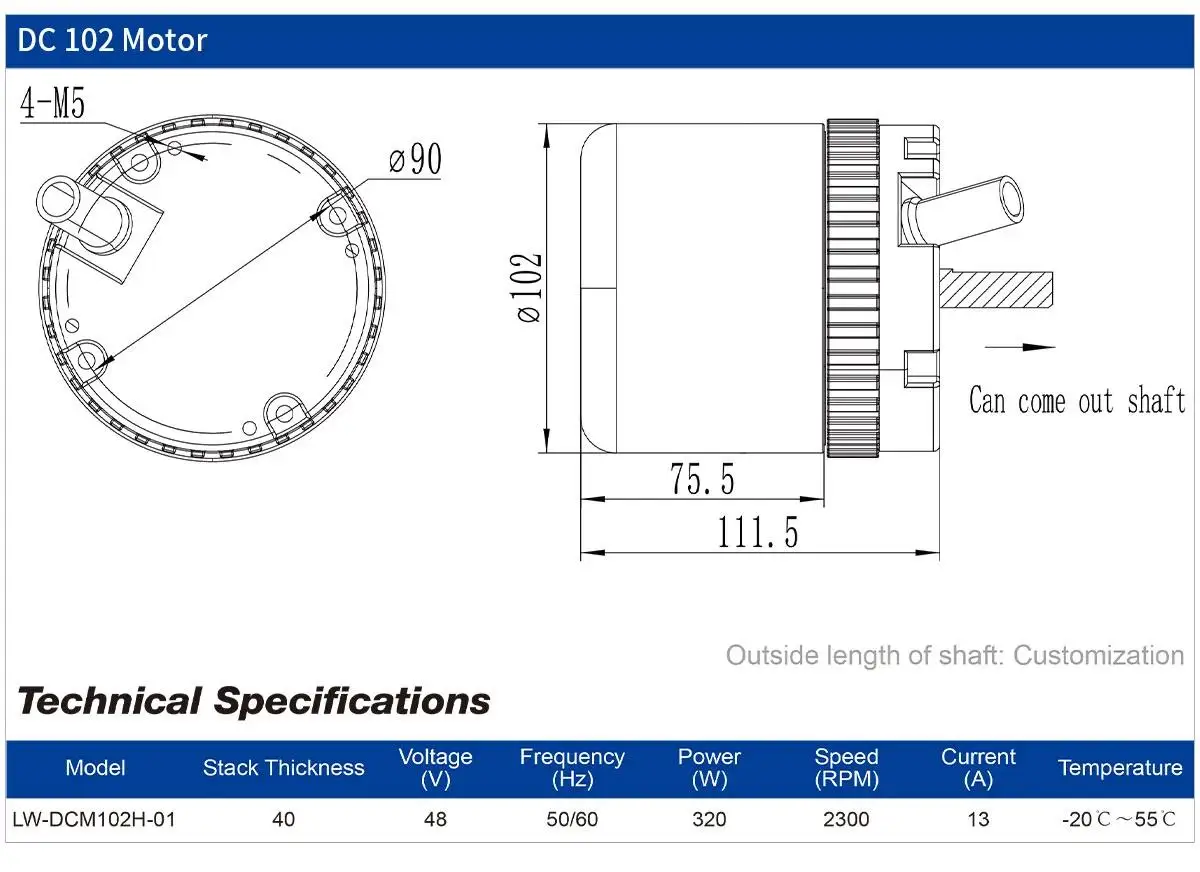

Description

Products Description

Control Input:
0-10VDC/PWM
Direction of Rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP54
Insulation Class:
F
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection,Soft start protection,Blocking protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Speed(RPM)

2300RPM
Continuous Current(A)

13A
Efficiency

IE 4
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

LW-DCM102H-01
Use

FAN
Type

Brushless motor
Construction

Series Wound
Commutation

Brushless
Protect Feature

Totally Enclosed
Product Name

Brushless Dc Electric Motor
Size

102mm
Power

320W
Feature

High Efficiency
Rated Speed

2300RPM
Motor type

Bushless
Rated Voltage

48VDC
Diameter

102mm
Keywords

48V DC motor
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg
