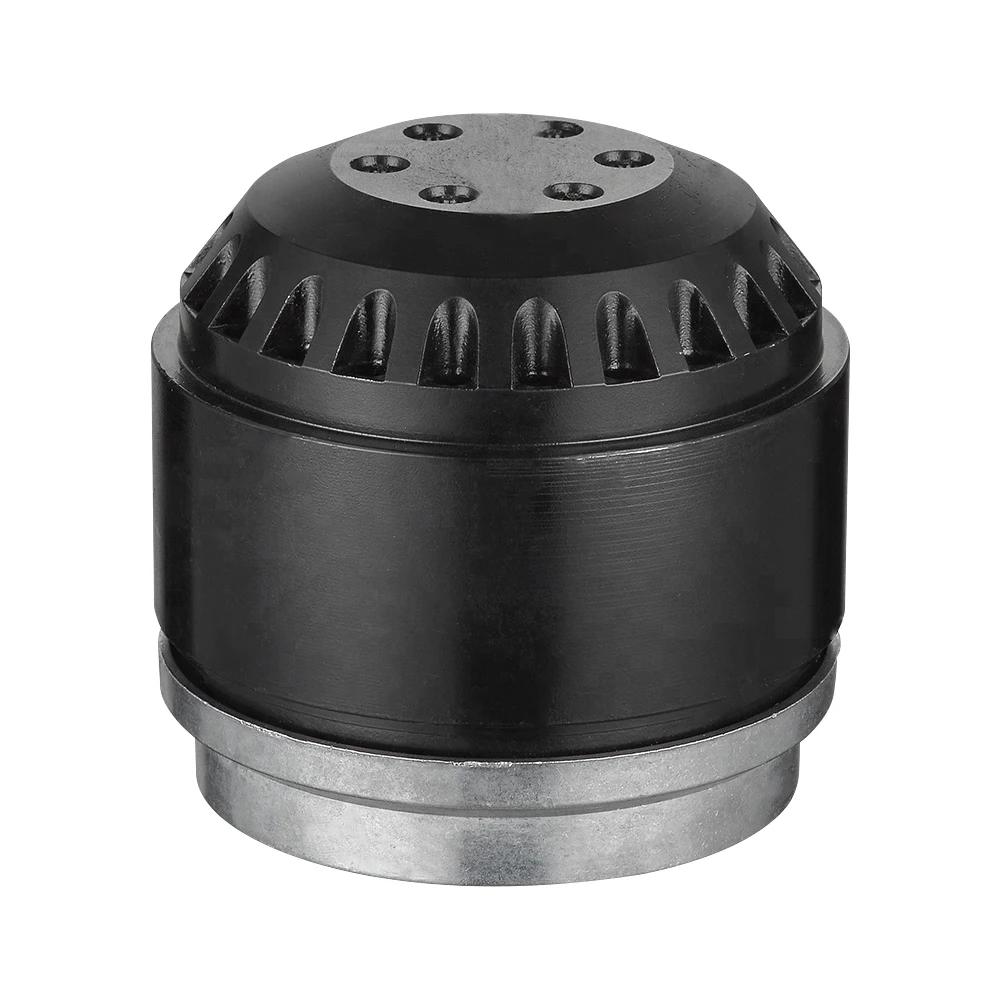

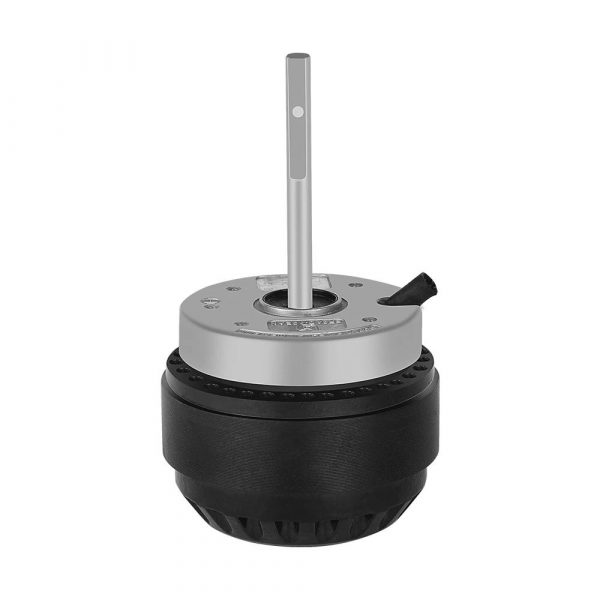

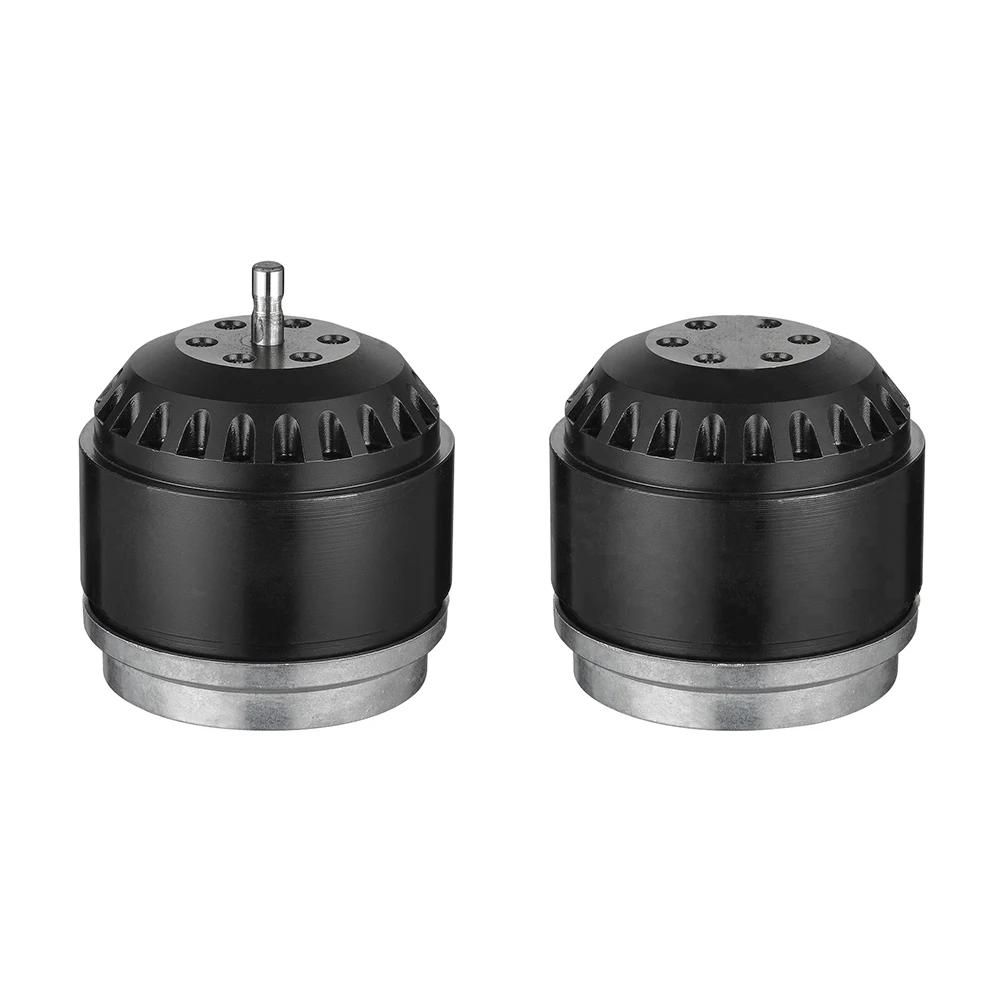

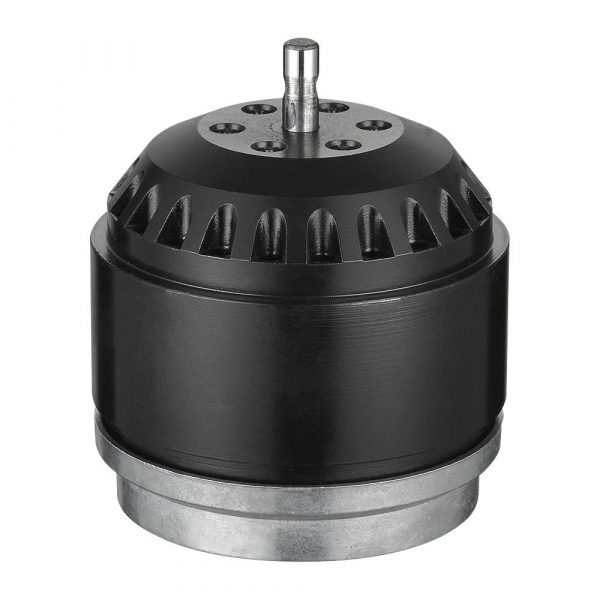

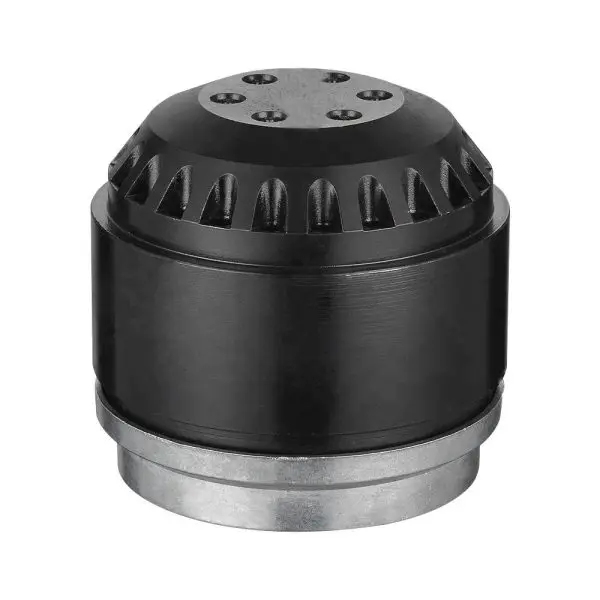

LONGWELL AC External Rotor Motor, HVAC Fan Motor, 115V, 50 W

Voltage 115V/220V/380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Specifications
Speed
930-3200RPM
Frequency
50Hz/60Hz
Phase
Single-phase
Category: Tags: , ,
CategoryExternal Rotor Motors
TagsAC MotorExternal Rotor MotorFan Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Products Description

Direction of rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP44
Insulation Class:
F
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

AC Voltage

115V/220V/380V
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

AC Motor
Type

fan motor
Frequency

50Hz/60Hz
Phase

Single-phase
Efficiency

IE 4
Product Name

external rotor motor
Application

General Machinery
Rated Power

50W-2000W
Usage

Machinery Equipment
Voltage

115V/220V/380V
Speed

930-3200RPM
Color

Customer Request
Temperature

-40℃~65℃
Keywords

ac motor
Material

Copper Wire
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg
