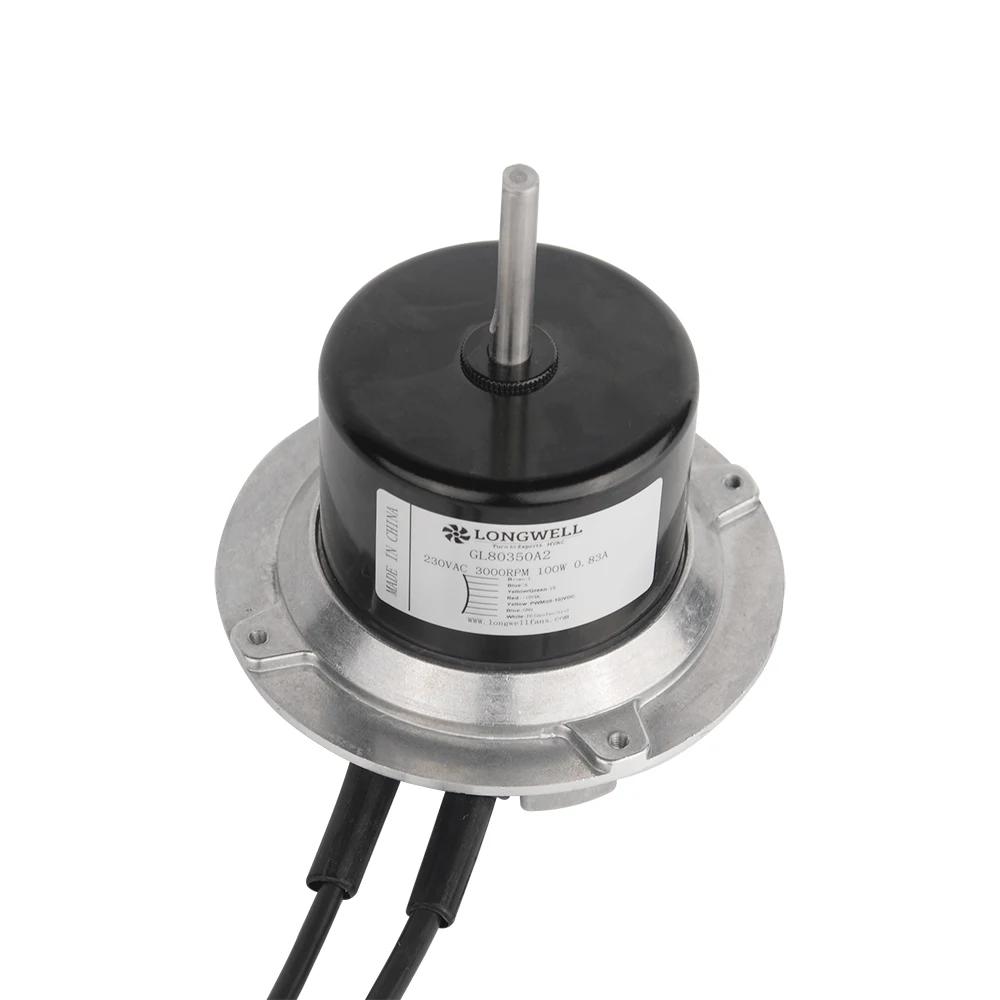

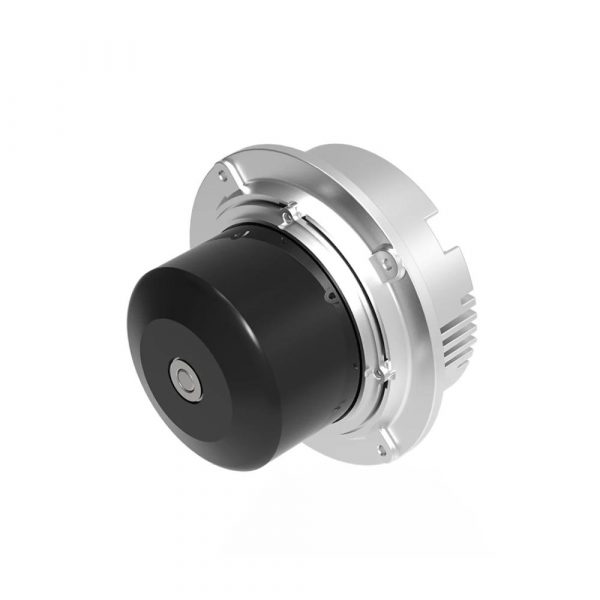

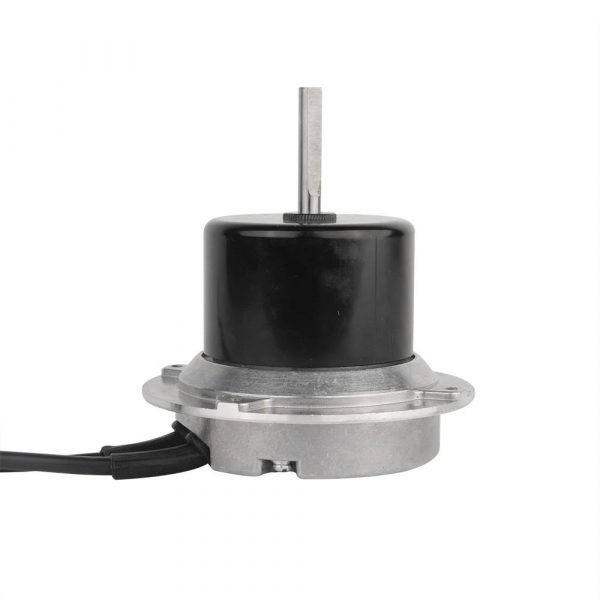

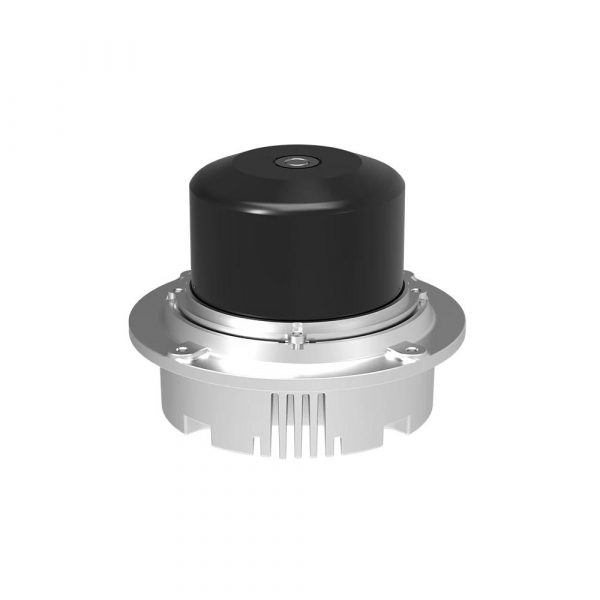

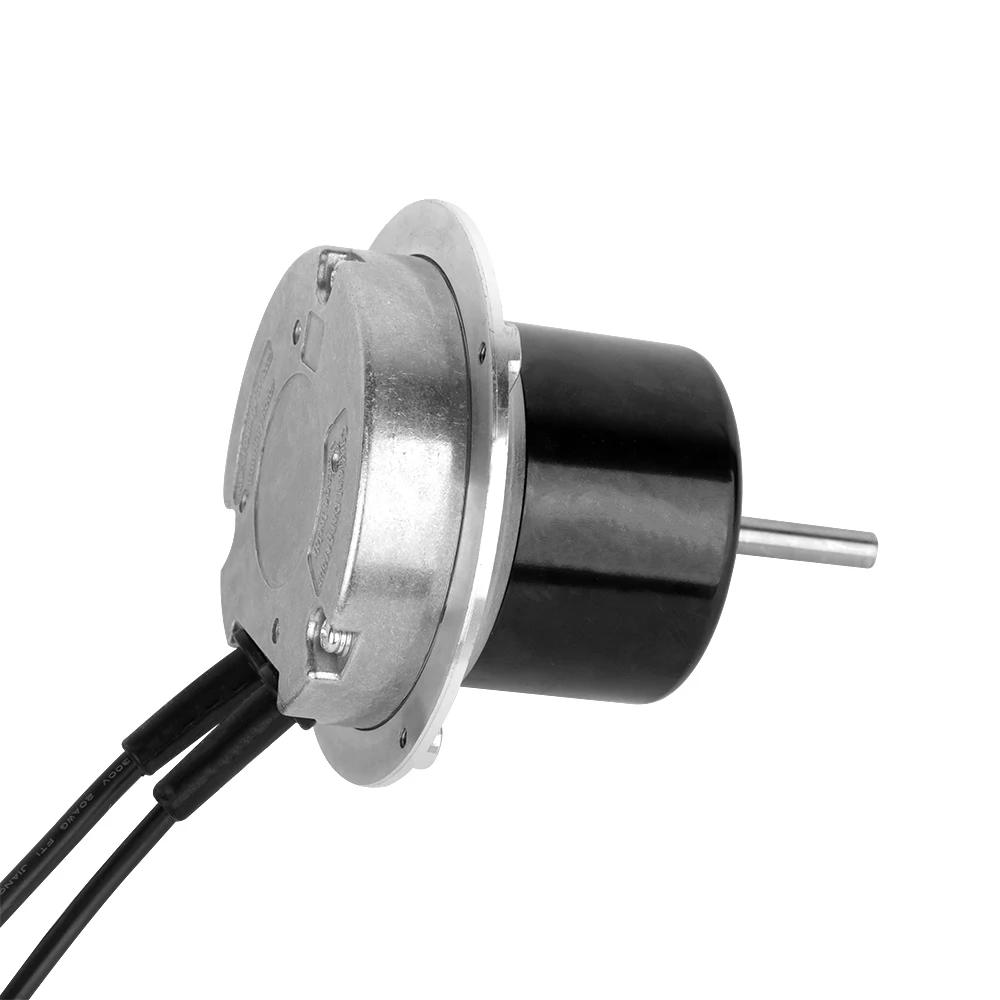

LONGWELL EC External Rotor Motor, HVAC Fan Motor, 220V, 500 W, Low Noise – LW-ECM102S-01

Voltage Brushlesss DC Motor
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Category: Tags: , ,
CategoryExternal Rotor Motors
TagsEC MotorExternal Rotor MotorFan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Products Description

Control Input:
0-10VDC/PWM
Direction of Rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP54
Insulation Class:
F
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection,Soft start protection,Blocking protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Speed(RPM)

1520RPM
Continuous Current(A)

3.6A
Efficiency

IE 4
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

LW-ECM102S-01
Use

FAN
Type

Brushless motor
Construction

Permanent Magnet
Commutation

Brush
Protect Feature

Drip-proof
Product Name

Brushless Dc Electric Motor
Power

500W
Feature

High Efficiency
Rated Speed

1520RPM
Motor type

Brushlesss DC Motor
Diameter

176mm
Color

Black
Keywords

EC motor
Rated Voltage

220V
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL EC External Rotor Motor, HVAC Fan Motor, 220V, 500 W, Low Noise – LW-ECM102S-01”

Your email address will not be published. Required fields are marked *
