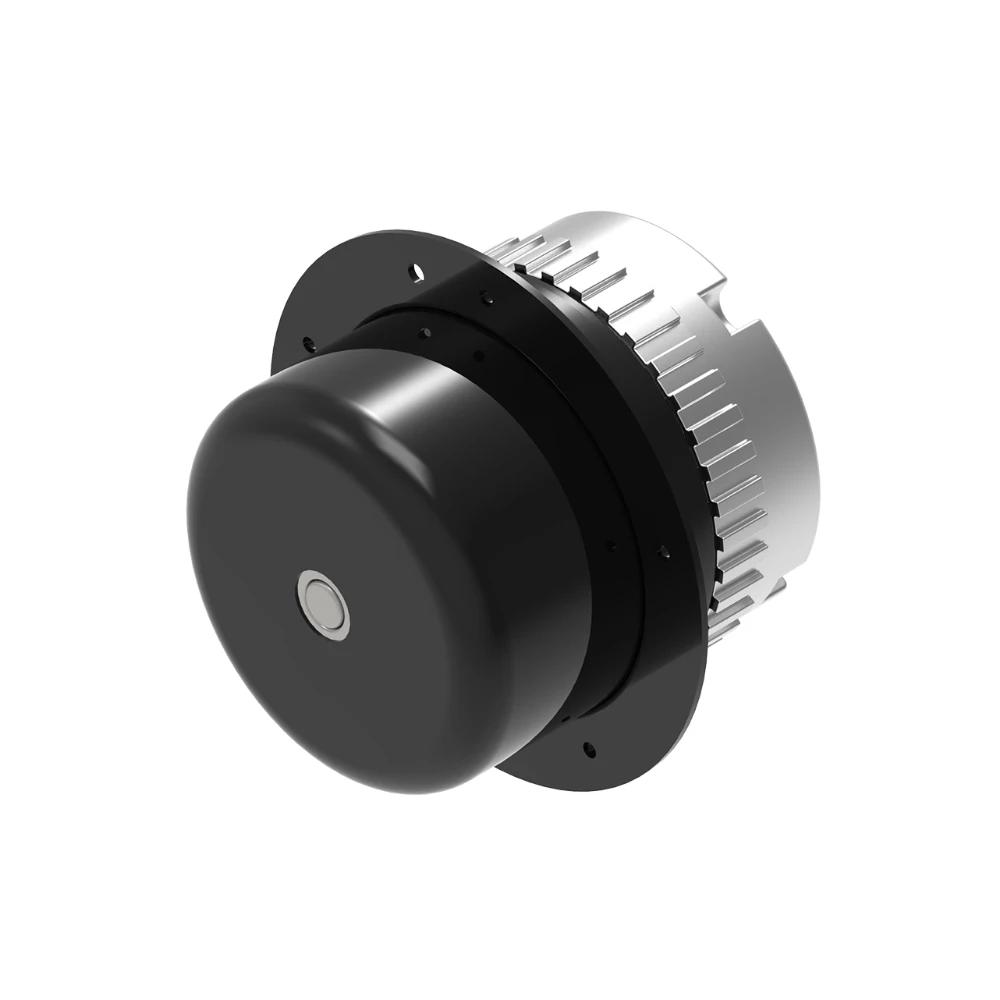

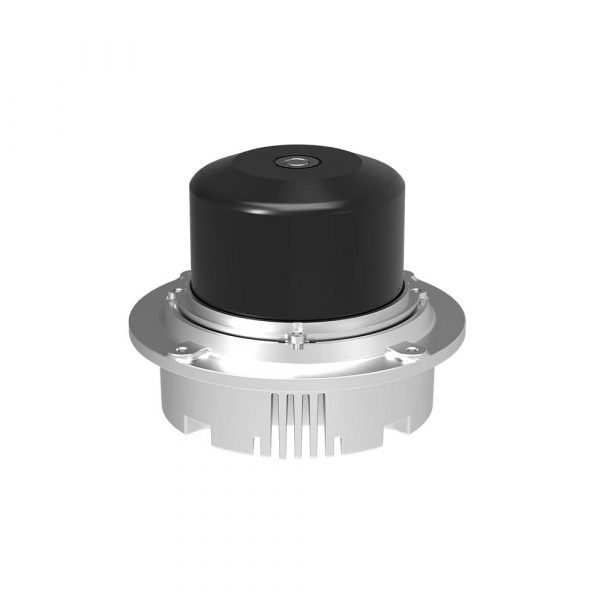

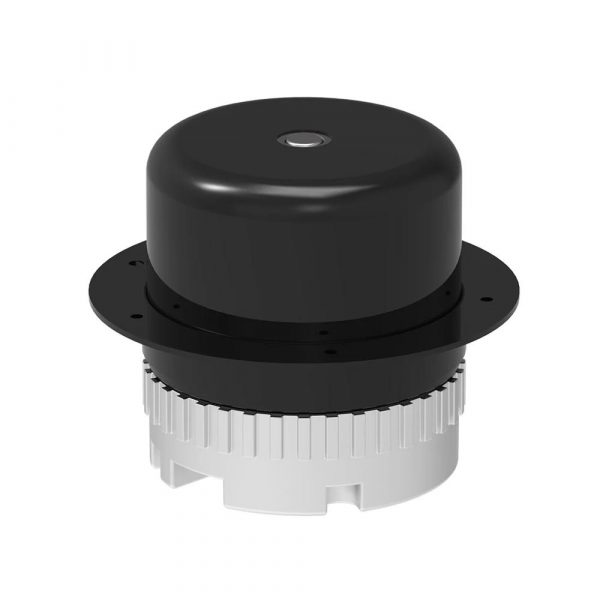

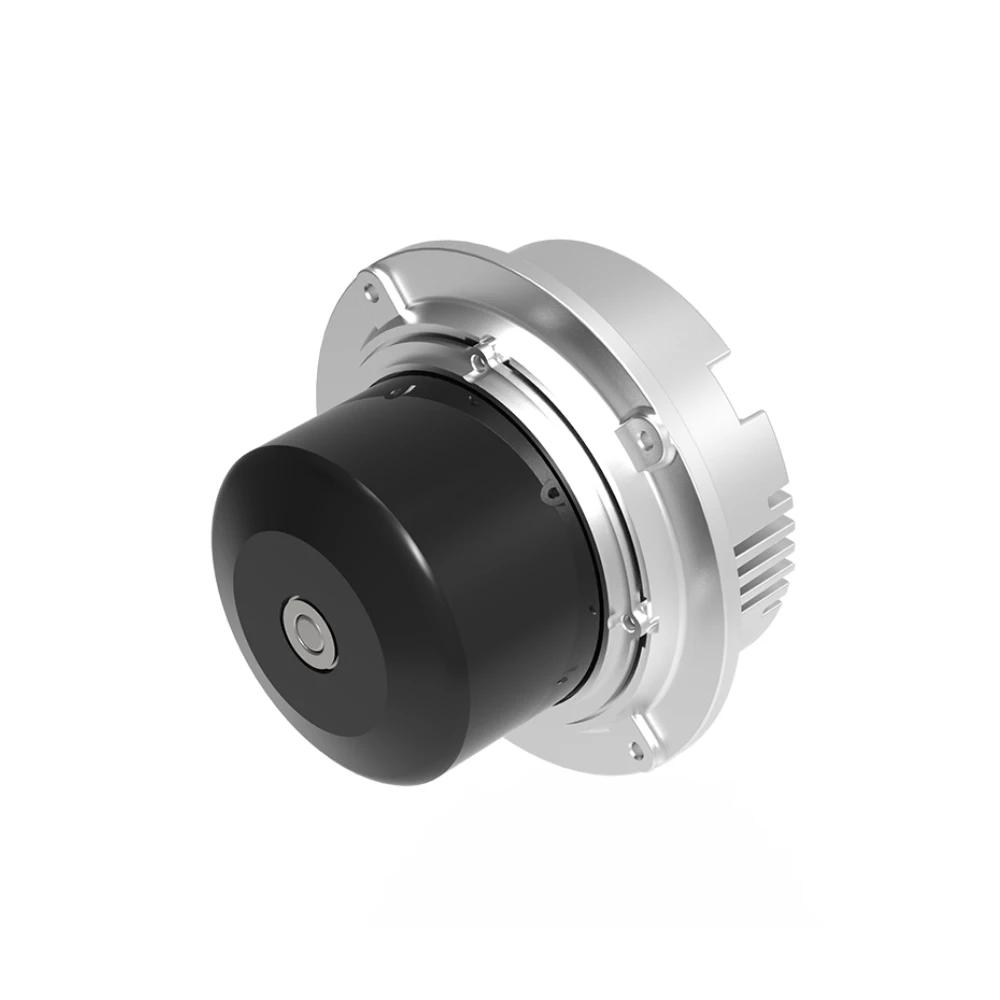

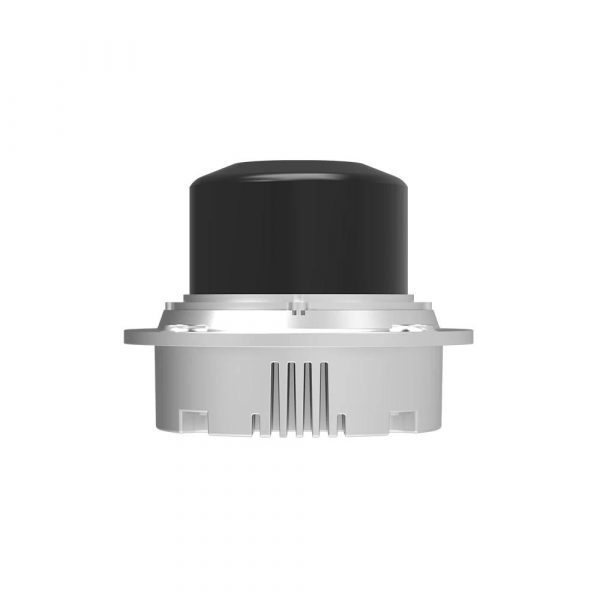

LONGWELL 210mm EC External Rotor Motor, HVAC Fan Motor, 380V, 1350 W – LW-ECM138T-01

Voltage Brushlesss DC Motor
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 25

Category: Tags: , ,
CategoryExternal Rotor Motors
TagsAir Handling UnitsEC MotorExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

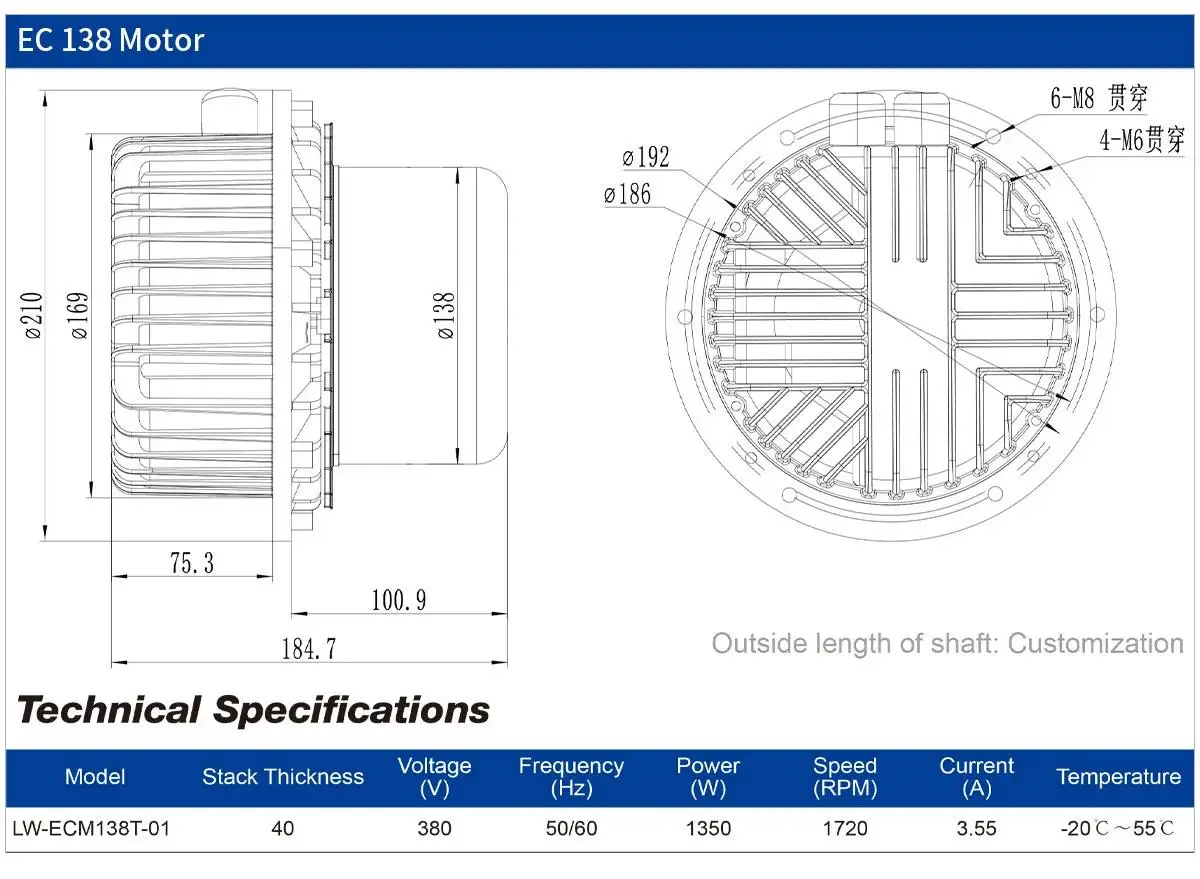

Products Description

Control Input:
0-10VDC/PWM
Direction of Rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP54
Insulation Class:
F
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection,Soft start protection,Blocking protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Speed(RPM)

1720RPM
Continuous Current(A)

3.55A
Efficiency

IE 4
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

LW-ECM138T-01
Use

FAN
Type

Brushless motor
Construction

Permanent Magnet
Commutation

Brush
Protect Feature

Drip-proof
Product Name

Brushless Dc Electric Motor
Power

1350W
Feature

High Efficiency
Rated Speed

1720RPM
Motor type

Brushlesss DC Motor
Diameter

210mm
Keywords

EC motor
Rated Voltage

380V
Color

Black+silver
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg
