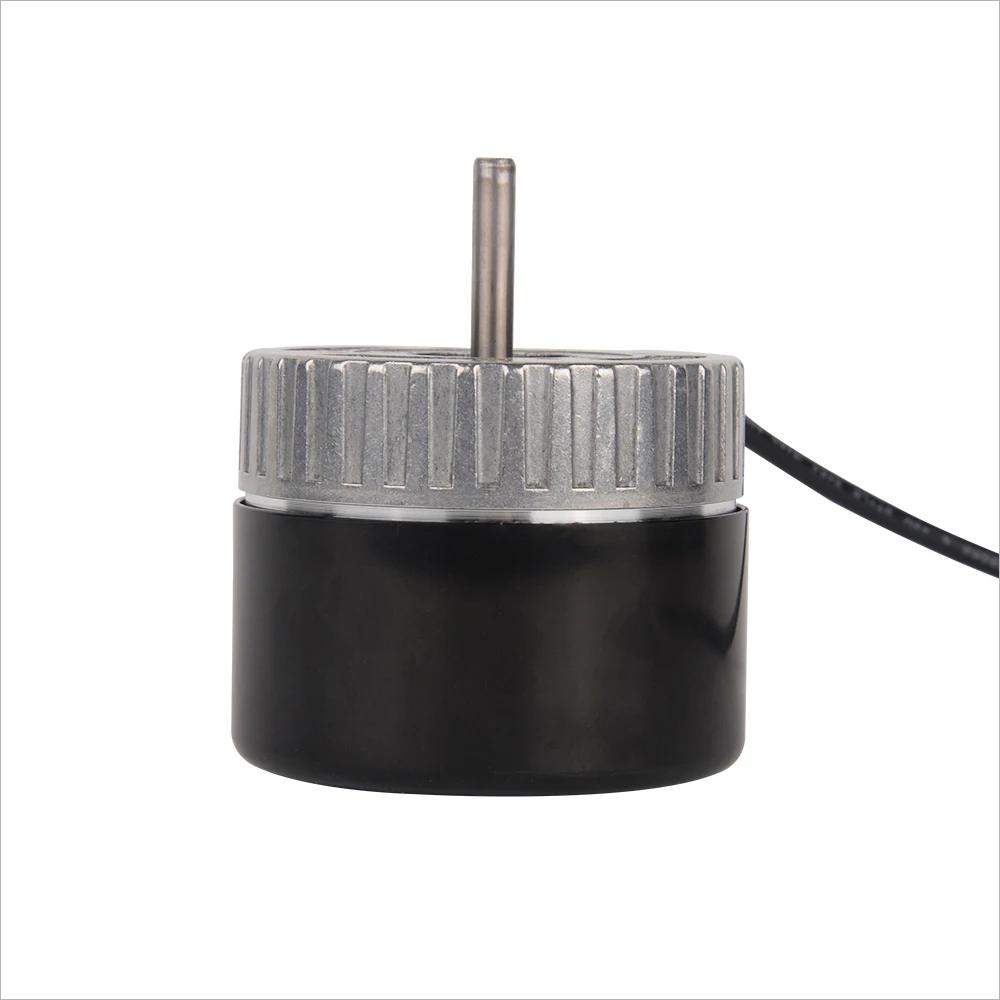

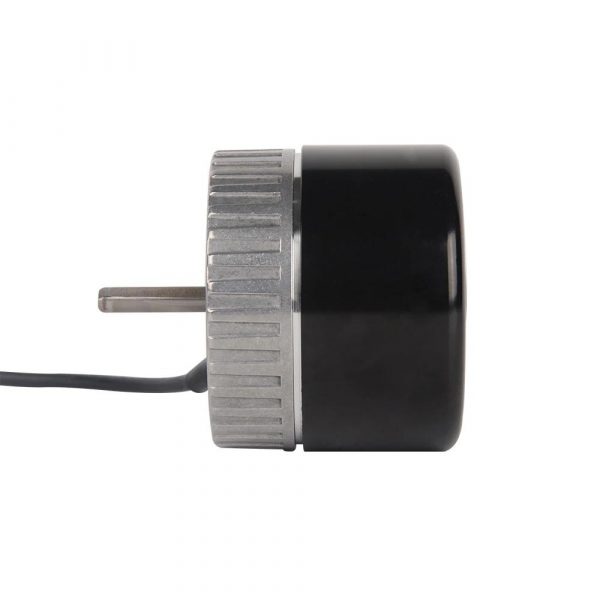

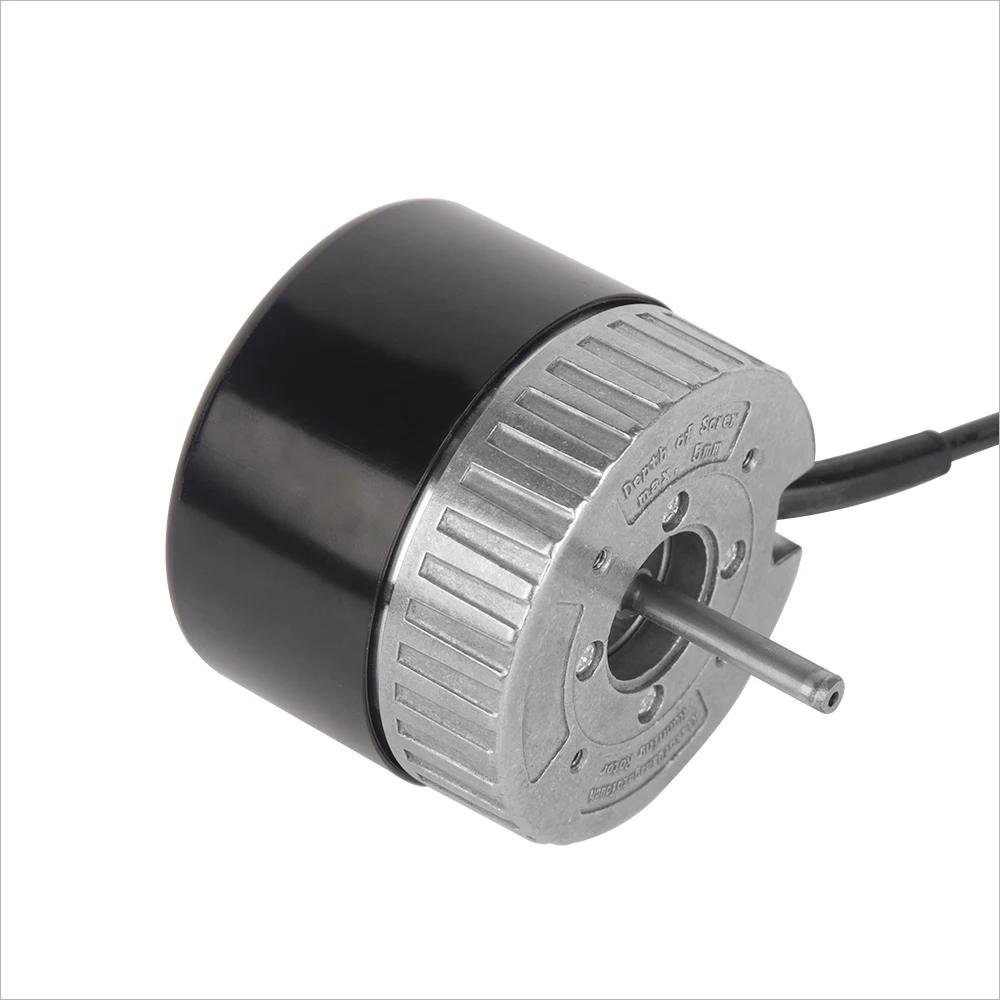

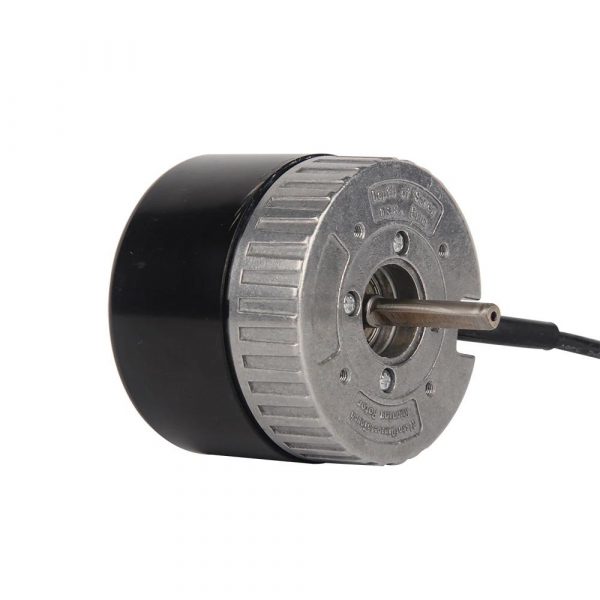

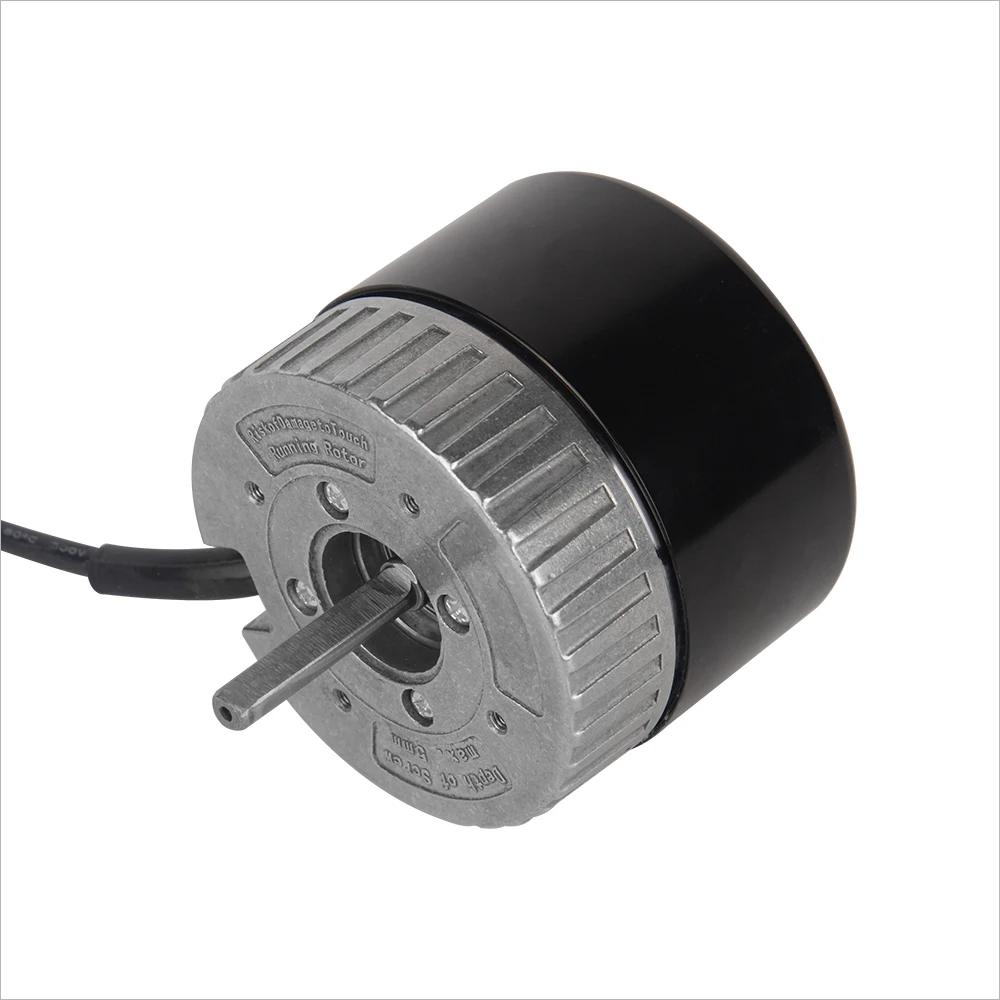

LONGWELL 92mm DC External Rotor Motor, HVAC Fan Motor, 200 W – LW-DCM092H-01

Voltage Brushlesss DC Motor
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Category: Tags: , ,
CategoryExternal Rotor Motors
TagsBrushless MotorFan MotorOEM Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

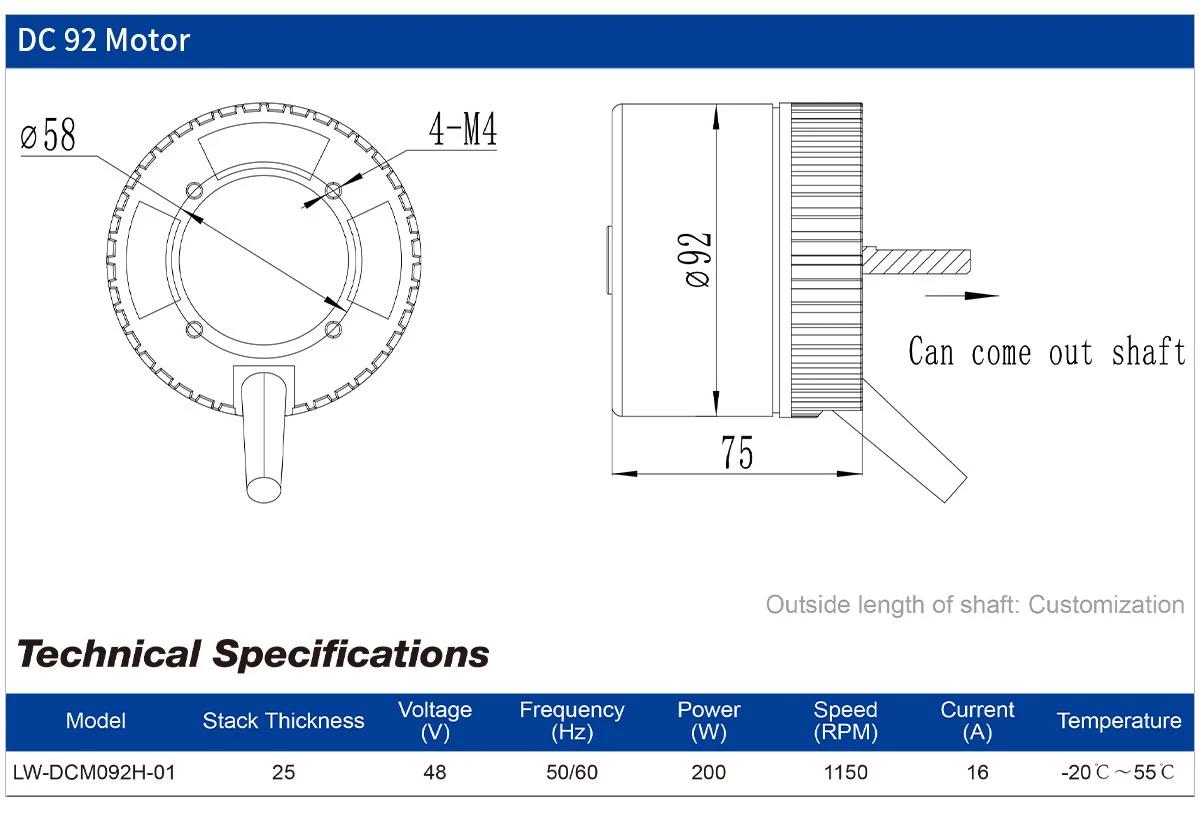

Description

Products Description

Control Input:
0-10VDC/PWM
Direction of Rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP44
Insulation Class:
F
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection,Soft start protection,Blocking protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Speed(RPM)

1150RPM
Continuous Current(A)

16A
Efficiency

IE 4
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

LW-DCM092H-01
Use

FAN
Type

Brushless motor
Construction

Shunt Wound
Commutation

Brushless
Protect Feature

Drip-proof
Product Name

Brushless Dc Electric Motor
Power

200W
Feature

High Efficiency
Rated Speed

1150rpm
Motor type

Brushlesss DC Motor
Diameter

92mm
Color

Black
Rated Voltage

48VDC
Keywords

48v dc motors
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg
