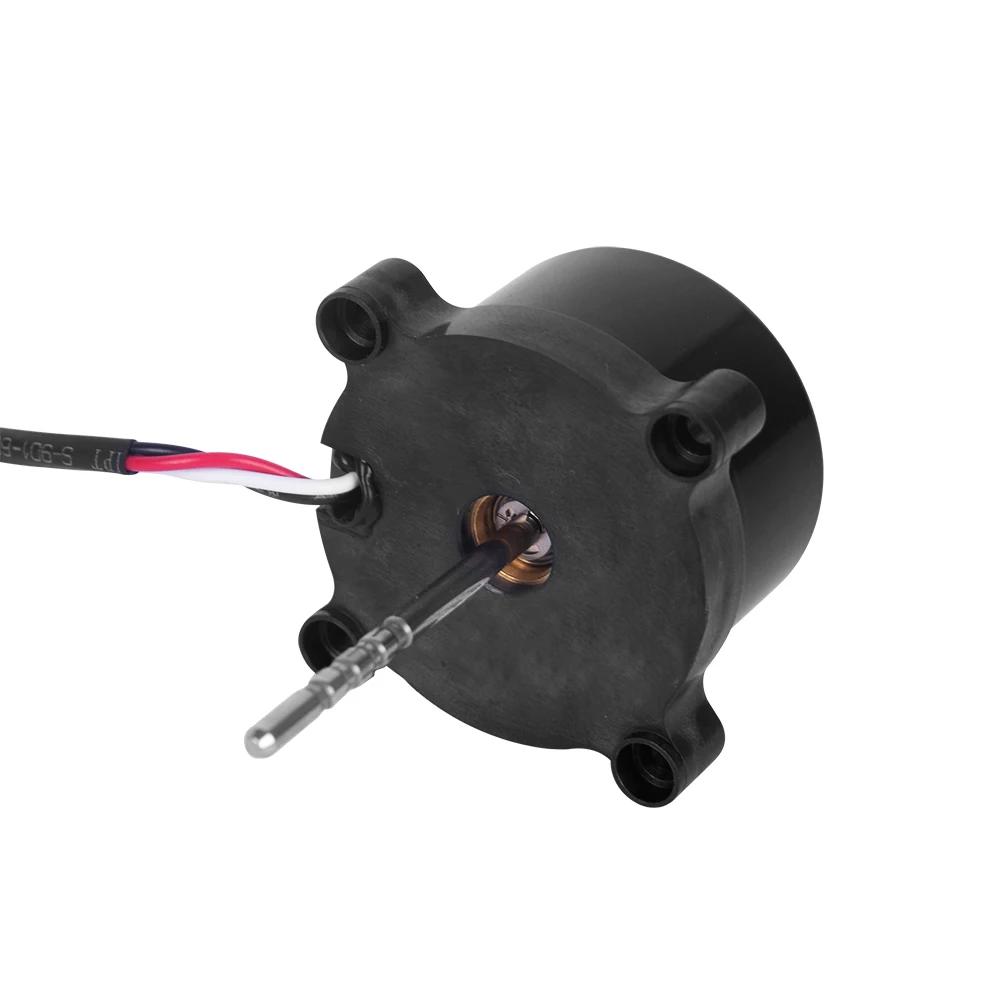

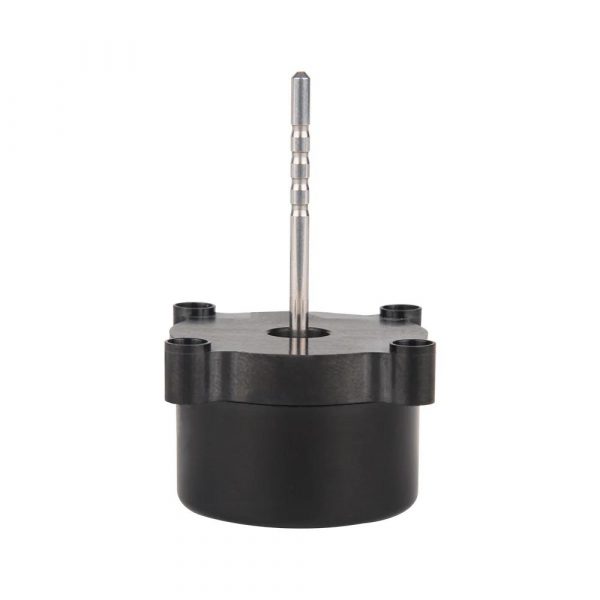

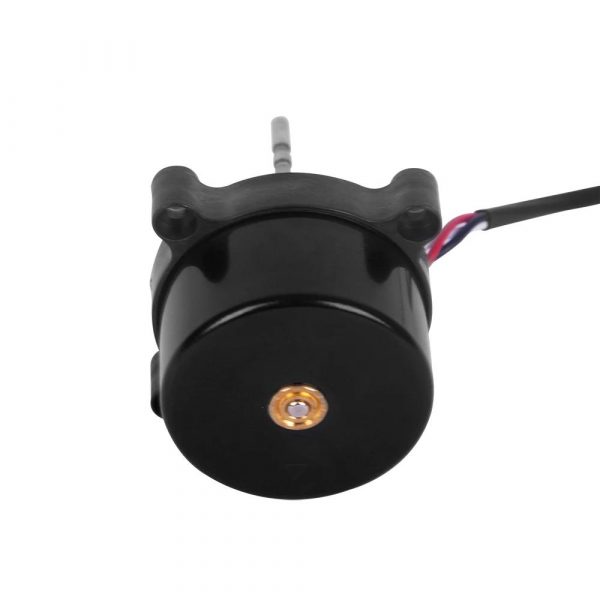

LONGWELL DC External Rotor Motor, HVAC Fan Motor, 12V, 9.6 W

$ 15

Category: Tags: , ,
CategoryExternal Rotor Motors
TagsBrushless MotorExternal Rotor MotorMedical Equipment
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Products Description

Control Input:
0-10VDC/PWM
Direction of Rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP42
Insulation Class:
B
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection,Soft start protection,Blocking protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Speed(RPM)

3000RPM
Continuous Current(A)

0.8A
Efficiency

IE 4
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

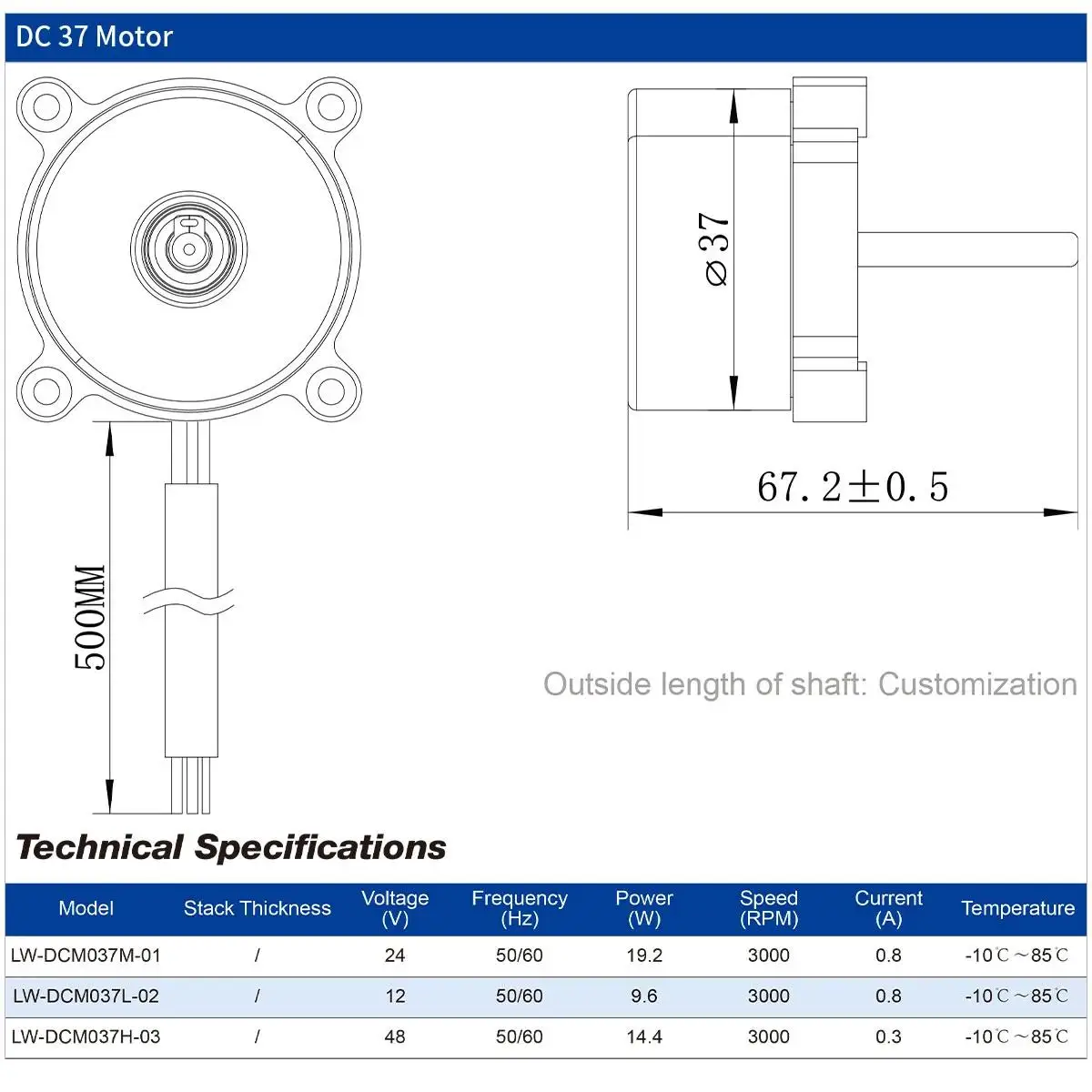

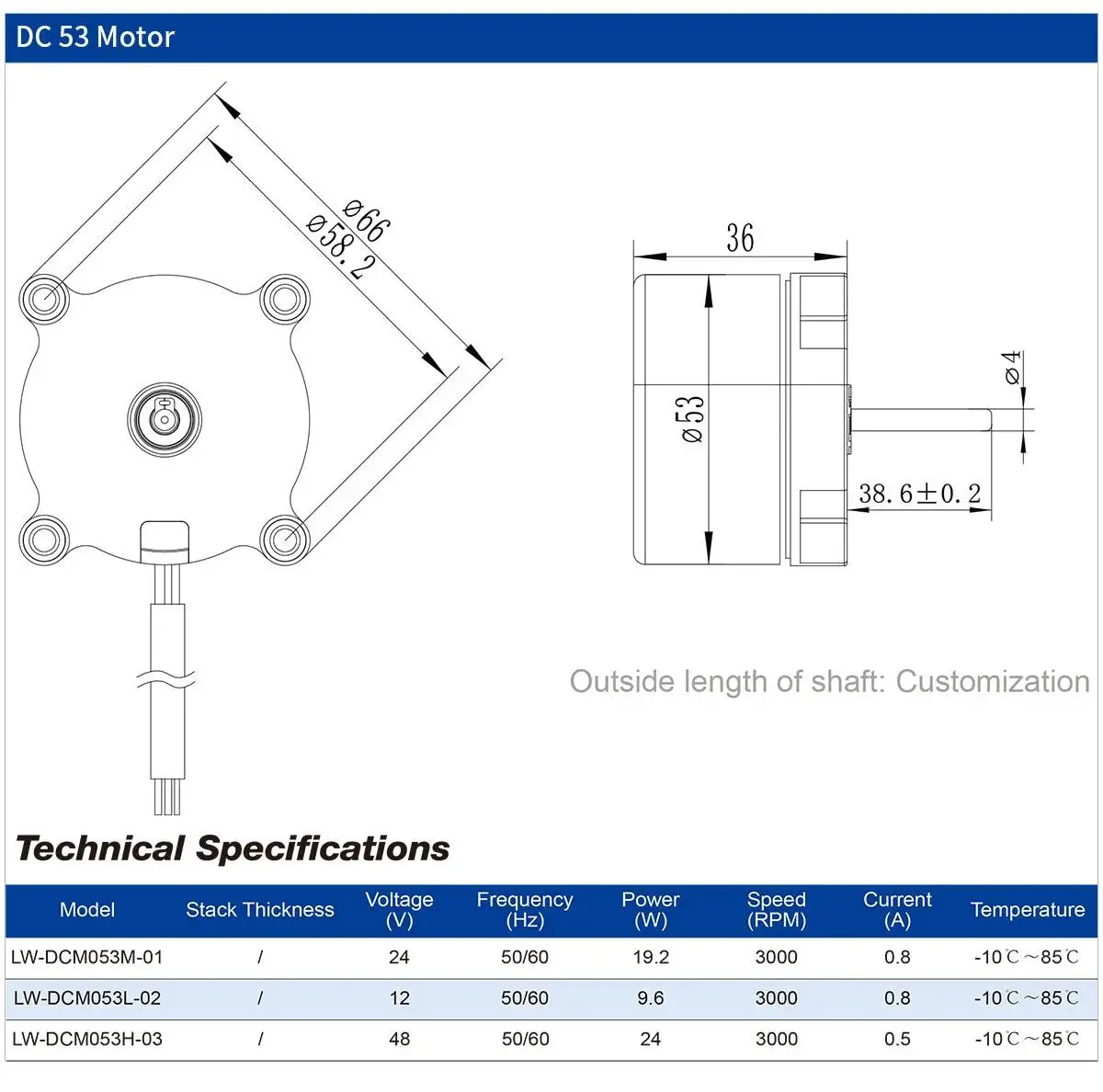

37/53 DC Motor
Use

FAN
Type

Brushless motor
Construction

Permanent Magnet
Commutation

Brushless
Protect Feature

Drip-proof
Product Name

Brushless Dc Electric Motor
Application

Medical Equipment
Power

9.6W 14.4W 19.2W
Feature

High Efficiency
Rated Speed

3000rpm
Keywords

12v dc motors
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg
