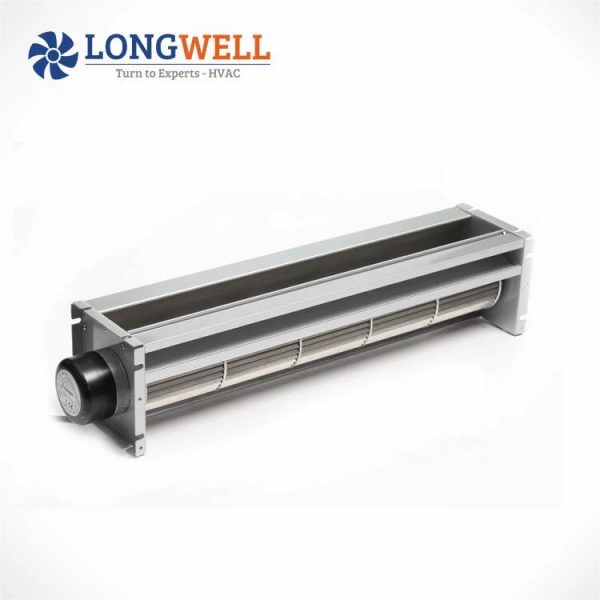

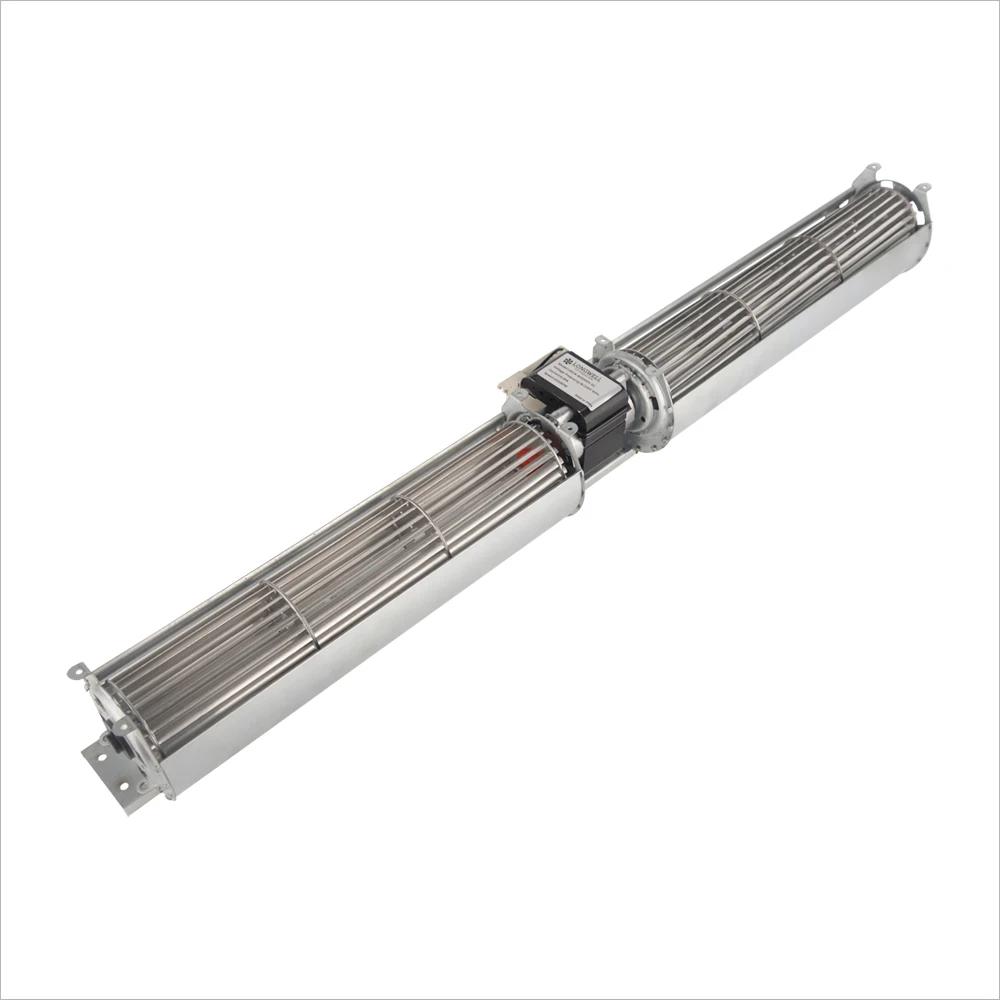

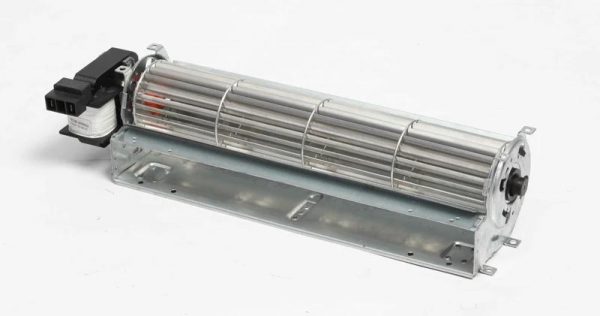

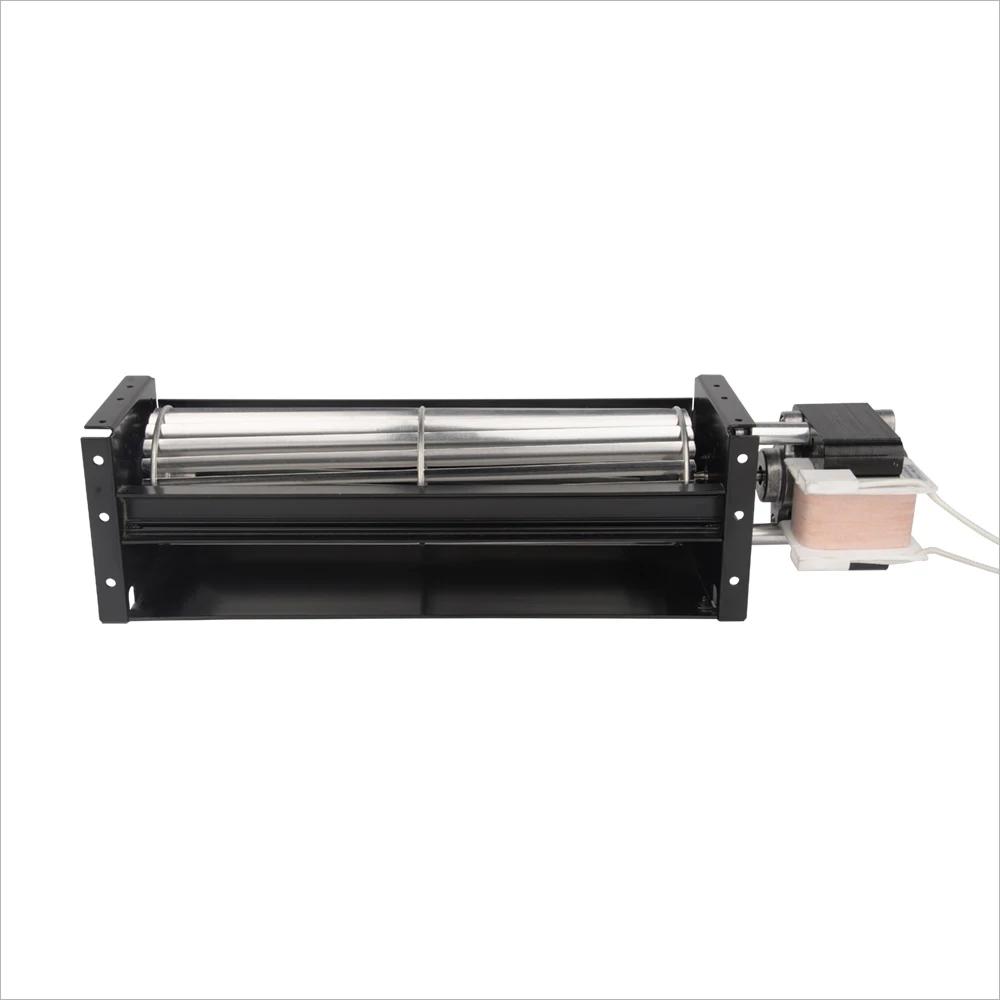

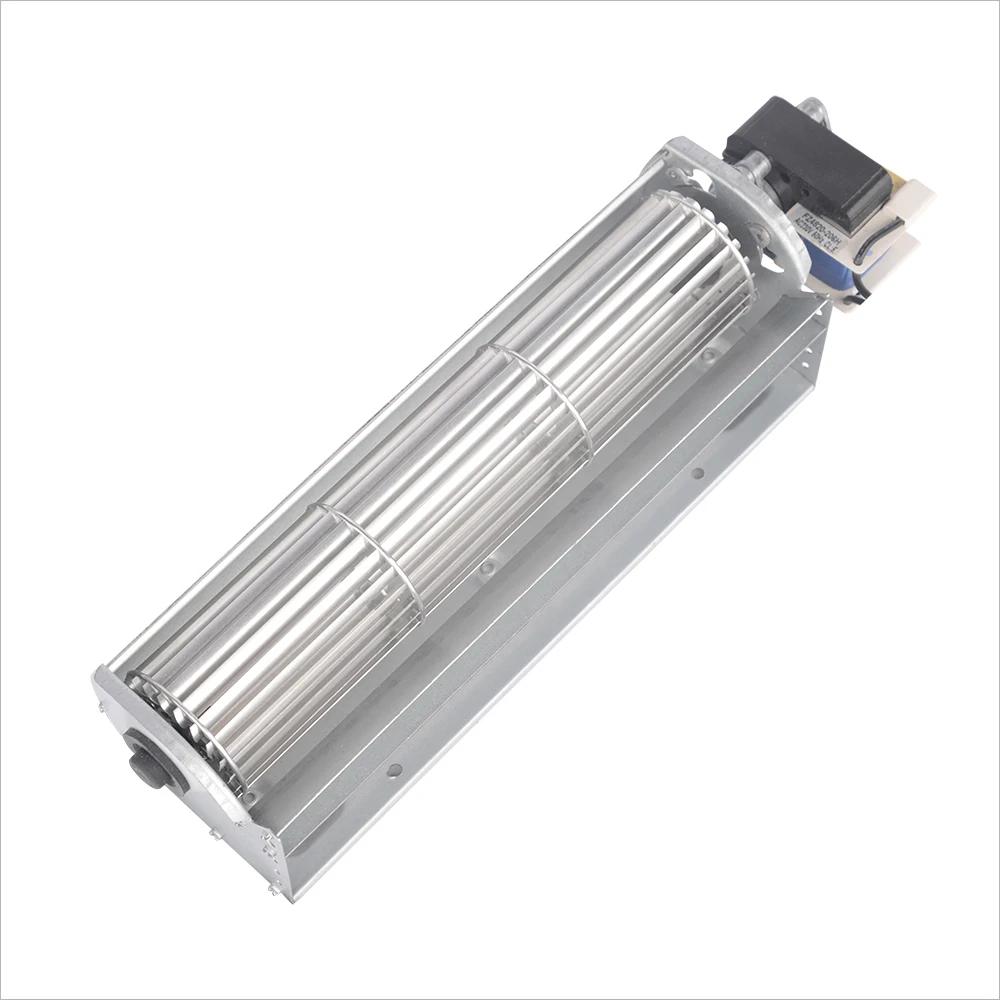

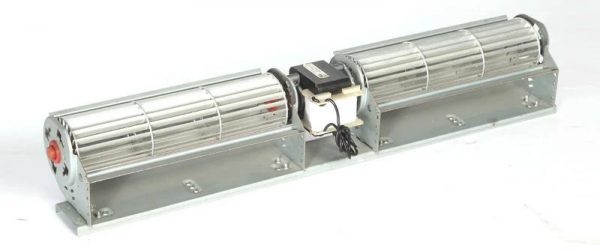

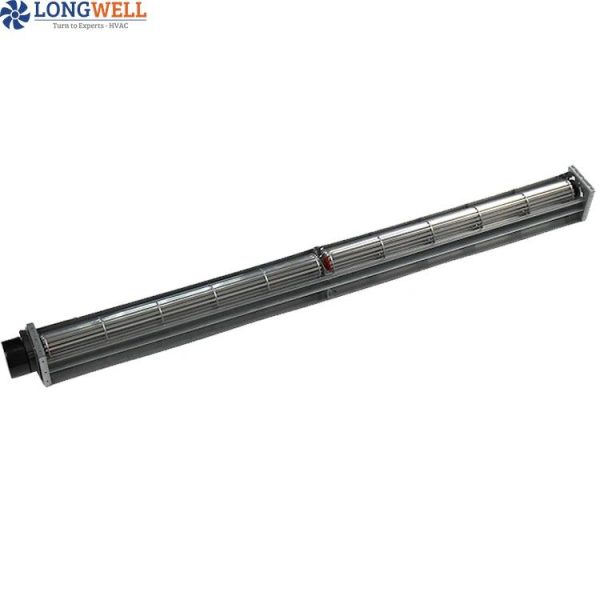

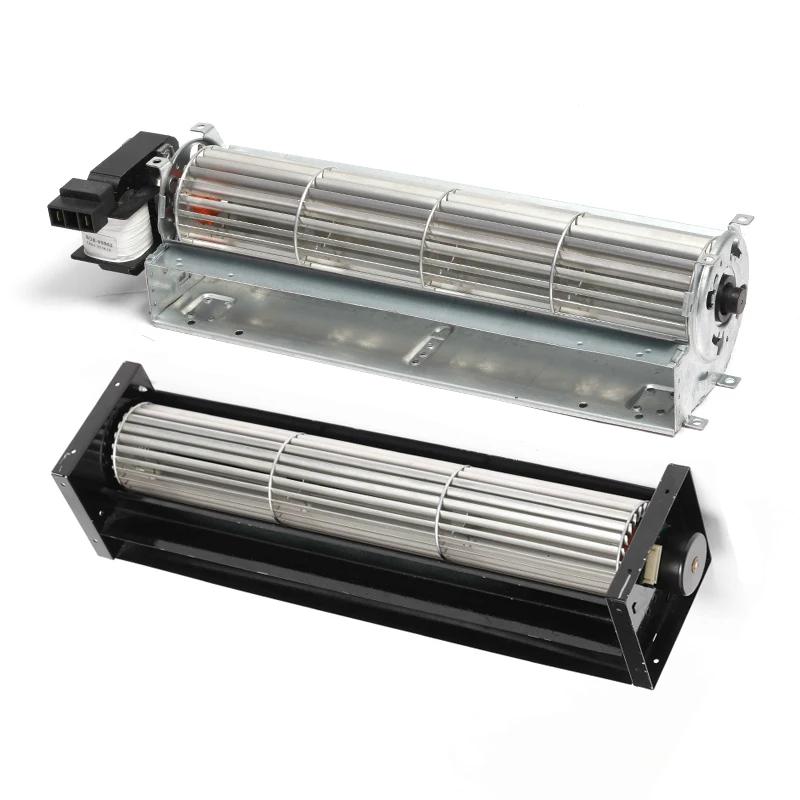

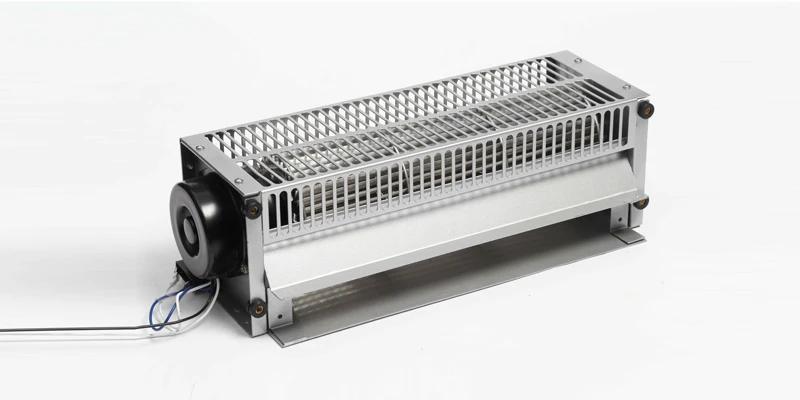

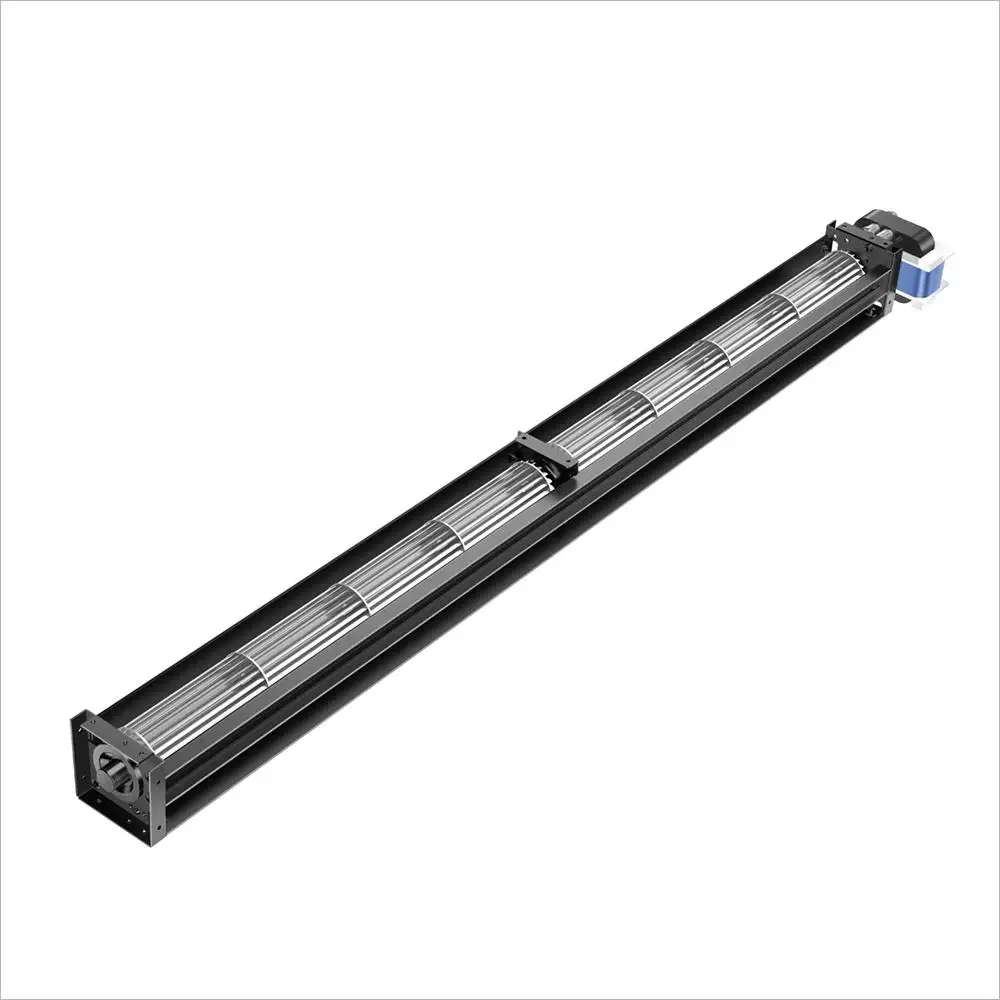

LONGWELL DC Cross Flow Fan, Tangential Blower Fan, 220V, for Ovens, Cold Storage, Air Purifiers

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 5

Specifications
Motor
Shaded pole motor/ BLDC Motor
Speed
4000rpm, 1100rpm, 990rpm
Category: Tags: , ,
CategoryOven Fan Motor
TagsCross Flow FanExternal Rotor MotorOven Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Types :

Cross flow fan
Voltage Ranges :

115V,230V,400V
Frequency :

50/60 Hz
Diamter :

133mm-630mm ( impeller diameters )（
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Blade Material

Plastic
mounting

Wall Fan
speed

4000rpm, 1100rpm, 990rpm
voltage

220V
customized support

OEM, ODM, OBM
place of origin

Zhejiang, China
brand name

Longwell
After-sales Service Provided

Online support
Fan type

cross flow fan ac
Application

Electric Heating
Bearing

Ball bearing
Motor type

Shaded pole motor/ BLDC Motor
Size

Custom Made
Material

Aluminum Blade
Product name

Cross Flow Fan
Usage

Electronic Industrial Equipment
