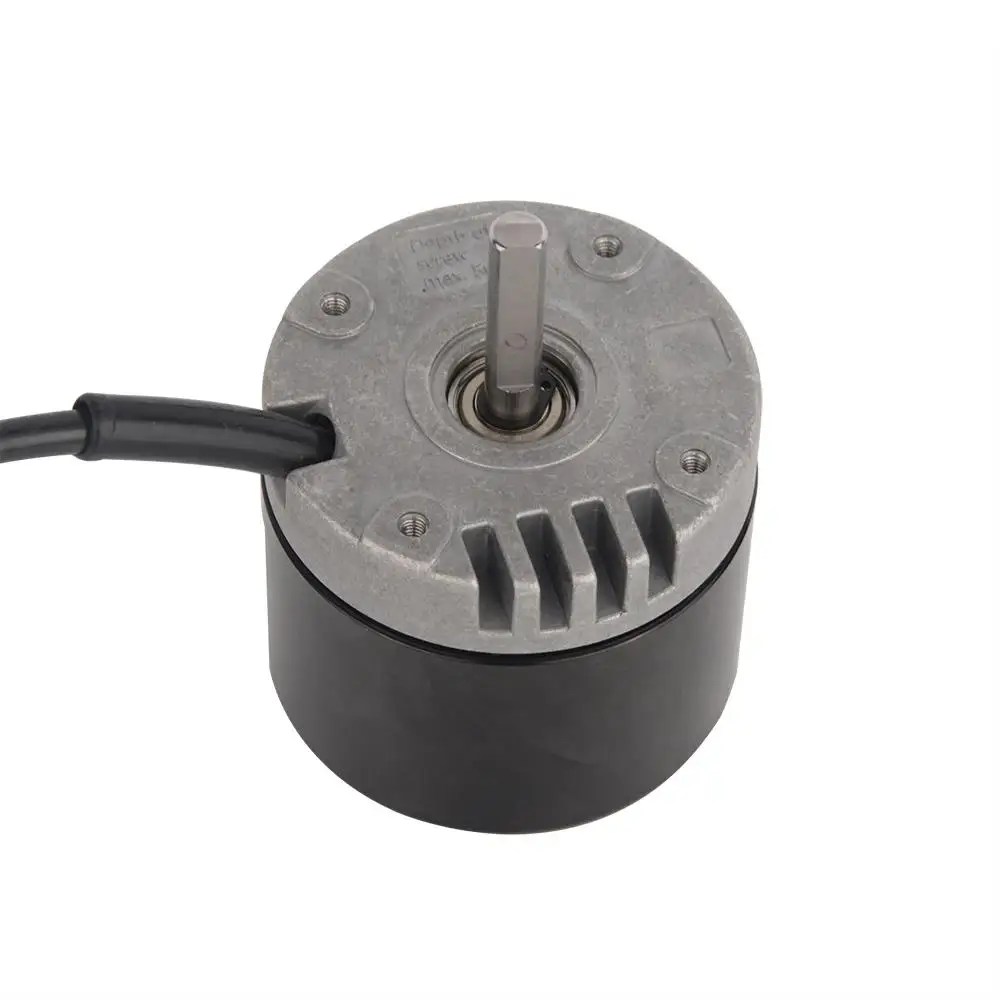

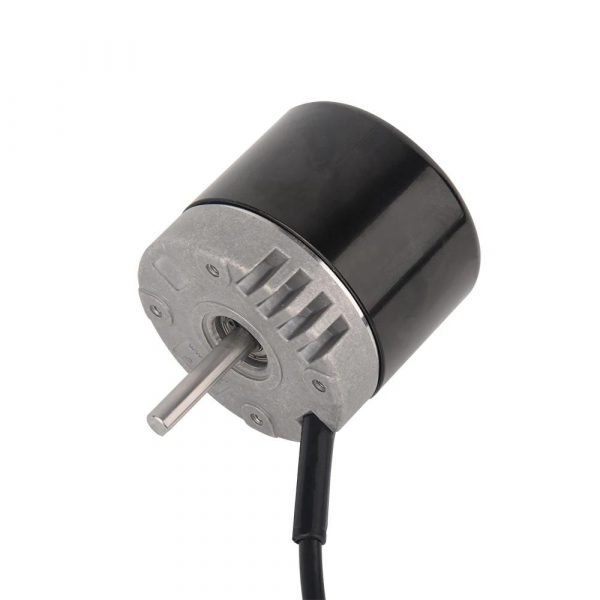

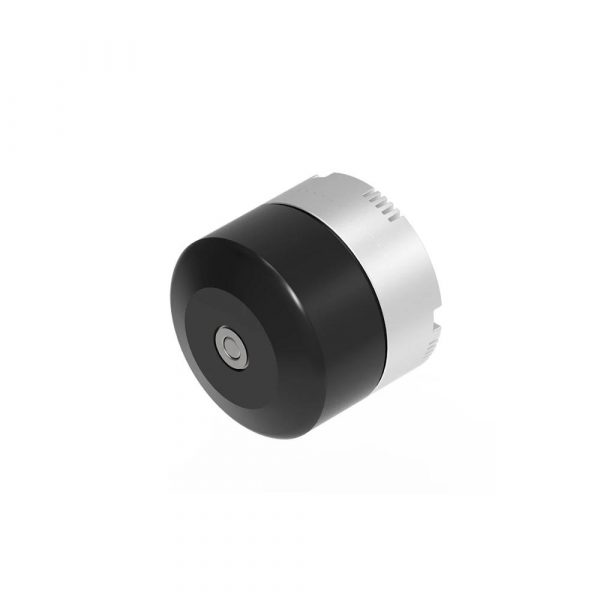

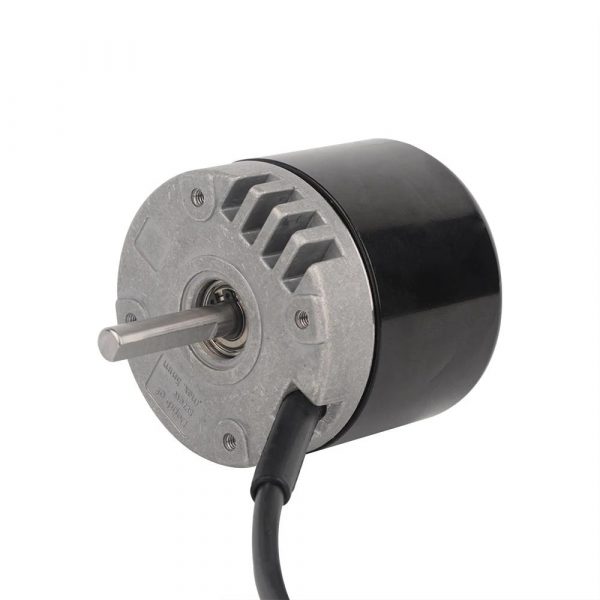

LONGWELL 45mm DC External Rotor Motor, HVAC Fan Motor, 50 W – LW-DCM061M-01

Voltage Brushlesss DC Motor
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 15

Category: Tags: , ,
CategoryExternal Rotor Motors
TagsBrushless MotorExternal Rotor MotorMedical Equipment
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Products Description

Control Input:
0-10VDC/PWM
Direction of Rotation:
CW/CCW(viewed from rotor end)
Protection Class:
IP42
Insulation Class:
B
Mode Of Operation:
S1
Bearings:
Maintenance-free ball bearings
Technical Feature:
Thermal protection,Soft start protection,Blocking protection

Product Applications

Company Profile

Certifications

Why Choose Us

FAQ

Additional information

Speed(RPM)

1600RPM
Continuous Current(A)

2.2A
Efficiency

IE 4
Warranty

3months-1year
Place of Origin

Zhejiang, China
Brand Name

LONGWELL
Model Number

LW-DCM061M-01
Use

FAN
Type

Brushless motor
Construction

Shunt Wound
Commutation

Brushless
Protect Feature

Drip-proof
Product Name

Brushless Dc Electric Motor
Application

Medical Equipment
Power

50W
Feature

High Efficiency
Rated Speed

1600rpm
Motor type

Brushlesss DC Motor
Diameter

61mm
Rated Voltage

24VDC
Keywords

12v dc motors
Selling units

Single item
Single package size

44X25.5X45 cm
Single gross weight

9.100 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 45mm DC External Rotor Motor, HVAC Fan Motor, 50 W – LW-DCM061M-01”

Your email address will not be published. Required fields are marked *

More in this series

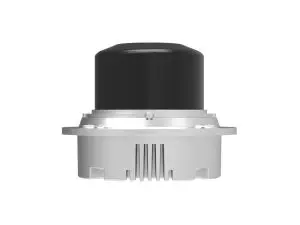

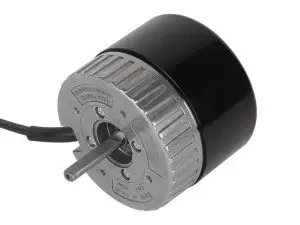

LONGWELL 92mm DC External Rotor Motor, HVAC Fan Motor, 200 W – LW-DCM092H-01LONGWELL 92mm DC External Rotor Motor, HVAC Fan Motor, 200 W – LW-DCM092H-0148VDC1150rpmBrushlesss DC MotorView & InquireLONGWELL EC External Rotor Motor, HVAC Fan Motor, 220V, 500 W, Low Noise – LW-ECM102S-01LONGWELL EC External Rotor Motor, HVAC Fan Motor, 220V, 500 W, Low Noise – LW-ECM102S-01220V1520RPMBrushlesss DC MotorView & InquireLONGWELL AC External Rotor Motor, HVAC Fan Motor, 115V, 50 WLONGWELL AC External Rotor Motor, HVAC Fan Motor, 115V, 50 W115V/220V/380V930-3200RPMSingle-phaseView & InquireLONGWELL DC External Rotor Motor, HVAC Fan Motor, 320 W – LW-DCM102H-01LONGWELL DC External Rotor Motor, HVAC Fan Motor, 320 W – LW-DCM102H-0148VDC2300RPMBushlessView & InquireLONGWELL 210mm EC External Rotor Motor, HVAC Fan Motor, 380V, 1350 W – LW-ECM138T-01LONGWELL 210mm EC External Rotor Motor, HVAC Fan Motor, 380V, 1350 W – LW-ECM138T-01380V1720RPMBrushlesss DC MotorView & InquireLONGWELL AC External Rotor Motor, HVAC Fan Motor, 115V – LWF4ELONGWELL AC External Rotor Motor, HVAC Fan Motor, 115V – LWF4E115V/230V2500 RPMView & InquireLONGWELL DC External Rotor Motor, HVAC Fan Motor, 24V, 35 W – LW-DCM072MLONGWELL DC External Rotor Motor, HVAC Fan Motor, 24V, 35 W – LW-DCM072M24V 48VDC2200/4000RPMBushlessView & InquireLONGWELL DC External Rotor Motor, HVAC Fan Motor, 12V, 9.6 WLONGWELL DC External Rotor Motor, HVAC Fan Motor, 12V, 9.6 W3000rpmIE 4View & InquireLONGWELL EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, 88 W – LW-ECM072S-01/LW-ECM092S-01LONGWELL EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, 88 W – LW-ECM072S-01/LW-ECM092S-01Brushlesss DC Motor3050RPM 5200RPMView & InquireLONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, FFU, Data Center Cooling – LWFA-140LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for AHU, FFU, Data Center Cooling – LWFA-1404in230V4000rpmView & Inquire
