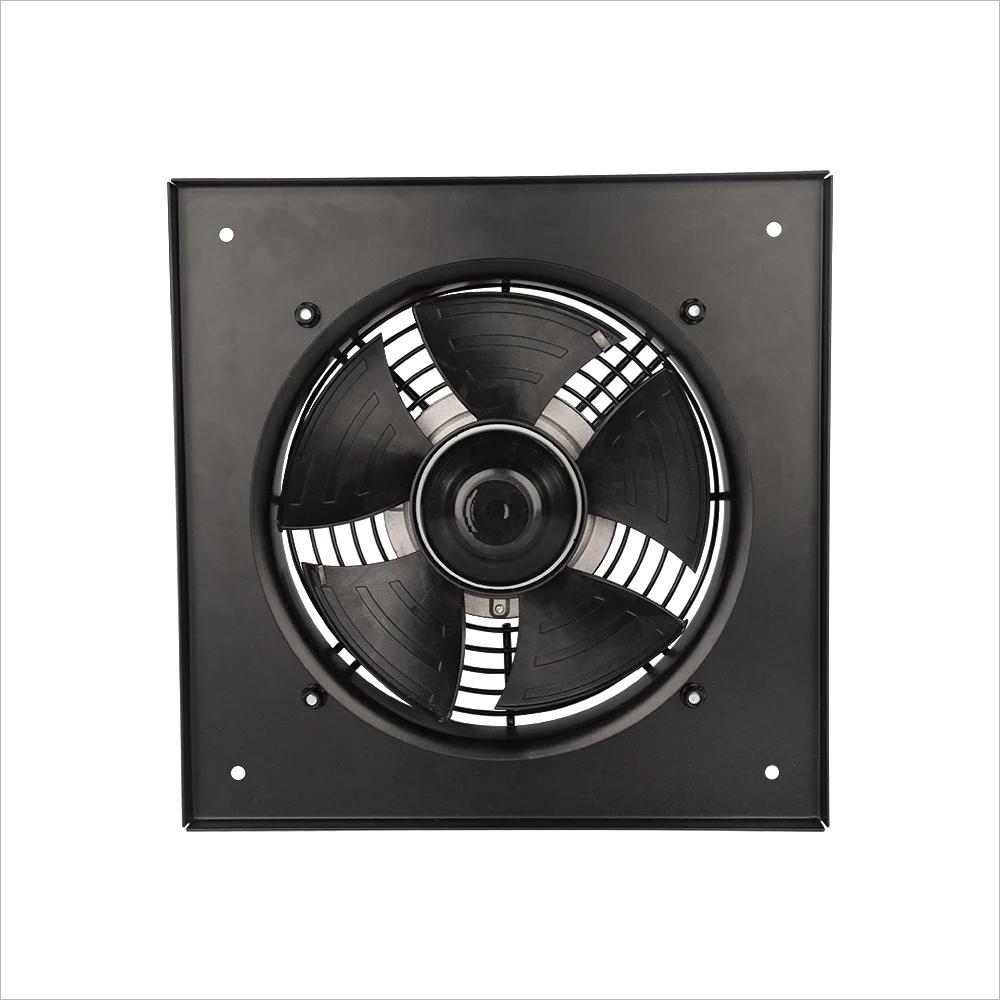

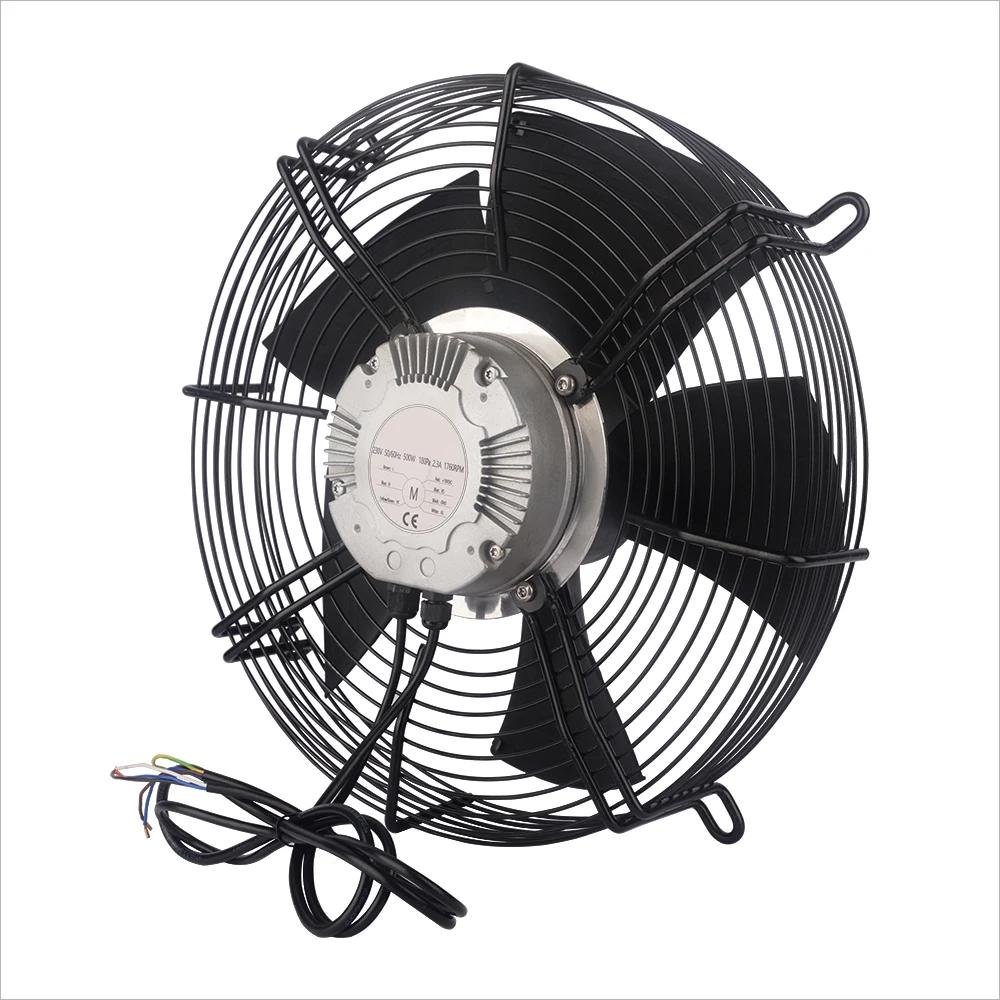

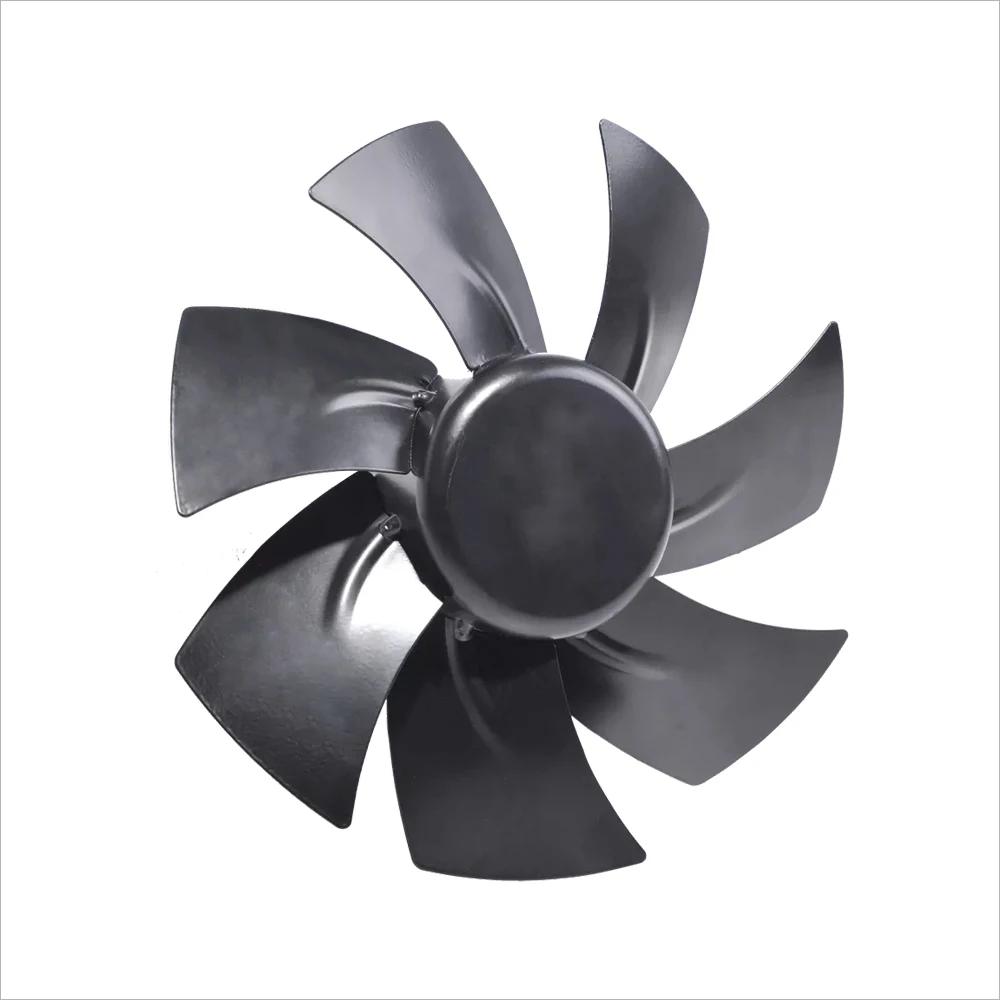

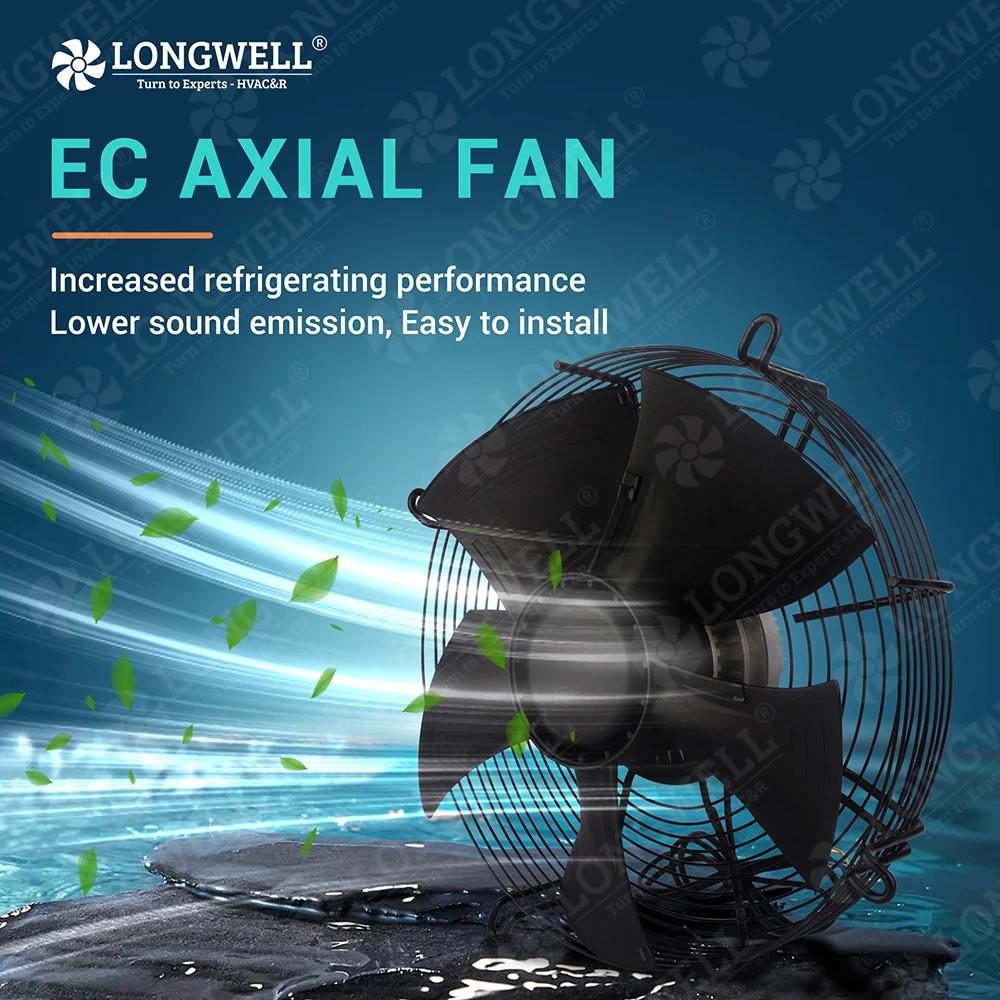

LONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V, for Control Cabinet Cooling, Cold Storage, Air Purifiers

$ 50

Category: Tags: , ,
CategoryEC Axial Fan
TagsAxial FanEC MotorOEM Applications
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

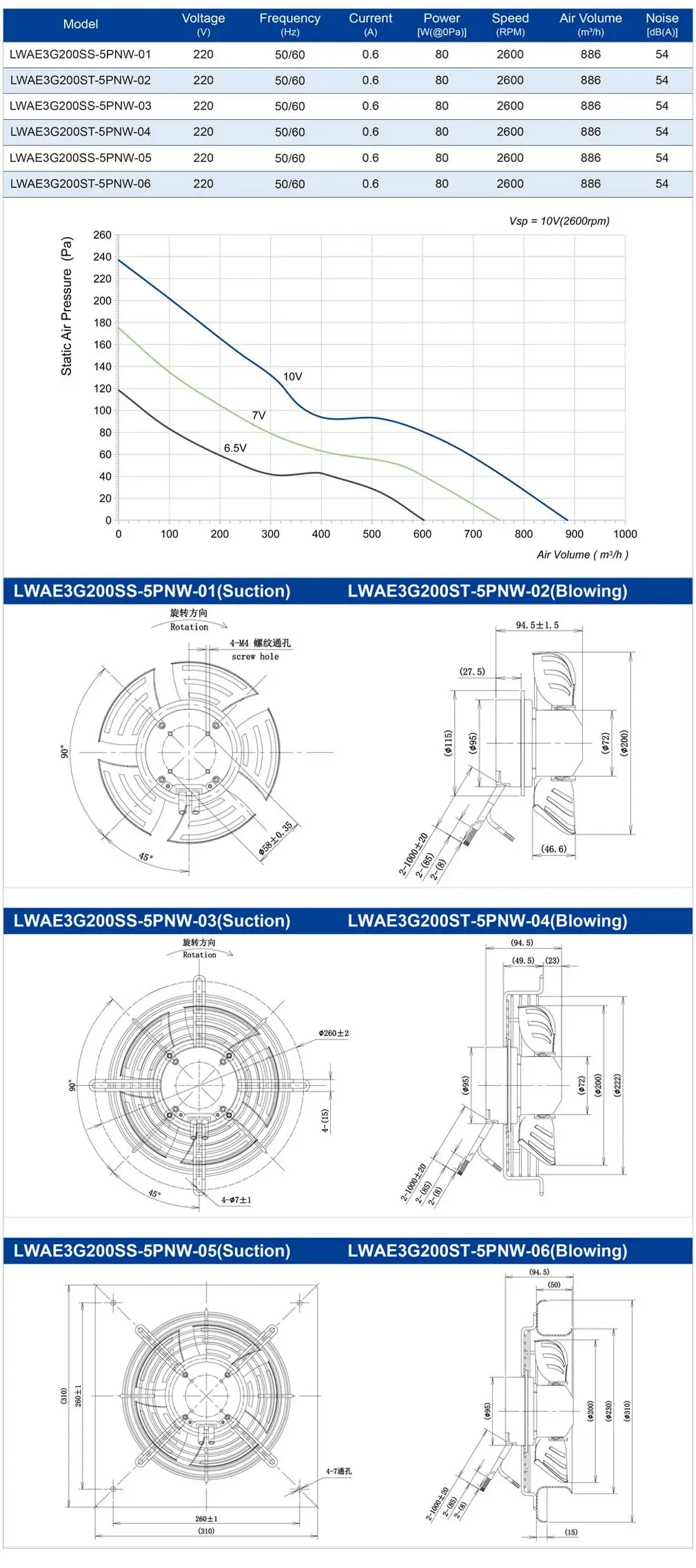

Need the exact model with a measured or digitised curve? This page describes the EC Axial Fan range. The Fan Selector lists every LONGWELL EC axial fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC axial fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

Airflow Precision Unleash Customization with Our 200mm EC Axial Fans for Tailored Performance
Voltage Ranges :

220V
Frequency :

50/60 Hz
Diamter :

200mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V, for Control Cabinet Cooling, Cold Storage, Air Purifiers”

Your email address will not be published. Required fields are marked *

More in this series

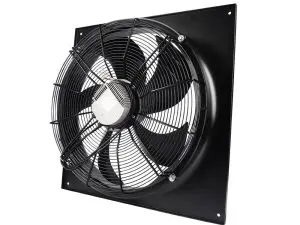

LONGWELL 450mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V 0–10V/PWM Control, PA66, PWM Control, for AHU, FFU, Data Center CoolingLONGWELL 450mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V 0–10V/PWM Control, PA66, PWM Control, for AHU, FFU, Data Center Cooling220 V1590RPMView & InquireLONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 886 m³/h Airflow – LWAE3G200ST-5PEW-04LONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 886 m³/h Airflow – LWAE3G200ST-5PEW-04200 mm886 m³/h220 VDatasheet, curve & drawing →LONGWELL 315mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 2575 m³/h Airflow – LWAE3G315ST-5PNW-02LONGWELL 315mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 2575 m³/h Airflow – LWAE3G315ST-5PNW-02315 mm2575 m³/h220 VDatasheet, curve & drawing →LONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 886 m³/h Airflow – LWAE3G200SS-5PGW-05LONGWELL 200mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 886 m³/h Airflow – LWAE3G200SS-5PGW-05200 mm886 m³/h220 VDatasheet, curve & drawing →LONGWELL 630mm EC Axial Fan, Industrial Axial Ventilation Fan, for HVAC Systems, Cold Storage, Air PurifiersLONGWELL 630mm EC Axial Fan, Industrial Axial Ventilation Fan, for HVAC Systems, Cold Storage, Air PurifiersView & InquireLONGWELL 630mm EC Axial Fan, Industrial Axial Ventilation Fan, 380V IP54, 14935 m³/h Airflow – LWAE3G630TS-5MNW-01LONGWELL 630mm EC Axial Fan, Industrial Axial Ventilation Fan, 380V IP54, 14935 m³/h Airflow – LWAE3G630TS-5MNW-01630 mm14935 m³/h3-380 VDatasheet, curve & drawing →LONGWELL 250mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 1751 m³/h Airflow – LWAE3G250ST-7MNW-02LONGWELL 250mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 1751 m³/h Airflow – LWAE3G250ST-7MNW-02250 mm1751 m³/h220 VDatasheet, curve & drawing →LONGWELL 350mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 3451 m³/h Airflow – LWAE3G350SS-5PGW-05LONGWELL 350mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP54, 3451 m³/h Airflow – LWAE3G350SS-5PGW-05350 mm3451 m³/h220 VDatasheet, curve & drawing →LONGWELL 250mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP55, 1627 m³/h Airflow – LWAE3G250SS-7PNW-07LONGWELL 250mm EC Axial Fan, Industrial Axial Ventilation Fan, 220V IP55, 1627 m³/h Airflow – LWAE3G250SS-7PNW-07250 mm1627 m³/h220 VDatasheet, curve & drawing →LONGWELL 500mm EC Axial Fan, Industrial Axial Ventilation Fan, 230V IP54, 9122 m³/h Airflow – LWAE3G500SS-5PKW-12LONGWELL 500mm EC Axial Fan, Industrial Axial Ventilation Fan, 230V IP54, 9122 m³/h Airflow – LWAE3G500SS-5PKW-12500 mm9122 m³/h230 VDatasheet, curve & drawing →
