On July 25, 2026, LONGWELL opened a project to adapt AC axial fan configurations into barrel-shaped casings and generate updated specification documents. Based on base models LWAA4E250S-5MEB-32 and LWAA4E300S-5MEB-15, LONGWELL engineering established revised part numbers LWAA4E250S-5MYB-32-00 and LWAA4E300S-5MYB-15-00.

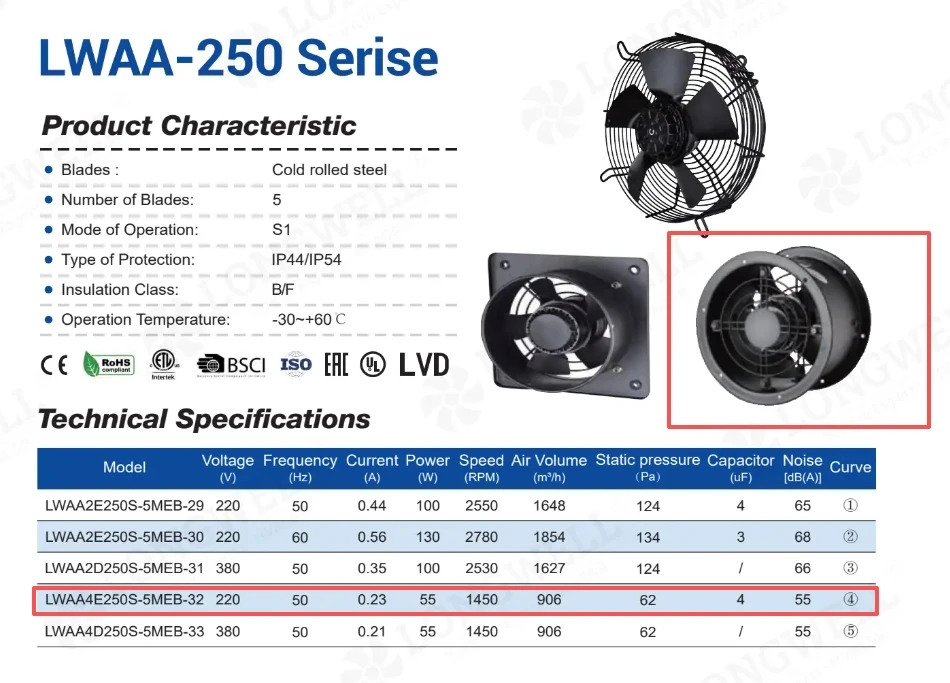

Axial fan with a circular wire guard and metal blades
Representative guarded axial fan; project specifications are listed below.

Barrel casing specifications

The engineering team developed drawing and technical datasheet outputs for both barrel-housed AC axial fan assemblies. Key specified mechanical and electrical parameters are summarized below.

Parameter LWAA4E250S-5MYB-32-00 LWAA4E300S-5MYB-15-00
Nominal Voltage 220 VAC 220 VAC
Frequency 50 Hz 50 Hz
Speed 1450 rpm 1350 rpm
Power Input 55 W 85 W
Current 0.23 A 0.39 A
Max Air Flow 906 m³/h (533 CFM) 1906 m³/h (1120 CFM)
Noise Level 55 dB(A) 60 dB(A)
Protection Rating IP54 IP54
Housing Length 173 mm 214 mm
Outer Flange Diameter 310 mm 358 mm

Specification outputs

LONGWELL engineering finalized the standard specification documents and technical drawings on July 28, 2026, delivering the updated drawings and specifications for customer evaluation.

Drawing excerpt from the engineering file prepared for this request
Engineering drawing excerpt for the requested configuration.

Request custom fan specifications

If your application requires custom barrel housing dimensions, tailored mounting flanges, or specific AC axial fan duty points, contact LONGWELL to review your technical requirements. Please provide your target operating point, voltage, dimensional constraints, and airflow requirements at LONGWELL Contact or evaluate options via the LONGWELL Fan Selector.
