Application engineering note

Cross-flow fan assembly with a metal tangential impeller and end-mounted motor
Representative cross-flow fan; model and application details are listed below.

Agricultural equipment may need airflow across a long component or a narrow heat-exchanger section. A cross flow fan can be evaluated for that equipment layout when the required air path and installation envelope are clearly defined.

Specify the component-cooling task

Show the heat sources, intake openings, discharge path and available fan length on an assembly drawing. State the required airflow and the resistance of any grille, filter or heat exchanger in the path.

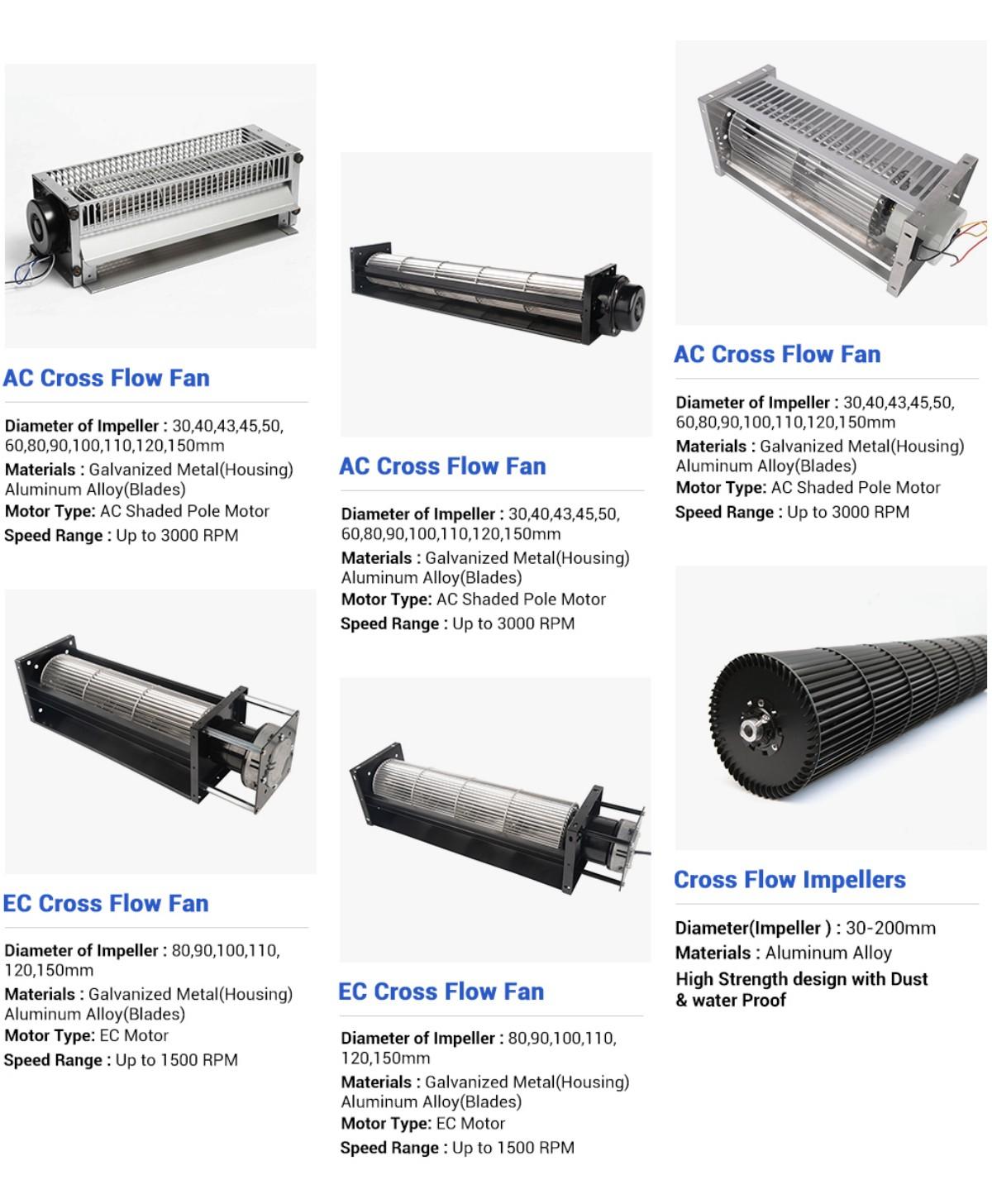

LONGWELL cross flow documentation includes LWCA AC and LWCE EC motor configurations. The choice depends on the available supply, required speed control and operating conditions. The exact model’s electrical and mechanical specifications should be reviewed together.

Describe the working environment

Include expected temperatures, humidity, dust exposure and the equipment cleaning method. Mark motor clearance, mounting points, cable exits and any connector requirements. State the control signal and monitoring functions needed by the machine controller.

Evaluate the proposed fan in the actual equipment housing using the agreed airflow and temperature checks. A component-cooling fan serves a defined machine airflow path; broader greenhouse ventilation or crop-control functions need their own system requirements. The enquiry should make that intended task clear before a configuration is selected.

Discuss your fan requirement

Send LONGWELL your airflow and pressure duty point, power supply, available installation space, control requirements, operating environment and drawings. Contact our engineering team to discuss a suitable configuration.

Choose the right cross flow fan

Longwell manufactures 495 cross flow fans in-house. Send airflow, static pressure and voltage — an engineer replies with a matching model, performance curve and price within one working day.
