On April 20, 2026, LONGWELL received a customer request for standard specification drawing documentation for a cross flow fan. LONGWELL engineering provided technical drawing LWCE-90360SN-06-00 to support preliminary mechanical and electrical evaluation for model LWCE-90360SN-06.

Cross-flow fan assembly with a metal tangential impeller and end-mounted motor
Representative cross-flow fan; project specifications are listed below.

Engineering Specification and Design Parameters

The standard specification drawing establishes physical dimensions, motor features, interface wiring, and operating ratings for model LWCE-90360SN-06. The unit features an EC72 motor rated at 85 W with an integrated lead cable.

Parameter Value / Specification
Model Number LWCE-90360SN-06
Drawing Reference LWCE-90360SN-06-00 (Rev A1)
Impeller Size & Material ø90 x 500 mm, Aluminum
Overall Width Dimension 633 ± 3 mm
Chassis Profile Dimensions 130 mm x 130 mm
Nominal Air Volume 640 m³/h
Rated Voltage / Frequency 230 V, 50/60 Hz
Rated Speed 1500 ± 150 r/min
Speed Control Input 0-10V / PWM
Lead Wire Length L = 500 mm

Technical Deliverable Scope

This project scope is limited to the standardized engineering drawing release. The documentation establishes nominal interface constraints and dimensional drawings for early application evaluation.

Download LWCE-90360SN-06 Technical Specification Drawing (PDF)

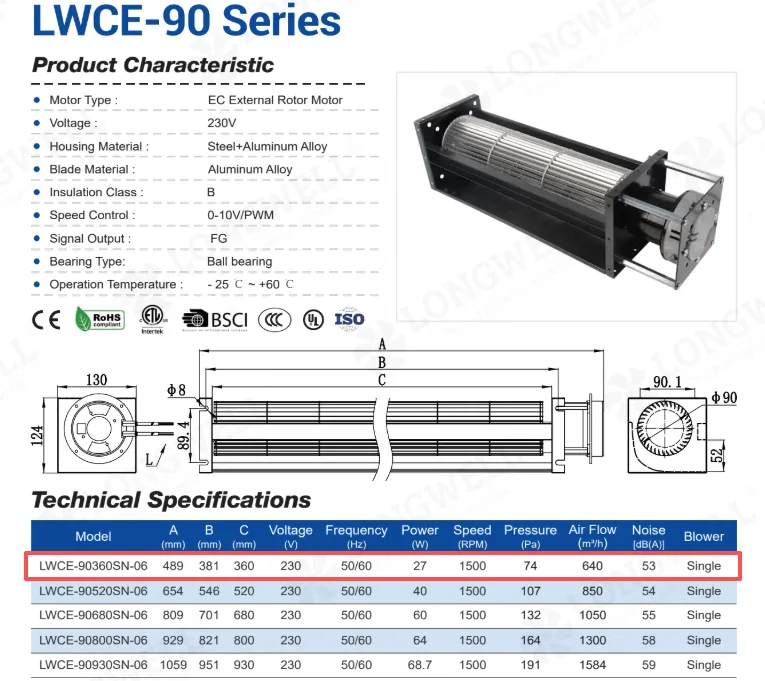

Drawing excerpt from the engineering file prepared for this request
Engineering drawing excerpt for the requested configuration.

Discuss a similar requirement

To evaluate a cross flow fan for your application, share your required air volume, system static pressure, operating voltage, speed control protocol, and envelope constraints with our engineering team through our contact page or select components directly using the LONGWELL fan selection tool.
