Technical Specification Scope

On March 27, 2026, LONGWELL opened a project to define the technical specifications for an EC forward curved centrifugal fan, designated under model LWFE3G140-072NS-01-00. On the same day, LONGWELL engineering issued the technical specification document for single-phase 230VAC operation.

Forward-curved centrifugal blower in a scroll housing
Representative forward-curved blower; project specifications are listed below.

Electrical and Performance Parameters

The standard specification defines nominal operating parameters and physical boundaries for system integration. The unit utilizes a galvanised sheet steel impeller with maintenance-free deep groove ball bearings configured for horizontal or vertical shaft mounting.

Parameter Value / Unit
Nominal Voltage 230 VAC
Voltage Range 176–264 VAC
Frequency 50/60 Hz
Speed 1910 rpm
Maximum Input Power 70 W
Maximum Input Current 0.58 A
Maximum Airflow 484 m³/h (208 CFM)
Maximum Static Pressure 216 Pa
Impeller Outer Diameter 140 mm
Motor Body Depth 73.8 ± 1 mm
Lead Wire Length 500 ± 20 mm

Electrical Interface and Control Features

Model LWFE3G140-072NS-01-00 accepts a 0–10 VDC or PWM speed control signal. It provides an auxiliary 10 VDC output (up to 10 mA) and a tachometer speed feedback signal rated at 5 pulses per revolution. Integrated motor protections include current limiting, over-temperature protection, over-current protection, and locked-rotor protection. Wiring is arranged via a 7-wire cable connection scheme.

Download Specification PDF for LWFE3G140-072NS-01-00

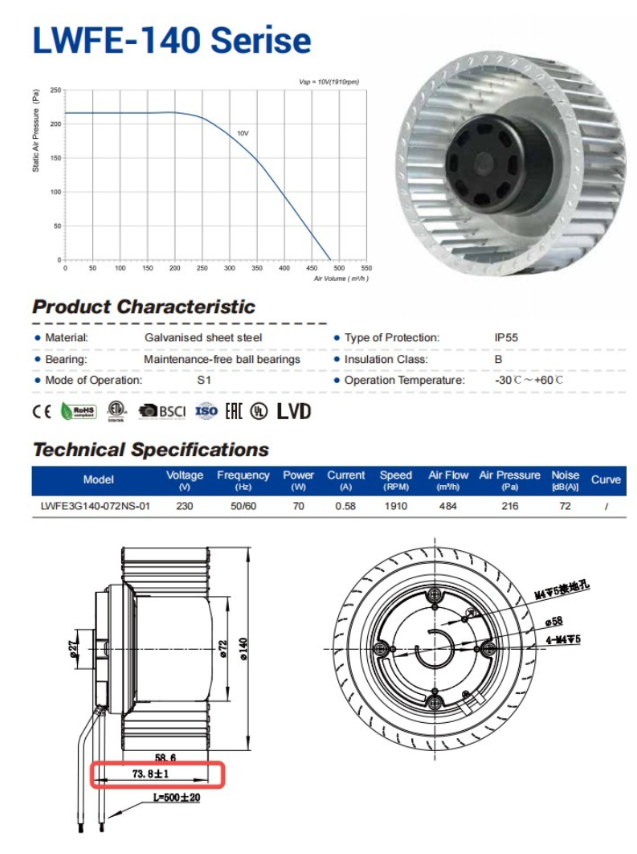

Drawing excerpt from the engineering file prepared for this request
Engineering drawing excerpt for the requested configuration.

Discuss a Similar Requirement

To evaluate model LWFE3G140-072NS-01-00 or to request modifications such as customized wire lead lengths, specialized housings, or tailored duty point calculations, contact the engineering team through the LONGWELL contact page or select components directly using the LONGWELL Fan Selection Tool.
