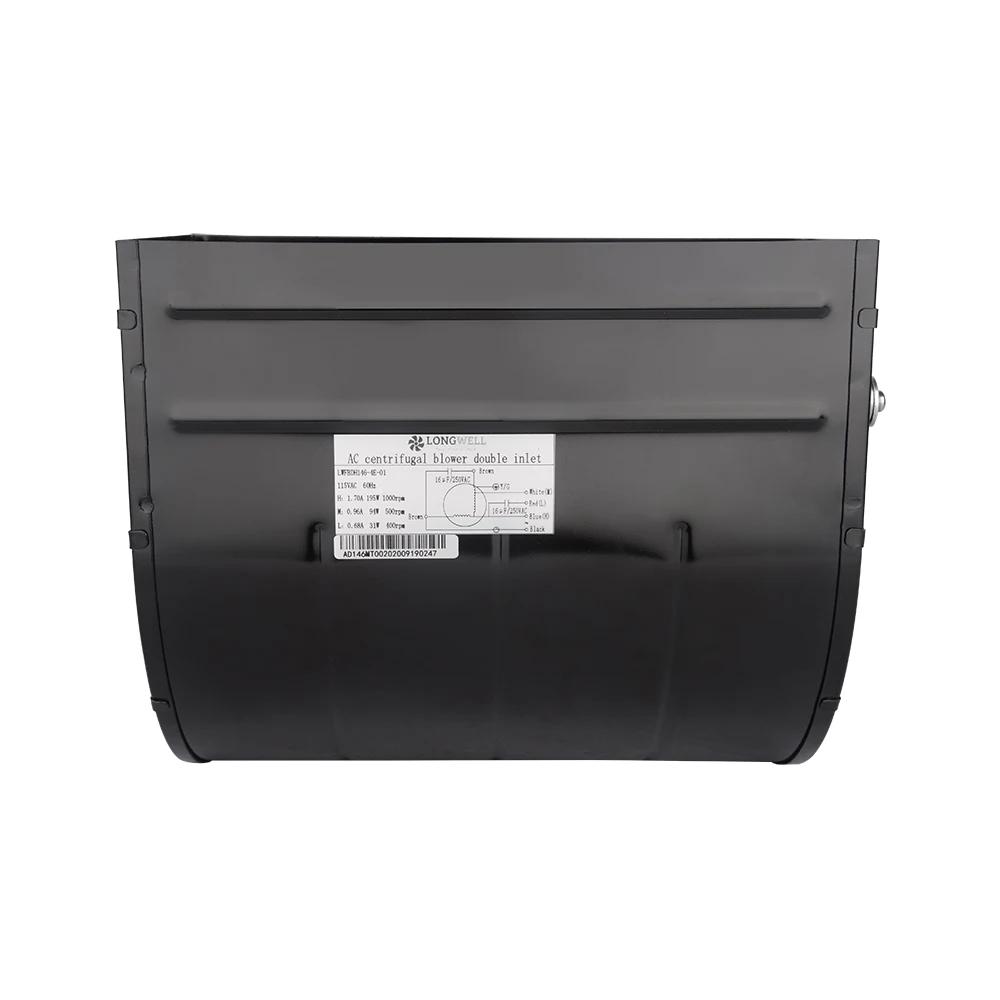

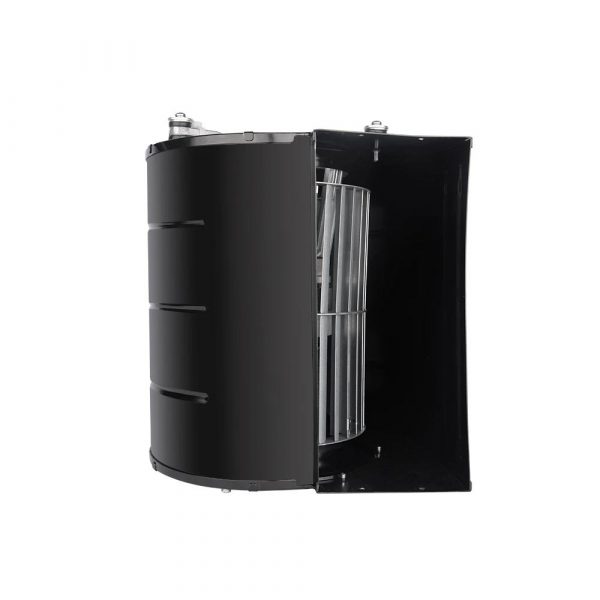

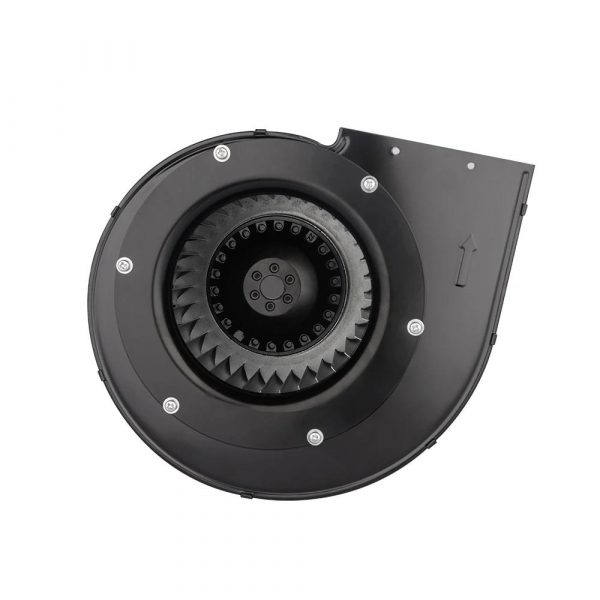

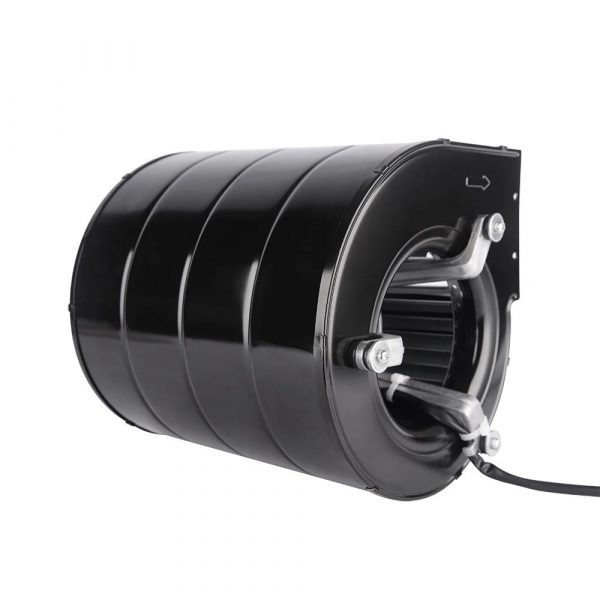

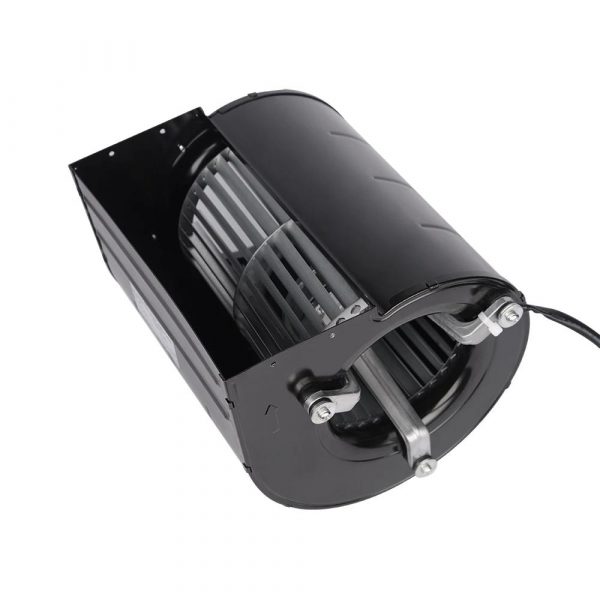

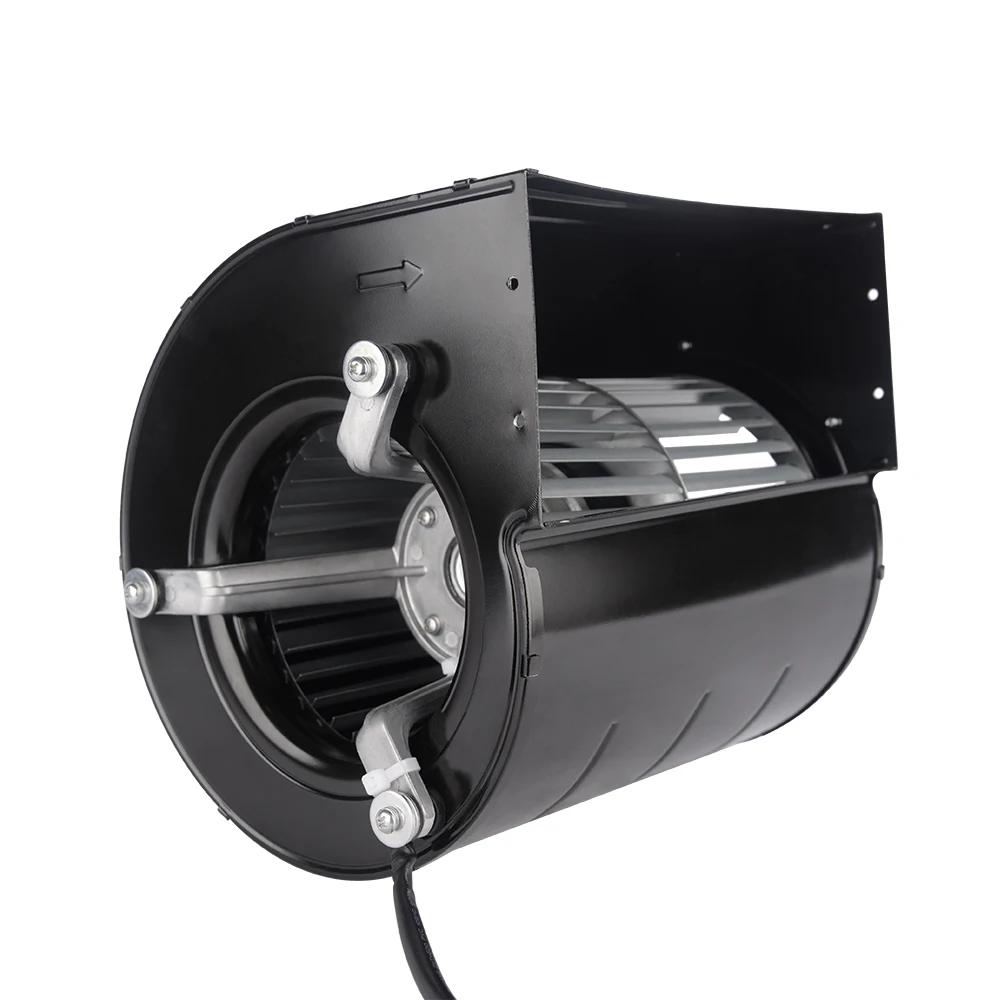

LONGWELL DC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 24V, Low Noise, for FFU, Fan Coil Units, HVAC Systems

Name: LONGWELL DC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 24V, Low Noise, for FFU, Fan Coil Units, HVAC Systems
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Voltage 24/48/230/380V

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 30

Specifications

Motor: DC external rotor motor
Speed: 2800rpm, 2600RPM, 2450RPM
Impeller: Propylene with glass fiber reinforced

Category: Industrial Centrifugal Fan Tags: Centrifugal Fan, EC Motor, Industrial Ventilation

CategoryIndustrial Centrifugal Fan

TagsCentrifugal Fan EC Motor Industrial Ventilation

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Industrial Centrifugal Fan range. The Fan Selector lists every LONGWELL centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search centrifugal fan models →

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.View more

double inlet centrifugal fan

High efficiency AC DC EC double inlet centrifugal fan low noise radial fan blower compact industrial centrifugal fan

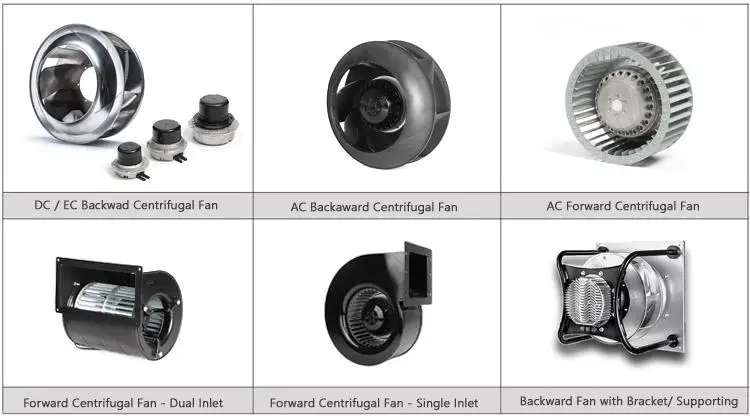

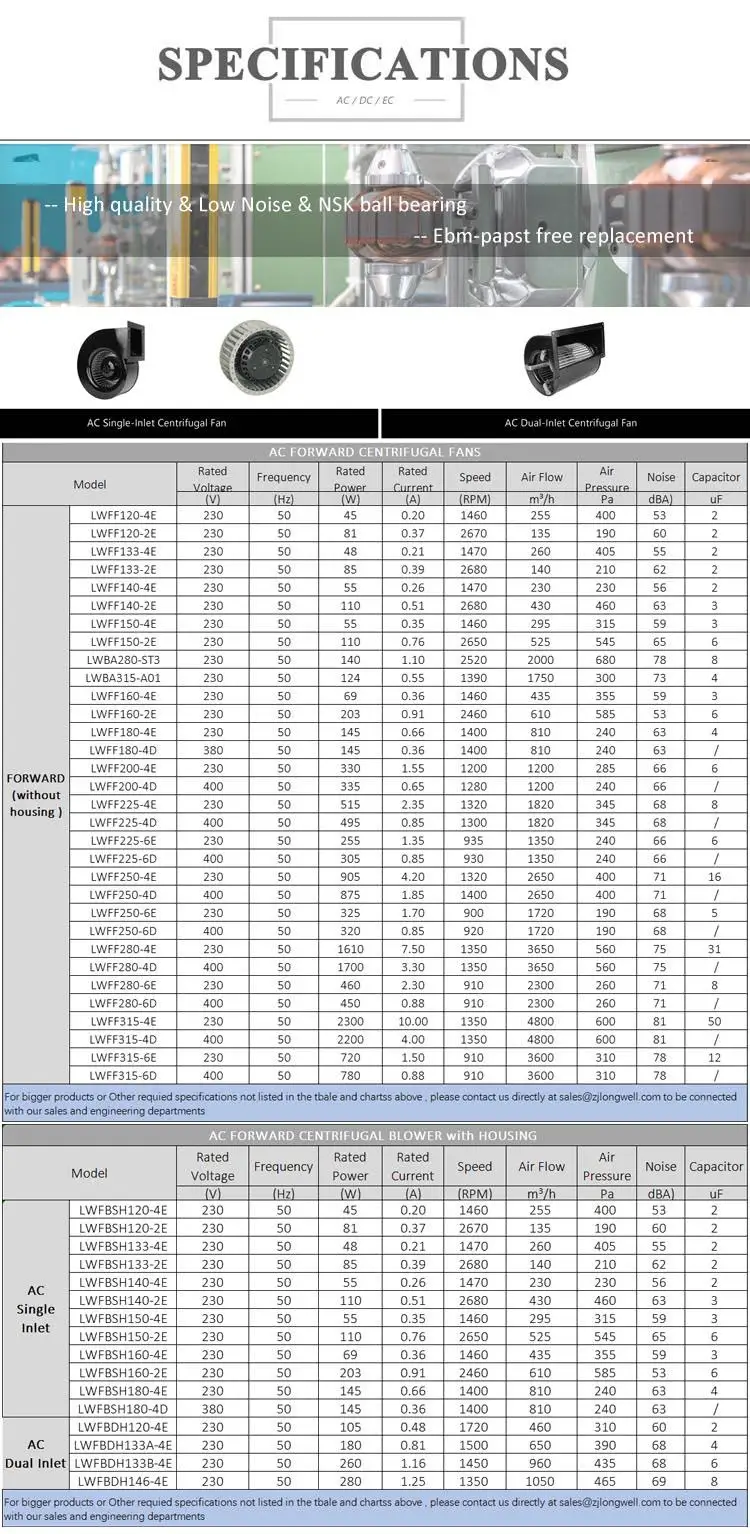

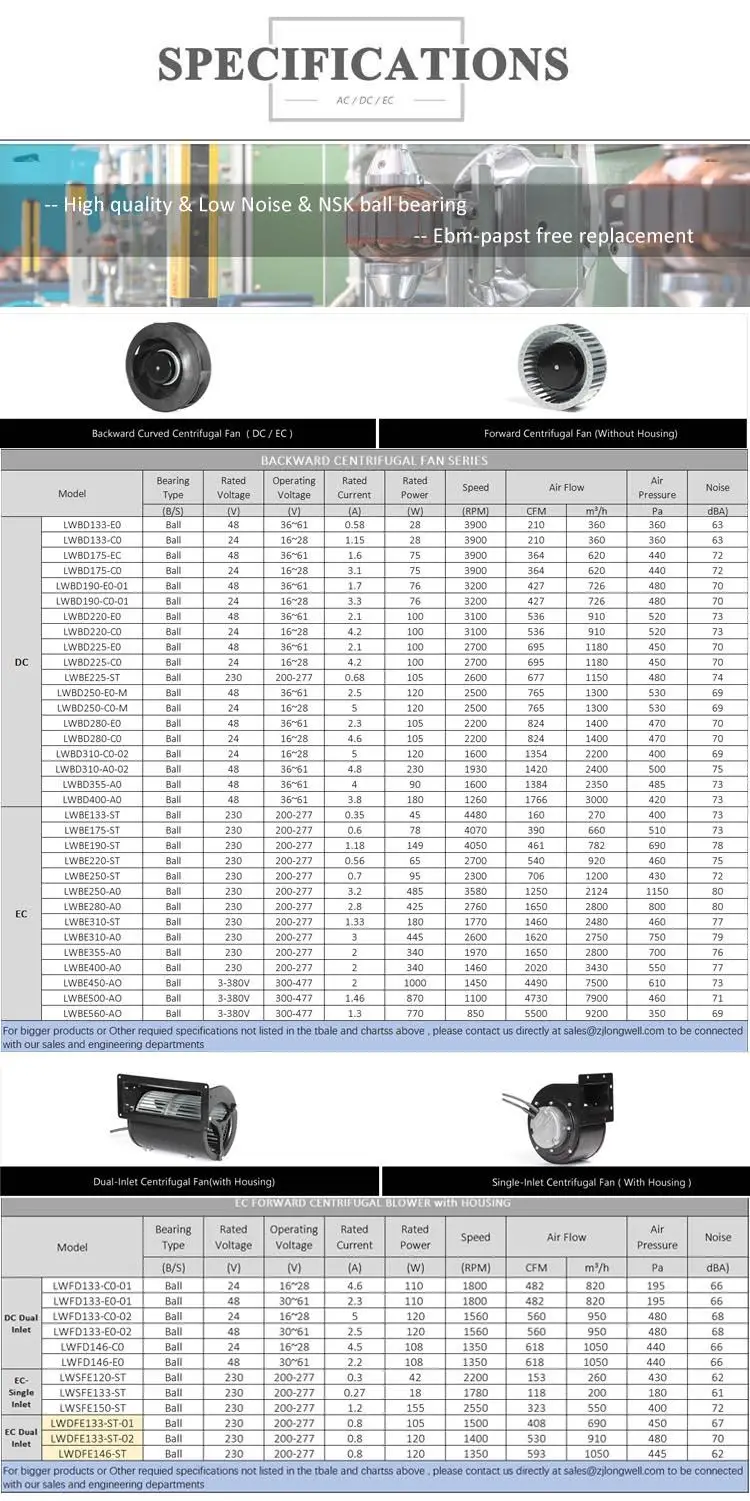

Product Overview
1	Centrifugal Blower Sizes	133mm – 400mm (or Customized)
2	Centrifugal Fan Sizes	133mm – 630mm (or Customized)
3	Motor Types	AC Motor
		BLDC Motor
		ECM Motor
4	Voltage	AC Motor – AC Input: 115v,220v,230v,380v,400v
		BLDC Motor – DC Input: 12v,24v,48v,310v
		ECM Motor – AC Input: 210v,220v,230v,380V
5	Power	Up to 2300W (or Customized)
6	Speed	Up to 4000RPM (or Customized)
7	Air Flow	Up to 15000m³/h (or Customized)
8	Speed control	Speed Controller (AC) or PWM/0 – 10V Input (DC & EC)
General Characters
1	Direction of Air Flow	All around
2	Insulation Class	Class B
3	Insulation Resistance	50 Mega Ohm minimum at 1000VDC
3	Insulation Resistance	Between frame and (+) terminal
4	Protection Type	IP44

double inlet centrifugal fan

Additional information

Blade Material	aluminum alloy
Voltage	24/48/230/380V
speed	2800rpm, 2600RPM, 2450RPM
customized support	OEM, ODM, OBM
mounting	Duct Fan
place of origin	Zhejiang, China
brand name	Longwell
warranty	1 Year
After-sales Service Provided	Online support
Type	12V dc blower fan
power input	Customized
Impeller material	Propylene with glass fiber reinforced
Bearing	Ball Bearing
Approvals	CE,CCC
Motor type	DC external rotor motor
Amb,Temp	-20 to +60℃
Insulation	B/F
Application	HVAC,FCU,FFU
Selling units	Single item
Single package size	62X62X20 cm
Single gross weight	22.000 kg
