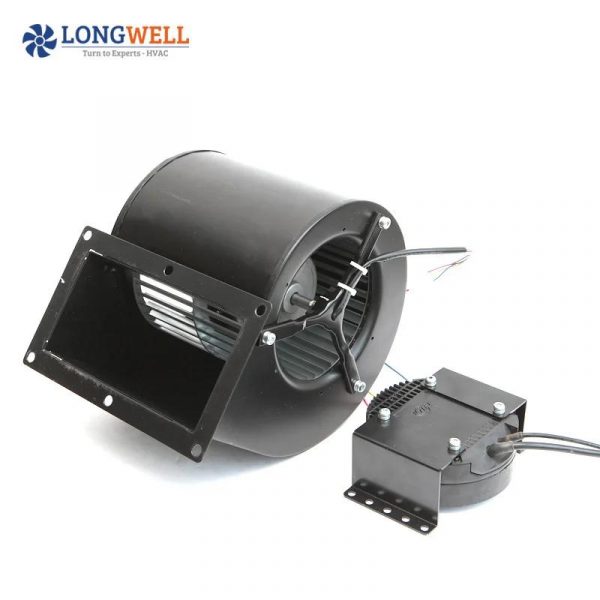

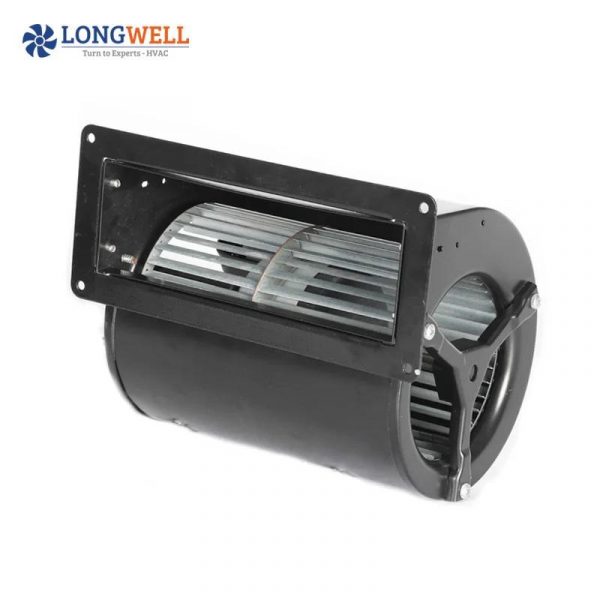

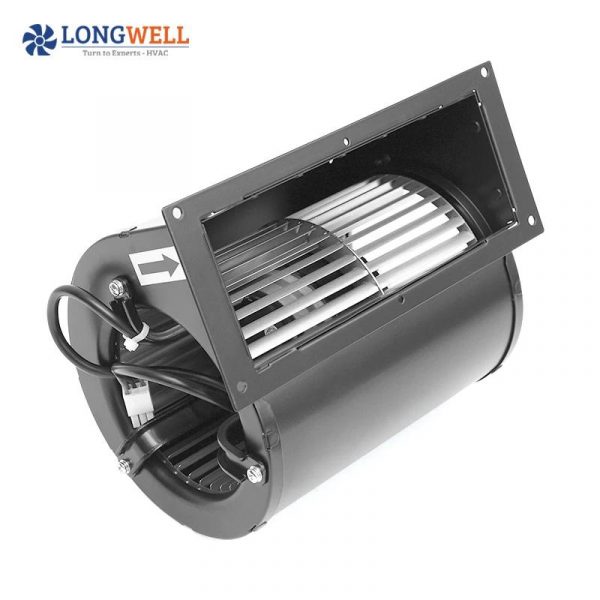

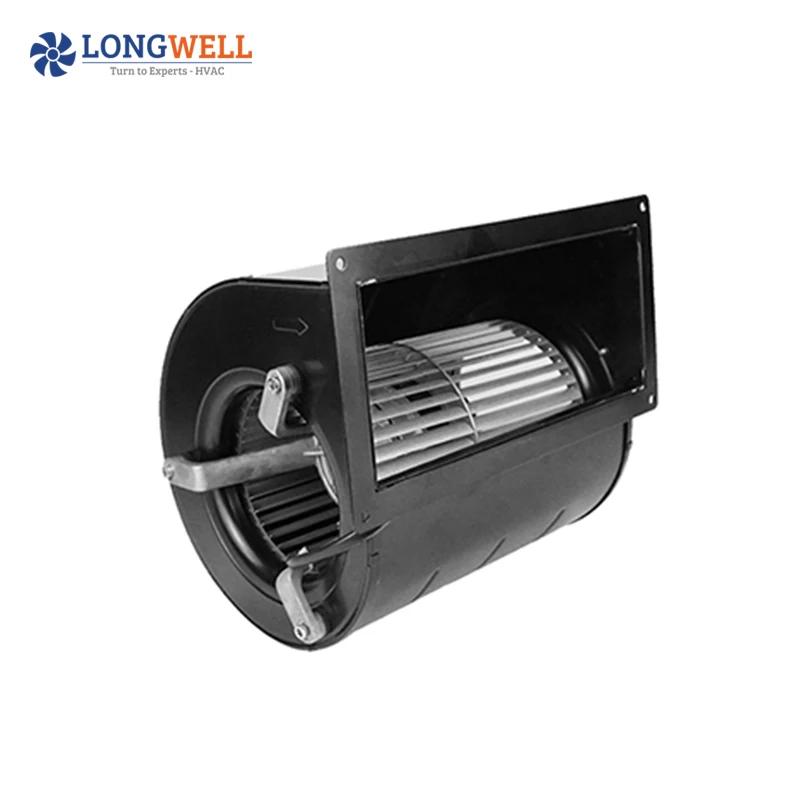

LONGWELL 133mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 110V PWM Control, for HVAC Systems

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 10

Specifications
Motor
External rotor motor
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryAC Forward Fans
TagsCentrifugal FanExternal Rotor MotorHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Forward Fans range. The Fan Selector lists every LONGWELL AC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Single inlet 133 mm AC Forward centrifugal fans blower high air flow 110V 220V industrial centrifugal air blower fan

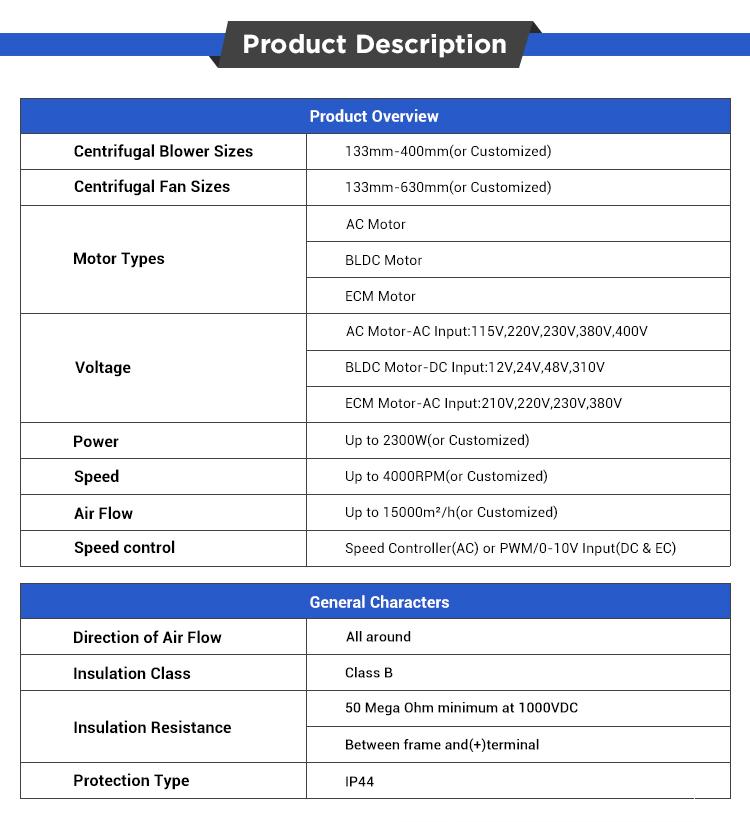

Product Description
Model Number :  133 mm AC Forward centrifugal fans blower high air flow 110V 220V industrial centrifugal air blower fan
Motor Type :  BLDC Motor Blade Material :  Galvanized Metal
Operation Model :  S1 Insulation Class :  IP 44
Speed control:  Continuously variable speeed Insulation Class:  F
Operation Temperature :  -25 ℃ ~ +60 ℃

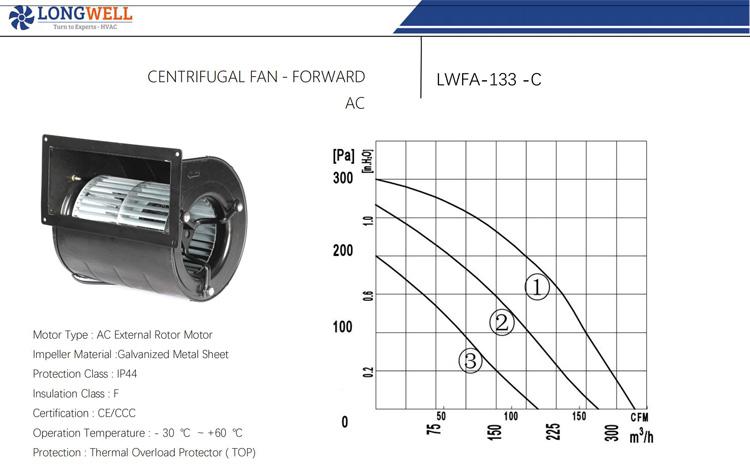

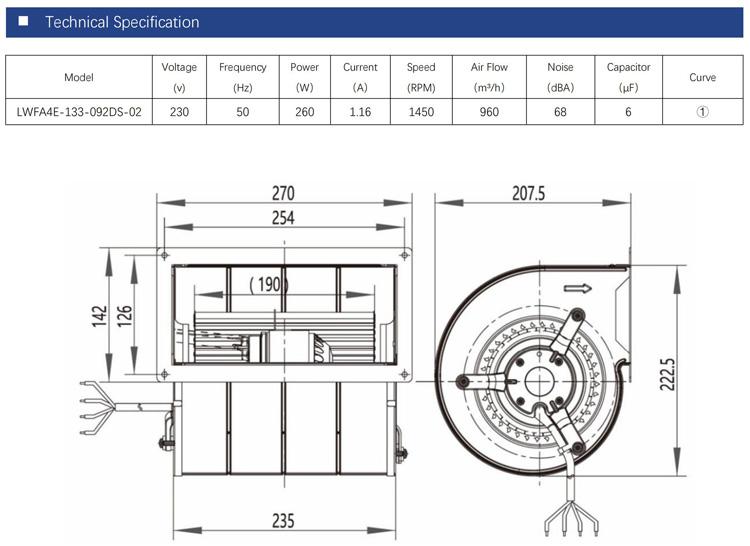

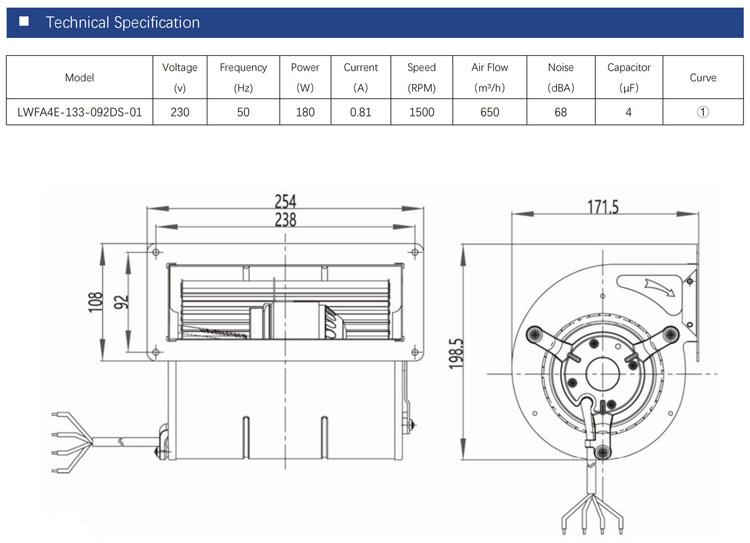

LWFA -133 Dual inlet

LWFA -133 Dual inlet (2)

LWFA -133 Dual inlet (3)

LWFA -133 Dual inlet (4)

LWFA -133 Dual inlet (5)

LWFA -133 Dual inlet (6)



backward (5)

backward (6)

Custom Service

 backward (8)

Product Application

 backward (9)

Certifications

backward (14)

Company Information

backward (17)

backward (18)

backward (15)

backward (16)

Contact information

backward (20)

Buying Guides

backward (19)

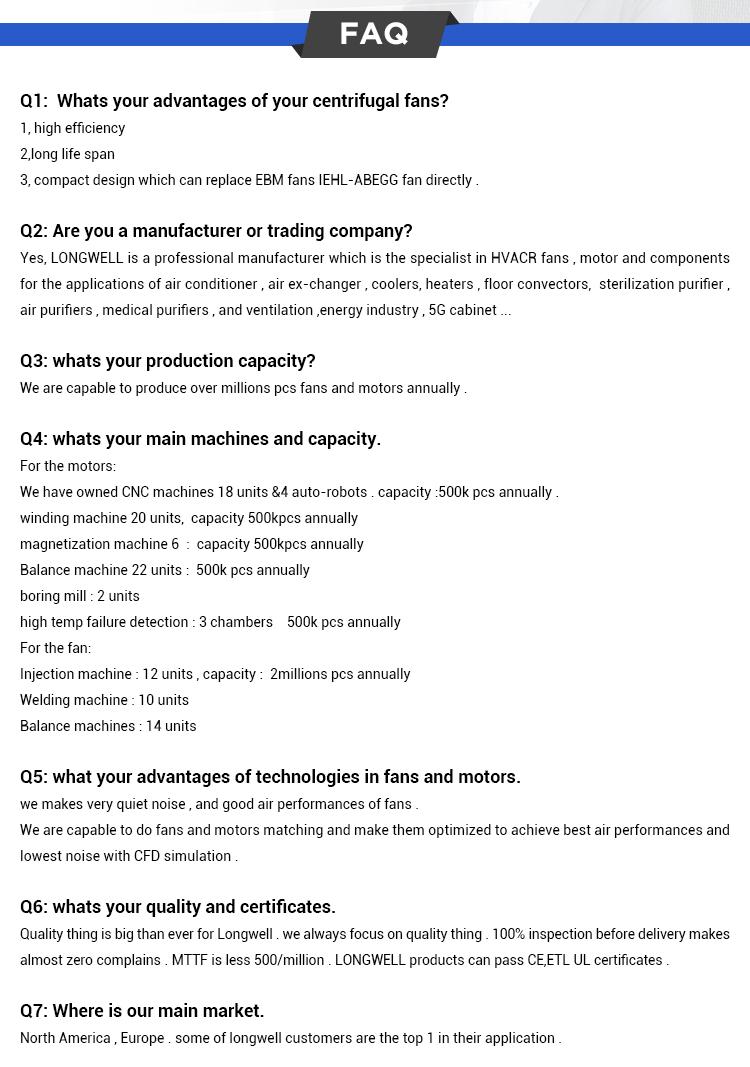

FAQ

backward (21)

backward (1)





Additional information

Electric Current Type

AC
Voltage

110v /220v 24VDC/ 48VDC
Blade Material

Galvanized
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
model number

Dual inlet centriiifugal blower
warranty

1 Year
After-sales Service Provided

Online support
Type

centrifugal fan blower
power input

AC 110/230
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Motor type

External rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Application

HVAC ,AIR EXCHANGER
Speed control

0~10v/pwm / ac regulator
Packaging Details

High strength cartons with polyfoam , and packed on pallet .
Port

NINGBO/SHANGHAI
Selling units

Single item
Single package size

30X30X40 cm
Single gross weight

4.000 kg
Supply Ability

100000 Piece/Pieces per Month
