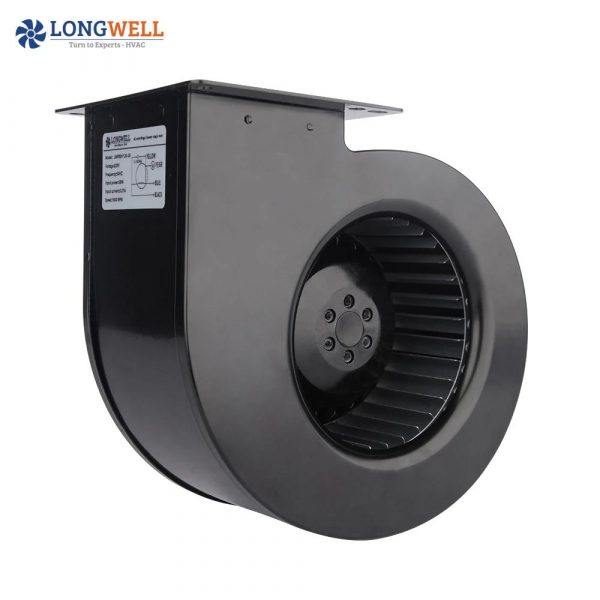

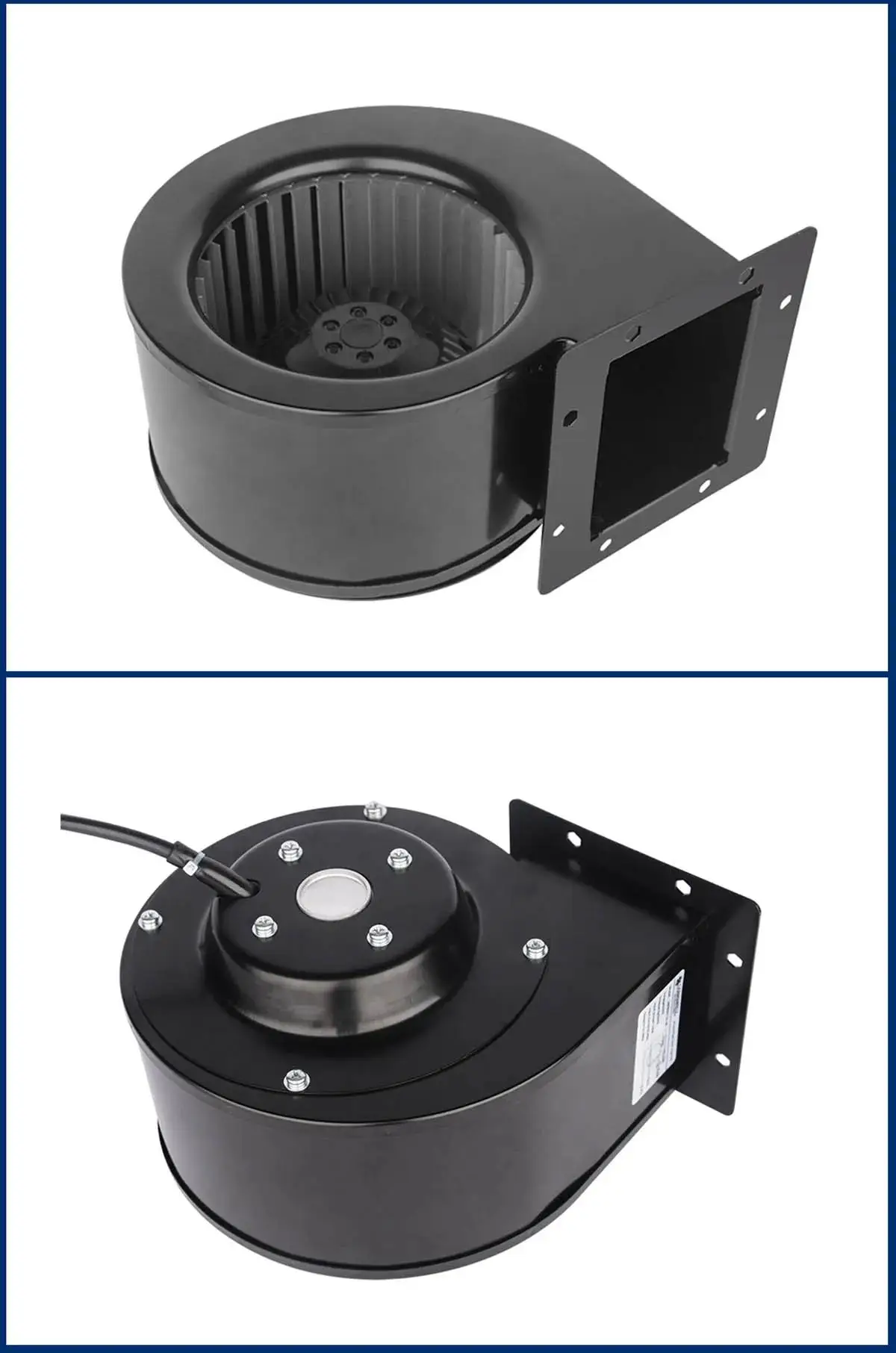

LONGWELL 150mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 110V, for Data Center Cooling, Cleanroom Ventilation, Control Cabinet Cooling – LW

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Specifications
Motor
AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryAC Forward Curved Centrifugal Fans
TagsCentrifugal FanComputer Room Air Conditioning SystemsExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Forward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL AC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

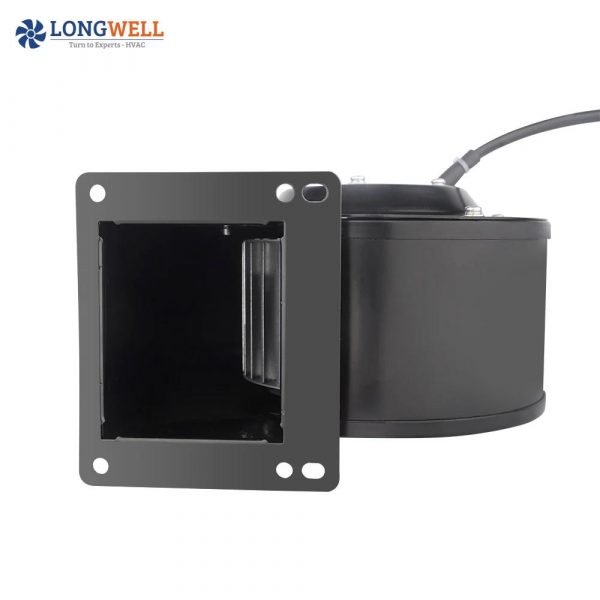

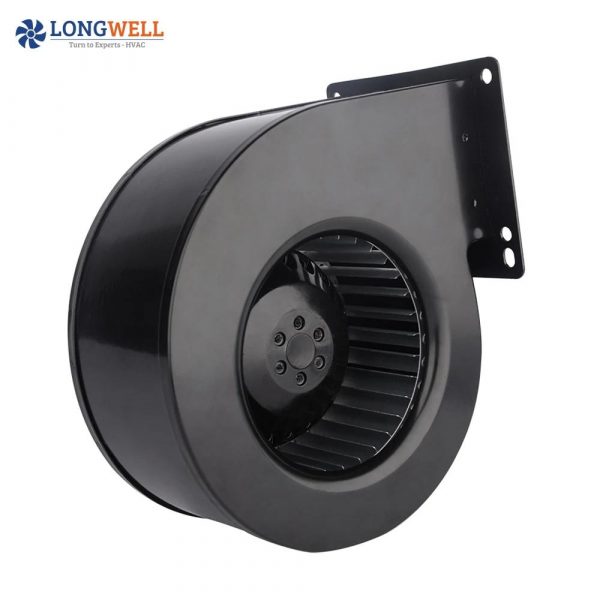

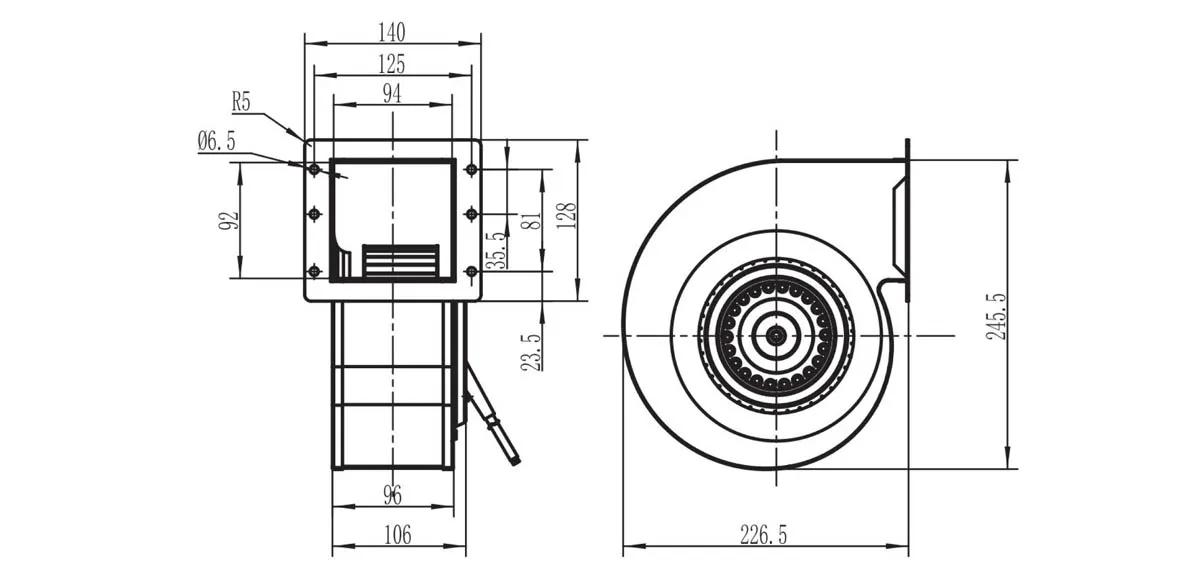

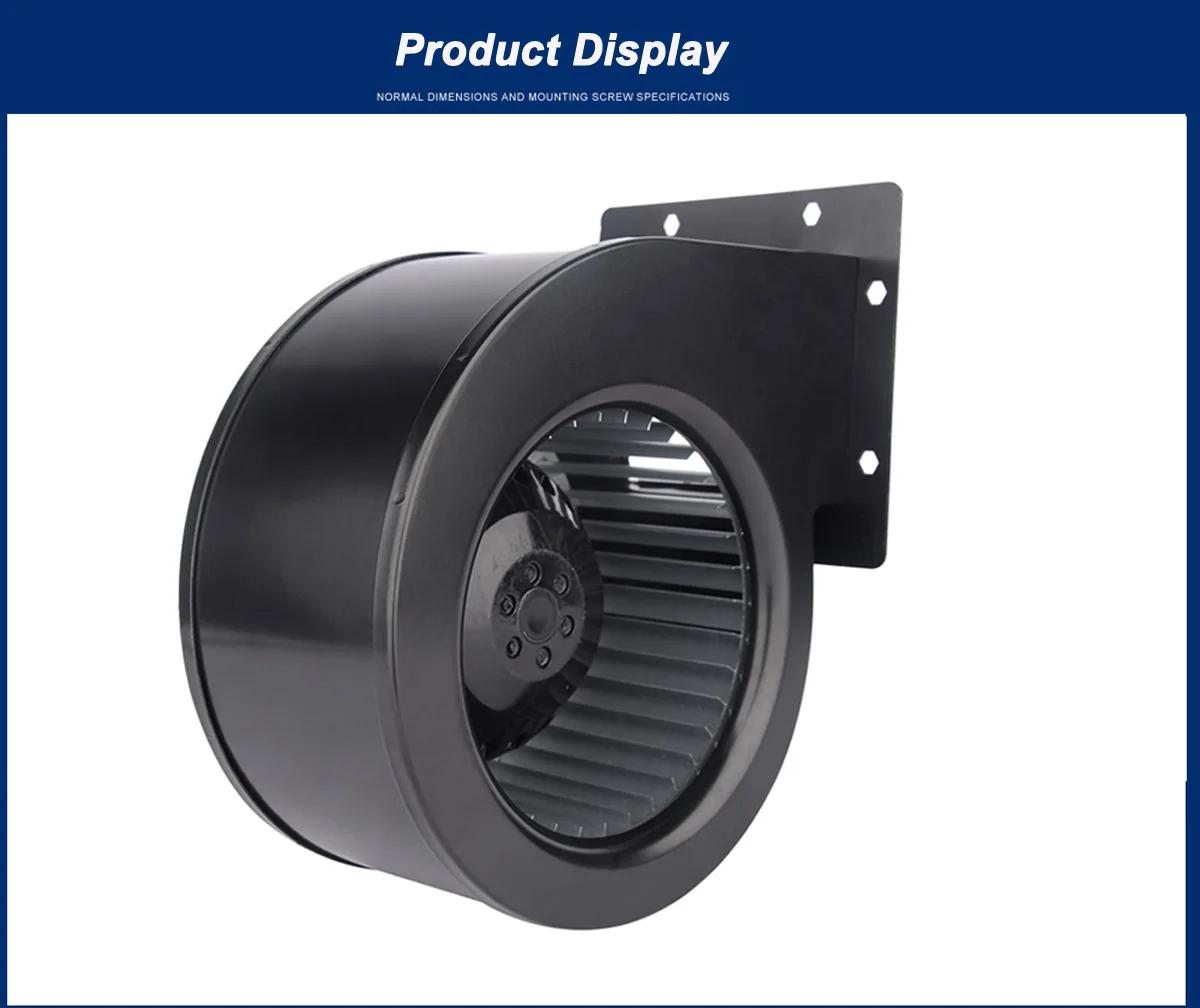

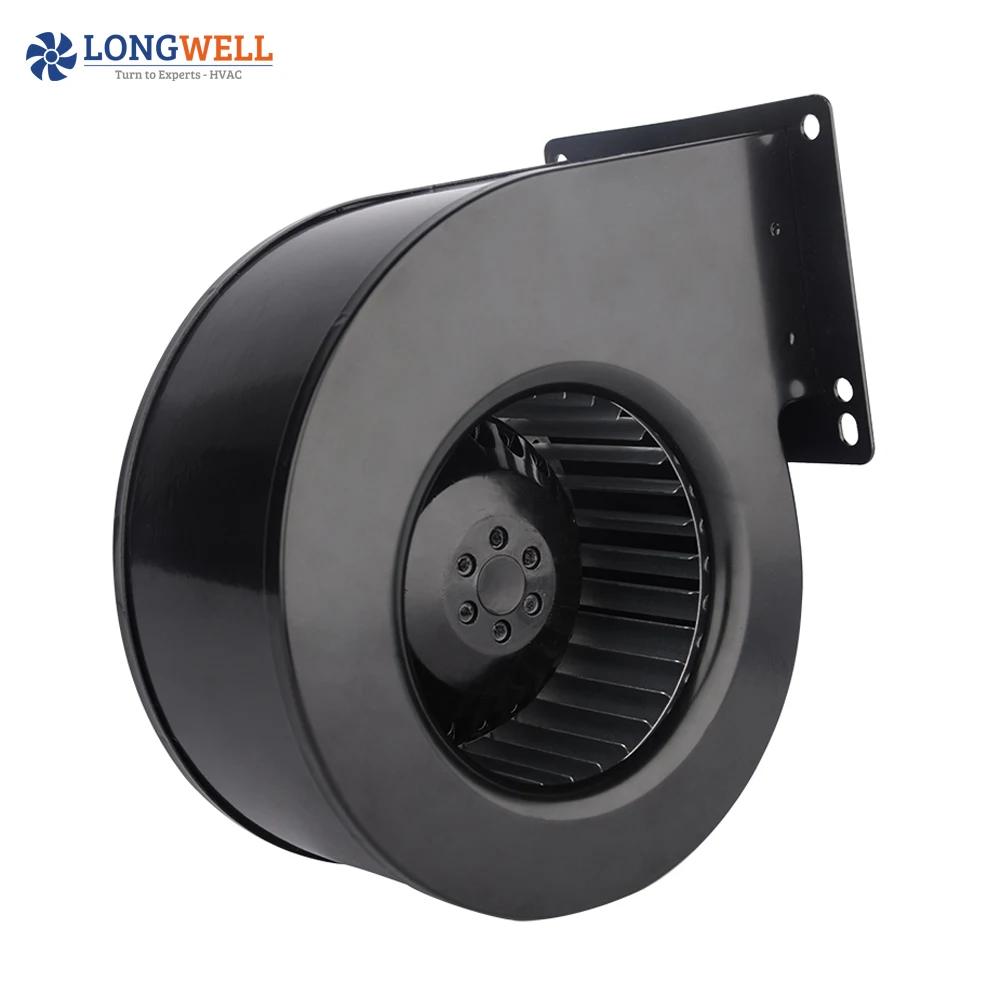

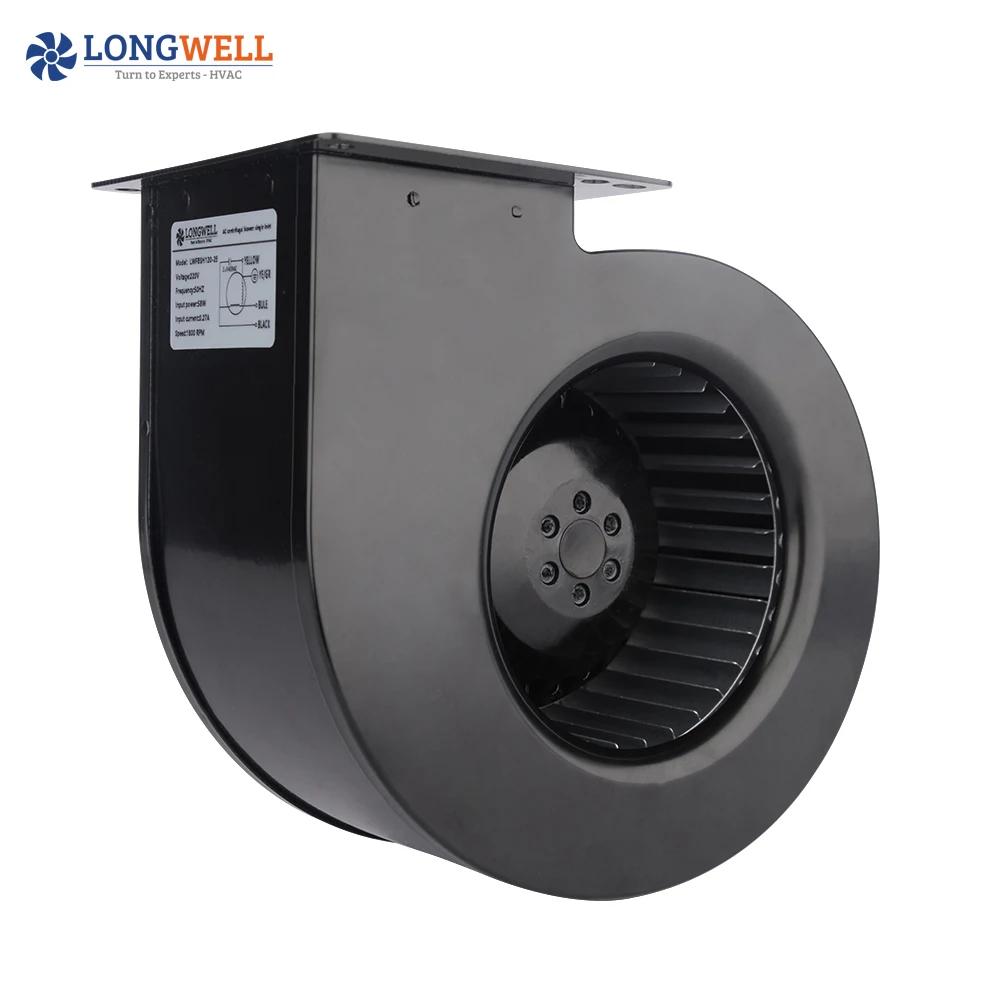

150mm diameter forward curved centrifugal fan impeller centrifugal exhaust fan blower

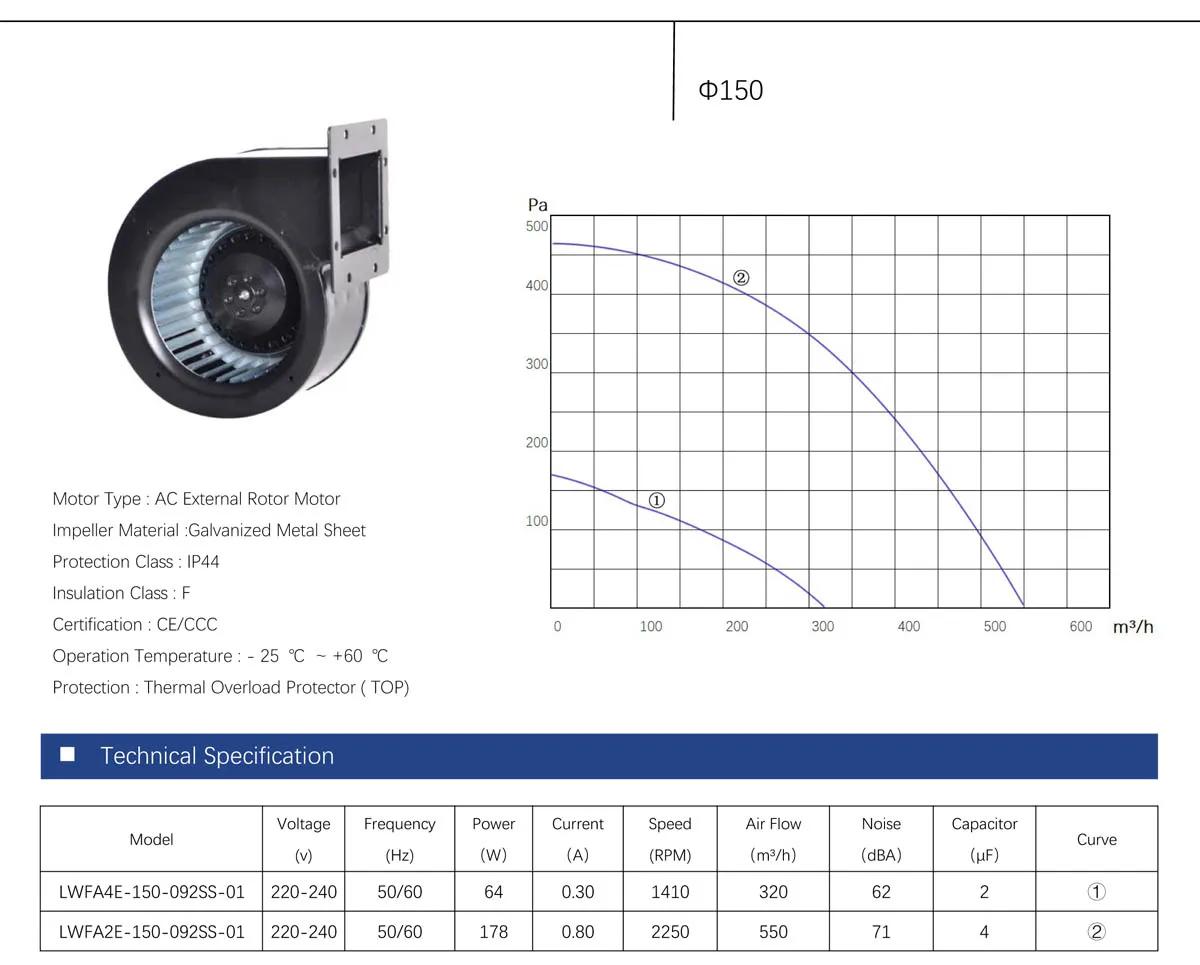

Norminal Sizes Ranges :
LWFA150mm AC Voltage Forward centrifugal blower
Norminal Voltage :

AC Motor – AC Input: 115v,220v,230v
Power Input Ranges:
64W /178W
Air Flow Ranges :
320-550 m³/h
Speed Ranges
1410  / 2250 RPM
Protection Class :
IP44
Insulation Class :
B
Min. amb. temperature :
-25℃
Max. amb. temperature :
+60 ℃
Speed control options
1 speed , 2 speeds ,or 1-3 speeds adjustable

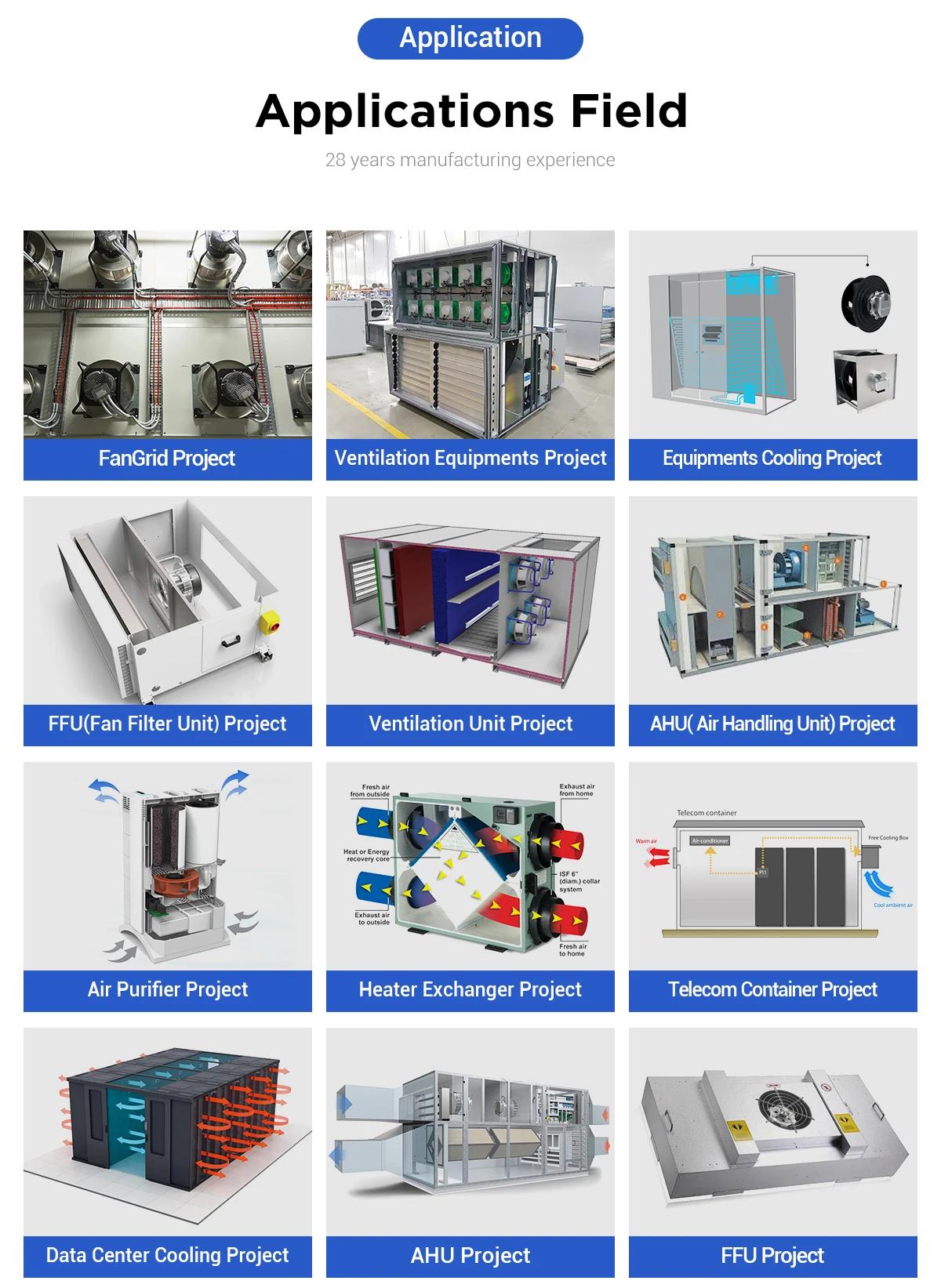

Mainly Applications ：

· Electronic cabinet cooling

· Clean room modules

· Heat exchangers

· Air filtration systems

· Military HRAC

· Pharmaceutical/biological control systems

· Computer room air conditioning (CRAC) systems

· Air-handling units

Additional information

Voltage

110v /220v 24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

METAL
customized support

OEM, ODM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LW
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

centrifugal fan
power input

AC 110/230
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

AC external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

4.000 kg
