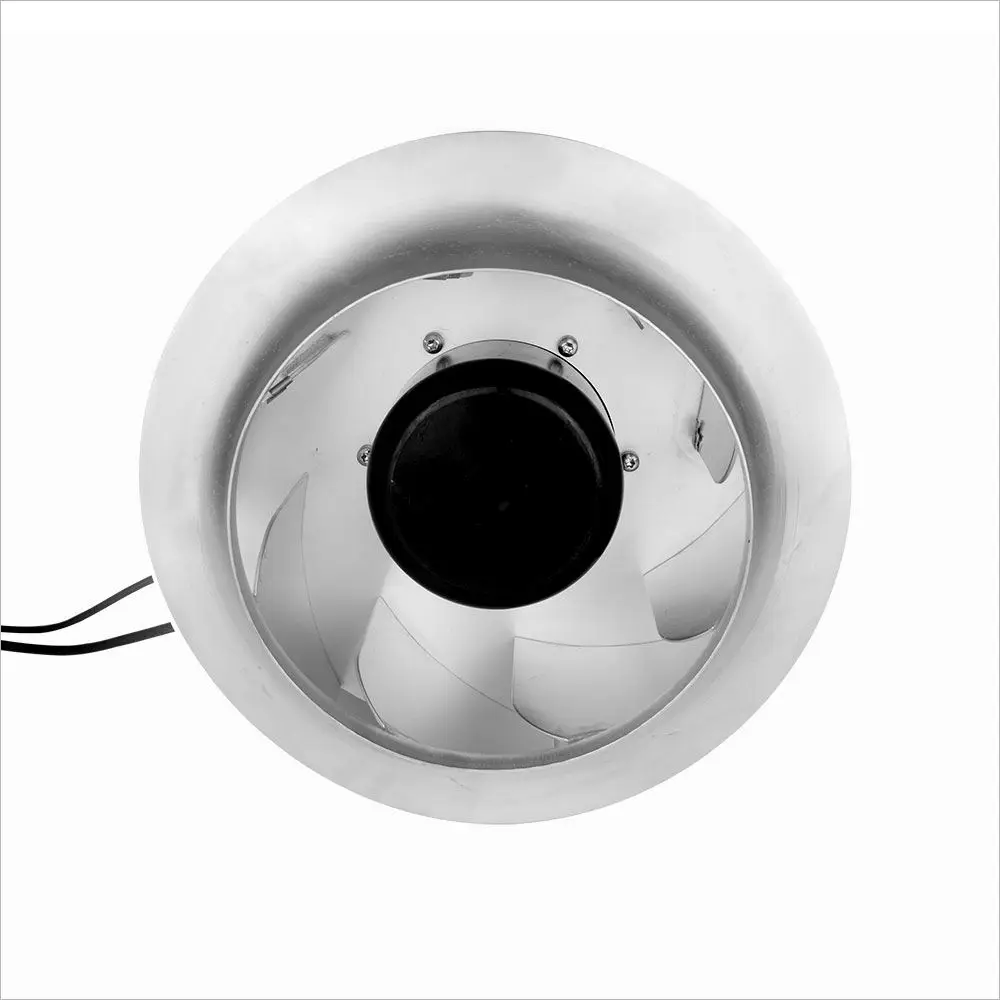

LONGWELL 355mm EC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V PWM Control, Stainless Steel, PWM Control, for AHU, Cold Storage, Air Purifiers

Voltage 230V 400V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 90

Category: Tags: , ,
CategoryIndustrial Exhaust Fans
TagsCentrifugal FanEC MotorIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Industrial Exhaust Fans range. The Fan Selector lists every LONGWELL exhaust fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search exhaust fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description


COUPON
View all the coupons

Recommended by seller

Types :

355mm EC high quality PWM speed control ECM motor 3000cfm continuously Speed exhaust fan 3 phase centrifugal fan
Voltage Ranges :

230V,400V;
Frequency :

50/60 Hz
Diamter :

355mm ( impeller diameters )

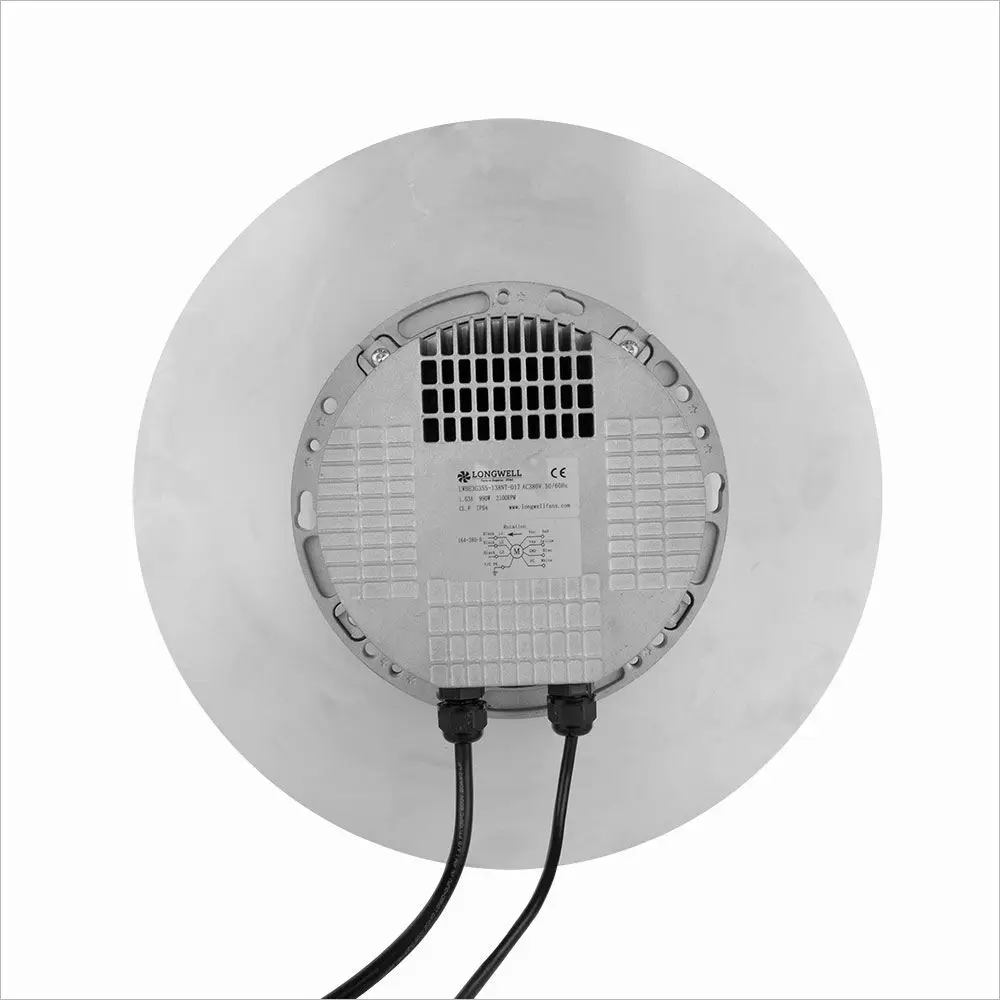

Motor Types :

BLEC External Rotor Motor ( EC )

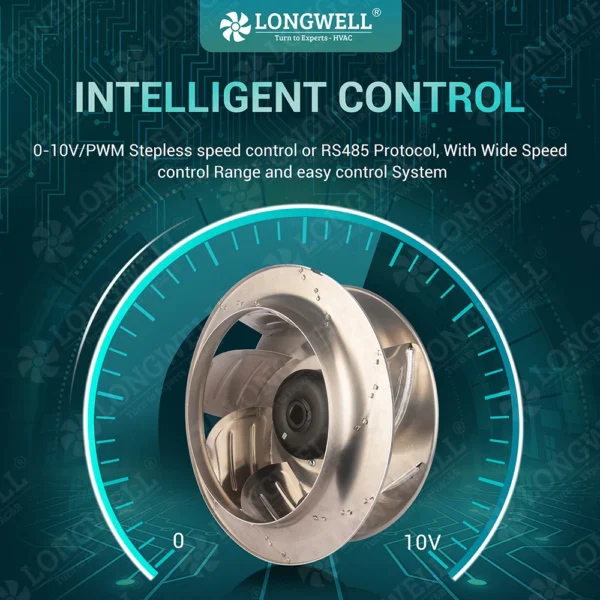

Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /

Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Type

Forward Curved Blade Radial Fan, Backward Curved Blade Radial Fan, Radial Blade Radial Fan, Multi-Vane Radial Fan, High-Pressure Radial Fan
Voltage

230V 400V
speed

2800 RPM, 2600RPM, 2450RPM, 3000 RPM
Blade Material

Stainless Steel
mounting

Free Standing
warranty

1 Year
