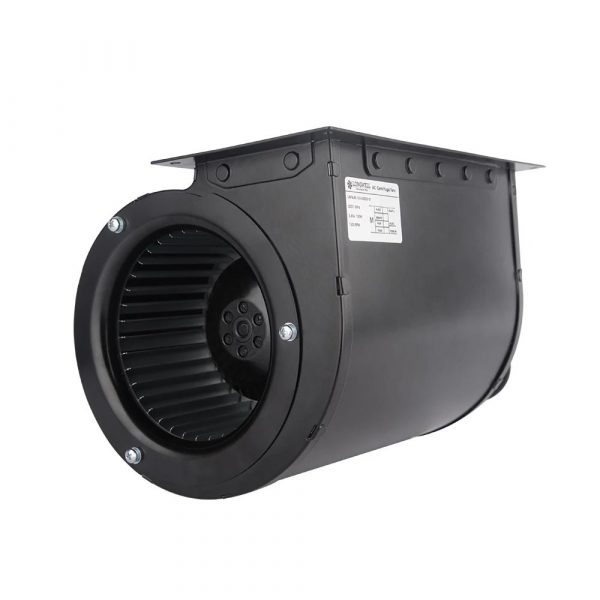

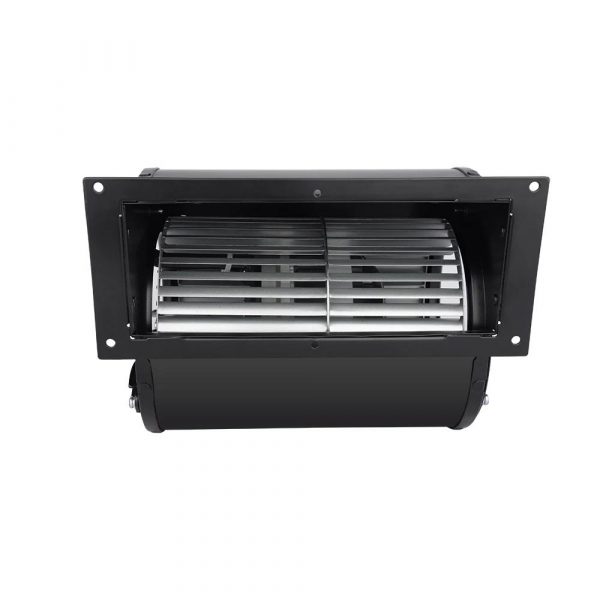

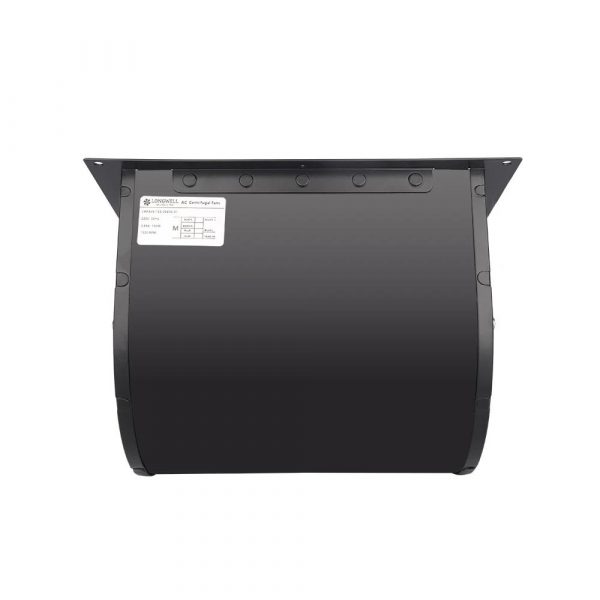

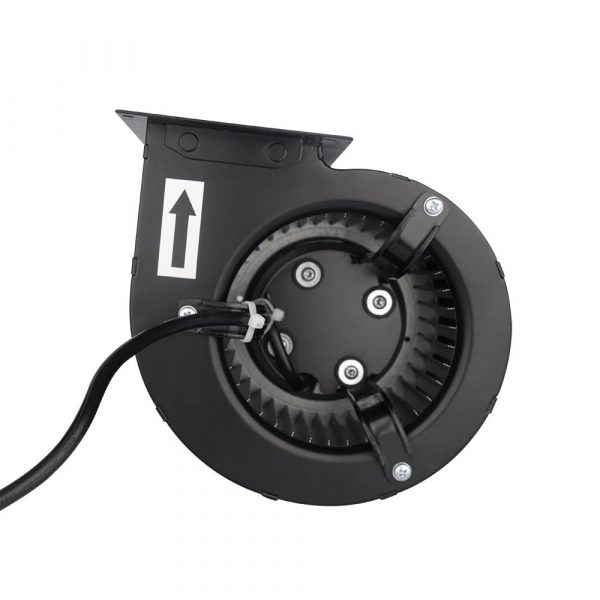

LONGWELL 133mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 220V, for AHU, Air Purifiers, HVAC Systems – LWFA-133-092DS-03

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 40

Specifications
Motor
AC Capacitor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Galvanized Metal Sheet
Category: Tags: , ,
CategoryAC Forward Fans
TagsAC FanAir Handling UnitsCentrifugal Blower Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Forward Fans range. The Fan Selector lists every LONGWELL AC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

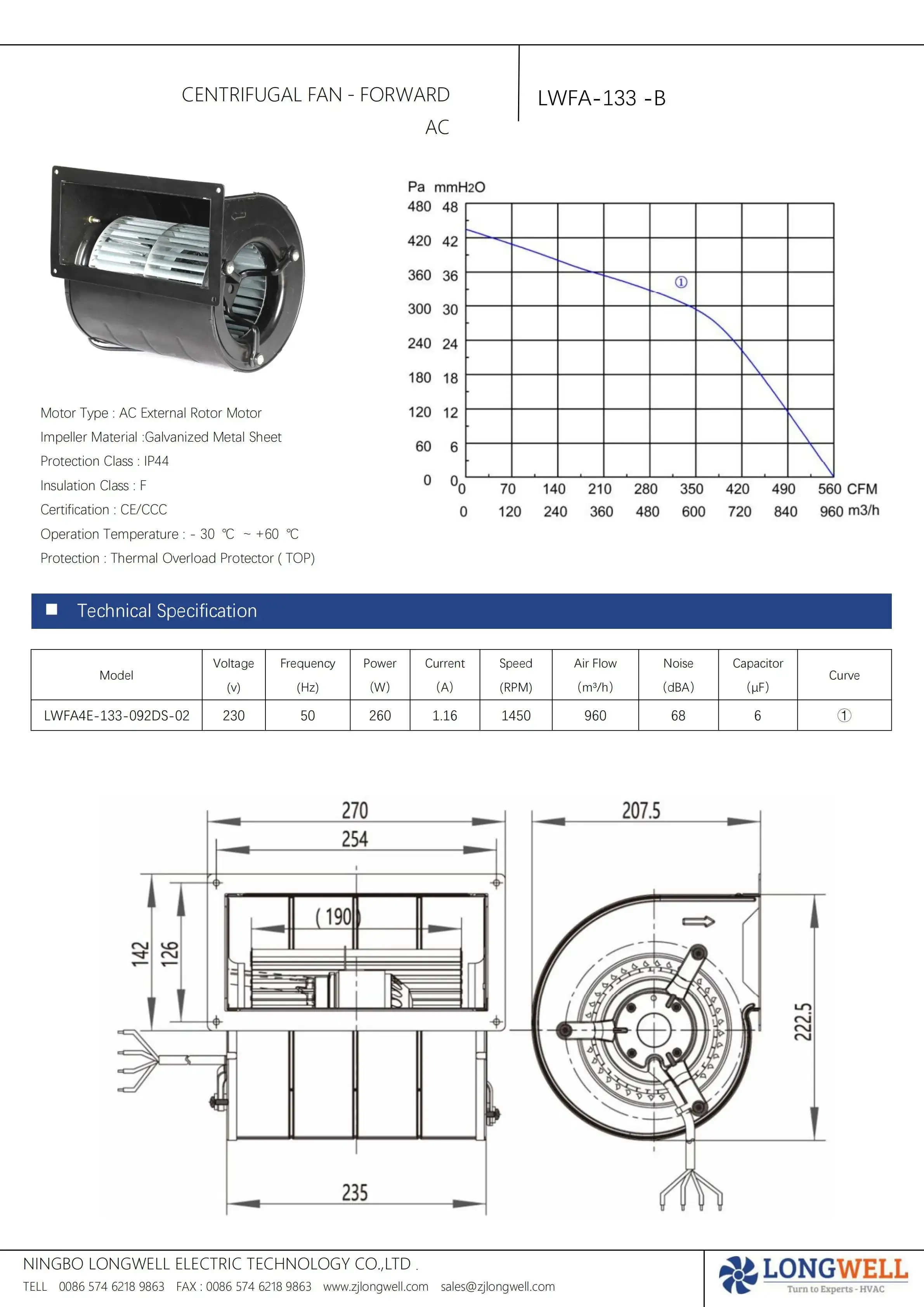

LONGWELL 133mm high pressure forward centrifugal blower fan impeller for AHU ,Air handling units

Norminal Sizes Ranges :
LWFA4E-133-092DS-01 Forward centrifugal blower
Norminal Voltage :

AC Motor – AC Input: 115v,220v,230v,380v,400v
BLDC Motor – DC Input: 12v,24v,48v,310v
ECM Motor – AC Input: 210v,220v,230v,380V
Power Input Ranges:
260W / 70w ( 3 SPEEDS)
Air Flow Ranges :
960 m³/h  / 320 m³/h
Speed Ranges
1450 RPM  / 950-1250-1450
Protection Class :
IP44
Insulation Class :
B
Min. amb. temperature :
-25℃
Max. amb. temperature :
+60 ℃
Speed control options
1 speed , 2 speeds ,or 1-3 speeds adjustable

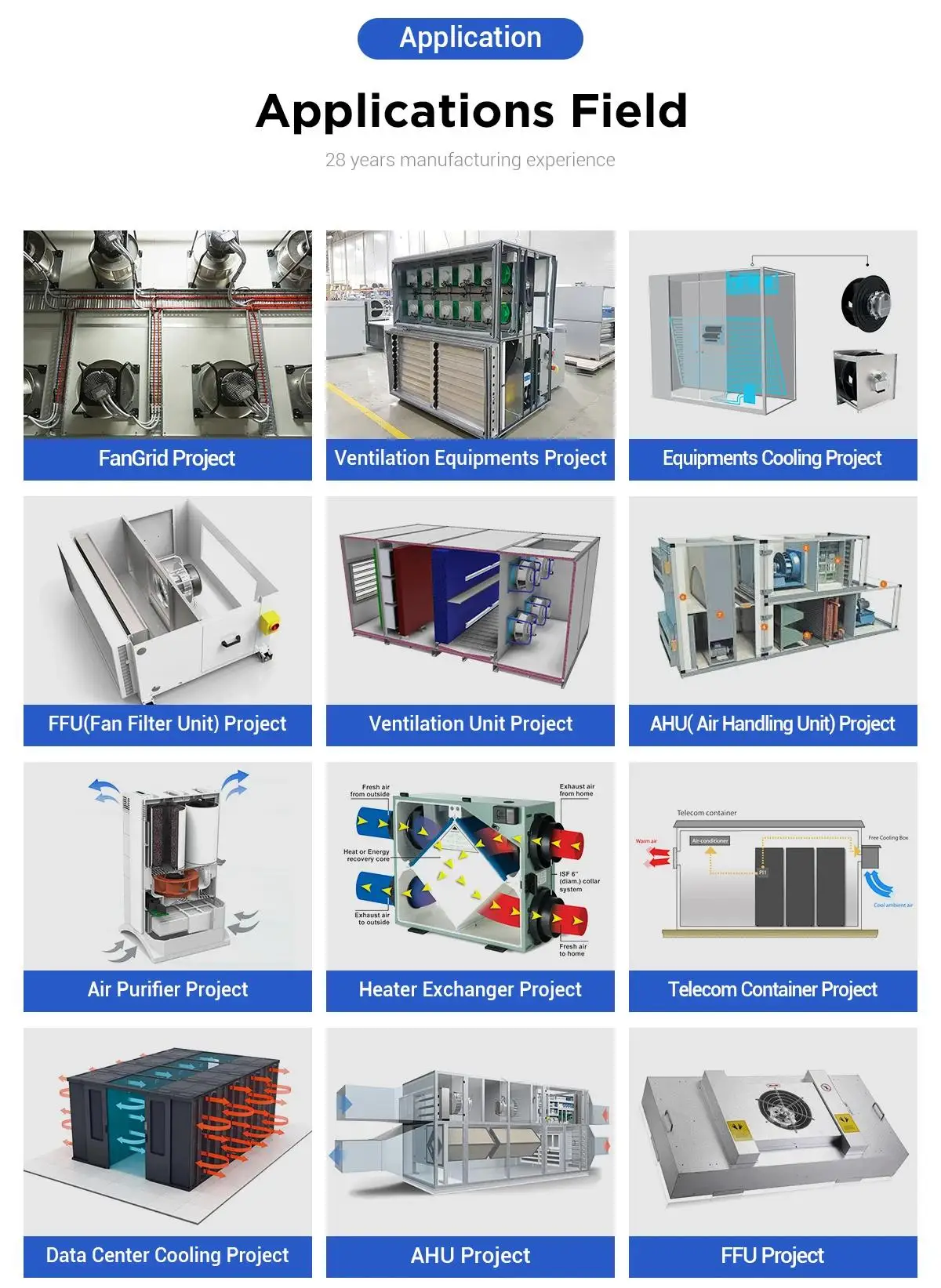

Mainly Applications ：

· Electronic cabinet cooling

· Clean room modules

· Heat exchangers

· Air filtration systems

· Military HRAC

· Pharmaceutical/biological control systems

· Computer room air conditioning (CRAC) systems

· Air-handling units

Additional information

Voltage

220V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized Metal
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWFA-133-092DS-03
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Motor Type

AC Capacitor motor
Power input

AC 110/230V
Impeller material

Galvanized Metal Sheet
Bearing

Ball Bearing
Amb,Temp

-25 to +60℃
Insulation

F
Protection Classs

IP 44
Speed control

1-2-3 Speeds available
Protection

Thermal Overload Protector ( TOP)
Application

Air Purifier / HVAC
Selling units

Single item
Single package size

40X40X40 cm
Single gross weight

5.000 kg
