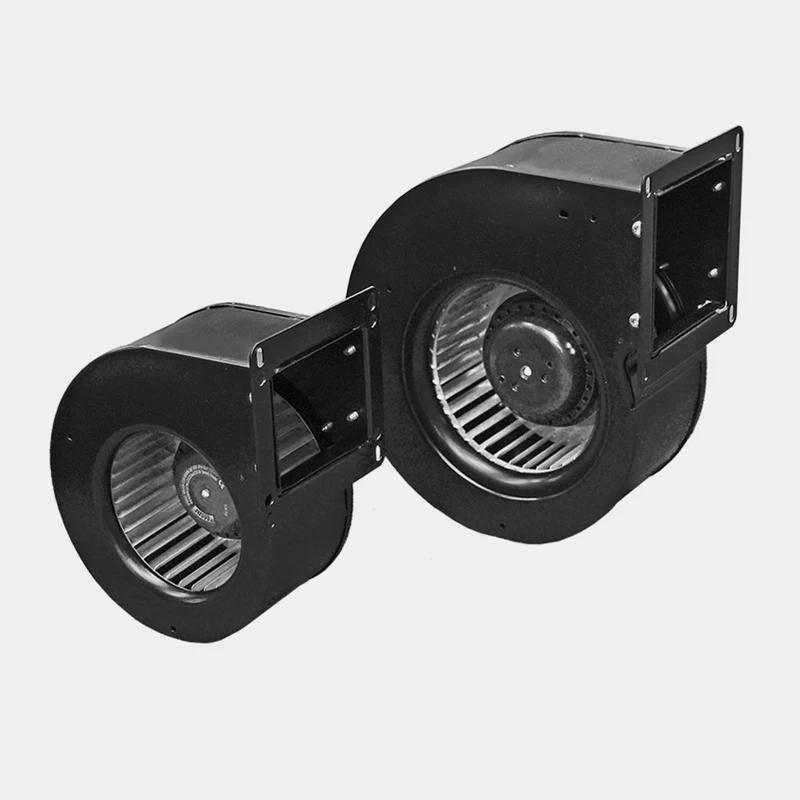

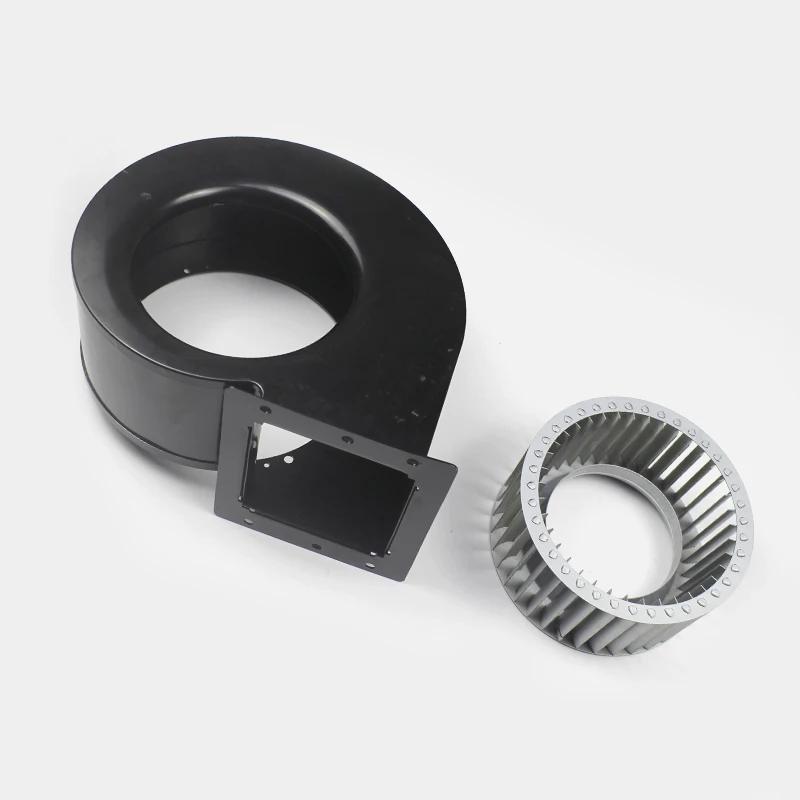

LONGWELL 120mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 110V, Galvanized Steel, for HVAC Systems

Voltage 110v /220v 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 30

Specifications
Motor
AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Galvanized
Category: Tags: , ,
CategoryAC Forward Fans
TagsCentrifugal Blower FanExternal Rotor MotorHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Forward Fans range. The Fan Selector lists every LONGWELL AC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

Warning/Disclaimer

This product has acquired the relevant product qualification(s)/license(s) of certain applicable country/countries.

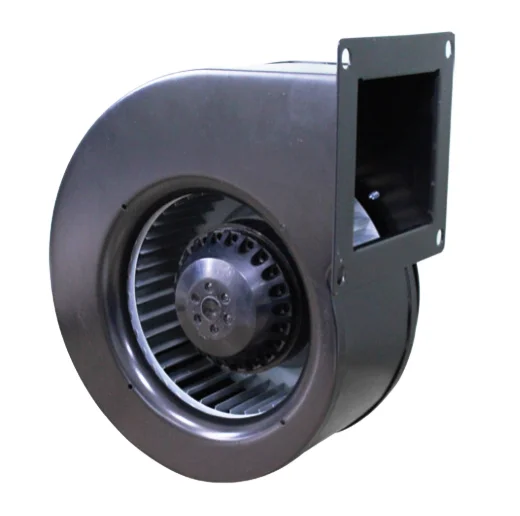

120 mm Single inlet AC Forward air cooling fan centrifugal blower fan

Product Overview

 Single inlet AC Forward air cooling fan centrifugal blower fan

Product Description

AC Φ120 Forward Curved Centrifugal Fan

Single inlet AC Forward air cooling fan centrifugal blower fan

Single inlet AC Forward air cooling fan centrifugal blower fan

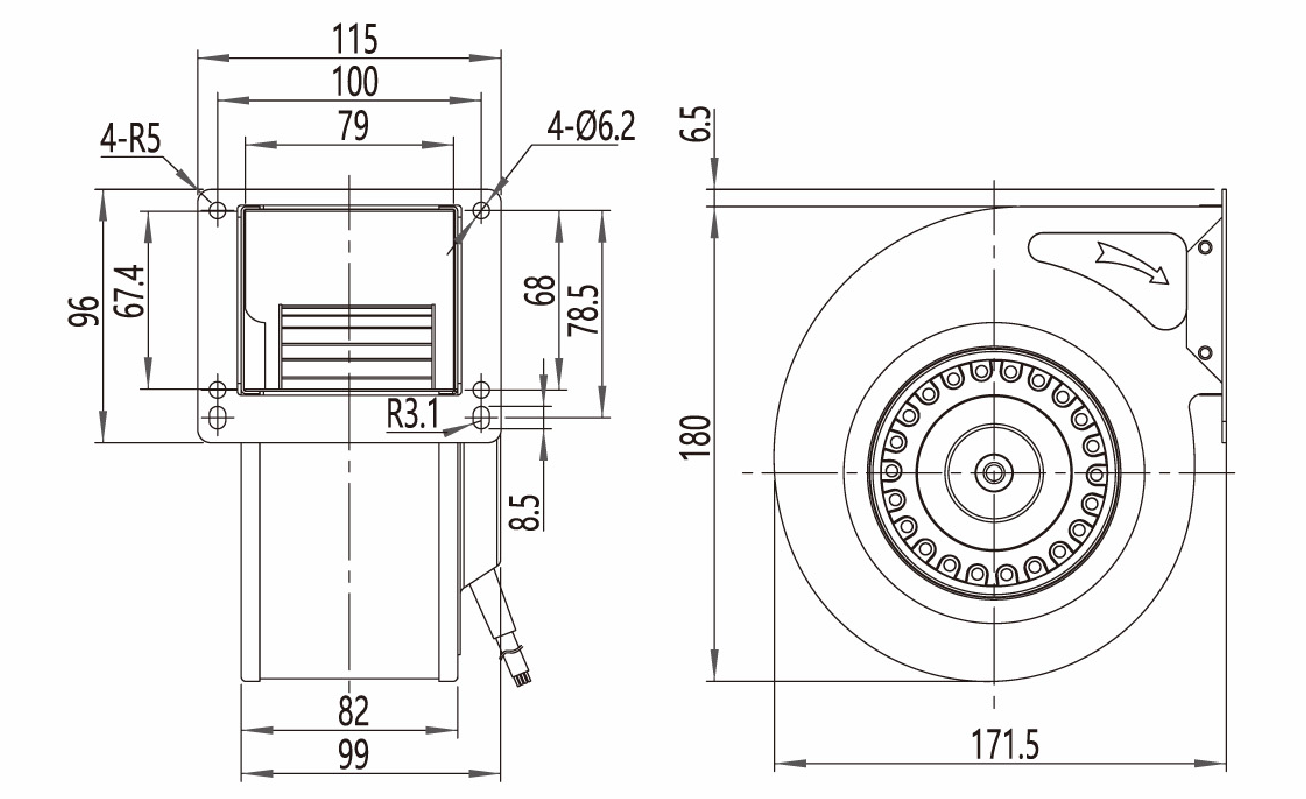

Drawing :

Single inlet AC Forward air cooling fan centrifugal blower fan

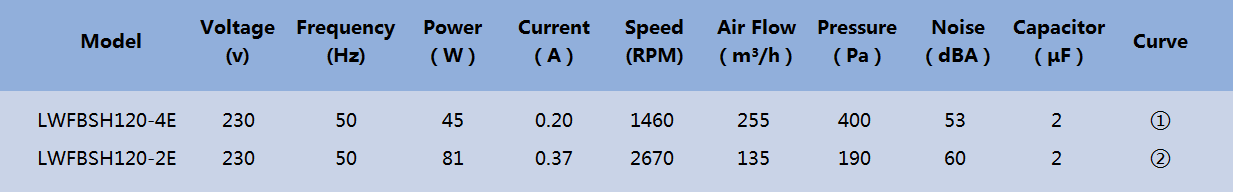

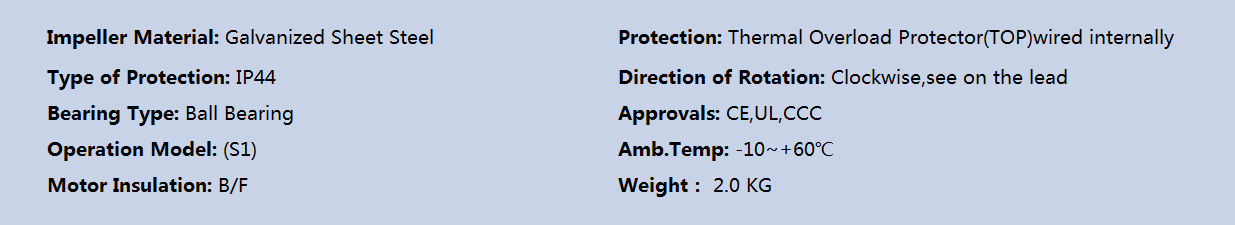

Data Sheet

 Single inlet AC Forward air cooling fan centrifugal blower fan

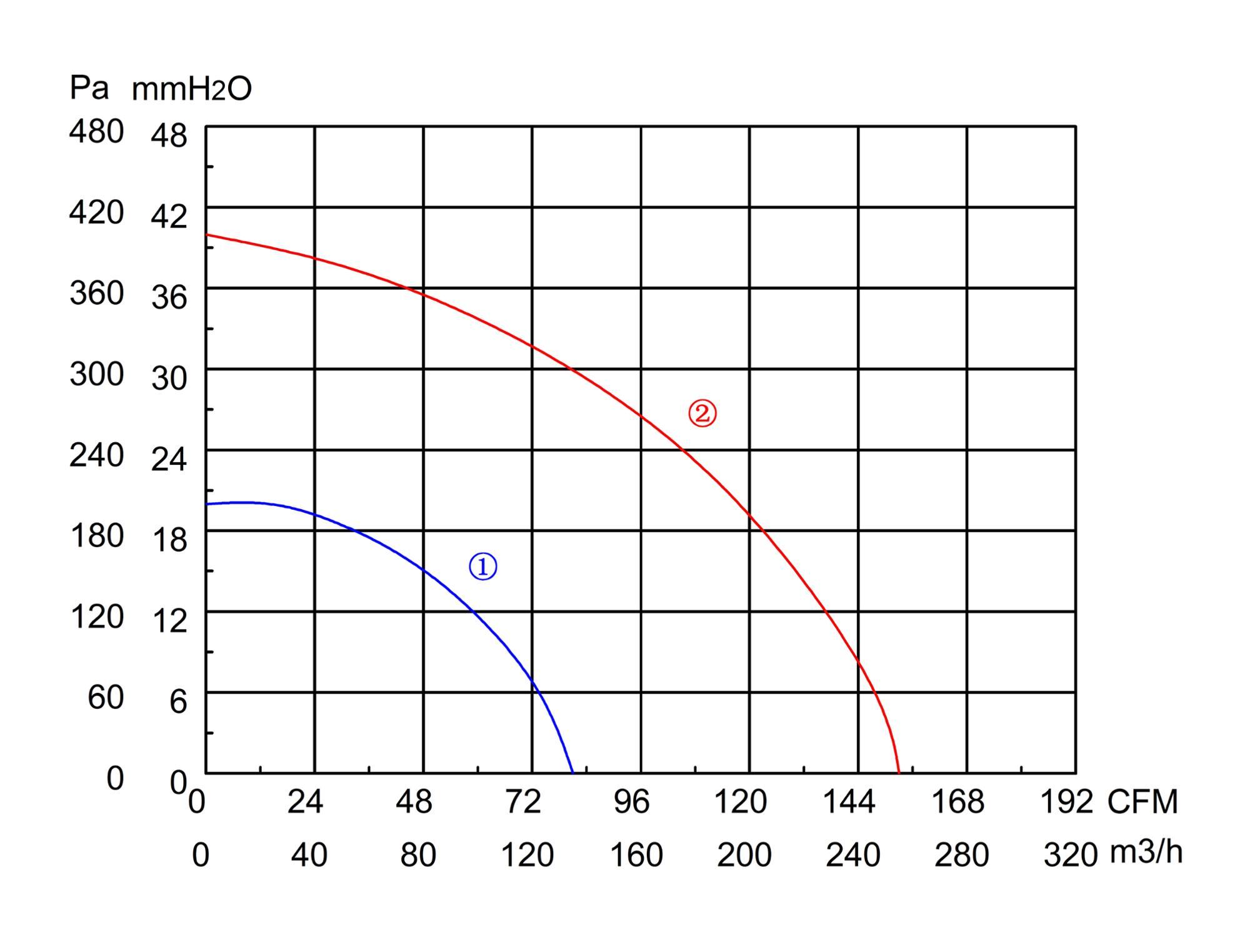

Performance Curves


Application

Single inlet AC Forward air cooling fan centrifugal blower fan

Customizable

Single inlet AC Forward air cooling fan centrifugal blower fan

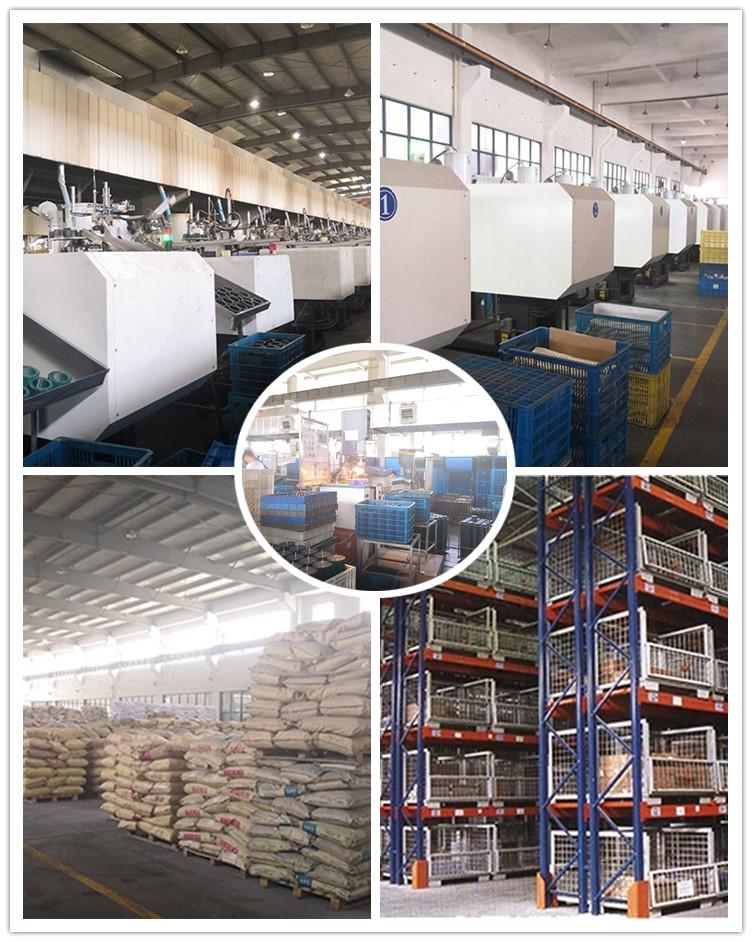

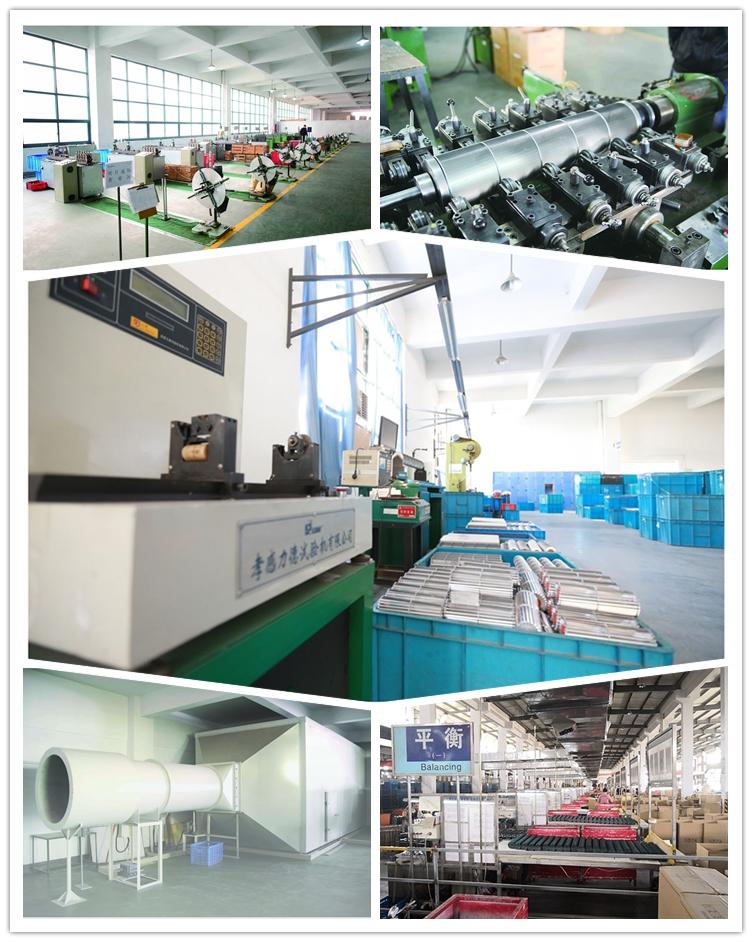

Company Information

Single inlet AC Forward air cooling fan centrifugal blower fan

Single inlet AC Forward air cooling fan centrifugal blower fan

Single inlet AC Forward air cooling fan centrifugal blower fan

FAQ

1.Are you a manufacturer  ?

 Yes, we are .  we own over 10 production lines for different products .

2.How is your quality  ?

Aboove average  and top class quality are your options in our range , The quality is pretty good,and trusted by many customers in overseas .

our quality is abov the average according customer same budget , customer have 1 year warranty , and free after sales technical support in product designed life span .

3. How is your price ?

Our price is very competitive by large scale production contribution .

4.What’s your lead time ?

7days -25days , depengs on volume and different items .

5.How is your responding time ?

You will get reply within 2hours online by Wechat ,Whatsapp , Skype , trade manager .

You will get respond within 8hours offline by email  .

Mobile is always availble for picking up your calls .

Contact Details :

Single inlet AC Forward air cooling fan centrifugal blower fan

Single inlet AC Forward air cooling fan centrifugal blower fan

Additional information

Voltage

110v /220v 24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized metal
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

2 years
After-sales Service Provided

Online support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

centrifugal fan
power input

AC 110/230
Impeller material

Galvanized
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

AC external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Application

HVAC
Selling units

Single item
Single package size

50X50X60 cm
Single gross weight

20.000 kg
