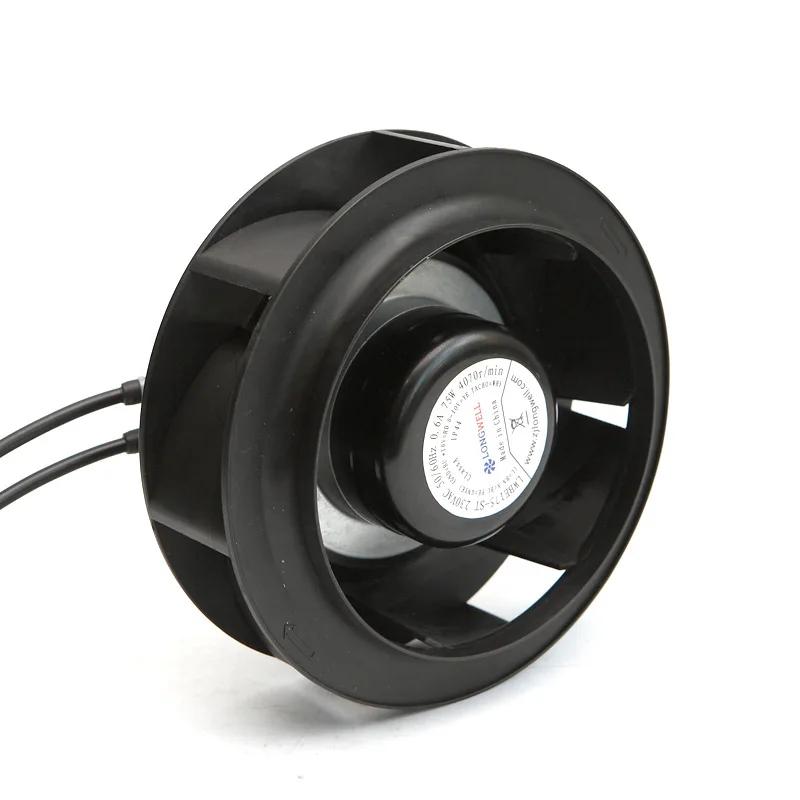

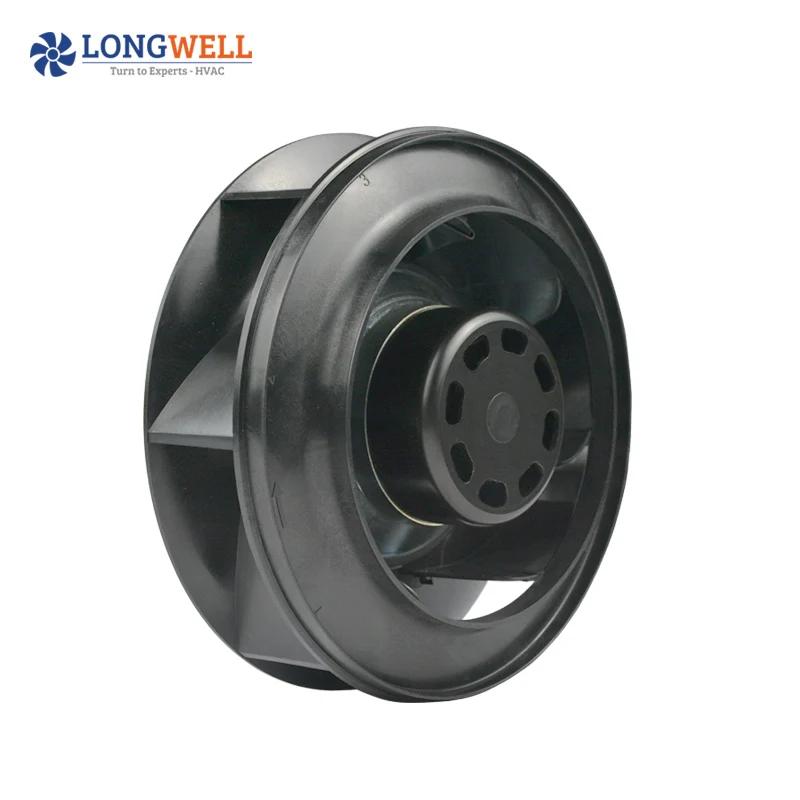

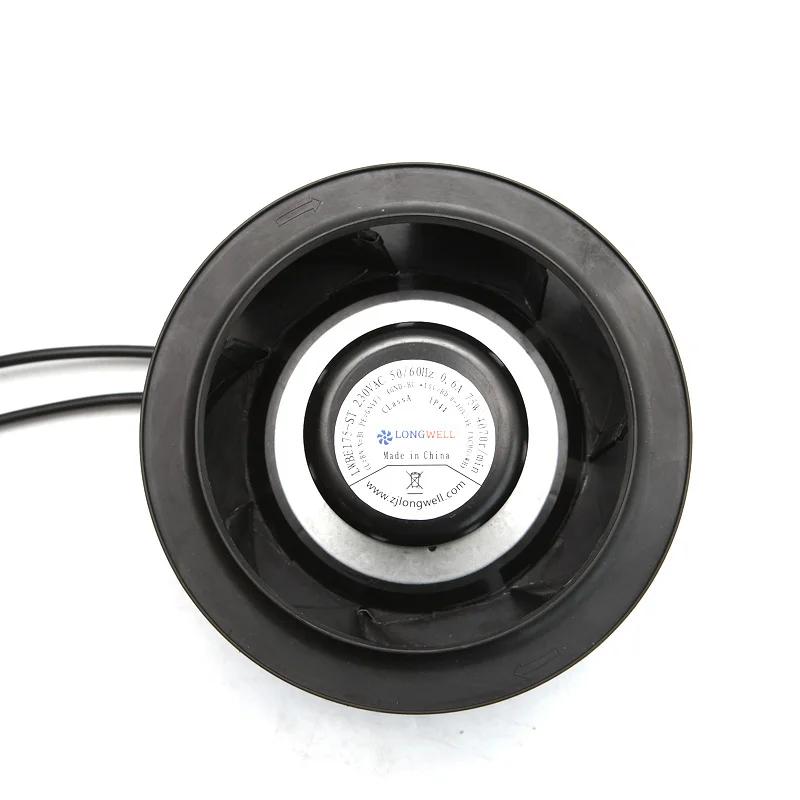

LONGWELL EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 115V, for Cold Storage, HVAC Systems – LW-175MM

Voltage 115v /220v/24V/48V

$ 20

Specifications
Motor
external rotor motor
Impeller
Propylene with glass fiber reinforced
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

AC / EC / DC backward curved centrifugal fan

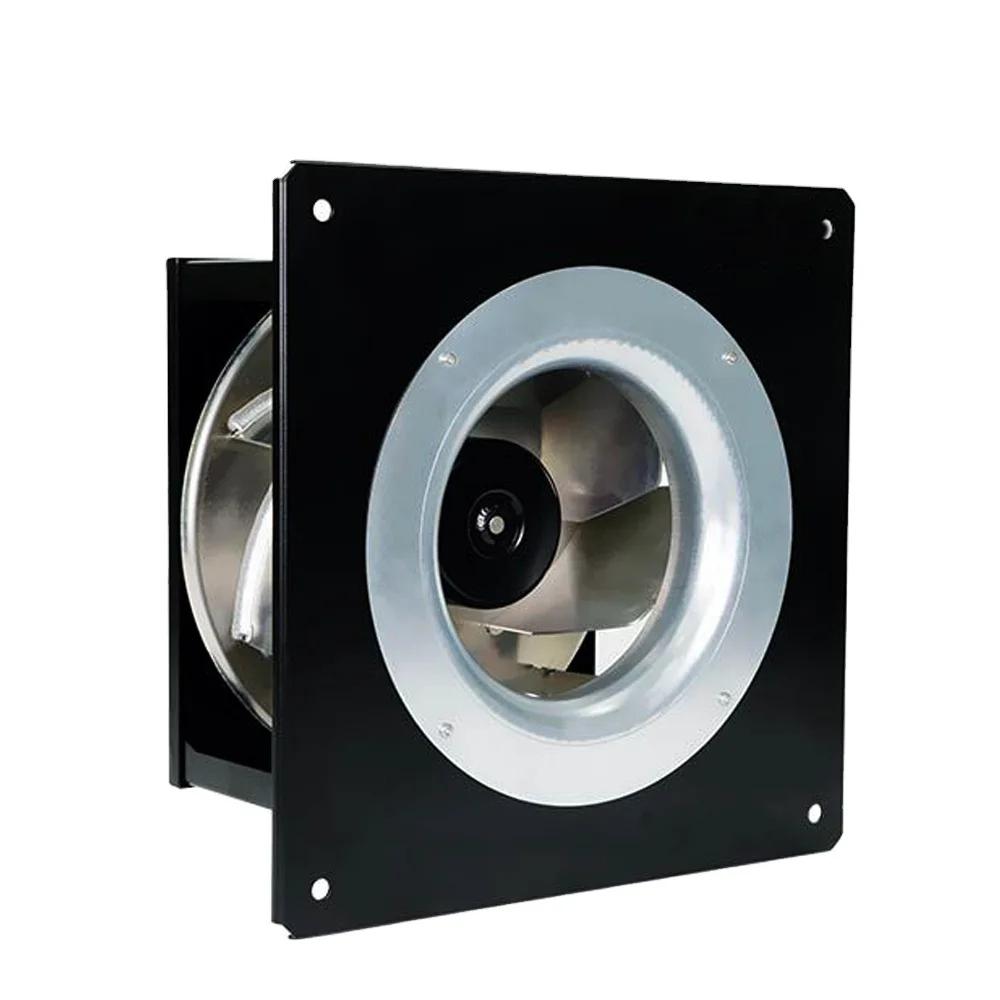

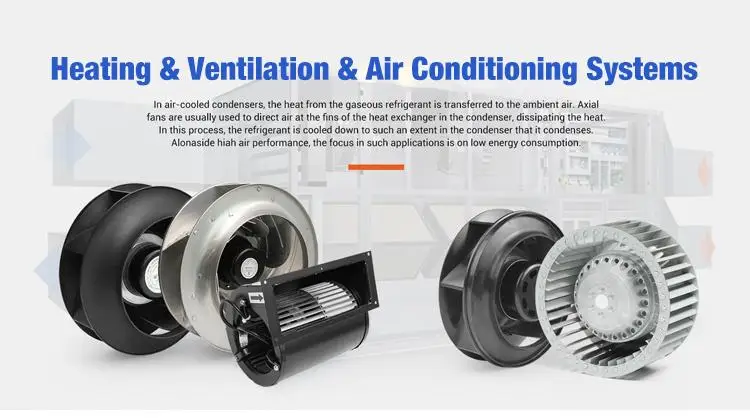

backward curved centrifugal fan

AC backward curved centrifugal fan

EC backward curved centrifugal fan

ECM backward curved centrifugal fan

EC forward curved centrifugal fan

Telecommunication centrifugal fan

cabinet centrifugal fan

ec centrifugal fan

industrial blower fan

backward curved centrifugal fan impeller

centrifugal exhaust fan

centrifugal fan impeller

ac centrifugal fan

LONGWELL is a professional manufacturer of AC DC EC Backward centrifugal fans, blowers , motors and components for heating ,venlation air conditioner and refrigeration applications ,specialist in EC centrifugal fans,Blower fans, centrifugal blowers,AC /BLDC cross flow fans, single double forward curved Blower fans ,AC/BLDC/ECM motors as well as industrial fan blowers .

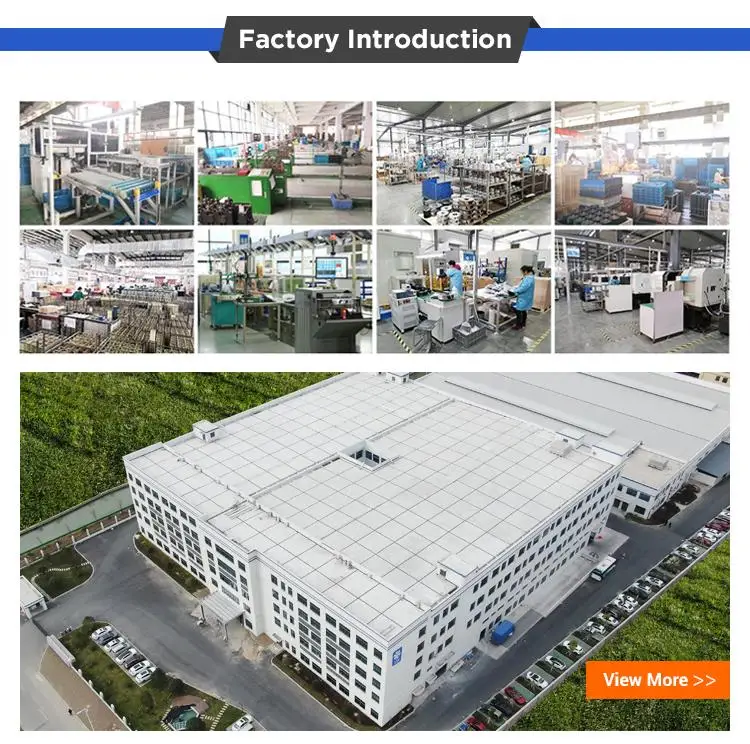

Established :1990 . Mfg experiences : over 20 years +

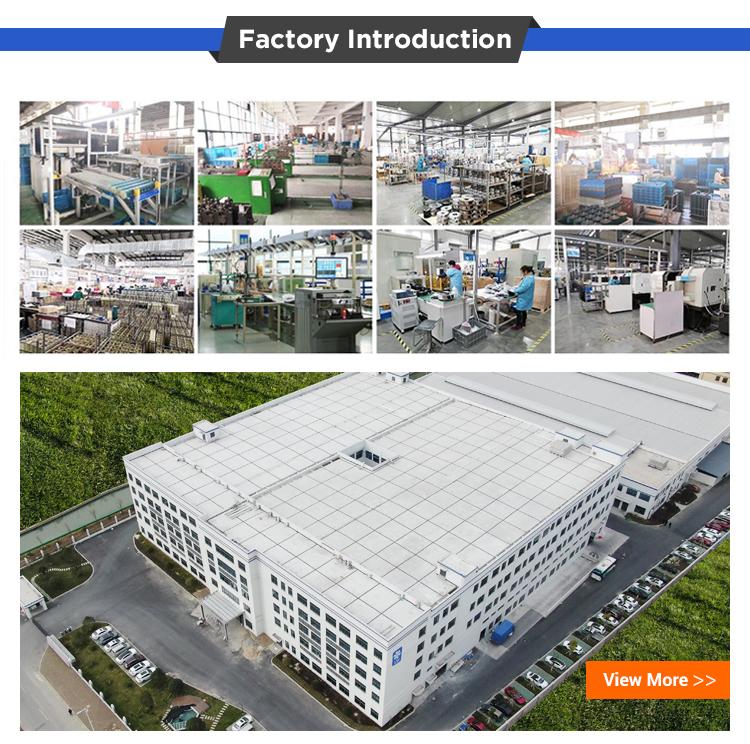

Labs : B&K noise lab,  CFD simulation lab,air dynamics test chamber,automatic welding machines , CNC machining centers ,auto robot injection machines

Production capacity : over millions pcs .

Exporting countries : 30+

Customers : Top10 in HVACr



LONGWELL ECM fan Advantages :

centrifugal fans blower

LONGWELL will make the perfectly motor and fans matching ,and offering good quality and very competitive prices by large scale productions .

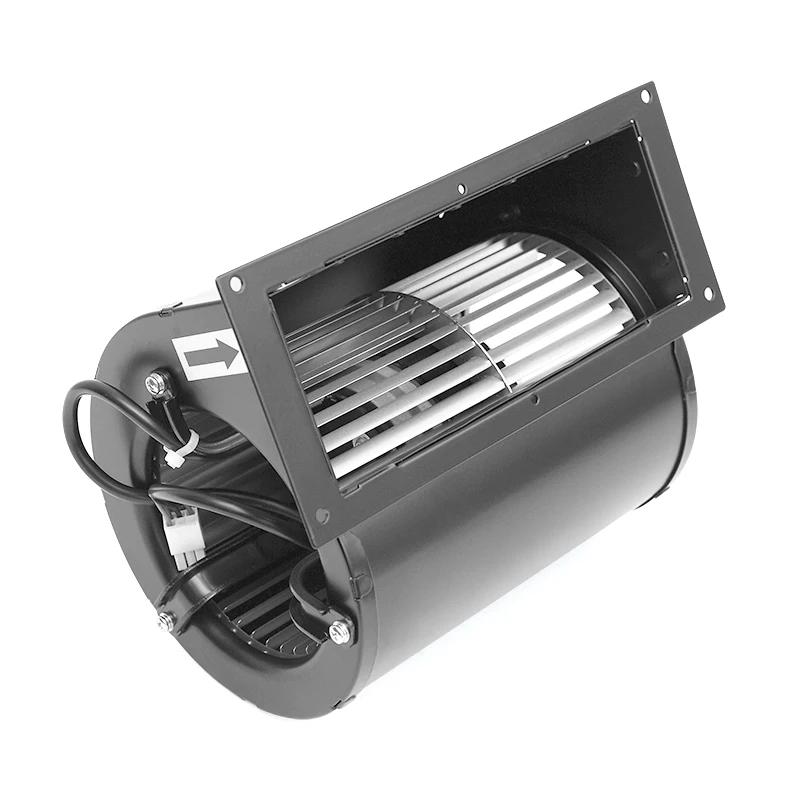

Blower fan

dc centrifugal fan

Q1. Delivery time Q2 . Payment Terms Q3 .Payment Way
7~10 days for sample ;

23~25 days for bulk orders .

1.Sample Order : 100 % paid in advance for sample order ( refund in bulk orders ) ;

2. Bulk Order : 30 % paid in advance , 70 % paid against the copy of BL documents

T/T ,L/C, Paypal, West Union , Visa ,MasterCard,Alibaba Pay ,etc
Q4.Package Details  Q5. Stocks



100 % checking before delivery;

Standard exporting cartons packages with pallets

Please contact us for more details

air purifier centrifugal fan

high pressure blower fans

Additional information

Electric Current Type

AC

Voltage

115v /220v/24V/48V

Blade Material

Plastic

customized support

OEM, ODM, OBM

mounting

FREE STANDING

place of origin

Zhejiang, China

brand name

LONGWELL

model number

LW-175mm

warranty

1 Year

After-sales Service Provided

Video technical support

Type

backward curved centrifugal fan

power input

24V/48V

Impeller material

Propylene with glass fiber reinforced

Direction

Clockwise

Bearing

Ball Bearing

Approvals

CE,CCC

Motor type

external rotor motor

Amb,Temp

-25 to +60℃

Insulation

B/F

Selling units

Single item

Single package size

35X35X20 cm

Single gross weight

5.000 kg
