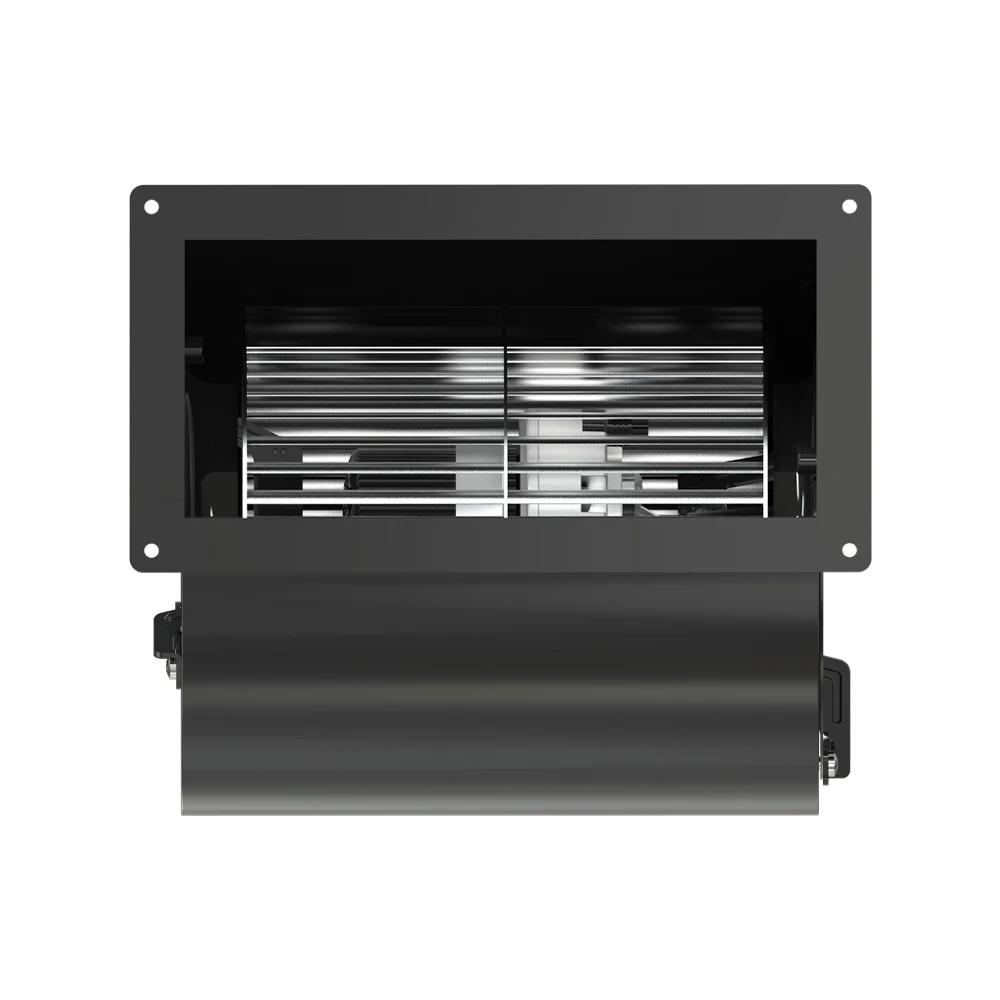

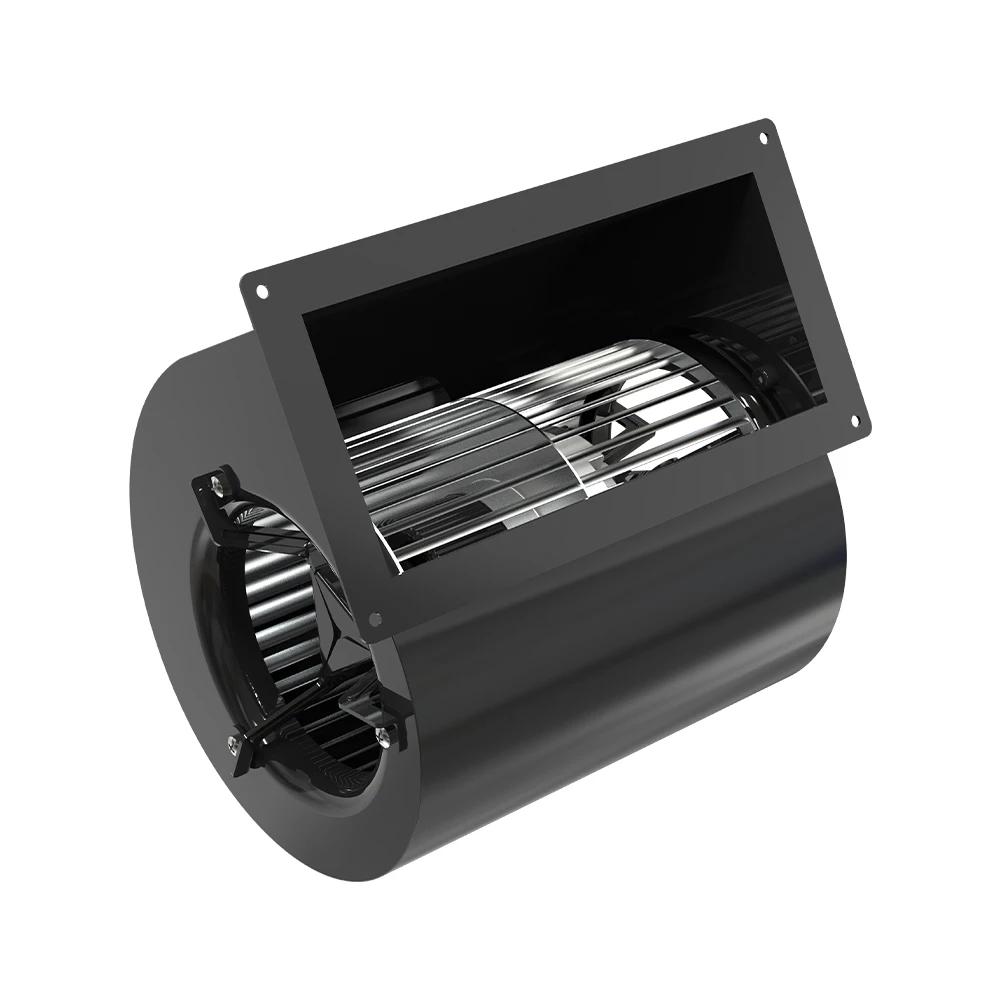

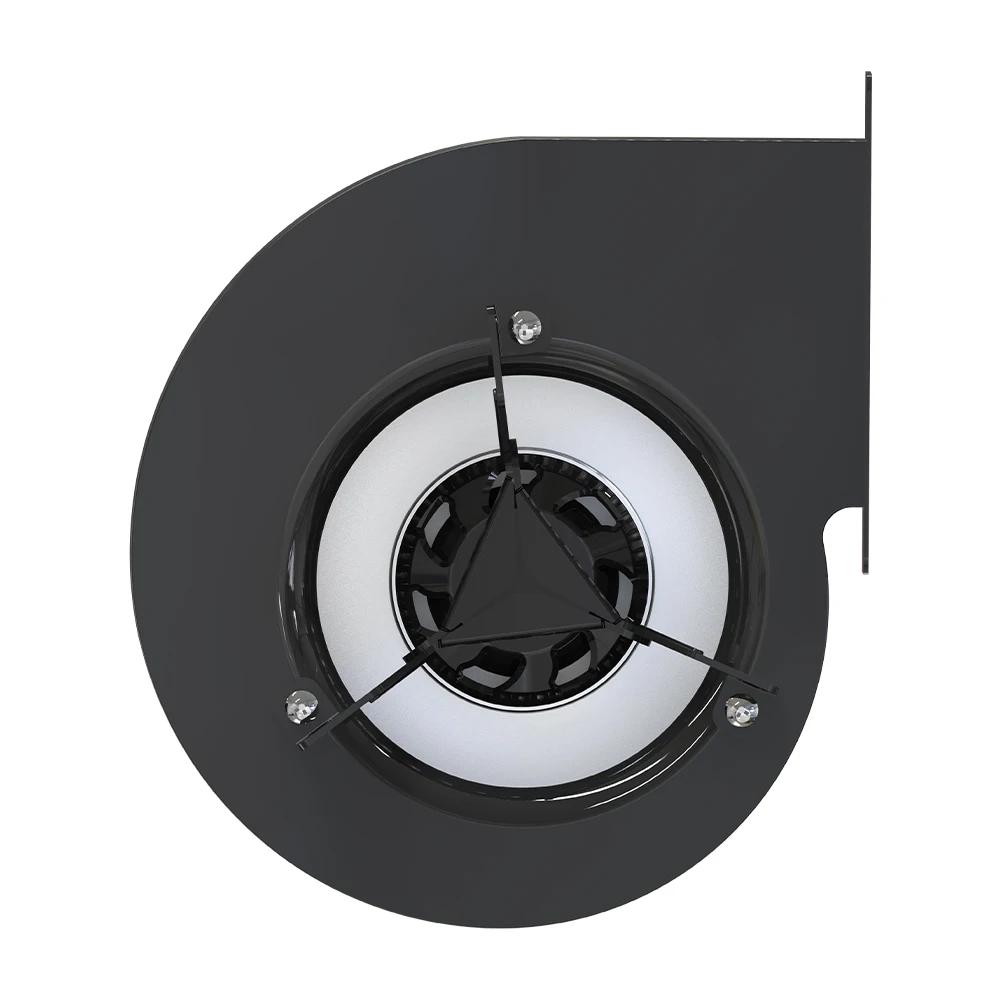

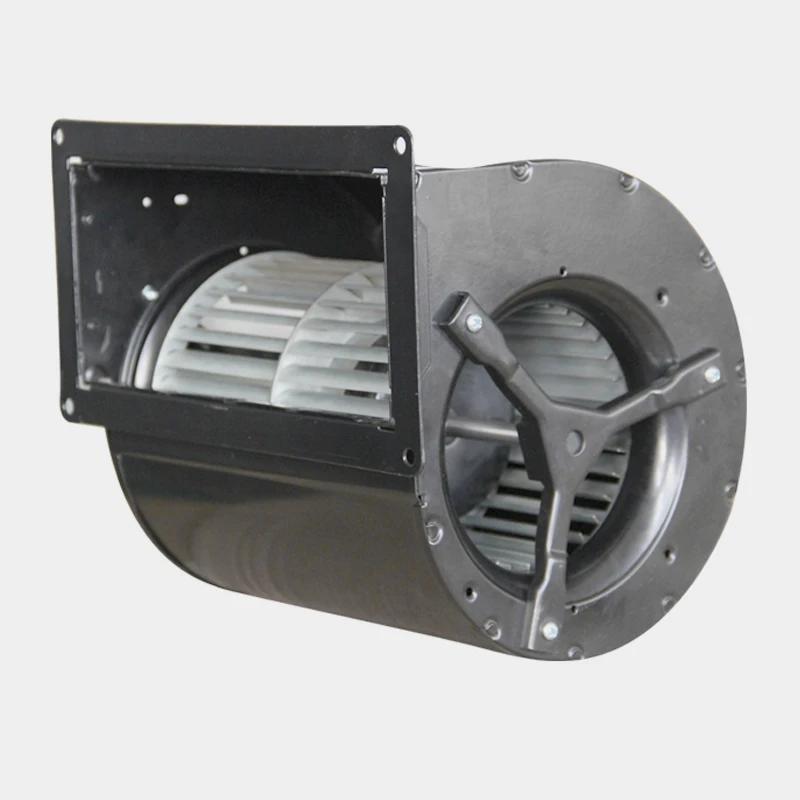

LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 40

Specifications
Motor
external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM

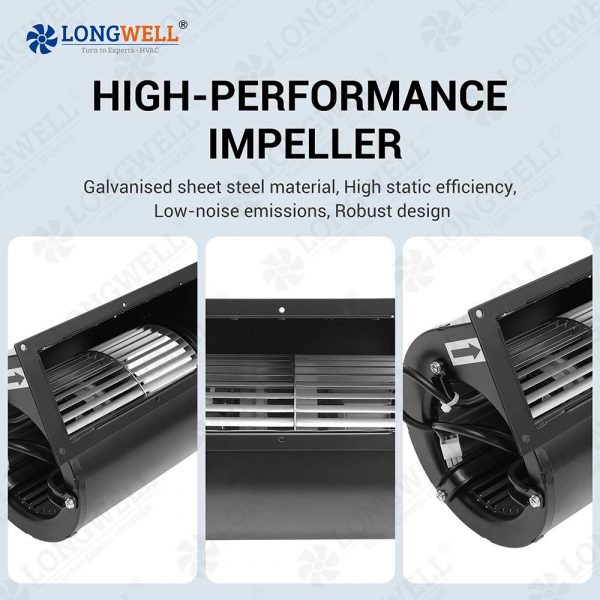

Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryCentrifugal Blower Fan
TagsCentrifugal Blower FanExhaust VentilationExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Centrifugal Blower Fan range. The Fan Selector lists every LONGWELL centrifugal blower model with airflow, static pressure, power, noise, drawing and datasheet.
Search centrifugal blower models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types:
centrifugal blower
Frequency:
50/60 Hz
Diamter:
146mm
Motor Types:
AC External Rotor Motor
Speed Control:
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating:
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start

Working & Storage:
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing:
According to JB/T 9101-1999 requirements G6.3
Product Standards:
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

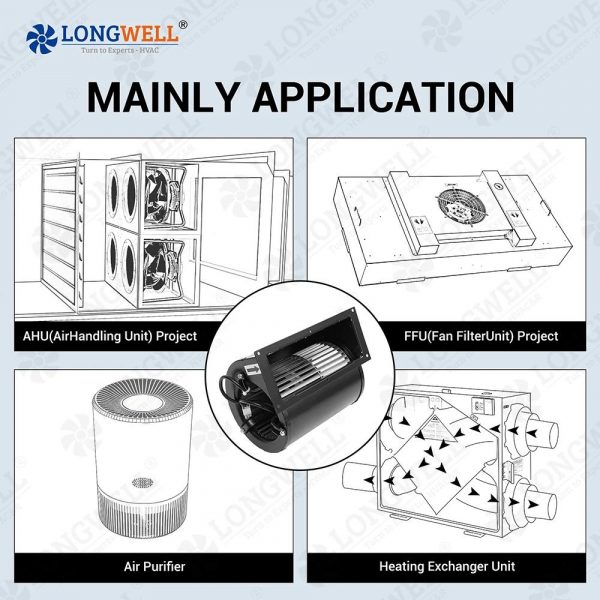

Mainly Applications:
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

STAINLESS STEEL
customized support

OEM, ODM, OBM
mounting

FREE STANDING
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Online support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
power input

230V
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

external rotor motor
Amb,Temp

-20 to +60℃
Type

Centrifugal Fan
Product name

Blower Fan
Application

Exhaust Ventilation
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

10.000 kg
