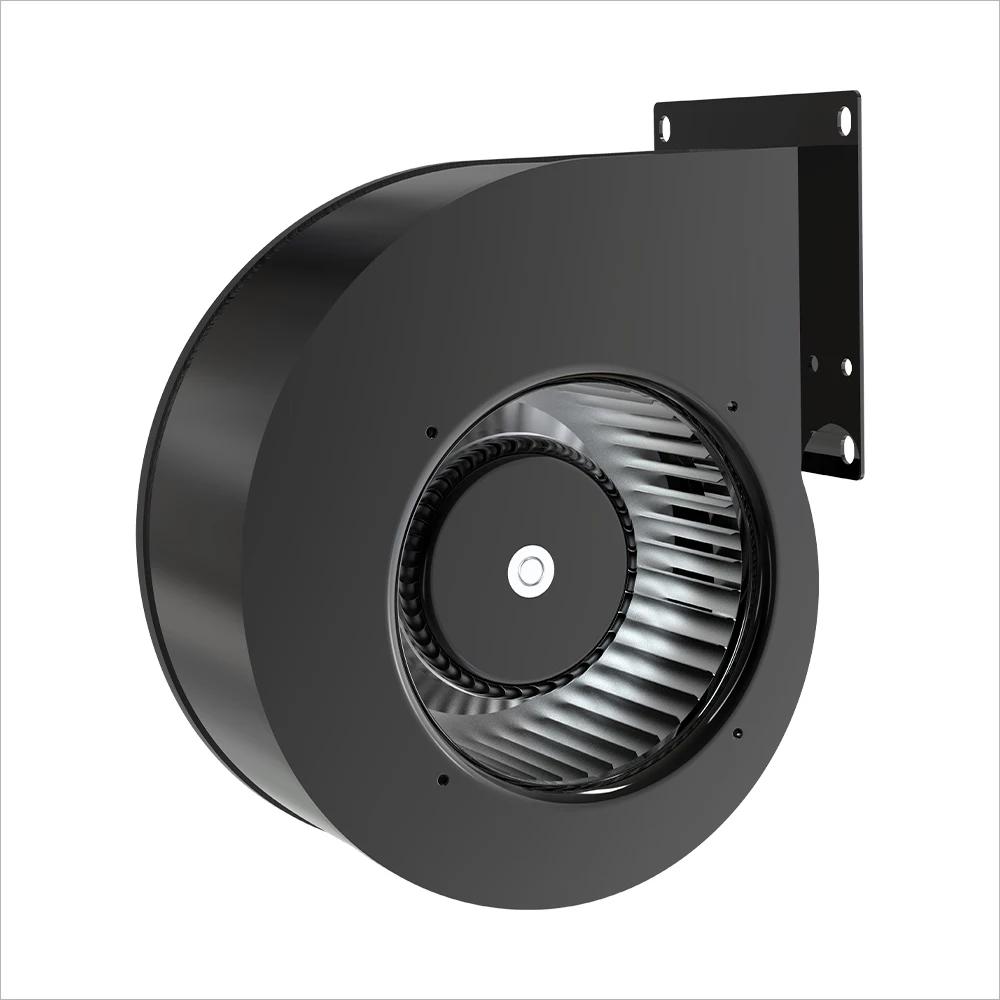

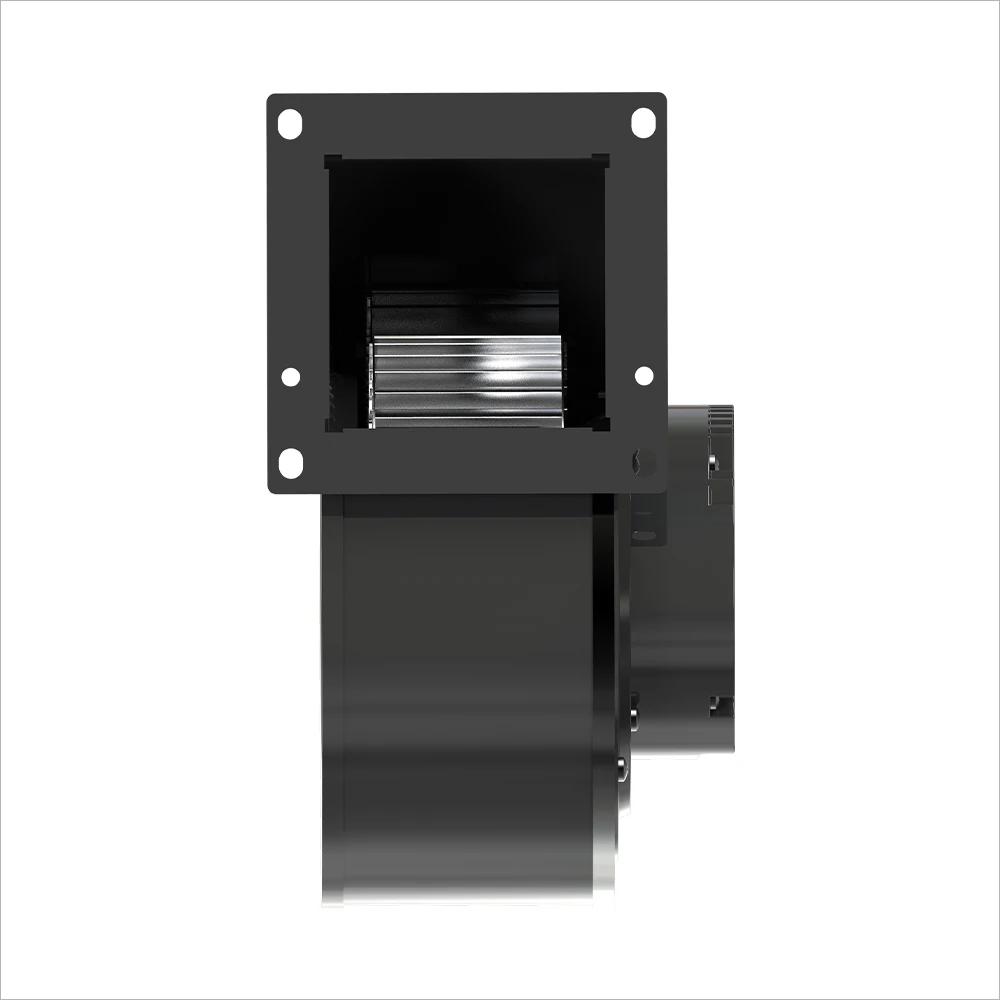

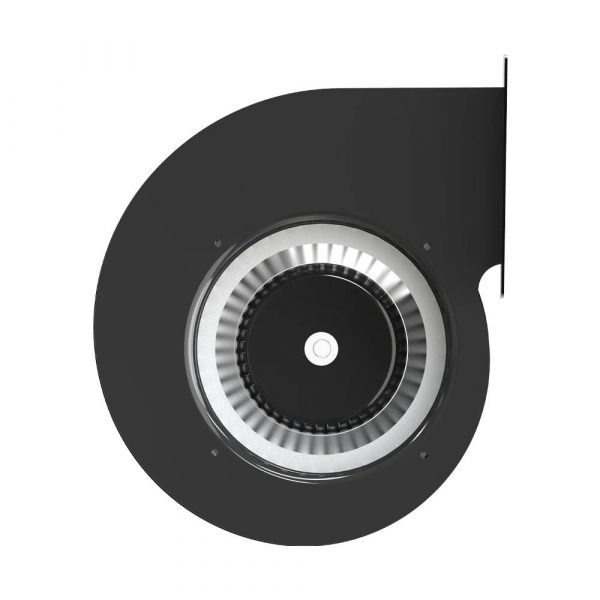

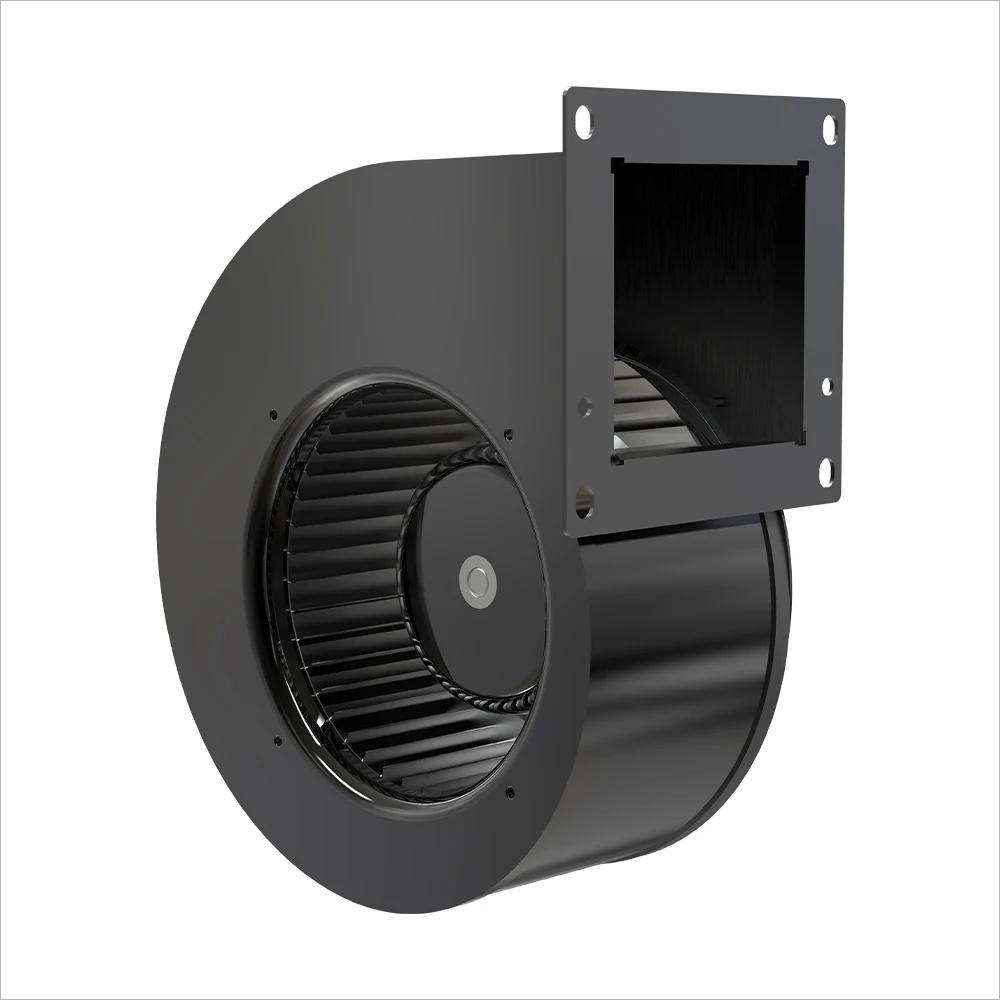

LONGWELL 160mm DC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, for Cold Storage, Air Purifiers, HVAC Systems – LWFD-160

Voltage 310V/24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 30

Specifications
Motor
DC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM, 700rpm, 1000RPM, 2500rpm, 3000RPM, 3500rpm, 5000RPM, 4500rpm
Category: Tags: , ,
CategoryForward Curved Centrifugal Fans
TagsCondenser CoolingExternal Rotor MotorForward Curved Centrifugal Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)

Description

Types :

160mm DC improve heat dissipation Forward Centrifugal fan High pressure improve for air conditioning condenser
Voltage Ranges :

24/48/310V;
Frequency :

50/60 Hz
Diamter :

160mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor
Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

310V/24VDC/ 48VDC
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM, 700rpm, 1000RPM, 2500rpm, 3000RPM, 3500rpm, 5000RPM, 4500rpm
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWFD-160
warranty

1 Year
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
After-sales Service Provided

Overseas service center available
Type

fan blower
power input

24VDC/ 48VDC
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

DC external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

10.000 kg
