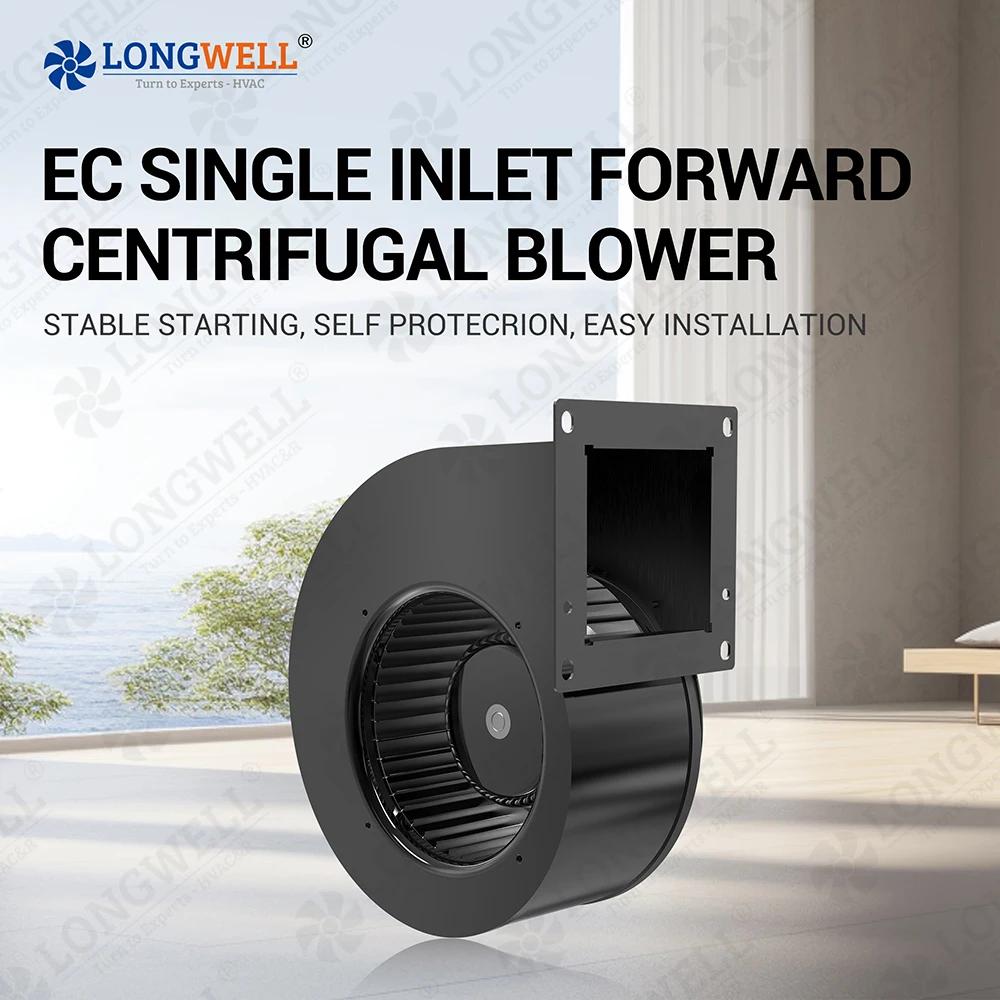

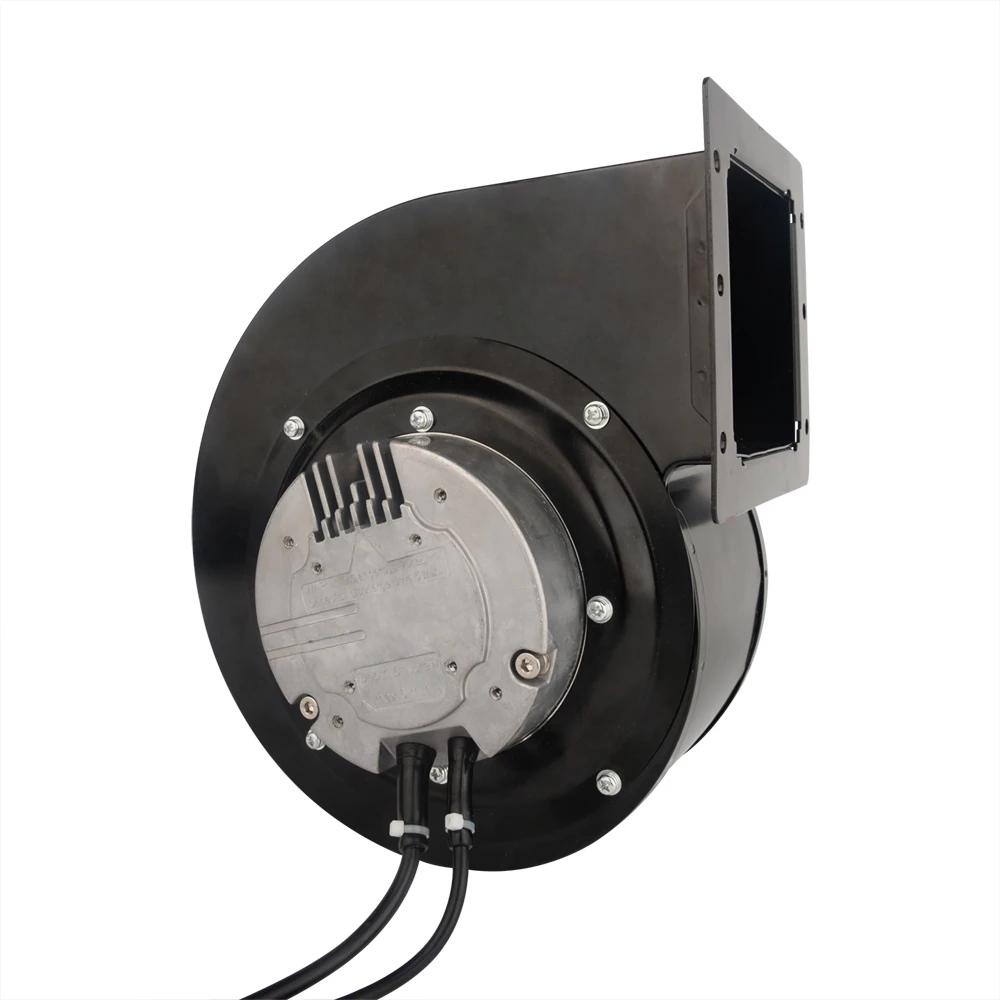

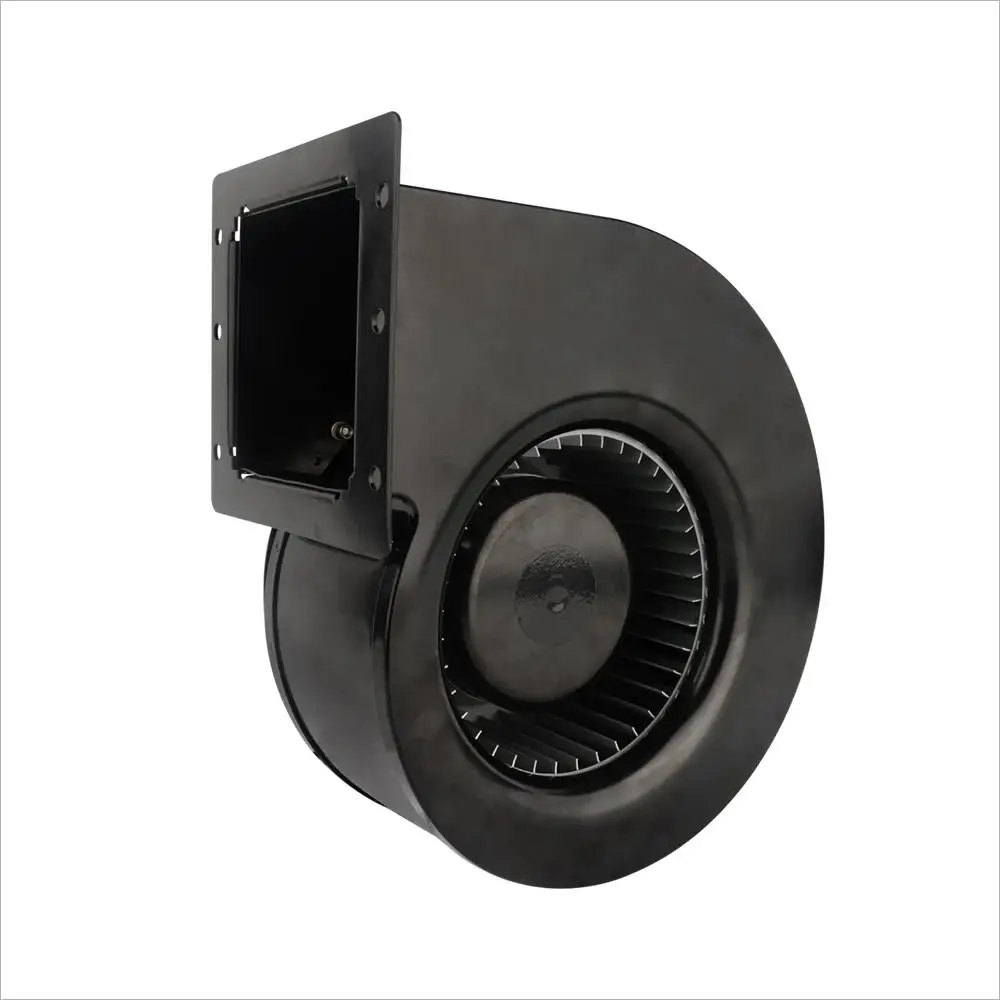

LONGWELL 150mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for HVAC Systems, Cold Storage, Air Purifiers

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 100

Specifications
Motor
AC external rotor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryEC Forward Fans
TagsCentrifugal FanCondenser CoolingEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Forward Fans range. The Fan Selector lists every LONGWELL EC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

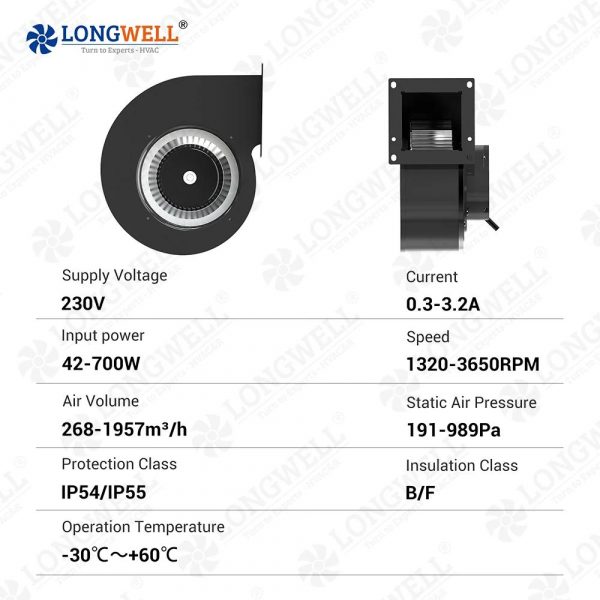

Description

Types :
150 mm EC Forward Centrifugal Exhaust fan Locked-Rotor protection for air conditioning condenser
Voltage Ranges :
230V
Frequency :
50/60 Hz
Diamter :
150mm ( impeller diameters )
Motor Types :
BLEC External Rotor Motor ( EC )
Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Free spare parts
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Type

centrifugal fan
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Motor type

AC external rotor motor
Amb,Temp

-25 to +60℃
Insulation

B/F
Product name

Blower Fan
Application

Exhaust Ventilation
Selling units

Single item
Single package size

50X50X20 cm
Single gross weight

6.000 kg

Reviews

There are no reviews yet.

Be the first to review “LONGWELL 150mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for HVAC Systems, Cold Storage, Air Purifiers”

Your email address will not be published. Required fields are marked *

More in this series

LONGWELL EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Industrial Ventilation, Cold Storage, Air PurifiersLONGWELL EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Industrial Ventilation, Cold Storage, Air Purifiers230 V1500 RPMECView & InquireLONGWELL EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 80 W, for Range Hoods, Cold Storage, Air PurifiersLONGWELL EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, 80 W, for Range Hoods, Cold Storage, Air Purifiers4 in230 V4000 RPMView & InquireLONGWELL 133mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, High-Temperature, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 133mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, High-Temperature, for Cold Storage, Air Purifiers, HVAC Systems4 in230 V4000 RPMView & InquireLONGWELL 146mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 146mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems230 V1500 RPMECView & InquireLONGWELL EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, for Cold Storage, Air Purifiers, HVAC Systems230 V1500 RPMECView & InquireLONGWELL 140mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, Aluminum Alloy, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 140mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, Aluminum Alloy, for Cold Storage, Air Purifiers, HVAC Systems230V4000rpmOtherView & InquireLONGWELL 225mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for AHU, FFU, Data Center CoolingLONGWELL 225mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for AHU, FFU, Data Center Cooling230V4000rpmAC external rotor motorView & InquireLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Industrial Ventilation, Cold Storage, Air PurifiersLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Industrial Ventilation, Cold Storage, Air Purifiers4 in230 V4000 RPMView & InquireLONGWELL 160mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Control Cabinet Cooling, Cold Storage, Air PurifiersLONGWELL 160mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for Control Cabinet Cooling, Cold Storage, Air Purifiers230V4000rpmAC external rotor motorView & InquireLONGWELL 180mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, Aluminum Alloy, Low Noise, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 180mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, Aluminum Alloy, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems230 V4000 RPMOtherView & Inquire

Related for the same application

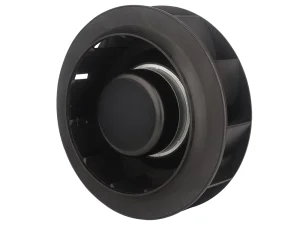

LONGWELL LWBE3G225-072NS-11 EC Backward-Curved Centrifugal Fan — Ø225 mm Impeller, 230 VAC, Without housing / bracketLONGWELL LWBE3G225-072NS-11 EC Backward-Curved Centrifugal Fan — Ø225 mm Impeller, 230 VAC, Without housing / bracket72 mm1009.4 m³/h230 VDatasheet, curve & drawing →LONGWELL 250mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, Stainless Steel, for AHU, FFU, Data Center CoolingLONGWELL 250mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V, Stainless Steel, for AHU, FFU, Data Center Cooling250mm230 V3500rpmView & InquireLONGWELL 92mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 2523.5 m³/h Airflow, 669.5 Pa Static Pressure – LWFE3G310-092PS-08LONGWELL 92mm EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 230V IP55, 2523.5 m³/h Airflow, 669.5 Pa Static Pressure – LWFE3G310-092PS-0892 mm2523.5 m³/h230 VView & InquireLONGWELL 450mm Centrifugal Blower Fan, Industrial Centrifugal FanLONGWELL 450mm Centrifugal Blower Fan, Industrial Centrifugal Fan450 mmView & InquireLONGWELL Gas Blower, Industrial Gas Blower Fan, for Boilers – LWGA22S-01LONGWELL Gas Blower, Industrial Gas Blower Fan, for Boilers – LWGA22S-01220 V2250 rpmView & InquireLONGWELL AT 9-9L Belt-Driven Forward-Curved Centrifugal Blower — 400–9,000 m³/h, up to 1,000 PaLONGWELL AT 9-9L Belt-Driven Forward-Curved Centrifugal Blower — 400–9,000 m³/h, up to 1,000 Pa380×387 mm400–9Motor selected to duty — 220/380/415 V availableView & InquireLONGWELL 200mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, for Cold Storage, Air Purifiers, HVAC SystemsLONGWELL 200mm DC Centrifugal Blower Fan, Industrial Centrifugal Fan, 220V, for Cold Storage, Air Purifiers, HVAC Systems4 in220 V4000 RPMView & InquireLONGWELL 560mm Centrifugal Blower Fan, Industrial Centrifugal FanLONGWELL 560mm Centrifugal Blower Fan, Industrial Centrifugal Fan560 mmView & InquireLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for AHU, FFU, Cold StorageLONGWELL 133mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, for AHU, FFU, Cold Storage4 in230 V4000 RPMView & InquireLONGWELL EC Cross Flow Fan, Tangential Blower Fan, 12V, Aluminum Alloy, Low Noise, for AHU, FFU, Cold StorageLONGWELL EC Cross Flow Fan, Tangential Blower Fan, 12V, Aluminum Alloy, Low Noise, for AHU, FFU, Cold Storage12V-24V4000 RPMFree StandingView & Inquire
