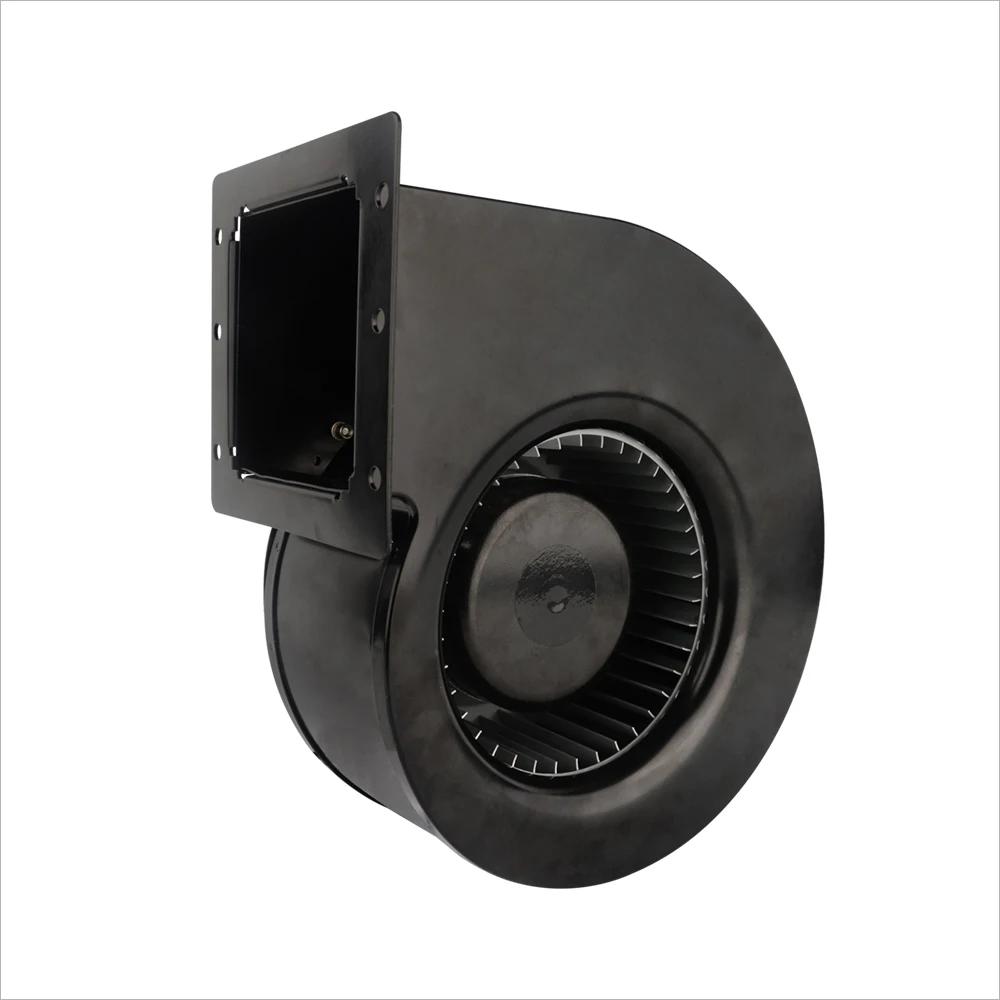

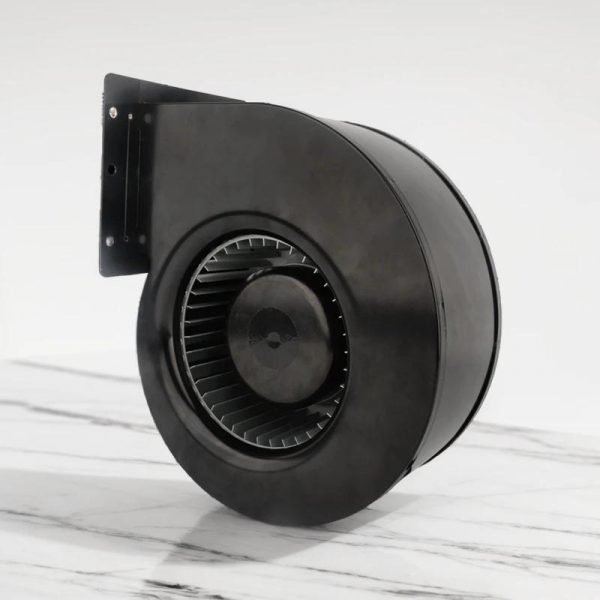

LONGWELL 120mm DC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 24V, for HVAC Systems, Cold Storage, Air Purifiers – LWFD-120

Voltage DC 24V/48V/310V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 30

Category: Tags: , ,
CategoryForward Curved Centrifugal Fans
TagsCentrifugal FanForward Curved Centrifugal FanHVAC System
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Forward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL forward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search forward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :

Achieve Efficient and Quiet Ventilation with 120mm DC Forward Centrifugal Fan Perfect for HVAC Systems
Voltage Ranges :

24V,48V,310V;
Frequency :

50/60 Hz
Diamter :

120mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor

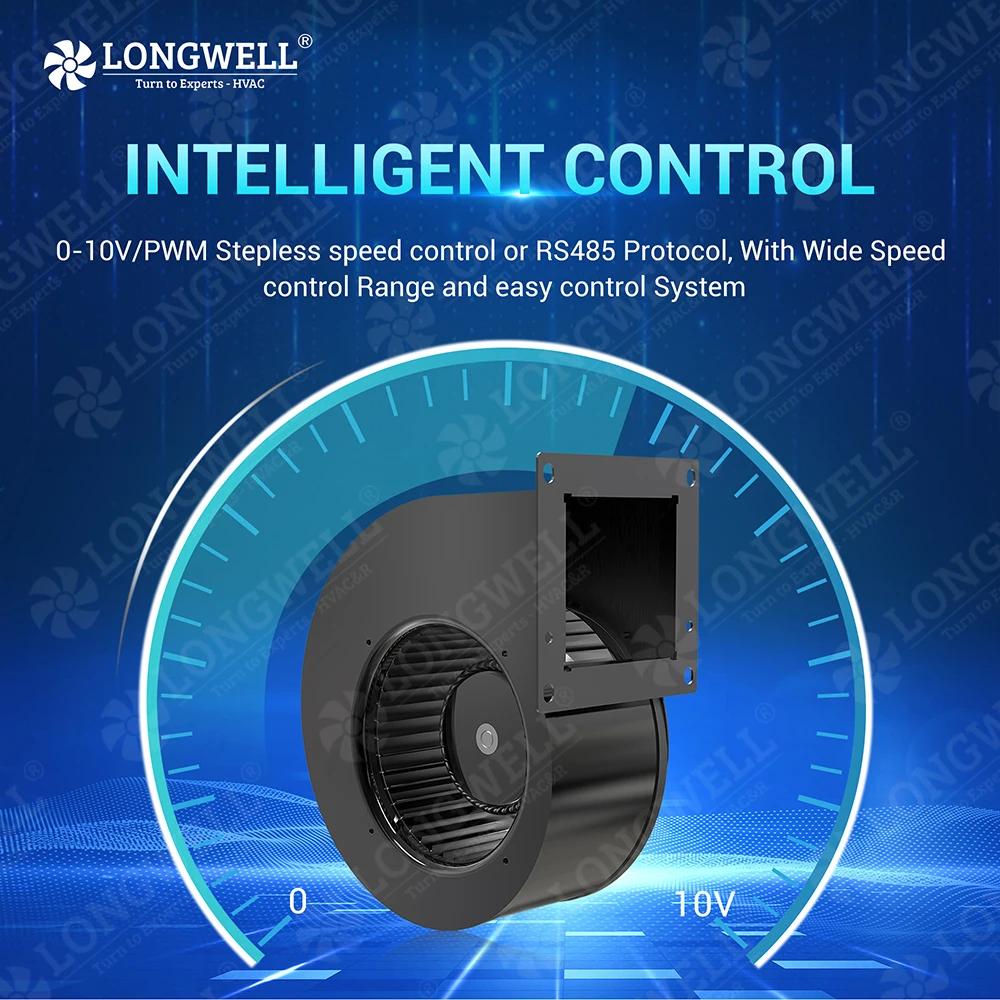

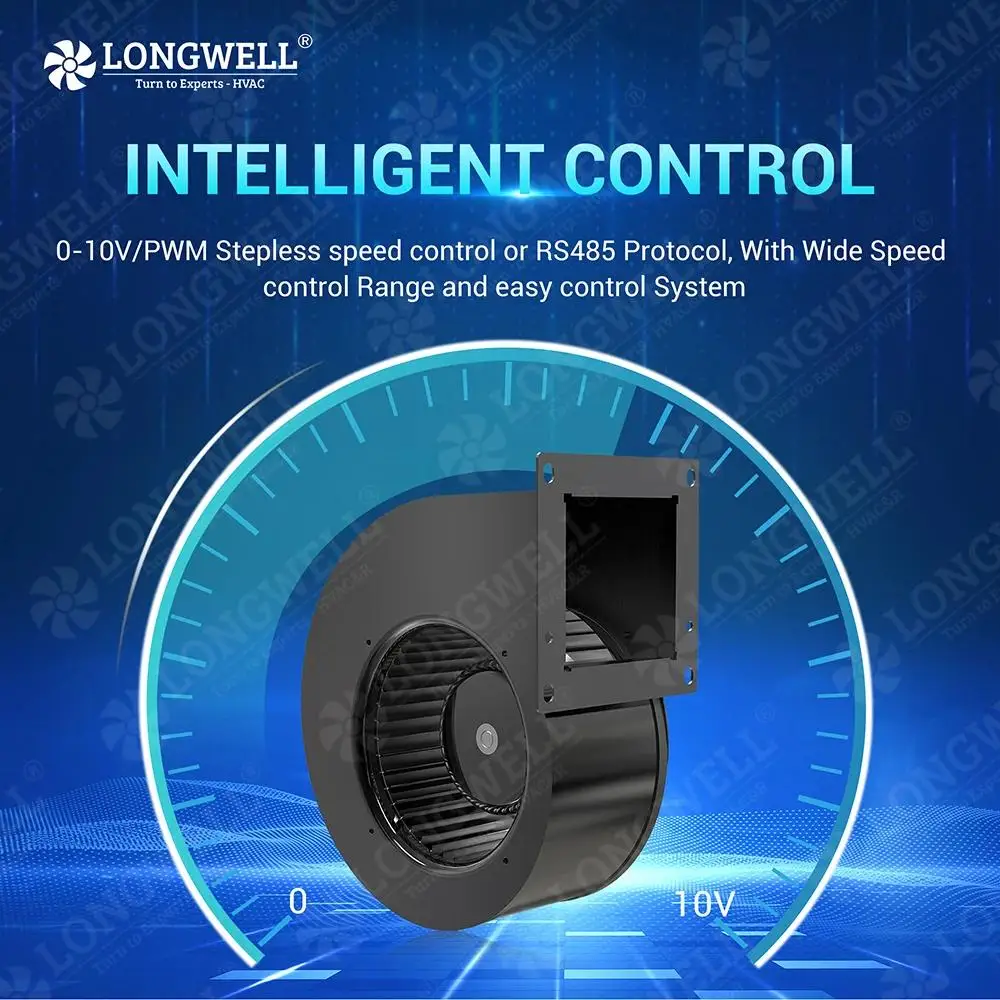

Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :

All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:

Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

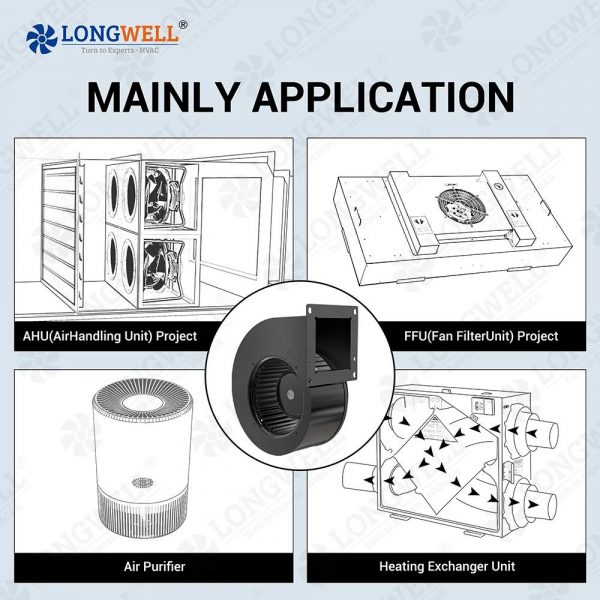

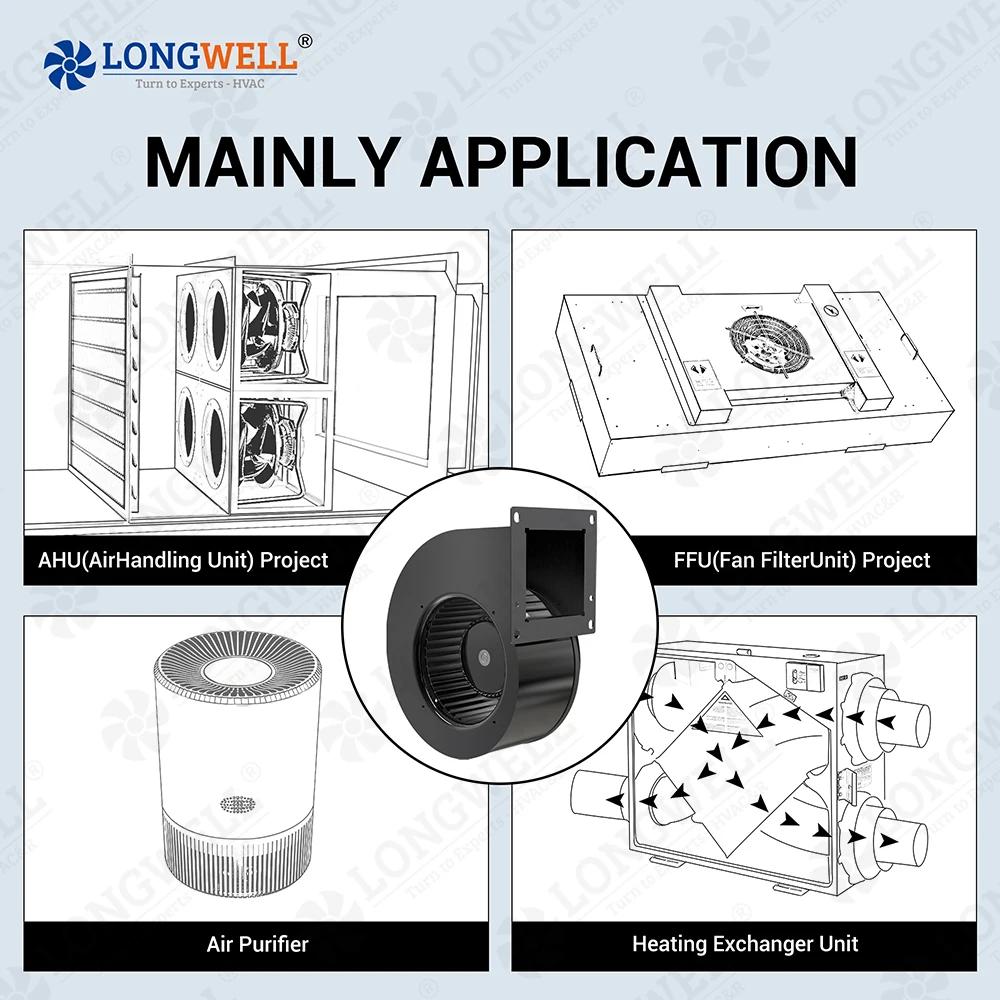

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

DC 24V/48V/310V
Blade Material

STAINLESS STEEL
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWFD-120
warranty

1 Year
Material

STAINLESS STEEL, Plastic, iron, metal, Cast Iron, Aluminum, fiberglass
Power source type

Battery powered
Noise Level

35-39db
Duct Diameter

4in, 6IN, 8in, 12in, 10in, 5IN, 14in
After-sales Service Provided

Overseas service center available
power input

24VDC/ 48VDC
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

DC external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Type

Centrifugal Fan
Product name

Blower Fan
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

10.000 kg
