LONGWELL 120mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 220V, Galvanized Steel, for Data Center Cooling, Cleanroom Ventilation, Control Cabinet Cooling

Voltage 220V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 37

Specifications
Motor
AC Capacitor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Galvanized Metal Sheet
Category: Tags: , ,
CategoryAC Forward Curved Centrifugal Fans
TagsCentrifugal Blower FanComputer Room Air Conditioning SystemsDuct Fan
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Forward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL AC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

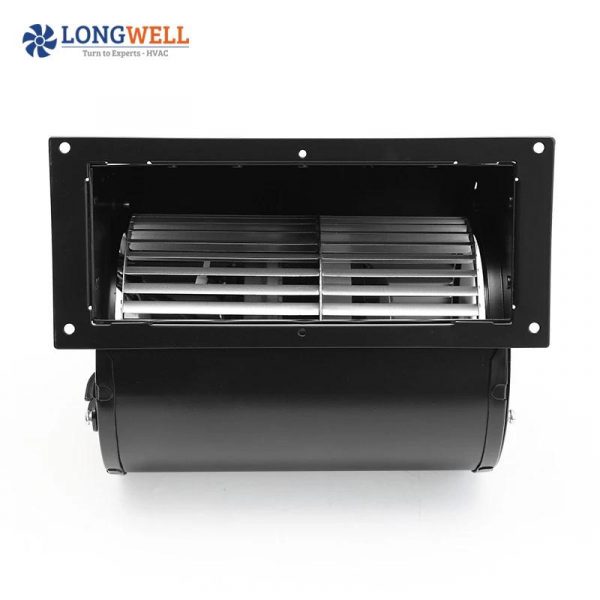

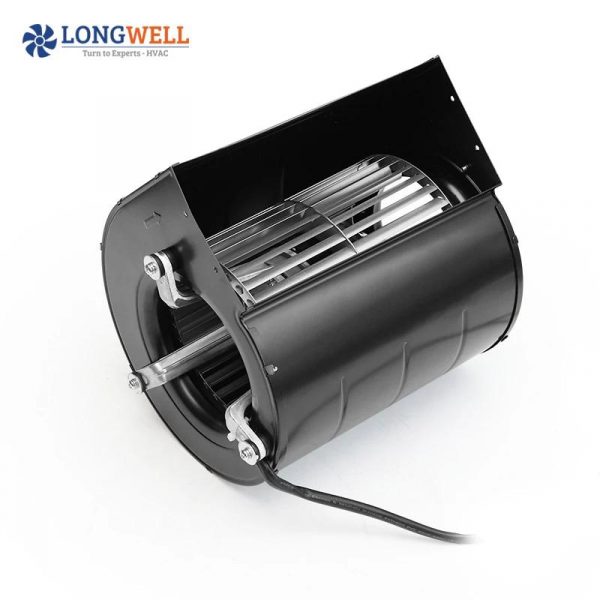

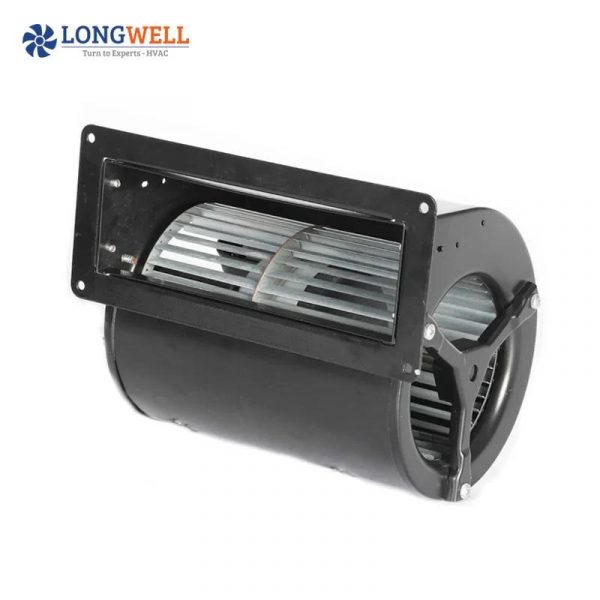

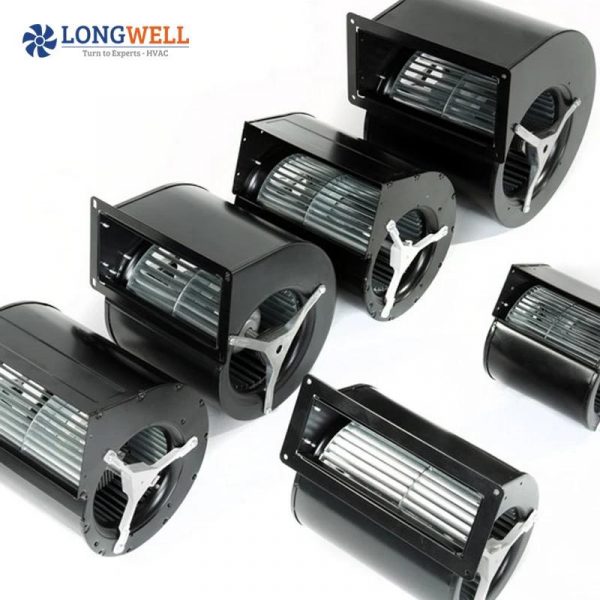

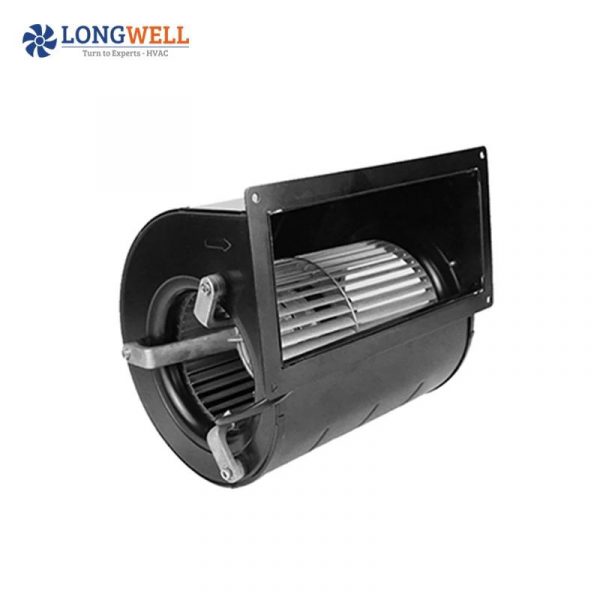

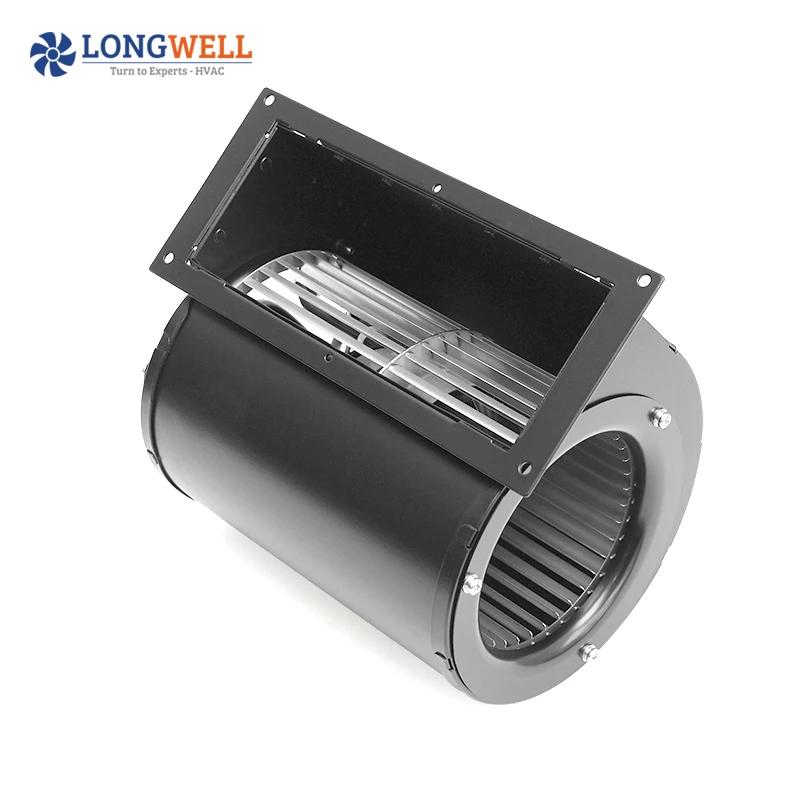

Longwell AC 120mm Dual inlet forward centrifugal blower with Metal Impellers

Norminal Sizes Ranges :

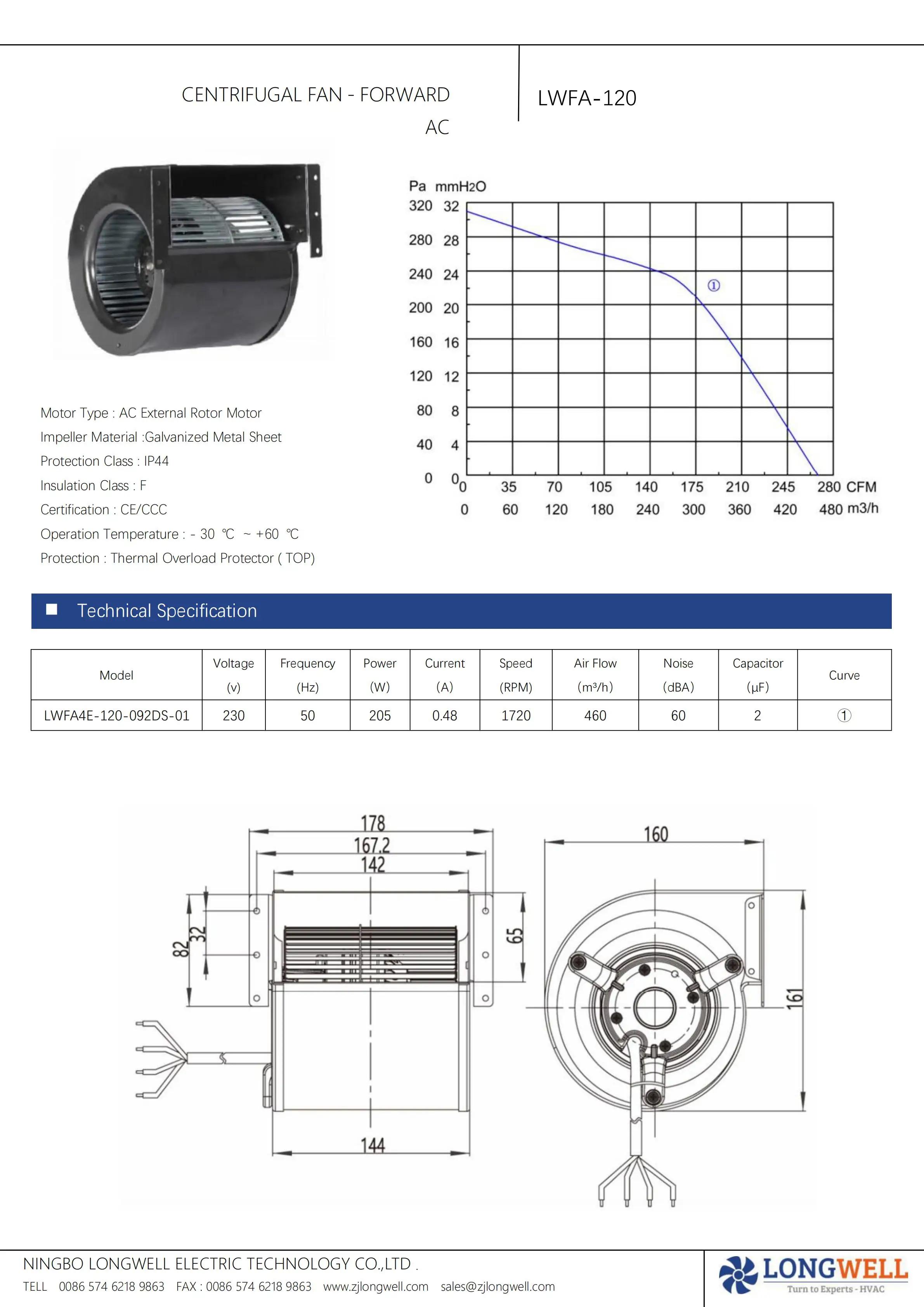

LWFA4E-120-092DS-01 Forward centrifugal blower
Norminal Voltage :

AC Motor – AC Input: 115v,220v,230v,380v,400v
BLDC Motor – DC Input: 12v,24v,48v,310v
ECM Motor – AC Input: 210v,220v,230v,380V
Power Input Ranges:
205 kW
Air Flow Ranges :
460m³/h
Speed Ranges
1720 RPM
Protection Class :
IP44
Insulation Class :
B
Min. amb. temperature :
-25℃
Max. amb. temperature :
+60 ℃
Speed control options
1 speed , 2 speeds ,or 1-3 speeds adjustable
Mainly Applications ：

· Electronic cabinet cooling

· Clean room modules

· Heat exchangers

· Air filtration systems

· Military HRAC

· Pharmaceutical/biological control systems

· Computer room air conditioning (CRAC) systems

· Air-handling units

Additional information

Voltage

220V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized Metal
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWFA-120 Double Inlet
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Motor Type

AC Capacitor motor
Power input

115/230V
Impeller material

Galvanized Metal Sheet
Direction

Clockwise
Bearing

Ball Bearing
Amb,Temp

-25 to +60℃
Insulation

F
Protection Classs

IP44
Speed control

1 / 2 /3 Speed available
Protection

Thermal Overload Protector ( TOP)
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

5.000 kg
