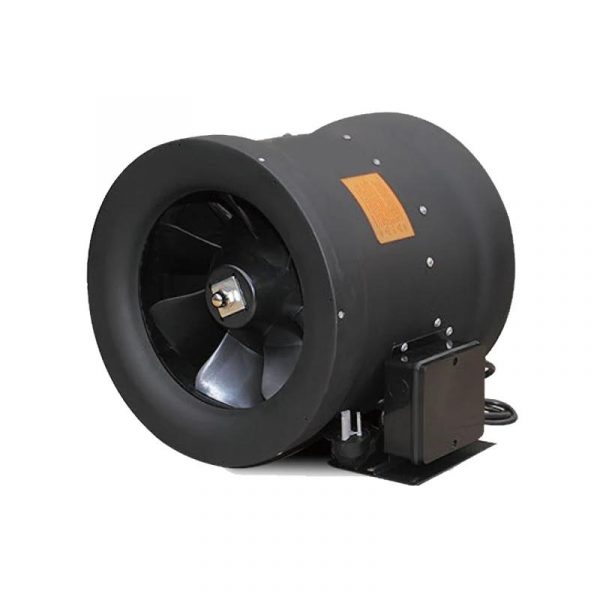

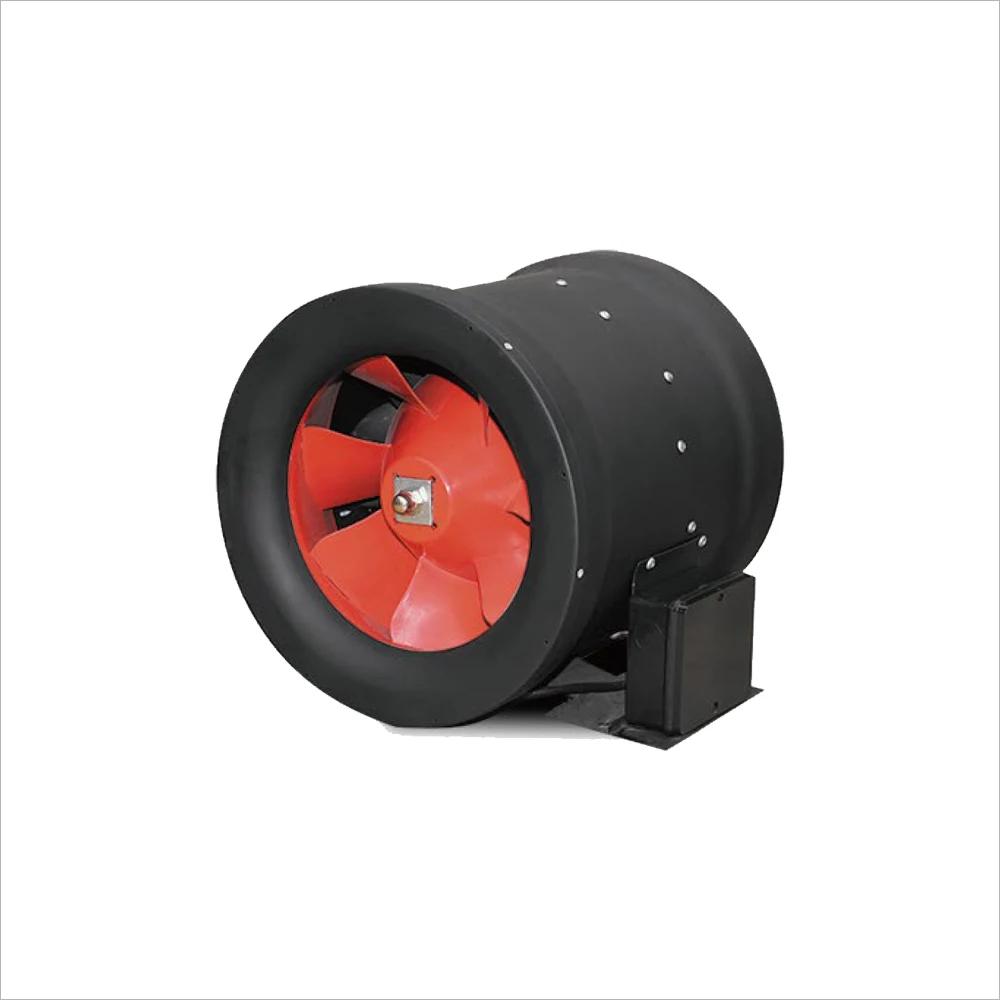

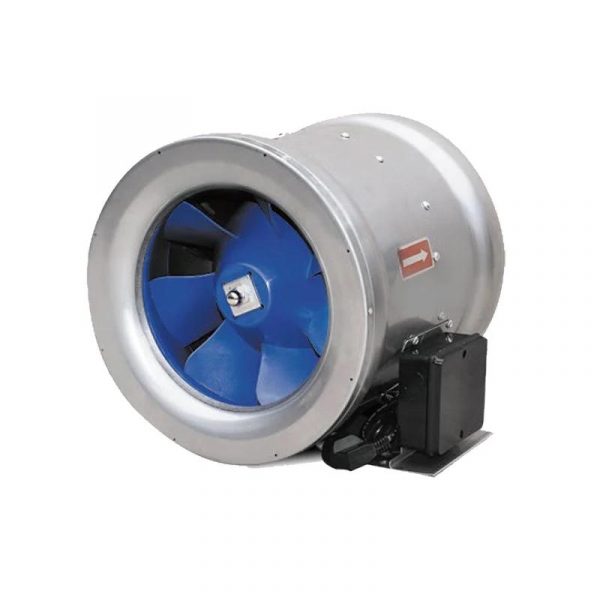

LONGWELL AC Centrifugal Blower Fan, Industrial Centrifugal Fan, 110/120V

Voltage 110-120V/220-240V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 85

Category: Tags: , ,
CategoryAC Metal Duct Fans
TagsCentrifugal FanDuct FanHydroponic Grow Tents
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Metal Duct Fans range. The Fan Selector lists every LONGWELL AC metal duct fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC metal duct fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø24–1,000 mm, single units up to about 61,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Products Description

Model

Voltage
（V）

Frequency
（Hz）

Maximum Flow Value
（CFM）

Working Power
（W）

Speed
（RPM）

Noise
[dB(A)]

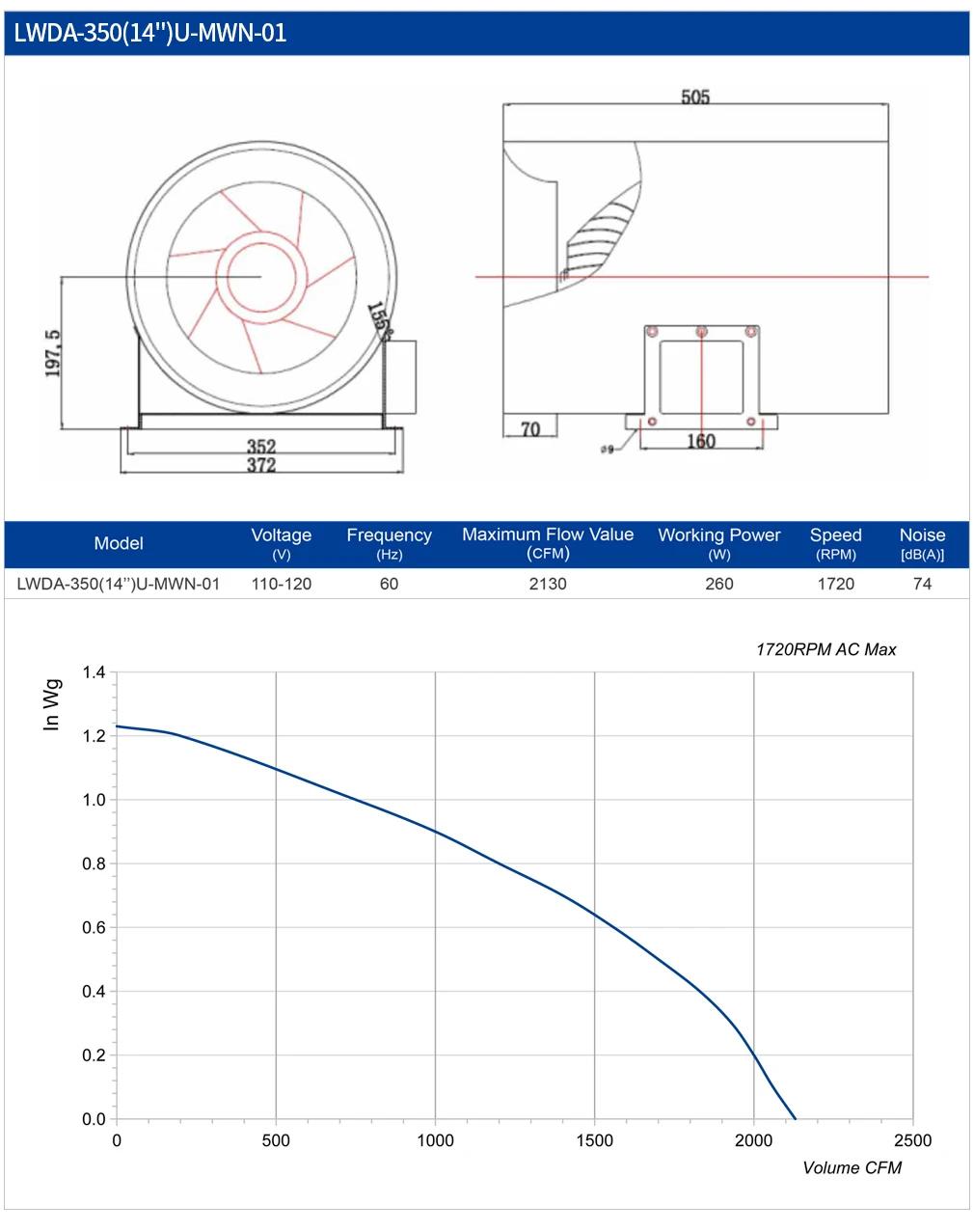

350(14”)-01
110-120
60
2130
260
1720
74

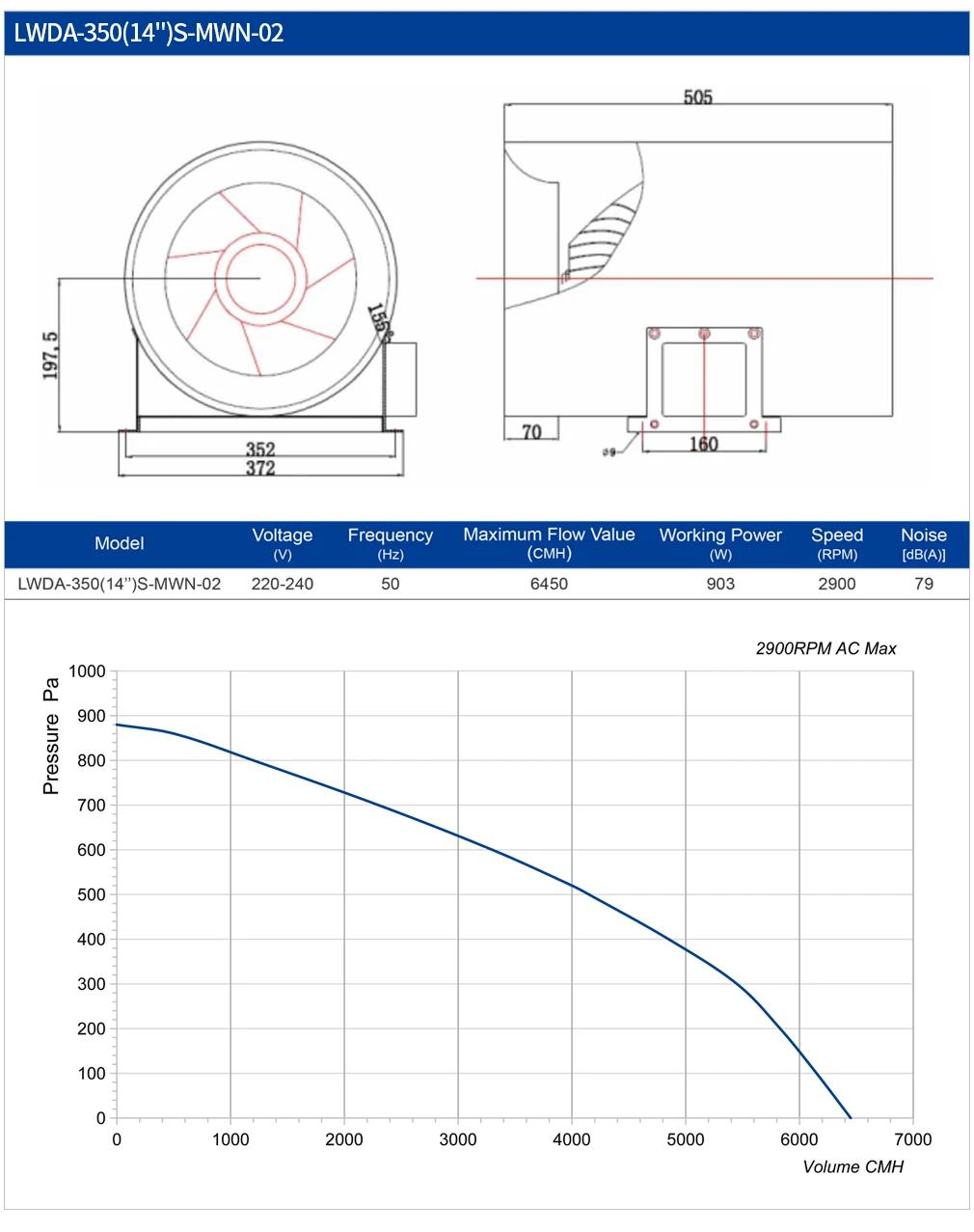

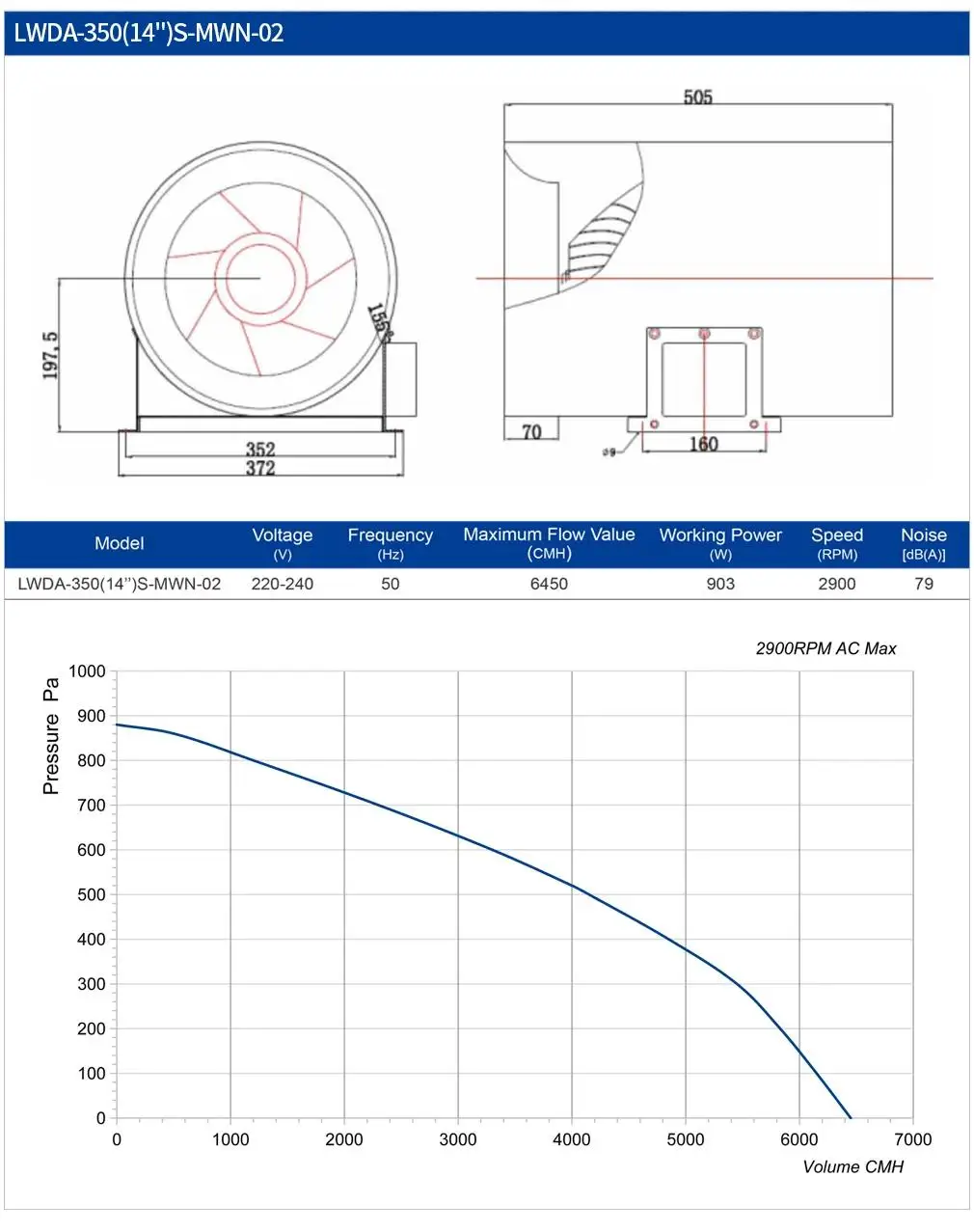

350(14”)-02
220-240
50
6450
903
2900
79

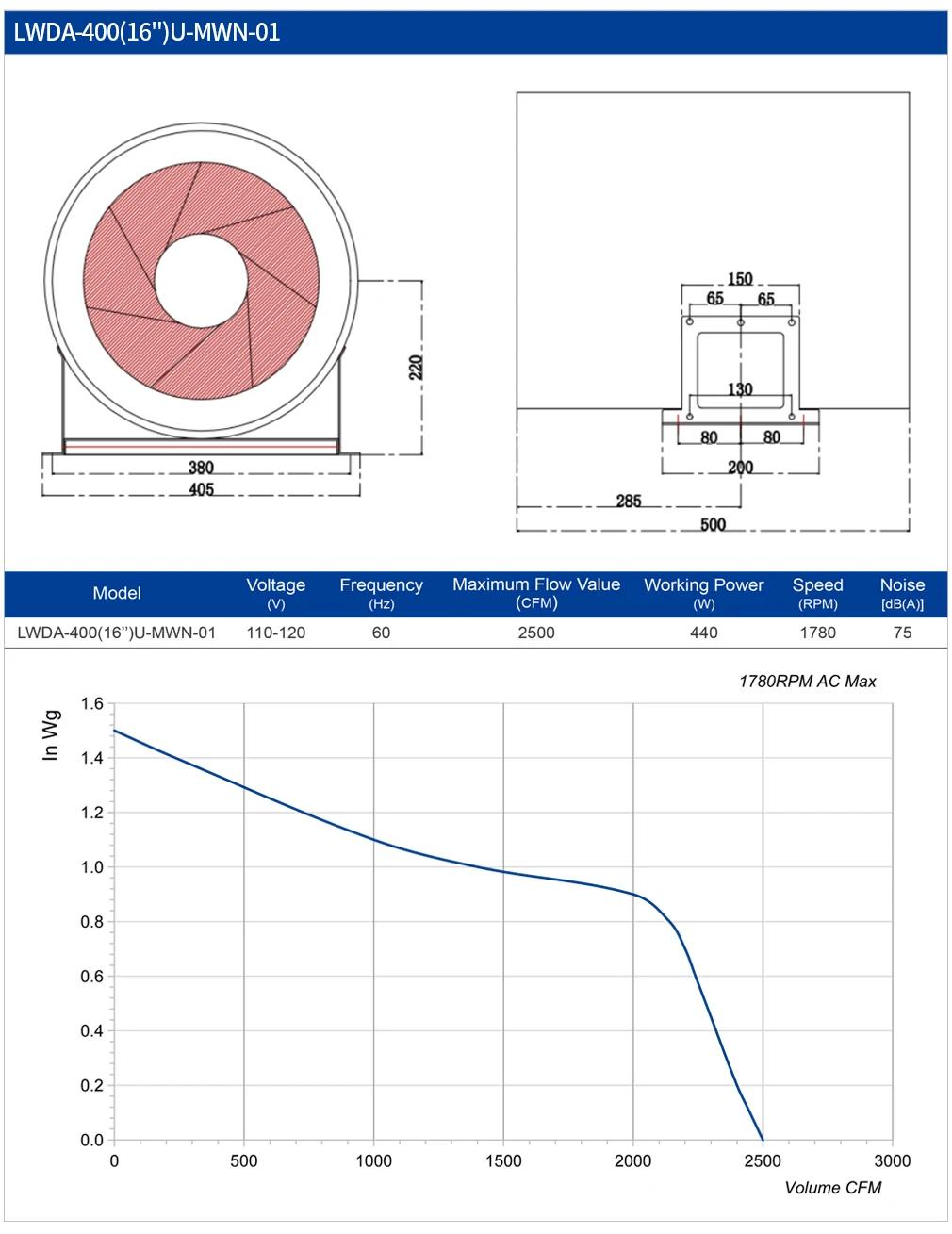

400(16”)-01
110-120
60
2500
440
1780
75

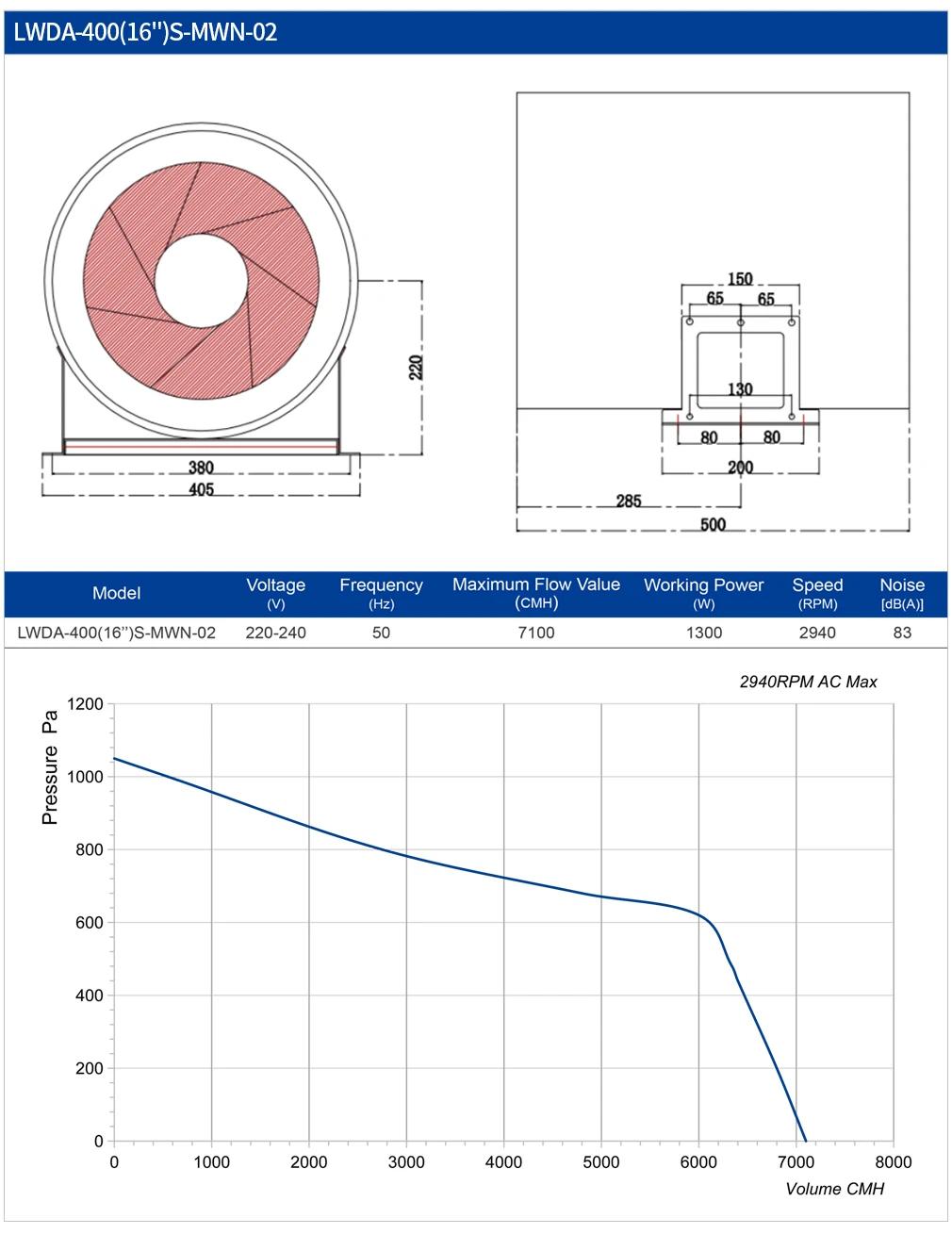

400(16”)-02
220-240
50
7100
1300
2940
83

Product Applications

Recommend Products

Company Profile

Certifications

Why Choose Us

FAQ

Product packaging

Additional information

Voltage

110-120V/220-240V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Metal
customized support

OEM, ODM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

Longwell
model number

LWDA-350(14"), LWDA-400(16")
warranty

1 Year
After-sales Service Provided

Online support
Product name

Mixed Flow Duct Fan
Application

Exhaust Ventilation
Usage

High Pressure Blowing
Feature

Low Noise Power Saving
Material

Plastic
Size

4"/5"/6"/8"/10"/12"/14"/16"
Motor

Copper Motor
Type

Centrifugal Impeller Blower
Keyword

Duct Fan
Function

Ventilaion
Selling units

Single item
Single package size

5X5X5 cm
Single gross weight

10.000 kg
