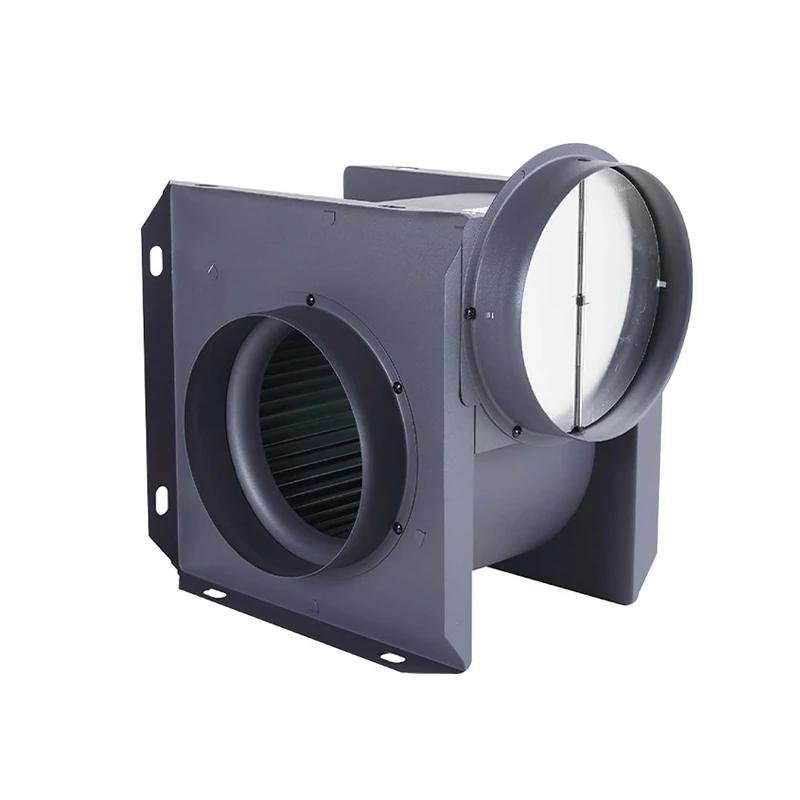

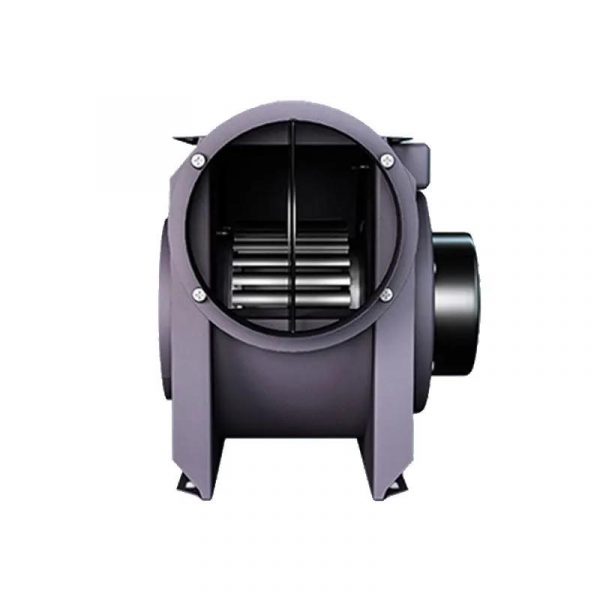

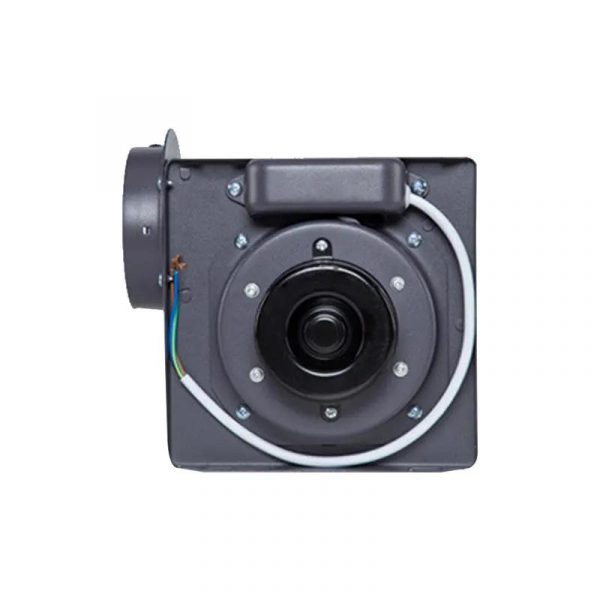

LONGWELL 250mm Industrial Fan, Industrial Ventilation Fan, 220V, 23 W, Galvanized Steel, for Cold Storage, Air Purifiers, HVAC Systems

Name: LONGWELL 250mm Industrial Fan, Industrial Ventilation Fan, 220V, 23 W, Galvanized Steel, for Cold Storage, Air Purifiers, HVAC Systems
Brand: Ningbo Longwell Electric Technology Co., Ltd.

Static Pressure 65-410pa

Voltage 220V/50Hz

ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 32

Category: Split Duct Fan Tags: Duct Fan, Duct Ventilation, External Rotor Motor

CategorySplit Duct Fan

TagsDuct Fan Duct Ventilation External Rotor Motor

Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.

✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Name

Work Email

Phone / WhatsApp

Estimated order quantity

Message

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?

Download Product Catalog (PDF)

Need the exact model with a measured or digitised curve? This page describes the Split Duct Fan range. The Fan Selector lists every LONGWELL duct fan model with airflow, static pressure, power, noise, drawing and datasheet.

Search duct fan models →

Description

Types :	Split Duct Fan with High Performance and Durability 220V Galvanized Steel 100-250mm Diameter 23~250w Power
Voltage Ranges :	220V
Frequency :	50/60 Hz
Diamter :	100-250mm ( impeller diameters )
Motor Types :	BLEC External Rotor Motor
Speed Control :	0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:	-25℃～ +60℃
Certificating :	All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:	IP44 ,IP54,IP55
Electronic Protection:	Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage	Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH Applicable altitude range：＜1000m
Balancing	According to JB/T 9101-1999 requirements G6.3
Product Standards :	LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3
Mainly Applications	AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent /Ventilation SYSTEM/ Equipments Cooling /Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

mounting type	Duct Fan
electric current type	AC
blade material	Galvanized Steel
customized support	OEM, ODM, OBM
place of origin	ZHE

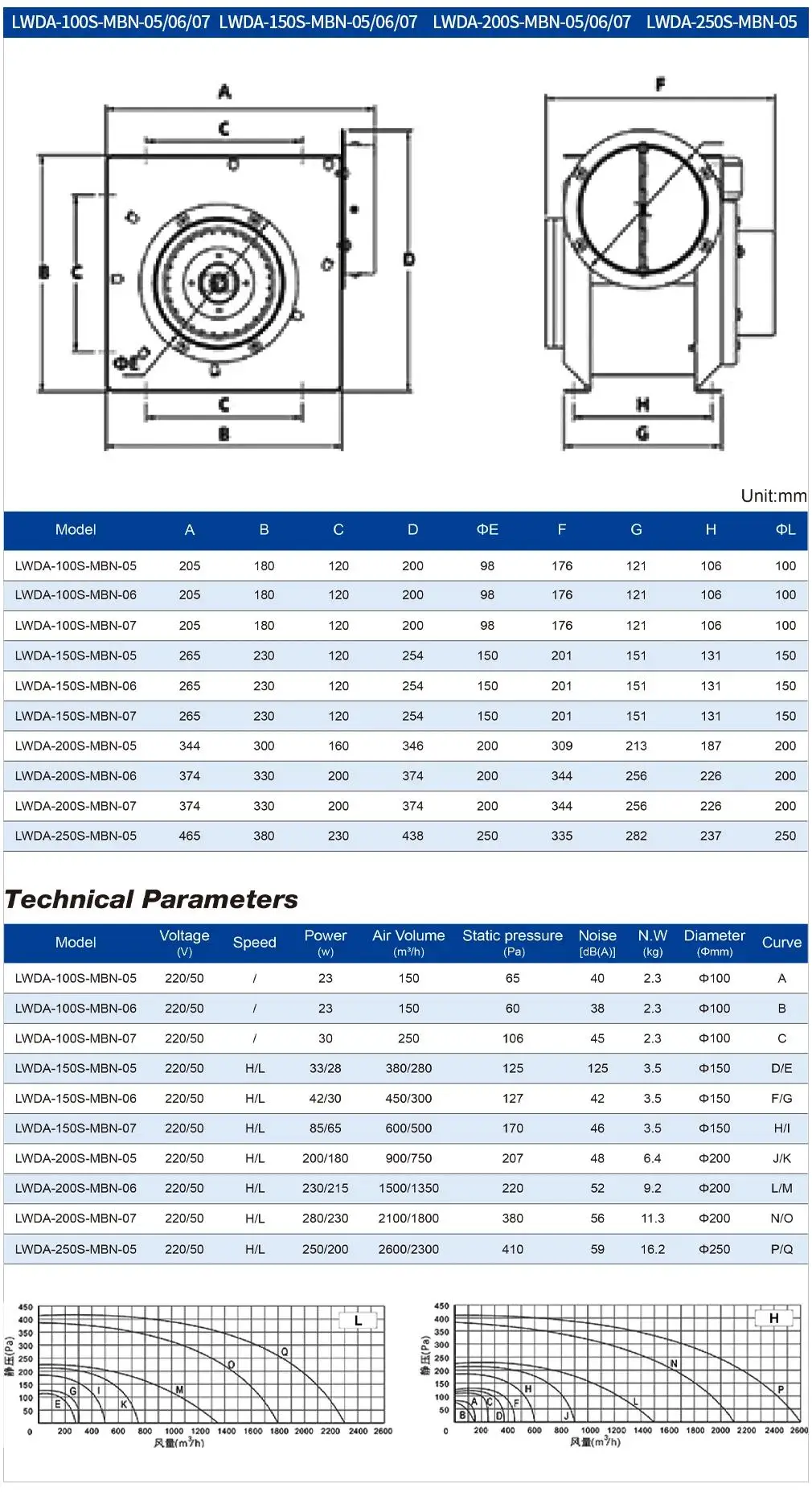

model number	LWDA-100S-MBN-05, LWDA-100S-MBN-06, LWDA-100S-MBN-07, LWDA-150S-MBN-05, LWDA-150S-MBN-06, LWDA-150S-MBN-07, LWDA-200S-MBN-05, LWDA-200S-MBN-06, LWDA-200S-MBN-07, LWDA-250S-MBN-05
warranty	1 Year
after-sales service provided	Video technical support
Brand Name	Longwell
Product Name	Split Duct Fan
Material	Galvanized Steel
Voltage	220V/50Hz
Static Pressure	65-410pa
Power	23~250w
Diameter Range	100~250mm
Number of blades	22
Noise	40~59dBA
Air flow	1500-2600m³/h
Selling units	Single item
Single package size	40X40X30 cm
Single gross weight	1.500 kg
