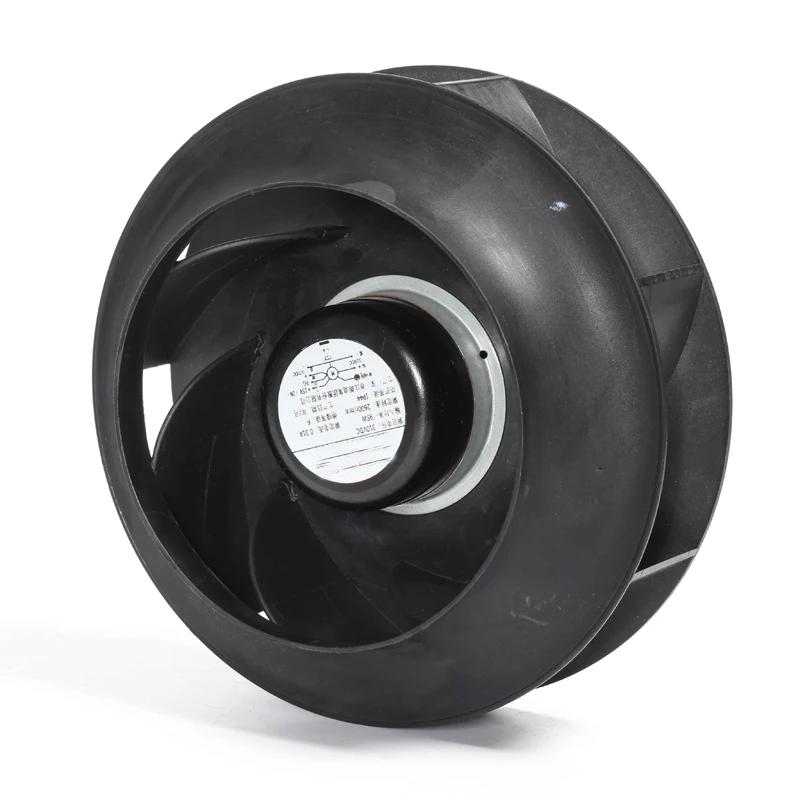

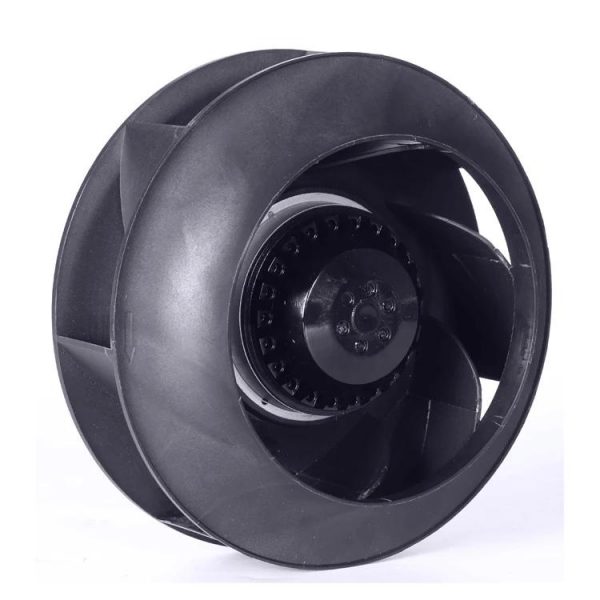

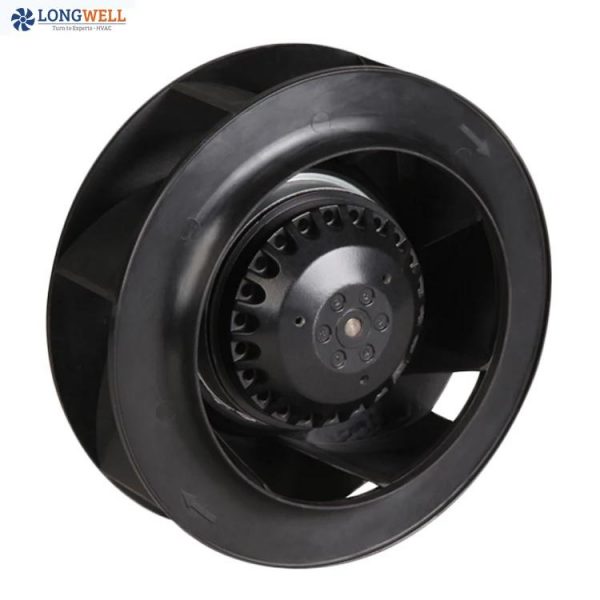

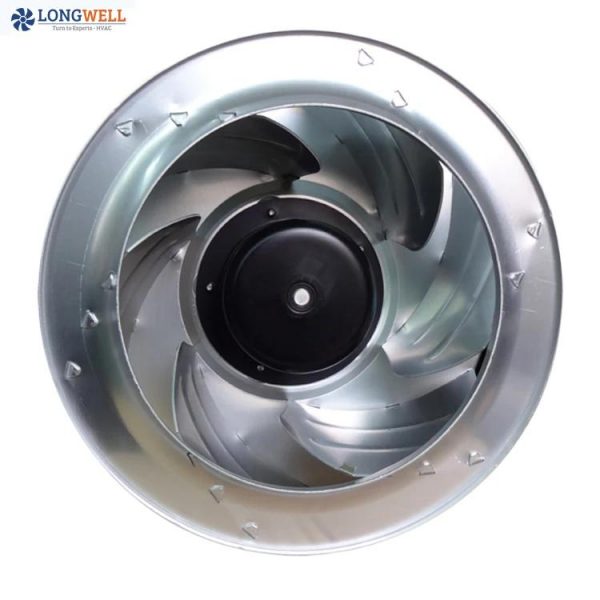

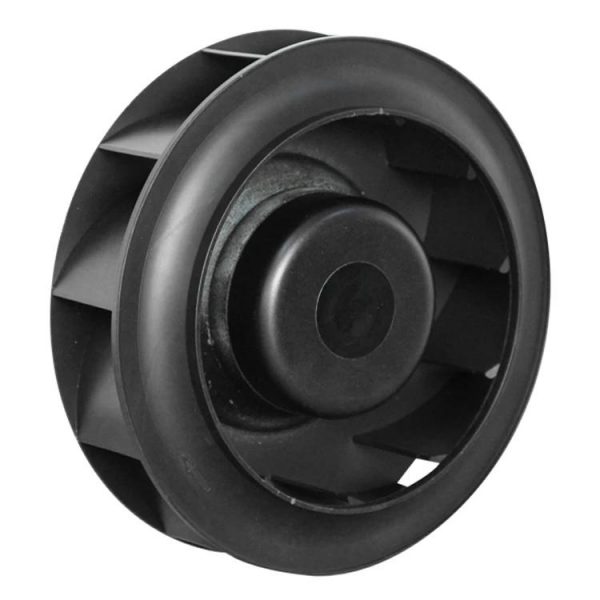

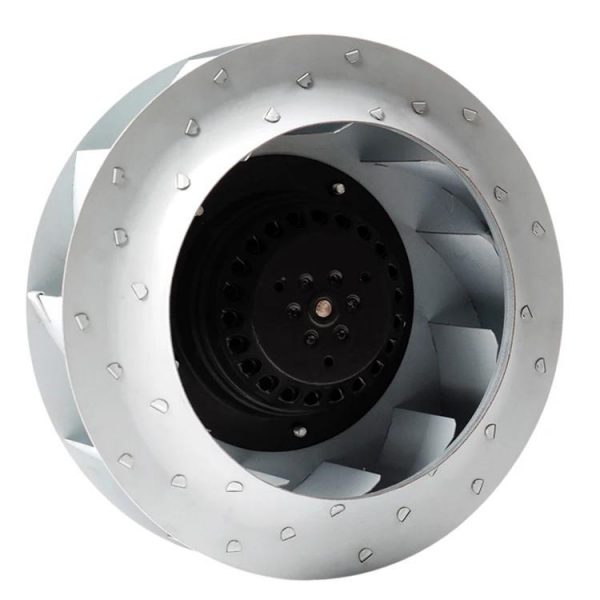

LONGWELL EC Backward Curved Centrifugal Fan, Industrial Centrifugal Blower, 12V PWM Control, PWM Control – LW

Voltage 12V/ 24VDC/ 48VDC
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 50

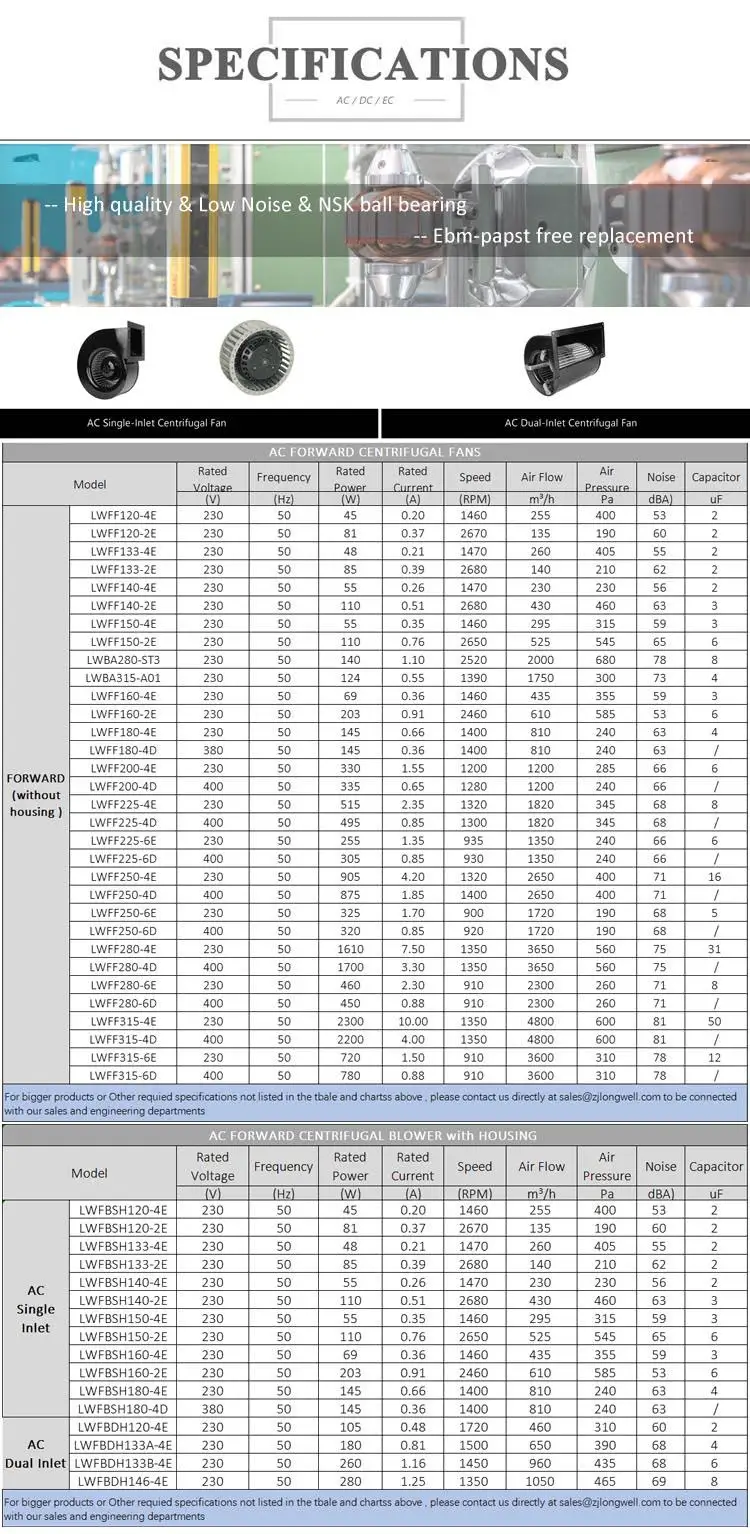

Specifications
Motor
external rotor motor
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryBackward Curved Centrifugal Fans
TagsBackward Curved Centrifugal FanDuct VentilationEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the Backward Curved Centrifugal Fans range. The Fan Selector lists every LONGWELL backward-curved centrifugal fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search backward-curved centrifugal fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Product descriptions from the supplier

centrifugal fan ec motor

AC / EC / DC centrifugal fan PWM / 0~10V speed control backward centrifugal fan ec motor

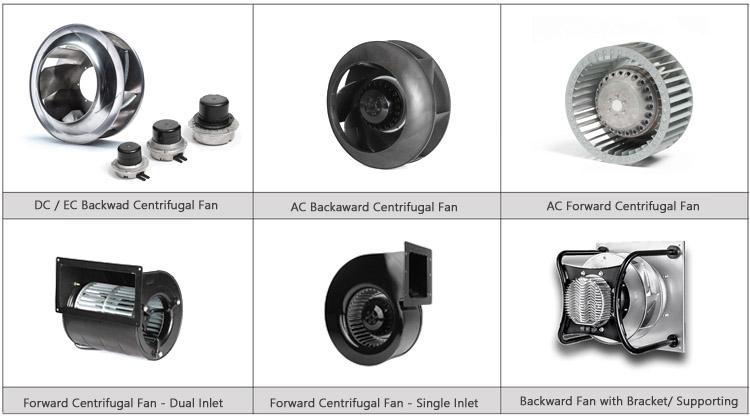

centrifugal fan (2)

Product Overview
1 Centrifugal Blower Sizes 133mm – 400mm (or Customized)
2 Centrifugal Fan Sizes 133mm – 630mm (or Customized)
3 Motor Types AC Motor
BLDC Motor
ECM Motor
4 Voltage AC Motor – AC Input: 115v,220v,230v,380v,400v
BLDC Motor – DC Input: 12v,24v,48v,310v
ECM Motor – AC Input: 210v,220v,230v,380V
5 Power Up to 2300W (or Customized)
6 Speed Up to 4000RPM (or Customized)
7 Air Flow Up to 15000m³/h (or Customized)
8 Speed control Speed Controller (AC) or PWM/0 – 10V Input (DC & EC)
 General Characters
1 Direction of Air Flow All around
2 Insulation Class Class B
3 Insulation Resistance 50 Mega Ohm minimum at 1000VDC
Between frame and (+) terminal
4 Protection Type IP44

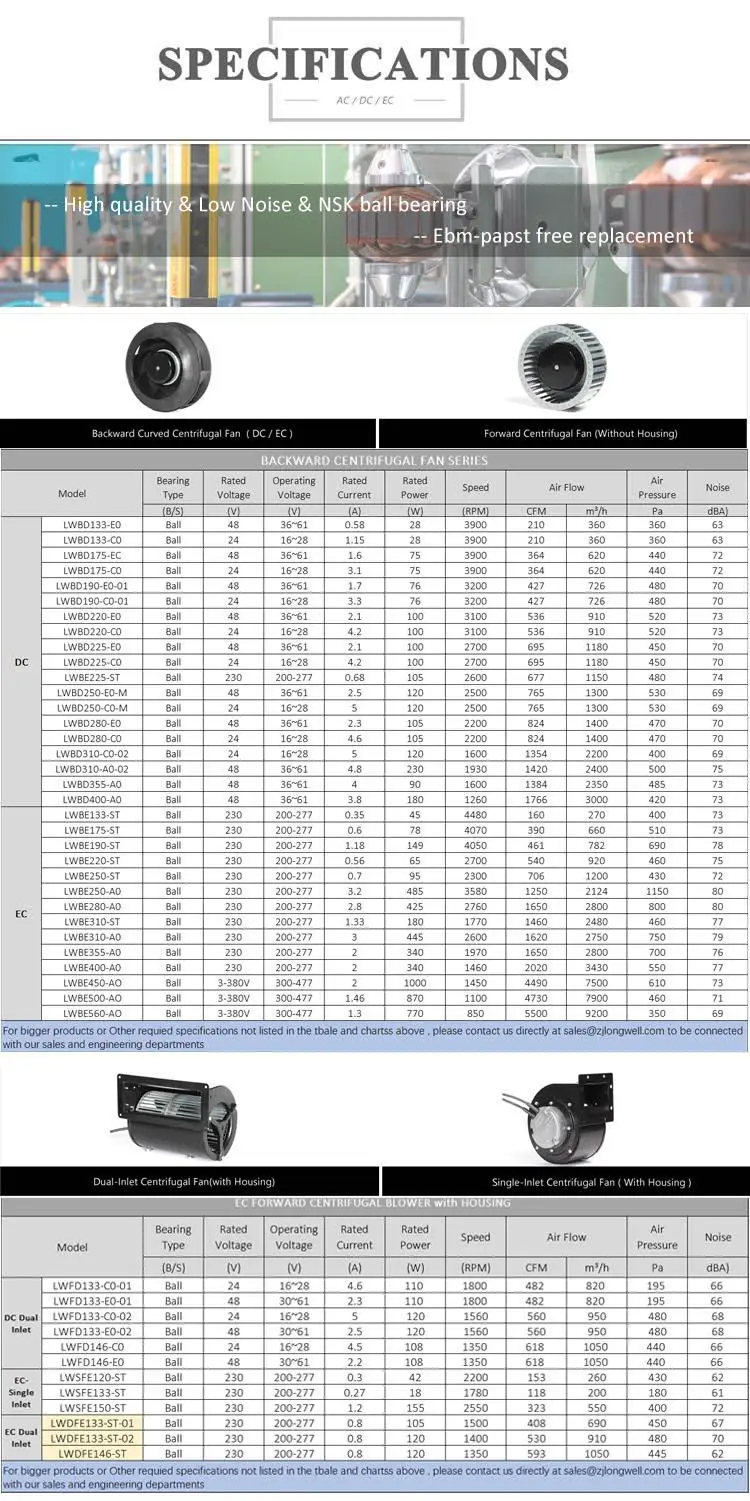

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

centrifugal fan ec motor

Additional information

Electric Current Type

AC
Voltage

12V/ 24VDC/ 48VDC
Blade Material

aluminum / plastic
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LW
warranty

1 Year
After-sales Service Provided

Overseas service center available
Type

centrifugal fan ec motor
power input

115/230/24/48v
Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Approvals

CE,CCC
Motor type

external rotor motor
Amb,Temp

-20 to +60℃
Insulation

B/F
Selling units

Single item
Single package size

50X50X50 cm
Single gross weight

10.000 kg
