Description

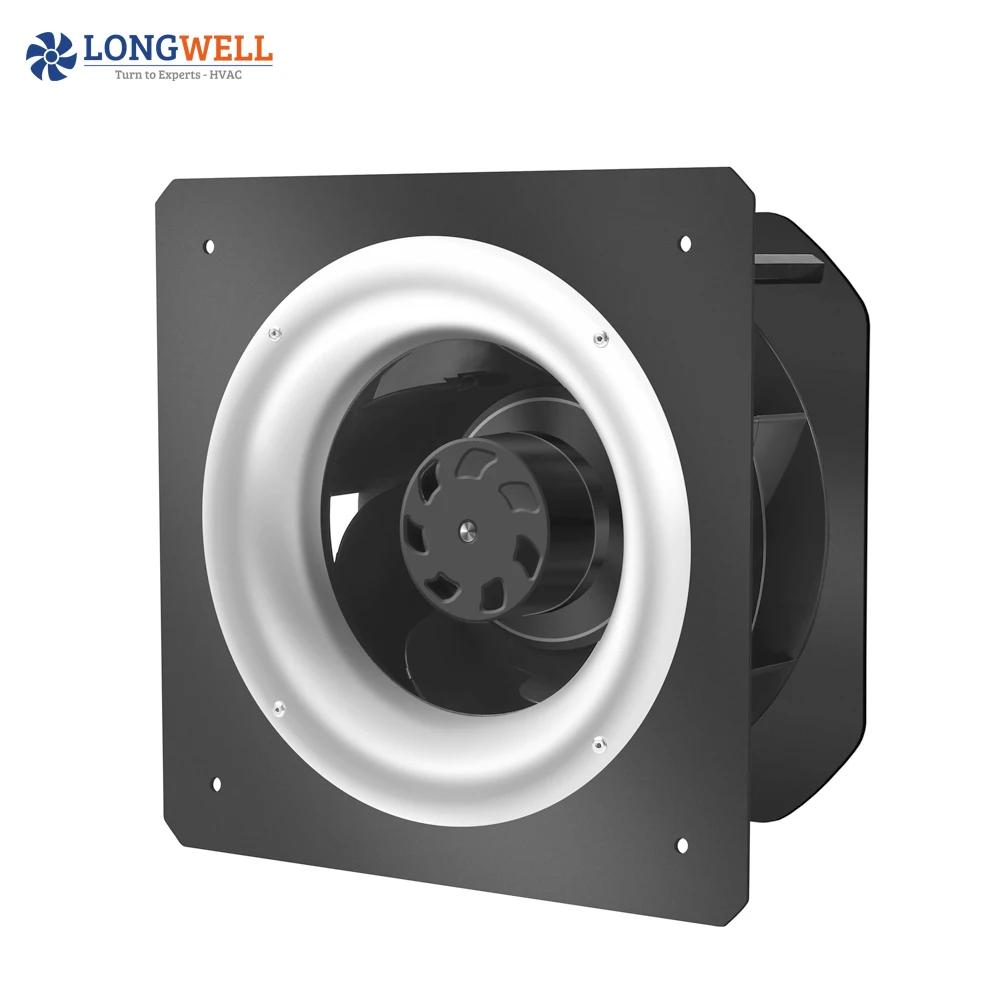

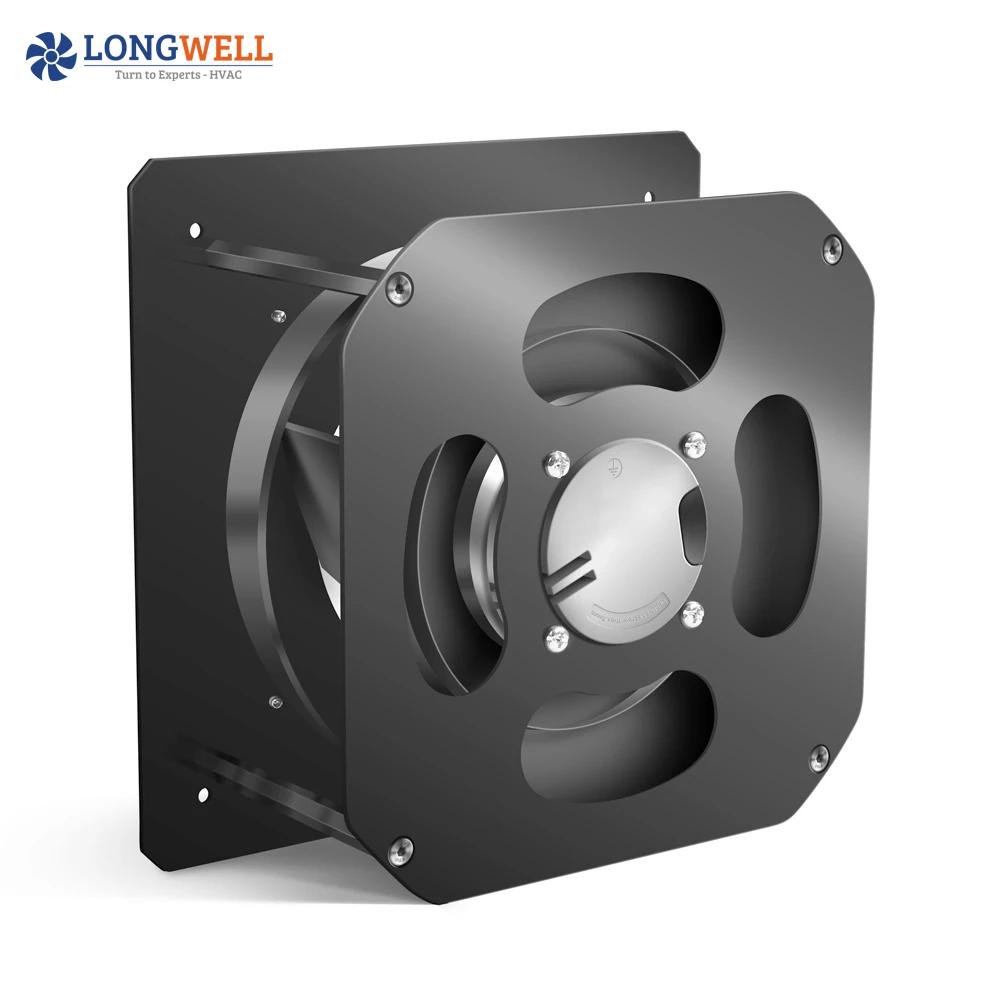

175mm EC motor 115v 220v 170W EC backward curved centrifugal fan with Bracket for AHU ,FFU ,air exchanger
|

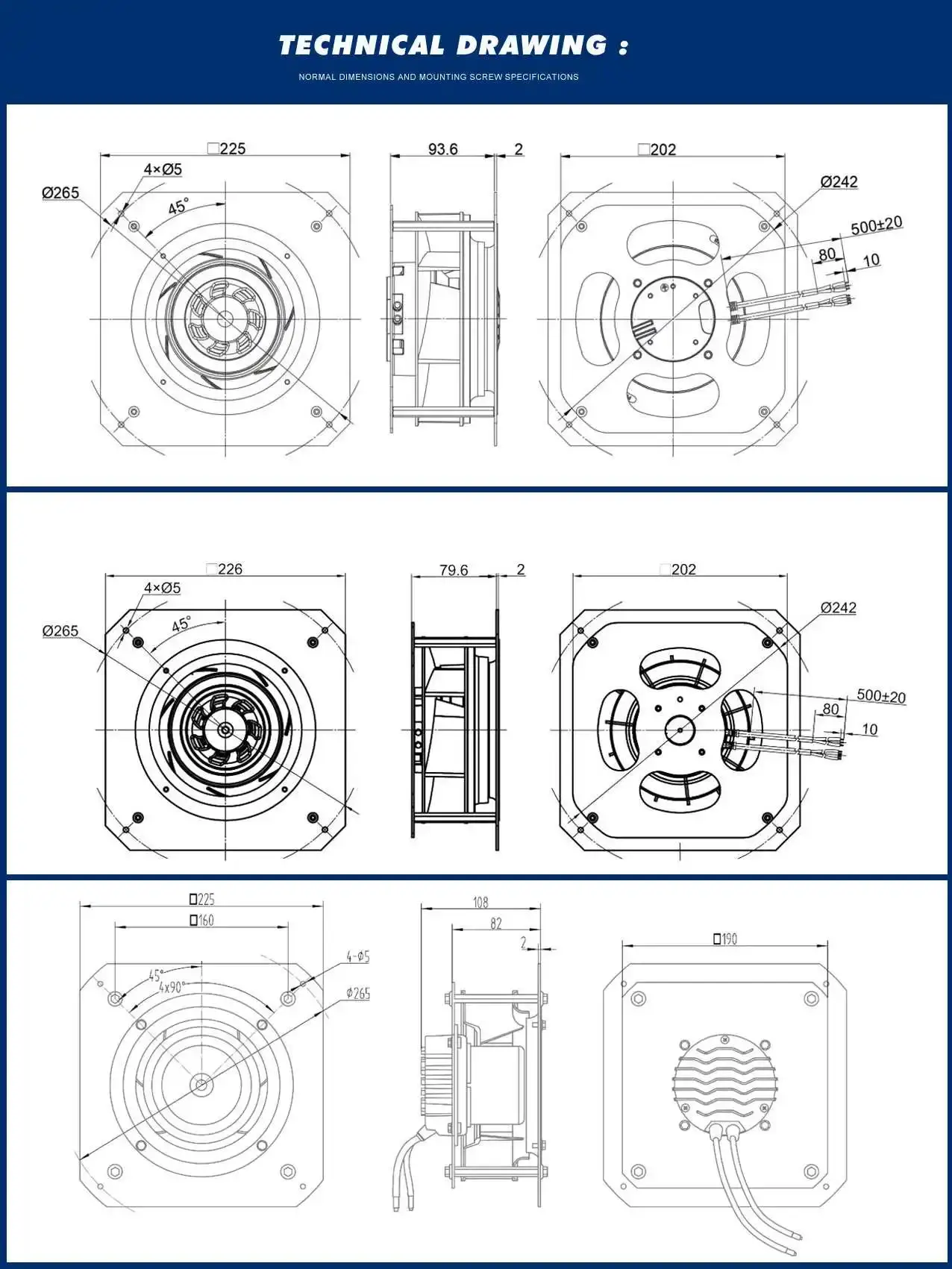

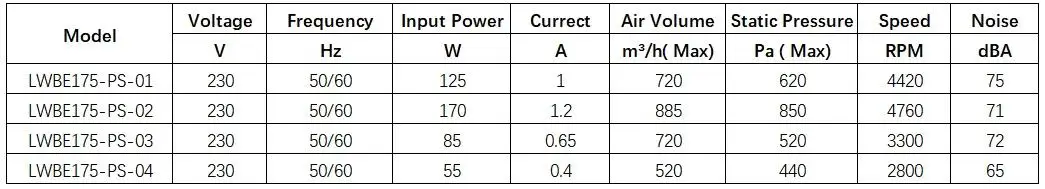

Model Dimesions :
|
LWBE175-PS-01 / LWBE175-PS-02 /LWBE175-PS-03 /LWBE175-PS-04
|
||||||
|
Nominal Voltage :
|
115V /220V ( EC)
|
||||||
|
Frequency :
|
50/60Hz
|
||||||
|
Power Input :
|
55W/85W/125W/170W
|
||||||
|
Air Flow Ranges :
|
0-885 m³/h
|
||||||
|
Air Pressure :
|
0-850 Pa
|
||||||
|
IP Level :
|
IP 55 ,IP 54
|
||||||
|
Speed Control :
|
Control Input 0-10VDC / PWM
|
||||||
|
Life Expectance
|
50,000Hours(L10)，At 40℃ room, humidity 15%~65%RH.
|
||||||
|
Electronic Protection :
|
Locked-rotor Protection ; Locked-Rotor Protection ; Over- Current Protection ;
Over- Voltage Protection ; Soft Start ;Reverse Polarity Protection
|
||||||
|
Ambient Temp Rangs
|
-25 ℃ – +60 ℃
|
||||||
|
EC Fan Series -Product Ranges Overview
|
||||||||
|
Norminal Sizes Ranges :
|
133mm – 630mm ;
|
|||||||
|
Norminal Voltage :
|
AC Motor – AC Input: 115v,220v,230v,380v,400v
|
|||||||
|
BLDC Motor – DC Input: 12v,24v,48v,310v
|
||||||||
|
ECM Motor – AC Input: 210v,220v,230v,380V
|
||||||||
|
Power Input Ranges:
|
From 45W to 4.0 kW
|
|||||||
|
Air Flow Ranges :
|
Up to 15000m³/h (or Customized)
|
|||||||
|
Speed Ranges
|
Up to 4000RPM (or Customized)
|
|||||||
|
Protection Class :
|
IP44 ,IP54
|
|||||||
|
Insulation Class :
|
B
|
|||||||
|
Min. amb. temperature :
|
-25℃
|
|||||||
|
Max. amb. temperature :
|
+60 ℃
|
|||||||
|
Speed control options
|
0-10V / PWM 、 MODBUS RTU
|
|||||||
|
Mainly Applications ：
|
· EC fan array
· Electronic cabinet cooling · Clean room modules · Heat exchangers · Air filtration systems · Military HRAC · Pharmaceutical/biological control systems · Computer room air conditioning (CRAC) systems · Air-handling units |
|||||||
|
Electronic Protections:
|
– Soft Start ;
-Locked-rotor Protectionn ;
– Tach output
-Reverse Polatity
|
|||||||

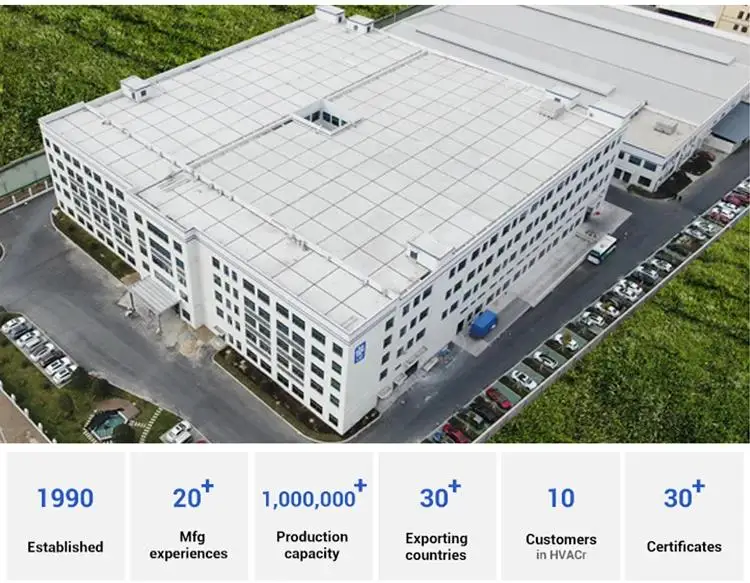

Company Profile

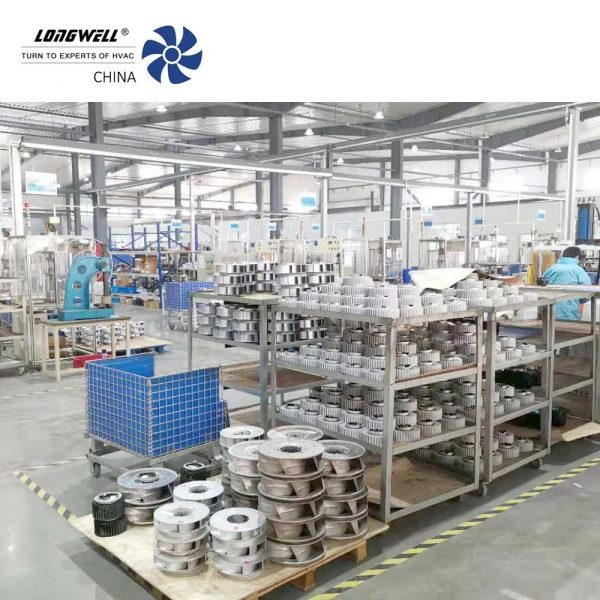

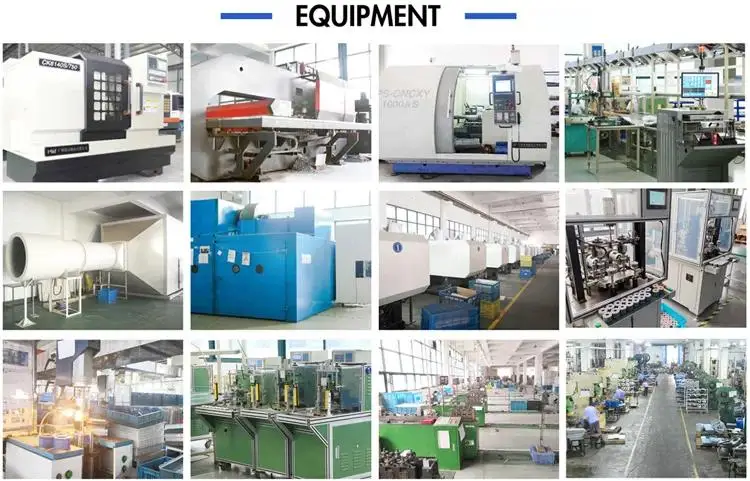

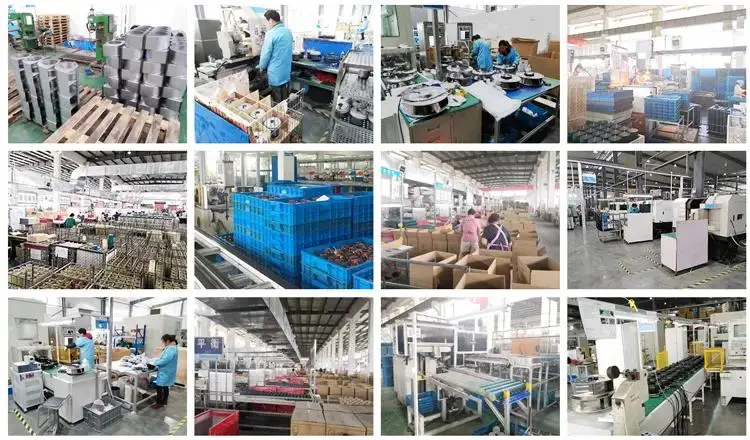

LONGWELL is a manufacturer of HVAC fans, blowers , motors and components ,such as centrifugal fans, axial fans, cross flow fans, single/double forward curved fans ,AC/BLDC/ECM motors as well as industrial fan blowers ，established in 1990 ,equipped with high advanced testing and production facilities ，automatic welding machines , CNC machining centers ,injection machines . with over 36 years of industry experience , LONGWELL is very skilled in designing, developing and manufacturing ,and exporting to over 30 countries including many Fortune Global 500 customers in HVACR application . and products passed CCC，CE ,ETL and UL .
LONGWELL EMC Technology is giving more energy saving to our world .
the advantages are :
1.Our ECM motorized fans’effiency are 30%-60% higher than the traditional motors .
2.the build-in PCBA achieved stepless speed control,and communication with customers products .
3.longer life span up to 600,000hours .
4.IP55,IP68 can be customized .
5.Sine wave ,three phase eliminate electromagnetic-acoustic and lots of other protection functions like soft start ,overload,motor block … .
