LONGWELL 280mm AC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 220/380V, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems – LWFA-280

Voltage 220/380V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 20

Specifications
Motor
AC Capacitor motor
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM

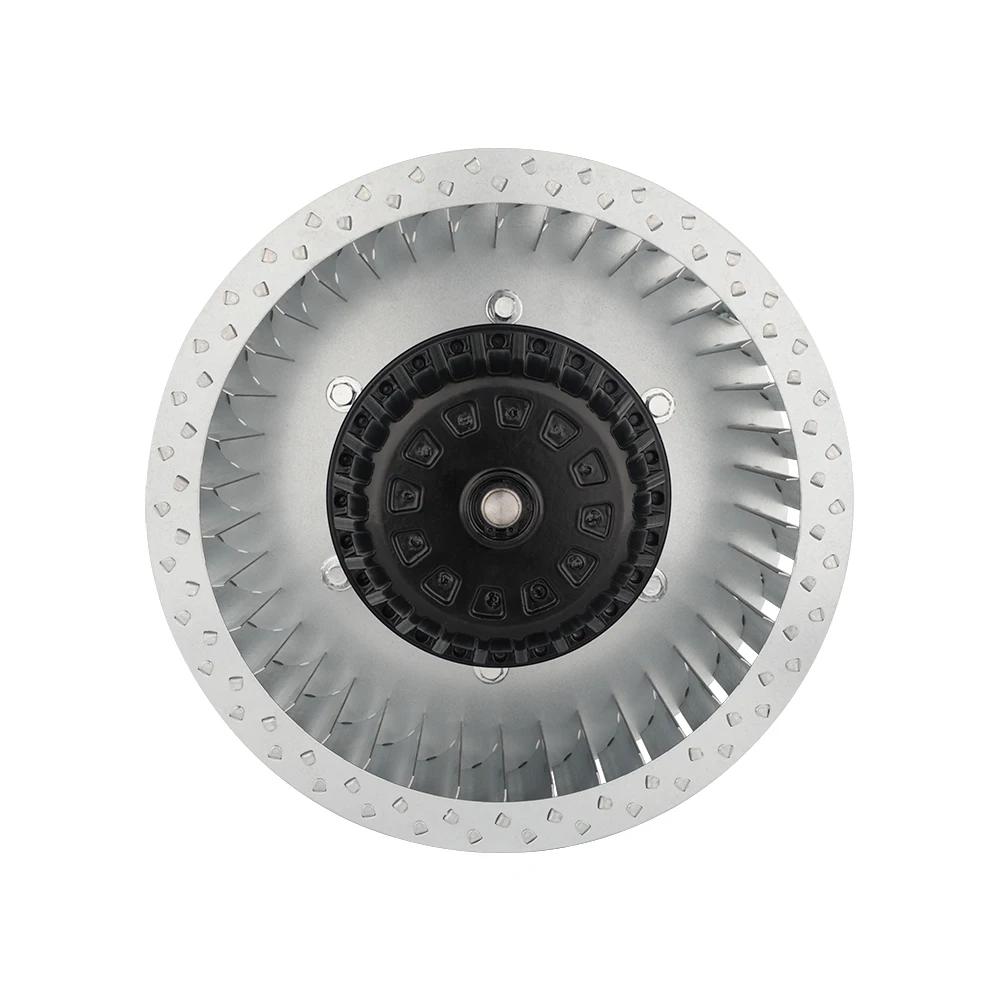

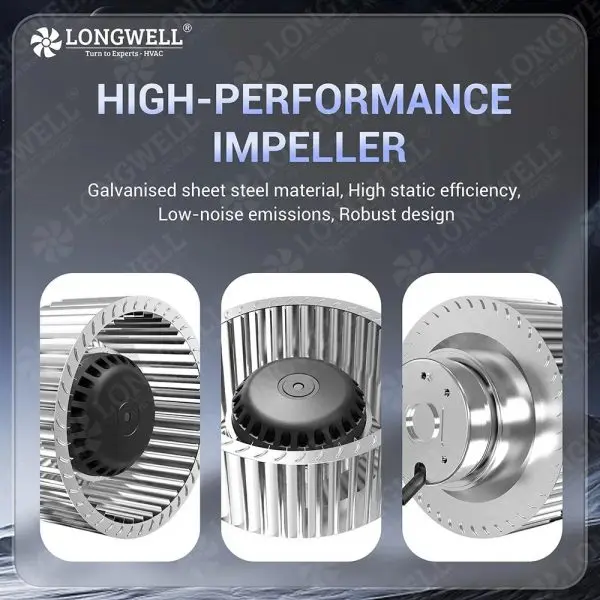

Impeller
Galvanized Metal Sheet
Category: Tags: , ,
CategoryAC Forward Fans
TagsCentrifugal FanExhaust VentilationExternal Rotor Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the AC Forward Fans range. The Fan Selector lists every LONGWELL AC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search AC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

Description

Types :
280mm AC 230V 380V 3 phase low noise Centrifugal Exhaust Radial Fan
Voltage Ranges :
220V,380V
Frequency :
50/60 Hz
Diamter :
280mm ( impeller diameters )
Motor Types :
BLEC External Rotor Motor
Speed Control :
0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:
-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:
IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage
Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH
Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH
Applicable altitude range：＜1000m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards :
LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

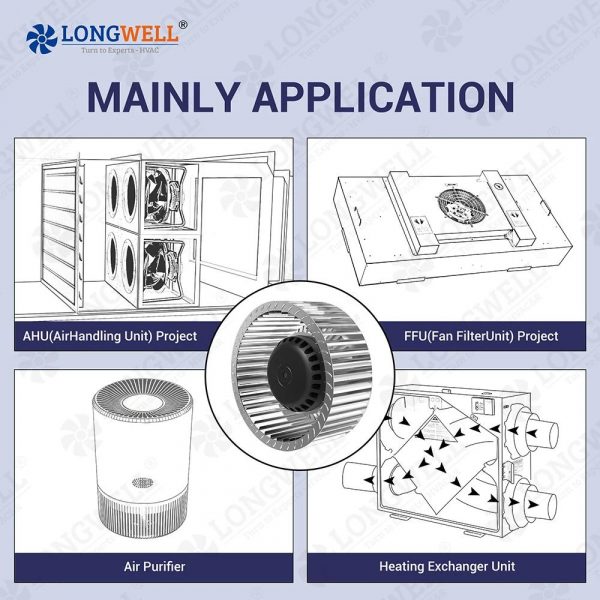

Mainly Applications
AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /
Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

Voltage

220/380V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

Galvanized Metal
customized support

OEM, ODM, OBM
mounting

Duct Fan
place of origin

Zhejiang, China
brand name

LONGWELL
model number

LWFA-280
warranty

1 Year
After-sales Service Provided

Video technical support
Material

STAINLESS STEEL, Plastic, aluminum alloy, Steel
Motor Type

AC Capacitor motor
Power input

220/380V
Impeller material

Galvanized Metal Sheet
Direction

Clockwise
Bearing

Ball Bearing
Amb,Temp

-25 to +60℃
Insulation

F
Protection Classs

IP44
Protection

Thermal Overload Protector ( TOP)
Type

Centrifugal Fan
Selling units

Single item
Single package size

30X30X20 cm
Single gross weight

5.000 kg
