Description
Technical Description

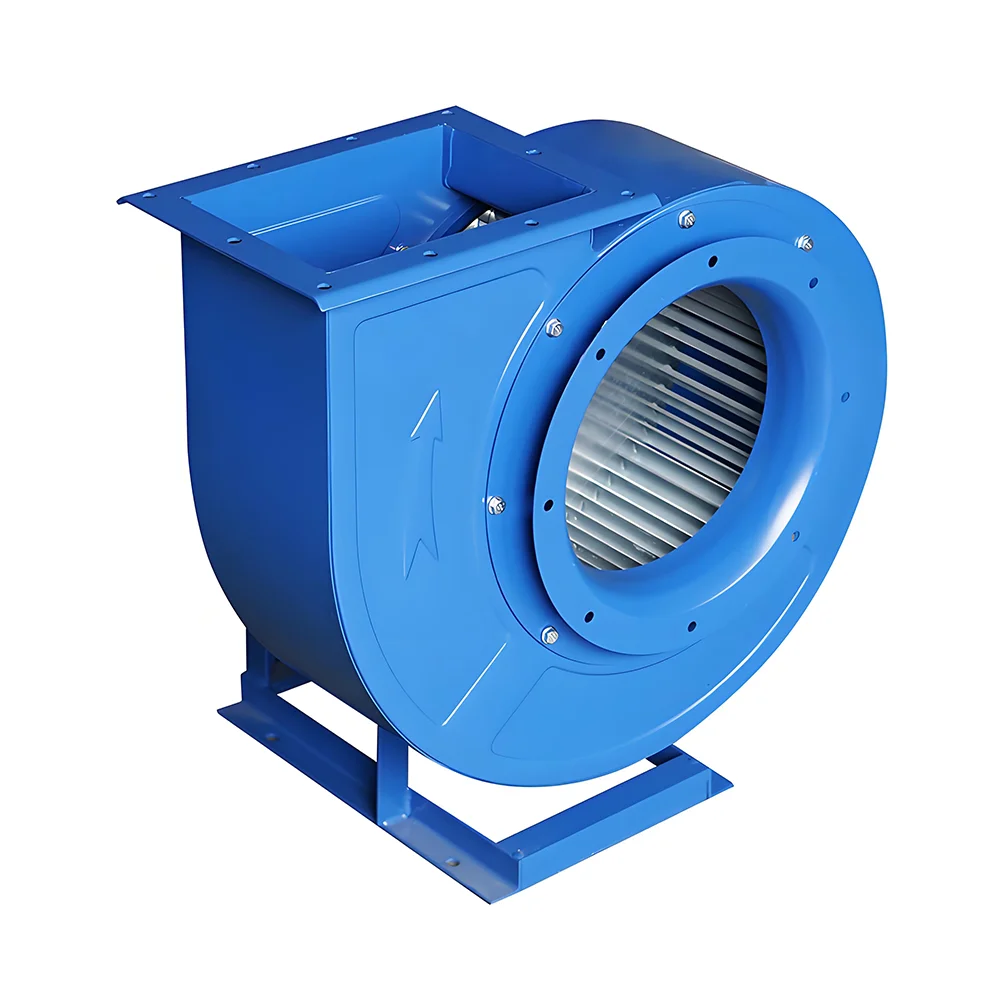

| Technical Feature | 1.High efficiency,low speed,low noise,high air volume,long service life. 2.With advanced aerodynamic impeller structure and logarithmic spiral shell, it has novel and compact structure and small vibration. 3.It is easy to use and adjust.Y2 and YY series of high-efficiency and energy-saving motors are used in the motor. They are high efficiency, low energy consumption, beautiful and generous in appearance. 4.Widely used in kitchen ventilation, lampblack ventilation and ventilation in public places such as canteens, hotels, restaurants, etc. 5.Particularly suitable for grain machinery, chemical machinery, plastic machinery, drying machinery, food machinery and other related industries. 6.Gas temperature is less than 80℃,dust and solid impurities are less than 150mg/m³. |
Nominal data
| Dimensions | / |
| Voltage | 380V/380V |
| Frequency | 50Hz/50Hz |
| Power | 4KW-4P/2.2KW-6P |
| Speed | 1450r/min/960r/min |
| Total Head | 1402-1140Pa/592-520Pa |
| Air Flow | 6312-10588m³/h/4598-7560m³/h |
| Noise | ≤78dB(A)/≤68dB(A) |
Curves
Drawing
Download
The Company Longwell Leading Fan and Motor Innovator Worldwide
As a leading supplier of ventilation and drive technology, LONGWELL is a highly respected engineering partner in many industries. With over than 20,000 different products, we provide the right solution for every need. And we have always worked according to the highest economic and ecological standards.
As part of the logical next step in the development of our high-efficiency BLEC MOTOR technology, we believe that industrial digitalization offers the best prospects for our customers in the future. LONGWELL already offers intelligently interconnected complete solutions that are second to none worldwide and ensure that our customers always remain that decisive step ahead.
