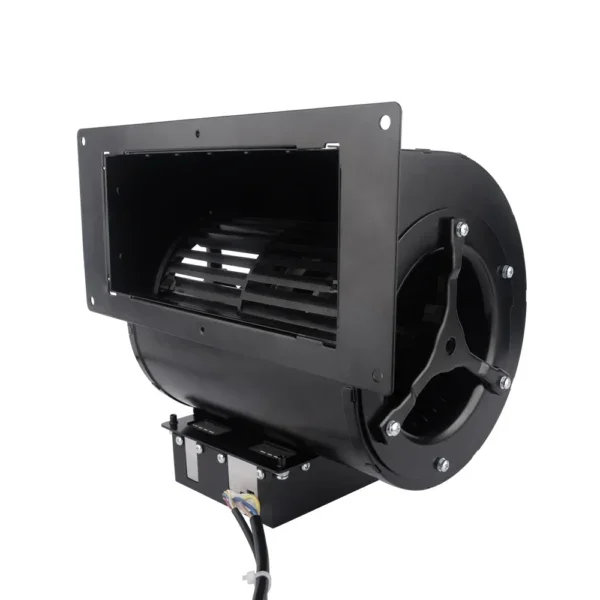

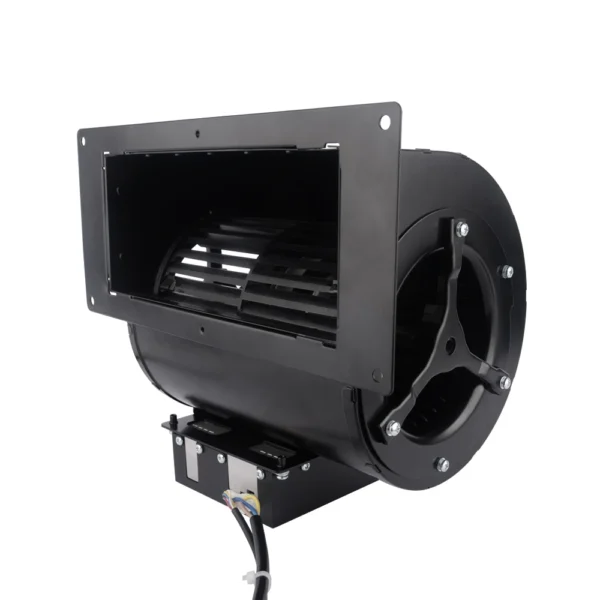

LONGWELL 180mm EC Double Inlet Forward Curved Centrifugal Fan, Double Inlet Blower Fan, 230V, Aluminum Alloy, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 230 V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 100

Category: Tags: , ,
CategoryEC Forward Fans
TagsAir ConditionerCentrifugal Blower FanEC Motor
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Forward Fans range. The Fan Selector lists every LONGWELL EC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

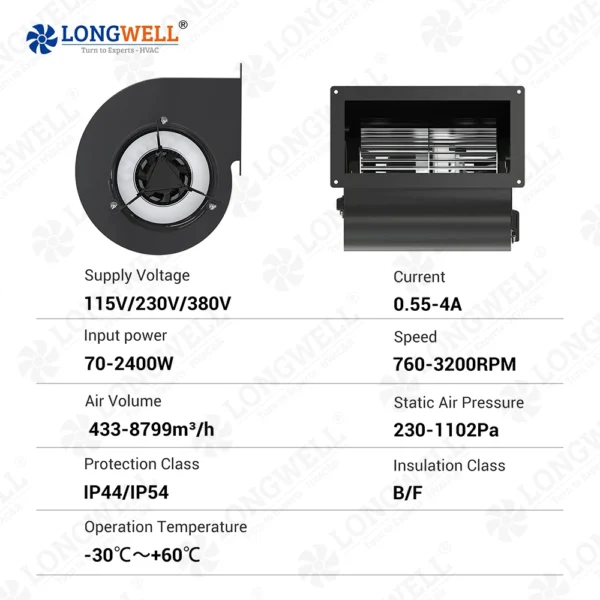

Description

Types :

EC 180 mm Centrifugal blower Fans Double inlet air with volute Commercial low noise for air conditioning condenser
Voltage Ranges :

230V
Frequency :

50/60 Hz
Diamter :

180mm ( impeller diameters )
Motor Types :

BLEC External Rotor Motor ( EC )

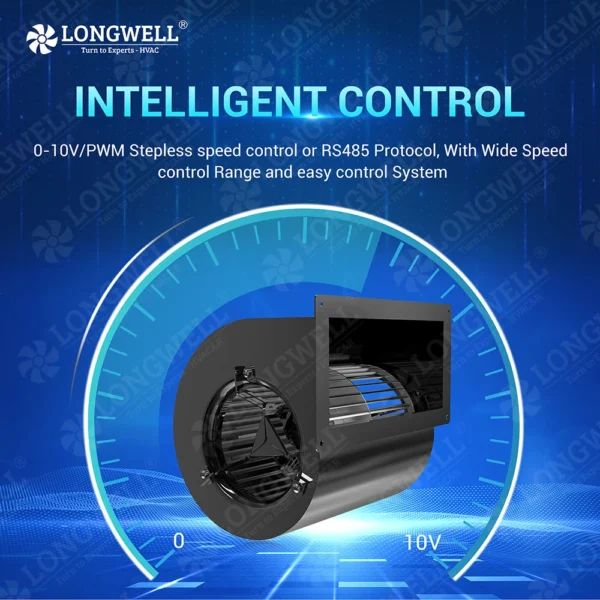

Speed Control :

0-10V Signal / PWM / RS485(Optional)
Max.ambient Temp:

-25℃～ +60℃
Certificating :
All necessary certifications suitable for USA & Europe , ETL,UL ,CE ,RoHS, ISO19001,ISO 14001,BSCI
Protection Level:

IP44 ,IP54,IP55
Electronic Protection:
Current limiting protection ,Over-temperature protection,Over-current protection,Locked-rotor protection,Soft start
Working & Storage

Operating temperature：-25~60℃；Operating humidity：0 ~ 85 % RH

Storing temperature：-25 ~ 70℃；Storing humidity：0 ~ 95 % RH

Applicable altitude range：＜1000m
Balancing

According to JB/T 9101-1999 requirements G6.3
Product Standards :

LVD EN60950-1 EMC EN61000-6-3,EN61000-4-2, EN61000-4-3

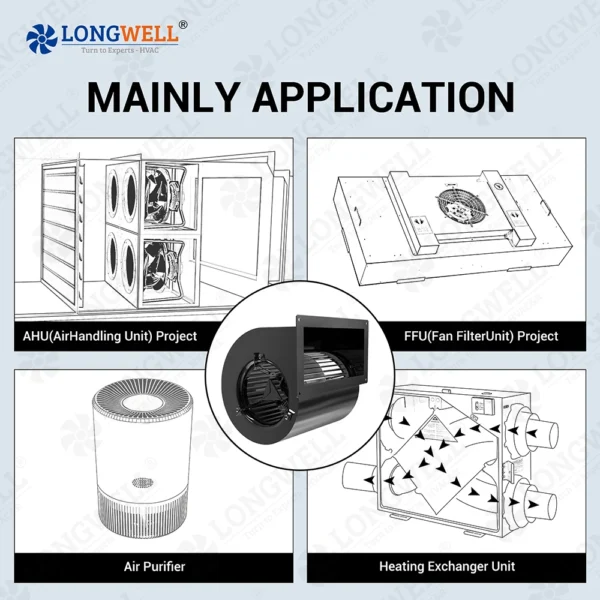

Mainly Applications

AUH/ AIR PURIFIER / Server Cooling & Ventilation / Grow Tent / Medical equipments/Ventilation SYSTEM/ Equipments Cooling /

Refrigerator ,etc;ventilation fan cooling;ventilation exhaust fans

Additional information

mounting

Other
Voltage

230 V
speed

4000 RPM, 500 RPM, 800 RPM, 1500 RPM, 600 RPM, 900rpm, 2000 RPM
Material

Stainless Steel, Plastic, Aluminum Alloy, Steel

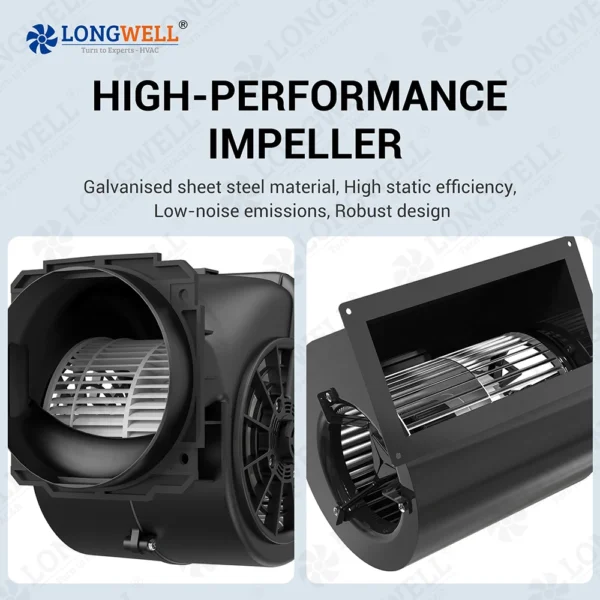

Blade Material

aluminum alloy
warranty

1 Year
