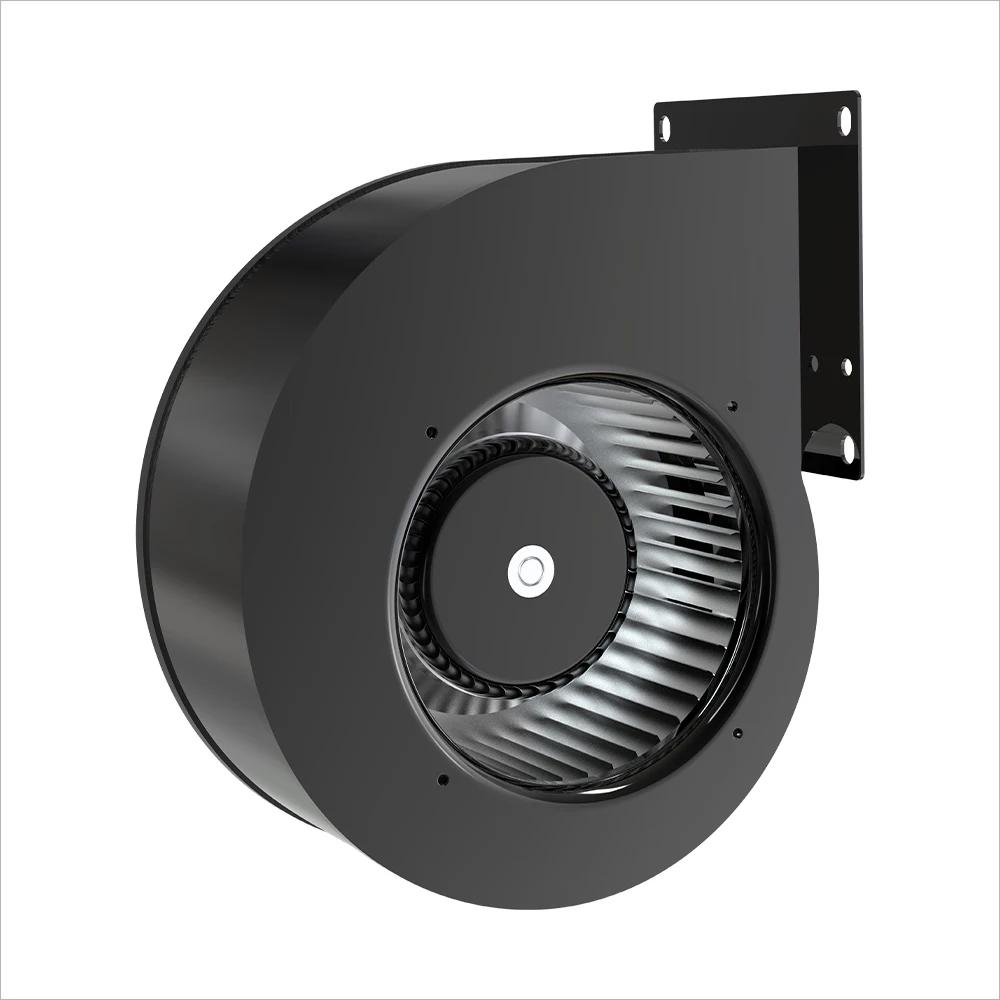

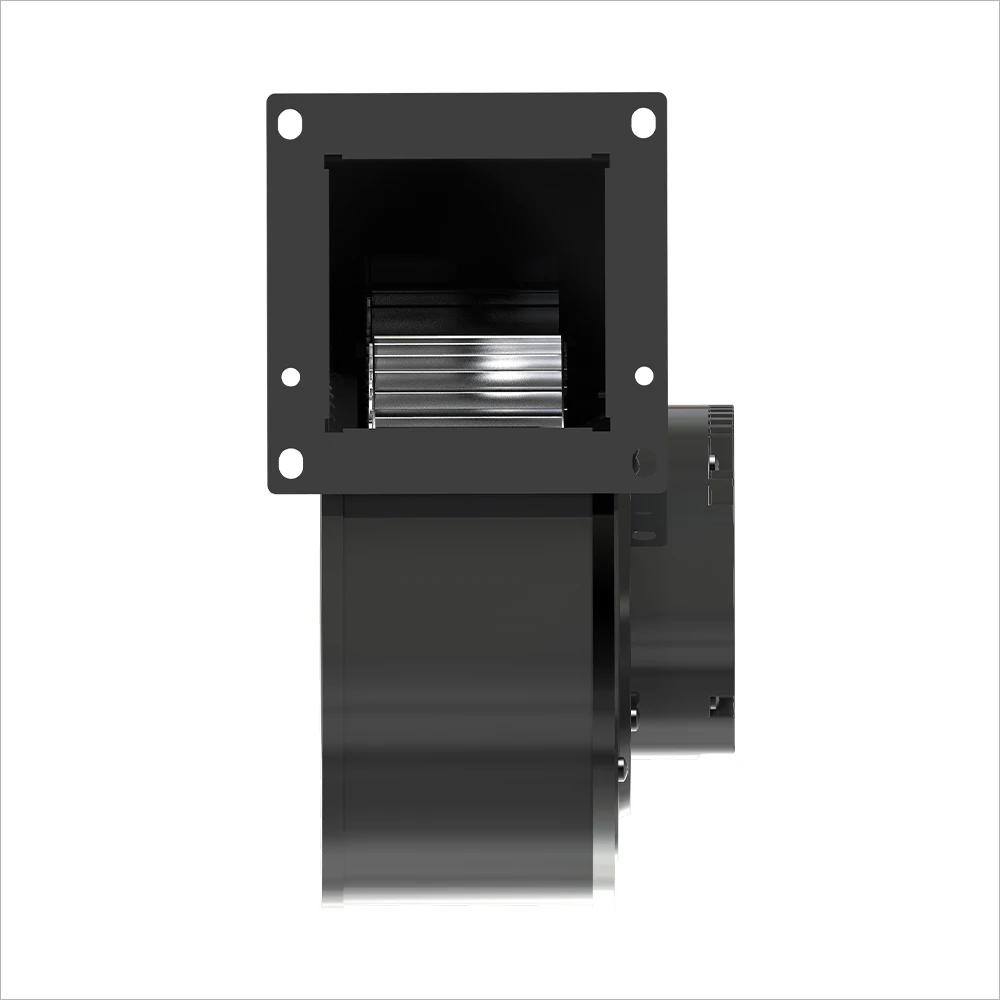

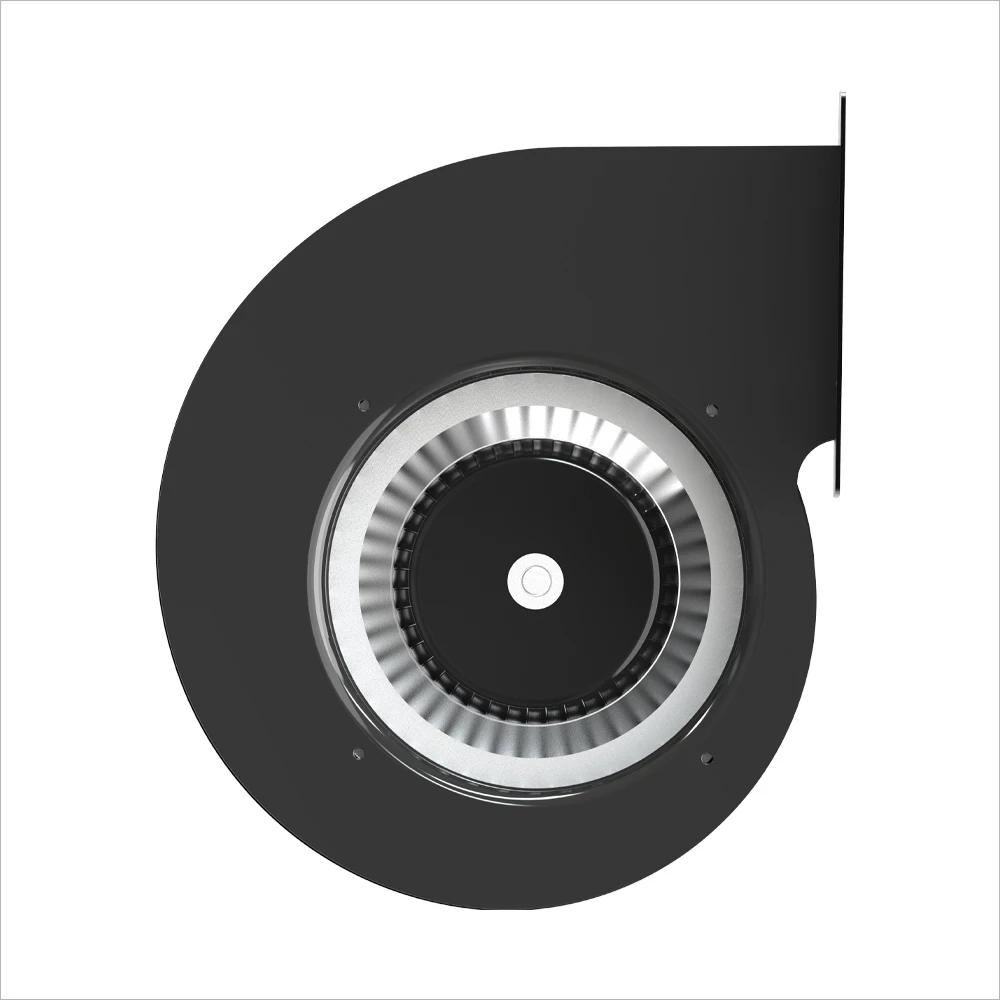

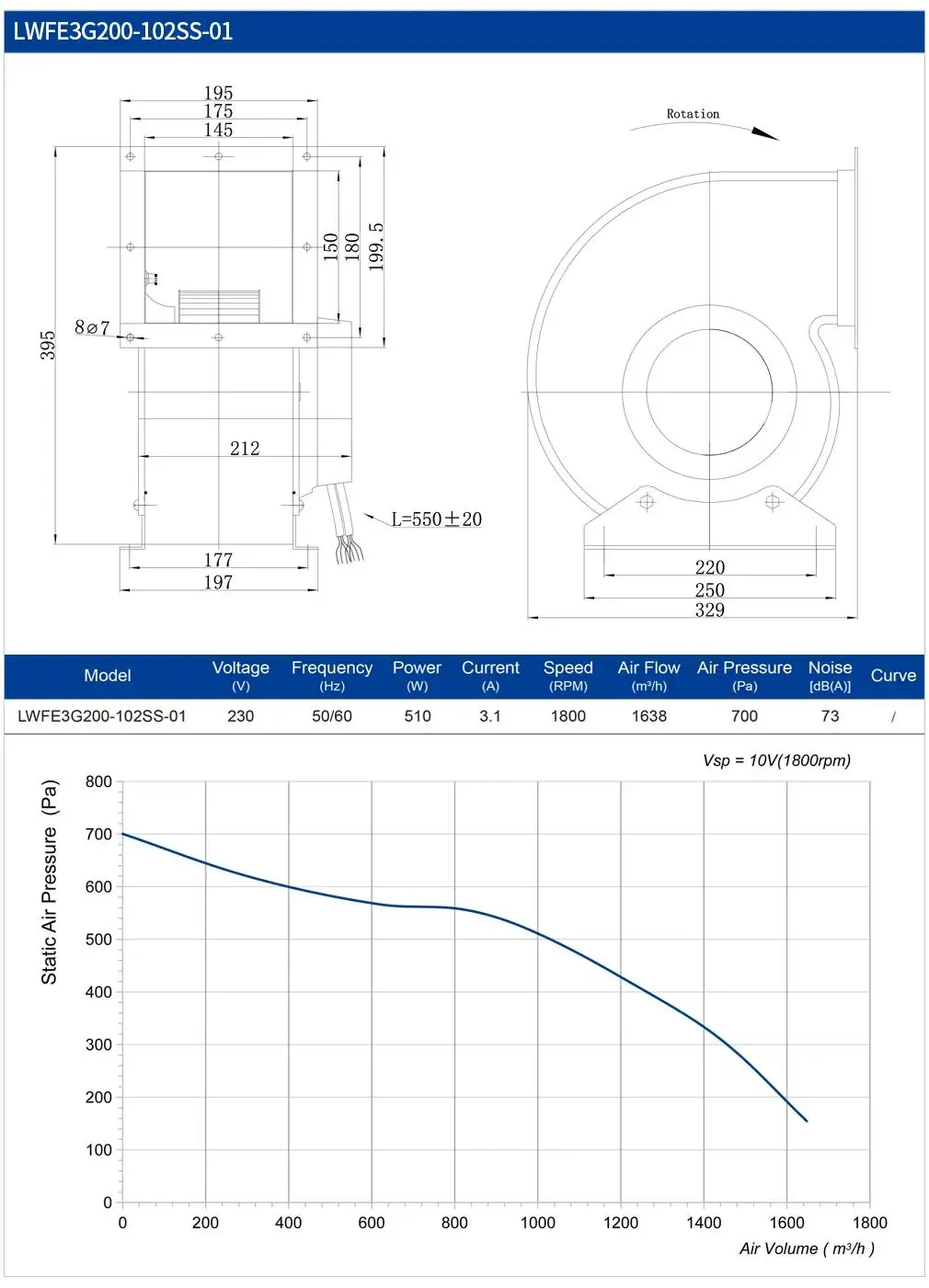

LONGWELL 200mm EC Forward Curved Centrifugal Blower, Forward Curved Blower Fan, 230V, Low Noise, for Cold Storage, Air Purifiers, HVAC Systems

Voltage 230V
ISO / CE / UL / ETL Factory & Test Lab OEM / ODM ebm-papst alternative

$ 100

Specifications
Speed
4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Impeller
Propylene with glass fiber reinforced
Category: Tags: , ,
CategoryEC Forward Fans
TagsCentrifugal Blower FanEC MotorIndustrial Ventilation
Get a Fast Quote from an Engineer Send your airflow, static pressure & voltage — we reply within one working day with a matching model.
✓ 1-day reply ✓ STEP / CAD on request ✓ Factory-direct

This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.

Your specifications go straight to a sales engineer — no spam, never shared.

Prefer a datasheet?
Download Product Catalog (PDF)
Need the exact model with a measured or digitised curve? This page describes the EC Forward Fans range. The Fan Selector lists every LONGWELL EC forward-curved fan model with airflow, static pressure, power, noise, drawing and datasheet.
Search EC forward-curved fan models →
Have your duty point?

See every LONGWELL model whose P-Q curve covers it — margins, noise and power included. No login.

Library: Ø25–1,000 mm, single units up to about 52,000 m³/h — larger duties go straight to an engineer. Prefer to talk it through? Send your specs to an engineer

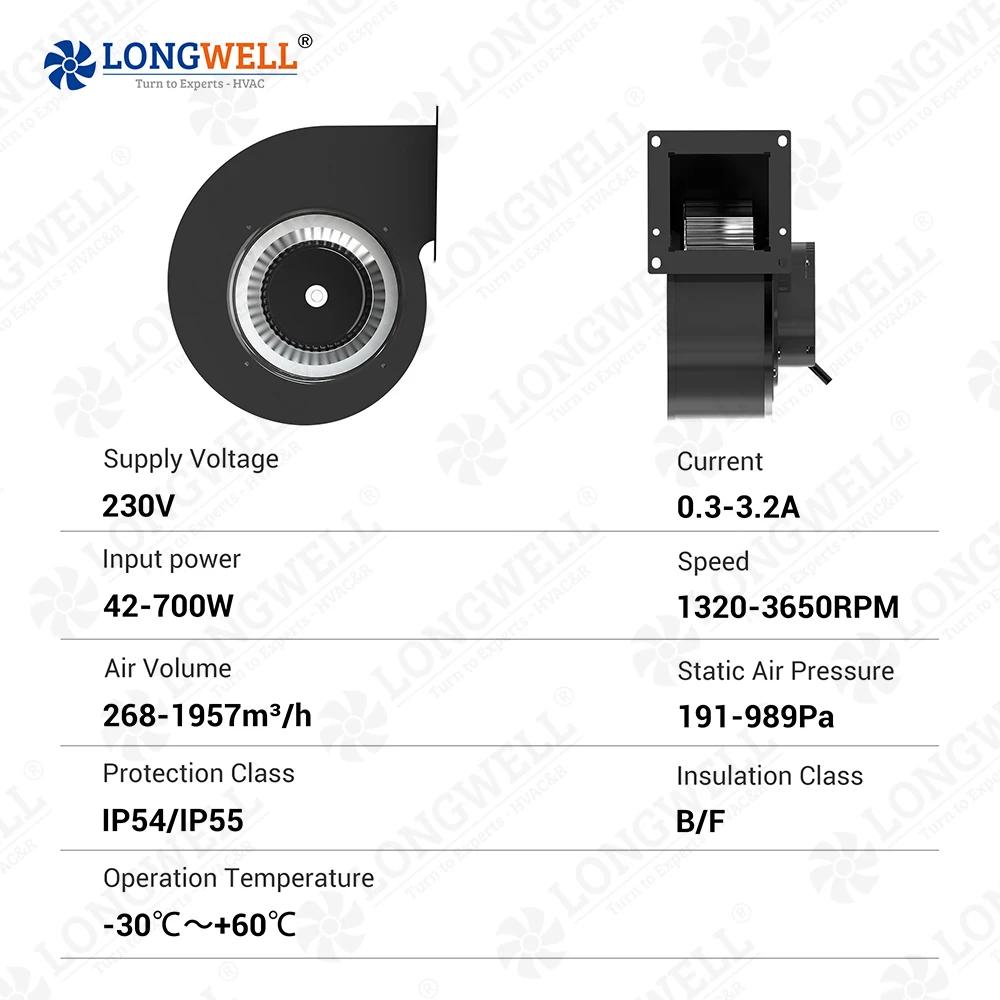

Description

Types
200 mm high pressure Low noise EC Forward Centrifugal blower fan for industrial applications, Pharmaceutical
Voltage Ranges
230V
Frequency
50/60 Hz
Diameter
200 mm (impeller diameters)
Motor Types
BLEC External Rotor Motor (EC)
Speed Control
0-10V Signal / PWM / RS485 (Optional)
Max. ambient Temp.
-25℃～+60℃
Certificating
All necessary certifications suitable for the USA & Europe: ETL, UL, CE, RoHS, ISO 19001, ISO 14001, BSCI
Protection Level
IP44, IP54, IP55
Electronic Protection
Current limiting protection, over-temperature protection, over-current protection, Locked-rotor protection, Soft start

Working & Storage
Operating temperature: -25~60℃; Operating humidity: 0~85% RH
Storing temperature: -25 ~ 70℃; storing humidity: 0 ~ 95 % RH
Applicable altitude range: <1000 m
Balancing
According to JB/T 9101-1999 requirements G6.3
Product Standards
LVD EN60950-1 EMC EN61000-6-3, EN61000-4-2, EN61000-4-3

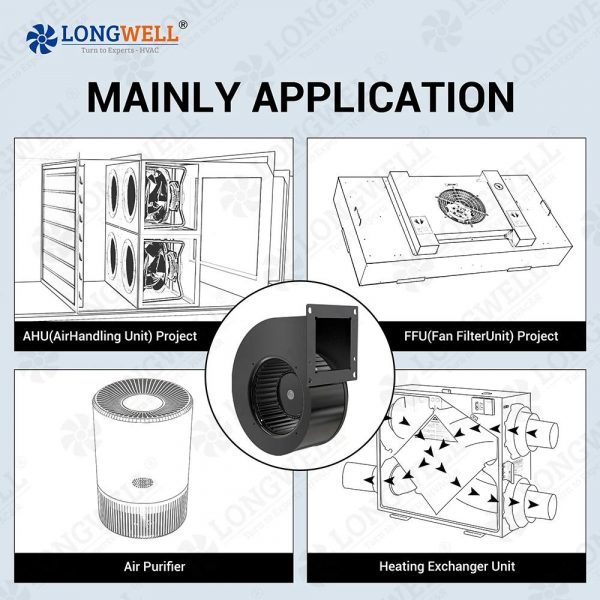

Mainly Applications
AUH/Air Purifier/Server Cooling & Ventilation/Grow Tent/Ventilation System/Equipment Cooling/
refrigerator, etc.; ventilation fan cooling; ventilation exhaust fans

Additional information

Voltage

230V
speed

4000rpm, 500RPM, 800RPM, 1500RPM, 600RPM, 900rpm, 2000RPM
Blade Material

aluminum alloy
customized support

OEM, ODM, OBM
mounting

Other
place of origin

Zhejiang, China
brand name

LONGWELL
warranty

1 Year
After-sales Service Provided

Free spare parts
Type

centrifugal fan

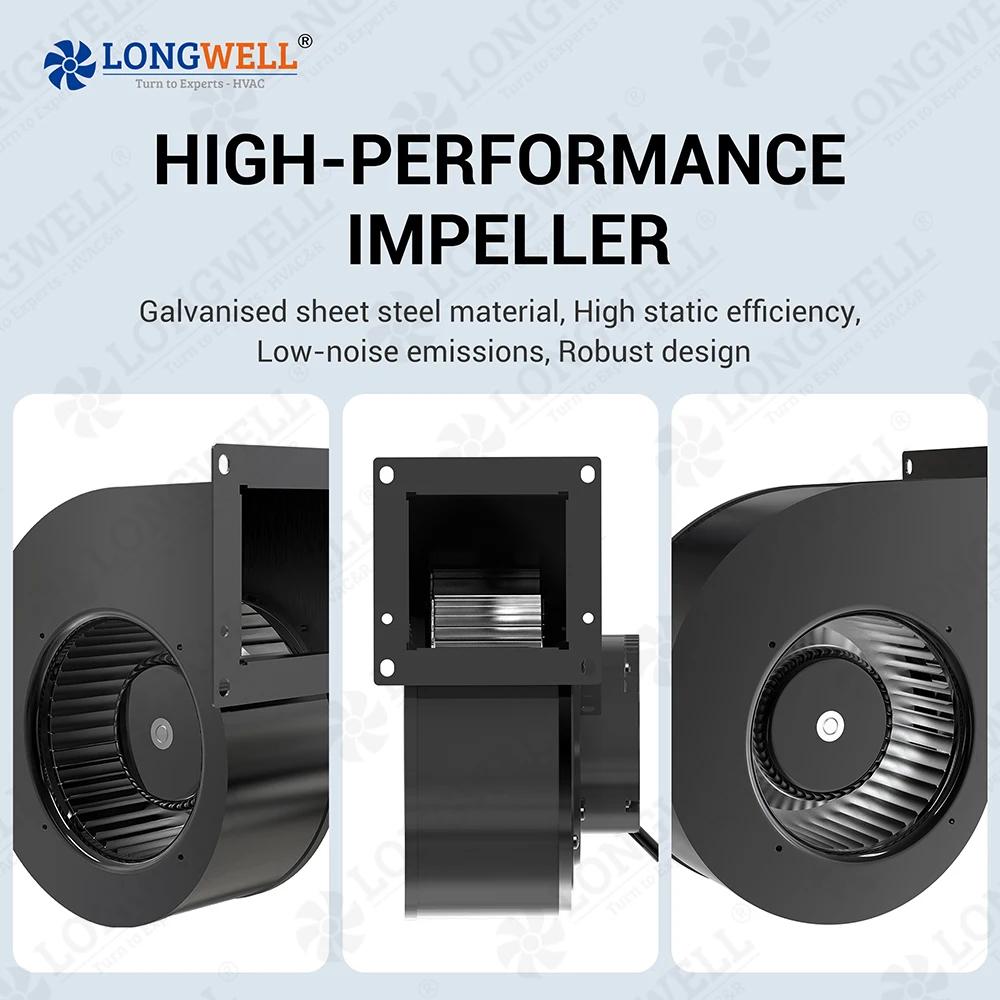

Impeller material

Propylene with glass fiber reinforced
Direction

Clockwise
Bearing

Ball Bearing
Amb,Temp

-25 to +60℃
Insulation

B/F
Product name

Blower Fan
Application

Exhaust Ventilation
Usage

High Pressure Blowing
Material

Galvanized Sheet
Selling units

Single item
Single package size

50X50X20 cm
Single gross weight

6.000 kg
